Makita LF1000
Makita LF1000: exploded parts diagram, 2 sheets, 269 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita LF1000: 269 positions on 2 sheets

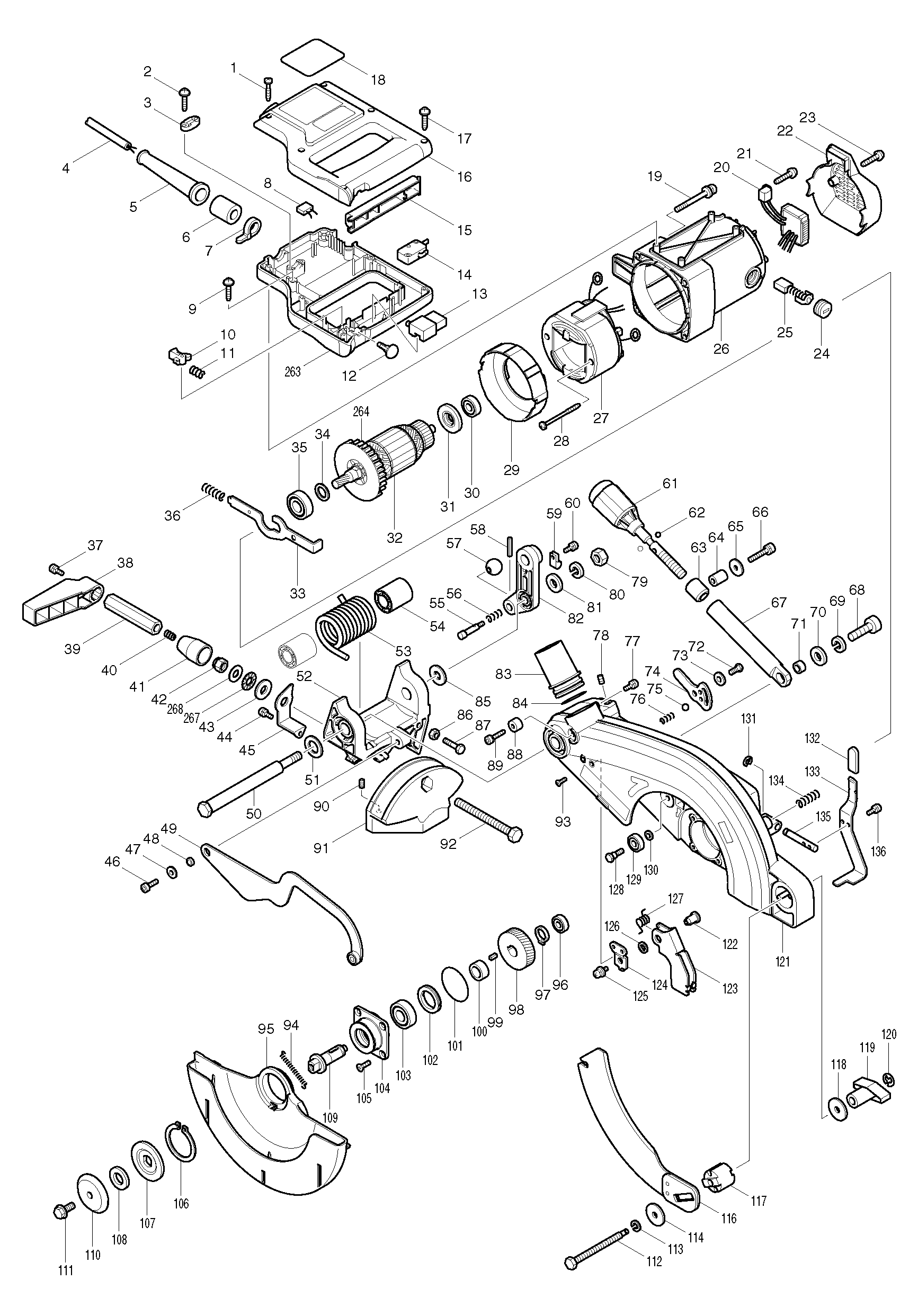

Sheet 1: Makita LF1000 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 2 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 3 | 687054-0 | Makita 687054-0 STRAIN RELIEF |
| 4 | 662971-5 | Makita 662971-5 POWER SUPPLY CORD 1.0-6-1 |
| 5 | 682506-6 | Makita 682506-6 CORD GUARD 12-90, LS1040 |
| 6 | 688140-0 | |
| 7 | 687010-0 | Makita 687010-0 BAND, 5704R |
| 8 | 645006-7 | Makita 645006-7 CAPACITOR PAB473, M560 |
| 9 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 10 | 416356-5 | Makita 416356-5 LOCK OFF LEVER, LF1000 |
| 11 | 231026-3 | Makita 231026-3 COMPRESSION SPRING 4, LS0714 |
| 12 | 416404-0 | Makita 416404-0 SWITCH BUTTON, LF1000 |
| 13 | 651923-1 | Makita 651923-1 Switch TG70B for LS1040 |
| 14 | 651941-9 | Makita 651941-9 SWITCH, LS1040 |
| 15 | 416357-3 | Makita 416357-3 SWITCH LEVER, LF1000 |
| 16 | 154574-4 | Makita 154574-4 HANDLE COVER COMPLETE LF1000 |
| 17 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 18 | 861365-3 | Makita 861365-3 NAME PLATE LF1000 |
| 19 | 911383-2 | Makita 911383-2 PAN HEAD SCREW M6X60 WR, LS1040 |
| 20 | 631661-1 | Makita 631661-1 CONTROLLER LF1000 |
| 21 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 22 | 416362-0 | Makita 416362-0 REAR COVER, LF1000 |
| 23 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 24 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 25 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 26 | 154569-7 | Makita 154569-7 MOTOR HOUSING COMPLETE, LF1000 |
| 27 | 596273-6 | Makita 596273-6 FIELD ASS'Y 220-240V, LF1000 |
| 28 | 266044-2 | Makita 266044-2 TAPPING SCREW PT 5X60, 5806B |
| 29 | 416361-2 | Makita 416361-2 BAFFLE PLATE, LF1000 |
| 30 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 31 | 681642-5 | Makita 681642-5 INSULATION WASHER, LF1000 |
| 32 | 516748-9 | Makita 516748-9 Armature Assembly 220-240V for LS1220 |
| 33 | 345574-7 | Makita 345574-7 SHAFT LOCK, LF1000 |
| 34 | 253147-1 | Makita 253147-1 FLAT WASHER 15 |
| 35 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 36 | 231297-2 | Makita 231297-2 COMPRESSION SPRING 9, 5007MG |
| 37 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 38 | 416006-2 | Makita 416006-2 Lever 100 LS1013 LS1040 LF1000 |
| 39 | 252192-3 | Makita 252192-3 HEX.NUT M10-17, LF1000 |
| 40 | 231266-3 | Makita 231266-3 COMPRESSION SPRING 5, LS0713F |
| 41 | 331691-9 | Makita 331691-9 SPACER, LF1000 |
| 42 | 252130-5 | Makita 252130-5 HEX LOCK NUT M10-17, 2414NB |
| 43 | 253197-6 | Makita 253197-6 FLAT WASHER 10, 2703 |
| 44 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 45 | 816825-0 | Makita 816825-0 INDICATION PLATE, LF1000 |
| 46 | 922332-4 | Makita 922332-4 HEX.SOCKET HEAD BOLT M6*20, LS1016 |
| 47 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 48 | 257270-4 | Makita 257270-4 RING 6, LF1000 |
| 49 | 154573-6 | Makita 154573-6 LINK PLATE COMPLETE, LF1000 |
| 50 | 265532-6 | Makita 265532-6 HEX.BOLT M10, LF1000 |
| 51 | 253707-9 | Makita 253707-9 FLAT WASHER 16 |
| 52 | 154570-2 | Makita 154570-2 ARM COMPLETE LF1000 |
| 53 | 231681-1 | Makita 231681-1 TORSION SPRING 34, LF1000 |
| 54 | 416358-1 | Makita 416358-1 SLEEVE 17, LF1000 |
| 55 | 256488-4 | Makita 256488-4 PIN 7, LF1000 |
| 56 | 233429-7 | Makita 233429-7 COMPRESSION SPRING 7, LF1000 |
| 57 | 271601-3 | Makita 271601-3 Knob 20 for LS0713 |
| 58 | 951063-8 | Makita 951063-8 SPRING PIN 3-16 |
| 59 | 687049-3 | Makita 687049-3 CORD CLAMP, 2012NB |
| 60 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 61 | 271319-6 | Makita 271319-6 KNOB, LF1000 |
| 62 | 216013-3 | Makita 216013-3 STEEL BALL 6.0, HR245FT |
| 63 | 257750-0 | Makita 257750-0 SLEEVE 13, LF1000 |
| 64 | 257748-7 | Makita 257748-7 SLEEVE 6, LF1000 |
| 65 | 267173-4 | Makita 267173-4 FLAT WASHER 6 |
| 66 | 922351-0 | Makita 922351-0 H.S.H.BOLT M6X30, LF1000 |
| 67 | 331689-6 | Makita 331689-6 ADJUST NUT, LF1000 |
| 68 | 922557-0 | Makita 922557-0 HEX. SOCKET HEAD BOLT M10 X35 |
| 69 | 942251-8 | Makita 942251-8 SPRING WASHER 10 |
| 70 | 941252-3 | Makita 941252-3 FLAT WASHER, LF1000 |
| 71 | 257747-9 | Makita 257747-9 SLEEVE 10, LF1000 |
| 72 | 265984-1 | Makita 265984-1 Hex. Socket Button H.S.M6 for LS1040 |
| 73 | 253823-7 | Makita 253823-7 FLAT WASHER 7, LS1040 |
| 74 | 345553-5 | Makita 345553-5 STOPPER PLATE, LF1000 |
| 75 | 216004-4 | Makita 216004-4 STEEL BALL 7.9 |
| 76 | 231038-6 | Makita 231038-6 COMPRESSION SPRING 6, LS0810 |
| 77 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 78 | 266085-8 | Makita 266085-8 HEX SOCKET HEAD SET SCREW M6, LF1000 |
| 79 | 931502-4 | Makita 931502-4 HEX NUT M10, LF1000 |
| 80 | 942251-8 | Makita 942251-8 SPRING WASHER 10 |
| 81 | 941252-3 | Makita 941252-3 FLAT WASHER, LF1000 |
| 82 | 317889-2 | Makita 317889-2 CONNECTING ROD, LF1000 |
| 83 | 416133-5 | Makita 416133-5 DUST NOZZLE |
| 84 | 213460-9 | Makita 213460-9 O RING 35, LF1000 |
| 85 | 253197-6 | Makita 253197-6 FLAT WASHER 10, 2703 |
| 86 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 87 | 921342-8 | Makita 921342-8 HEX. BOLT M6X25 |
| 88 | 257746-1 | Makita 257746-1 SLEEVE 5, LF1000 |
| 89 | 922231-0 | Makita 922231-0 HEX. SOCKET HEAD BOLT M5X20, HR2010 |
| 90 | 266085-8 | Makita 266085-8 HEX SOCKET HEAD SET SCREW M6, LF1000 |
| 91 | 317887-6 | Makita 317887-6 SUM ARM, LF1000 |
| 92 | 266377-5 | Makita 266377-5 BOLT M10, LF1000 |
| 93 | 912112-6 | Makita 912112-6 Countersunk Screw M4X10 for RP0900 |
| 94 | 231836-8 | Makita 231836-8 TENSION SPRING 4, LF1000 |
| 95 | 418922-4 | Makita 418922-4 SAFETY COVER, LF1000 |
| 96 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 97 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 98 | 226600-0 | Makita 226600-0 HELICAL GEAR 46, LF1000 |
| 99 | 254202-2 | Makita 254202-2 KEY 4 LS1013 |
| 100 | 257266-5 | Makita 257266-5 RING, LF1000 |
| 101 | 213623-7 | Makita 213623-7 O-RING 46, LF1000 |
| 102 | 285808-5 | Makita 285808-5 BEARING RETAINER 25-36 |
| 103 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 104 | 317888-4 | Makita 317888-4 BEARING BOX, LF1000 |
| 105 | 912222-9 | Makita 912222-9 COUNTERSUNK HEAD M5X16, M926 |
| 106 | 961201-4 | Makita 961201-4 RETAINING RING S-42, 5007NB |
| 107 | 224333-1 | Makita 224333-1 FLANGE 53, LH1040 |
| 108 | 257262-3 | Makita 257262-3 RING 16, LH1040 |
| 109 | 324543-1 | Makita 324543-1 SPINDLE, LF1000 |
| 110 | 224400-2 | Makita 224400-2 OUTER FLANGE 53, LF1000 |
| 111 | 265355-2 | Makita 265355-2 |
| 112 | 265534-2 | Makita 265534-2 HEX.BOLT M8X86, LF1000 |
| 113 | 942201-3 | Makita 942201-3 SPRING WASHER 8, 2414NB |
| 114 | 267009-7 | Makita 267009-7 FLAT WASHER 8 |
| 116 | 163461-6 | Makita 163461-6 RIVING KNIFE, LF1000 |
| 117 | 331690-1 | Makita 331690-1 KNIFE SUPPORT, LF1000 |
| 118 | 267009-7 | Makita 267009-7 FLAT WASHER 8 |
| 119 | 252641-0 | Makita 252641-0 NUT M8, LF1000 |
| 120 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 121 | 154571-0 | Makita 154571-0 BLADE CASE COMPLETE, LF1000 |
| 122 | 324497-2 | Makita 324497-2 GUARD SHAFT, LH1040 |
| 123 | 345554-3 | Makita 345554-3 GUARD, LF1000 |
| 124 | 345558-5 | Makita 345558-5 GUARD HOLDER, LF1000 |
| 125 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 126 | 267070-4 | Makita 267070-4 FLAT WASHER 10, LF1000 |
| 127 | 231675-6 | Makita 231675-6 TORSION SPRING 11, LF1000 |
| 128 | 265533-4 | Makita 265533-4 HEX.BOLT M6, LF1000 |
| 129 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 130 | 267173-4 | Makita 267173-4 FLAT WASHER 6 |
| 131 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 132 | 421589-9 | Makita 421589-9 CAP, LS1040 |
| 133 | 345552-7 | Makita 345552-7 LOCK LEVER, LF1000 |
| 134 | 231297-2 | Makita 231297-2 COMPRESSION SPRING 9, 5007MG |
| 135 | 256855-3 | Makita 256855-3 ROD 8, LF1000 |
| 136 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 263 | 416364-6 | Makita 416364-6 HANDLE LF1000 |
| 267 | 216413-7 | Makita 216413-7 THRUST NEEDLE CAGE 1024, LS0713 |
| 268 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |

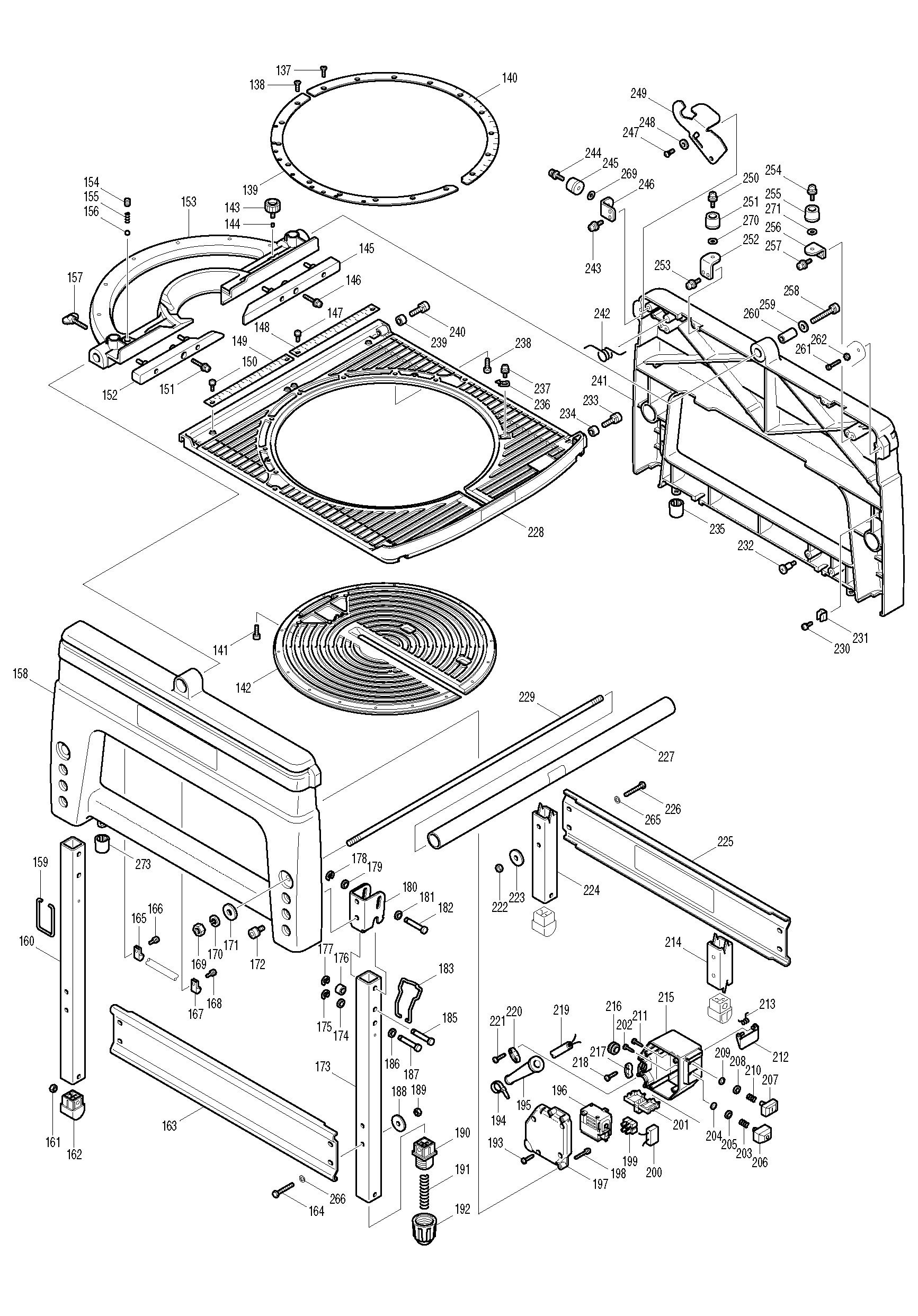

Sheet 2: Makita LF1000 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 137 | 912112-6 | Makita 912112-6 Countersunk Screw M4X10 for RP0900 |
| 138 | 912112-6 | Makita 912112-6 Countersunk Screw M4X10 for RP0900 |
| 139 | 345541-2 | Makita 345541-2 SLIDE PLATE L, LF1000 |
| 140 | 345542-0 | Makita 345542-0 SLIDE PLATE R, LF1000 |
| 141 | 922332-4 | Makita 922332-4 HEX.SOCKET HEAD BOLT M6*20, LS1016 |
| 142 | 154575-2 | Makita 154575-2 TURN TABLE COMPLETE, LF1000 |
| 143 | 251815-0 | Makita 251815-0 SCREW M6X25 |
| 144 | 268068-4 | Makita 268068-4 PIN 5, LF1000 |
| 145 | 154578-6 | Makita 154578-6 SUB FENCE R COMPLETE, LF1000 |
| 146 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 147 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 148 | 816827-6 | Makita 816827-6 SCALE PLATE R, LF1000 |
| 149 | 816826-8 | Makita 816826-8 SCALE PLATE L, LF1000 |
| 150 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 151 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 152 | 154577-8 | Makita 154577-8 SUB FENCE L COMPLETE, LF1000 |
| 153 | 154576-0 | Makita 154576-0 GUIDE FENCE COMPLETE, LF1000 |
| 154 | 251966-9 | Makita 251966-9 HEX. SOCKET HEAD BOLT M10 X12 |
| 155 | 231038-6 | Makita 231038-6 COMPRESSION SPRING 6, LS0810 |
| 156 | 216004-4 | Makita 216004-4 STEEL BALL 7.9 |
| 157 | 265710-8 | Makita 265710-8 THUMB SCREW M6*33, LF1000 |
| 158 | 188010-8 | Makita 188010-8 FRAME SET, LF1000 |
| 159 | 345547-0 | Makita 345547-0 HOOK, LF1000 |
| 160 | 331687-0 | Makita 331687-0 SQARE PIPE 32-510, LF1000 |
| 161 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 162 | 418927-4 | Makita 418927-4 FOOT, LF1000 |
| 163 | 154592-2 | Makita 154592-2 SUPPORT BRACKET COMPLETE, LF1000 |
| 164 | 921367-2 | Makita 921367-2 HEX BOLT M6*45, LF1000 |
| 165 | 687049-3 | Makita 687049-3 CORD CLAMP, 2012NB |
| 166 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 167 | 687049-3 | Makita 687049-3 CORD CLAMP, 2012NB |
| 168 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 169 | 931502-4 | Makita 931502-4 HEX NUT M10, LF1000 |
| 170 | 942251-8 | Makita 942251-8 SPRING WASHER 10 |
| 171 | 267087-7 | Makita 267087-7 FLAT WASHER 10 |
| 172 | 922431-2 | Makita 922431-2 HEX. SOCKET HEAD BOLT M8X |
| 173 | 331686-2 | Makita 331686-2 SQARE PIPE 32-475, LF1000 |
| 174 | 253165-9 | Makita 253165-9 FLAT WASHER 8 HM1800 |
| 175 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 176 | 257749-5 | Makita 257749-5 SLEEVE 8, LF1000 |
| 177 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 178 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 179 | 253165-9 | Makita 253165-9 FLAT WASHER 8 HM1800 |
| 180 | 345543-8 | Makita 345543-8 BRACKET, LF1000 |
| 181 | 253165-9 | Makita 253165-9 FLAT WASHER 8 HM1800 |
| 182 | 268127-4 | Makita 268127-4 PIN 8, LF1000 |
| 183 | 345548-8 | Makita 345548-8 STOPPER HOOK, LF1000 |
| 185 | 268127-4 | Makita 268127-4 PIN 8, LF1000 |
| 186 | 253165-9 | Makita 253165-9 FLAT WASHER 8 HM1800 |
| 187 | 268141-0 | Makita 268141-0 PIN 8, LF1000 |
| 188 | 267009-7 | Makita 267009-7 FLAT WASHER 8 |
| 189 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 190 | 418925-8 | Makita 418925-8 FOOT BOLT, LF1000 |
| 191 | 233087-9 | Makita 233087-9 COMPRESSION SPRING 13 LF1000 |
| 192 | 418926-6 | Makita 418926-6 FOOT NUT, LF1000 |
| 193 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 194 | 687209-7 | |
| 195 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 196 | 652772-9 | Makita 652772-9 RELAY 305.232.01, LF1000 |
| 197 | 418924-0 | Makita 418924-0 SWITCH BOX COVER, LF1000 |
| 198 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 199 | 654561-8 | Makita 654561-8 TERMINAL BLOCK, 2012NB |
| 200 | 645206-9 | Makita 645206-9 NOISE SUPPRESSOR LF1000 |
| 201 | 686035-1 | Makita 686035-1 RECEPTACLE SLEEVE, LF1000 |
| 202 | 418618-7 | Makita 418618-7 PIN, LF1000 |
| 203 | 231025-5 | Makita 231025-5 Compression Spring 8 for UC3020A |
| 204 | 443103-1 | Makita 443103-1 FELT RING 6, 6409 |
| 205 | 253186-1 | Makita 253186-1 FLAT WASHER, MDB10-2 |
| 206 | 418617-9 | Makita 418617-9 SWITCH LEVER OFF, LF1000 |
| 207 | 418616-1 | Makita 418616-1 SWITCH LEVER ON, LF1000 |
| 208 | 253186-1 | Makita 253186-1 FLAT WASHER, MDB10-2 |
| 209 | 443103-1 | Makita 443103-1 FELT RING 6, 6409 |
| 210 | 231025-5 | Makita 231025-5 Compression Spring 8 for UC3020A |
| 211 | 418618-7 | Makita 418618-7 PIN, LF1000 |
| 212 | 418929-0 | Makita 418929-0 SWITCH COVER, LF1000 |
| 213 | 231682-9 | Makita 231682-9 TORSION SPRING, LF1000 |
| 214 | 331686-2 | Makita 331686-2 SQARE PIPE 32-475, LF1000 |
| 215 | 418923-2 | Makita 418923-2 SWITCH BOX, LF1000 |
| 216 | 682511-3 | Makita 682511-3 GROMMET |
| 217 | 687054-0 | Makita 687054-0 STRAIN RELIEF |
| 218 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 219 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 220 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 221 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 222 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 223 | 267009-7 | Makita 267009-7 FLAT WASHER 8 |
| 224 | 331686-2 | Makita 331686-2 SQARE PIPE 32-475, LF1000 |
| 225 | 345546-2 | Makita 345546-2 SUPPORT BRACKET, LF1000 |
| 226 | 921367-2 | Makita 921367-2 HEX BOLT M6*45, LF1000 |
| 227 | 154593-0 | Makita 154593-0 POPE 32 COMPLETE, LF1000 |
| 228 | 154572-8 | Makita 154572-8 TABLE COMPLETE, LF1000 |
| 229 | 266360-2 | Makita 266360-2 SCREW M10, LF1000 |
| 230 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 231 | 232075-3 | Makita 232075-3 LEAF SPRING, LC1230 |
| 232 | 266030-3 | |
| 233 | 922442-7 | Makita 922442-7 HEX.SOCKET BOLT M8X25, LF1000 |
| 234 | 257749-5 | Makita 257749-5 SLEEVE 8, LF1000 |
| 235 | 418931-3 | Makita 418931-3 CAP, LF1000 |
| 236 | 816128-2 | Makita 816128-2 POSITION PLATE, LS1013 |
| 237 | 911108-4 | Makita 911108-4 PAN HEAD SCREW M4*8, 5704R |
| 238 | 922332-4 | Makita 922332-4 HEX.SOCKET HEAD BOLT M6*20, LS1016 |
| 239 | 257749-5 | Makita 257749-5 SLEEVE 8, LF1000 |
| 240 | 922442-7 | Makita 922442-7 HEX.SOCKET BOLT M8X25, LF1000 |
| 241 | 188010-8 | Makita 188010-8 FRAME SET, LF1000 |
| 242 | 231680-3 | Makita 231680-3 TORSION SPRING17, LF1000 |
| 243 | 911333-7 | Makita 911333-7 PAN HEAD SCREW M6X20 WR, 2414NB |
| 244 | 911333-7 | Makita 911333-7 PAN HEAD SCREW M6X20 WR, 2414NB |
| 245 | 421906-3 | Makita 421906-3 CUSHION, LF1000 |
| 246 | 345550-1 | |
| 247 | 265984-1 | Makita 265984-1 Hex. Socket Button H.S.M6 for LS1040 |
| 248 | 253823-7 | Makita 253823-7 FLAT WASHER 7, LS1040 |
| 249 | 345551-9 | Makita 345551-9 LEVER, LF1000 |
| 250 | 911333-7 | Makita 911333-7 PAN HEAD SCREW M6X20 WR, 2414NB |
| 251 | 421906-3 | Makita 421906-3 CUSHION, LF1000 |
| 252 | 345550-1 | |
| 253 | 911333-7 | Makita 911333-7 PAN HEAD SCREW M6X20 WR, 2414NB |
| 254 | 911333-7 | Makita 911333-7 PAN HEAD SCREW M6X20 WR, 2414NB |
| 255 | 421906-3 | Makita 421906-3 CUSHION, LF1000 |
| 256 | 345549-6 | Makita 345549-6 STOPPER BRACKET F, LF1000 |
| 257 | 911333-7 | Makita 911333-7 PAN HEAD SCREW M6X20 WR, 2414NB |
| 258 | 922471-0 | Makita 922471-0 HEX. SOCKET HEAD BOLT M8X |
| 259 | 267236-6 | Makita 267236-6 FLAT WASHER 8, LC1230 |
| 260 | 257751-8 | Makita 257751-8 SLEEVE 8, LF1000 |
| 261 | 922137-2 | Makita 922137-2 HEX. SOCKET HEAD BOLT M4X |
| 262 | 931103-8 | Makita 931103-8 HEX NUT M14, LF1000 |
| 265 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 266 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 269 | 253047-5 | Makita 253047-5 FLAT WASHER 6 |
| 270 | ||
| 271 | 253047-5 | Makita 253047-5 FLAT WASHER 6 |
| 273 | 418931-3 | Makita 418931-3 CAP, LF1000 |
Selected parts0
