Makita LB1200F
Makita LB1200F: exploded parts diagram, 2 sheets, 315 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita LB1200F: 315 positions on 2 sheets

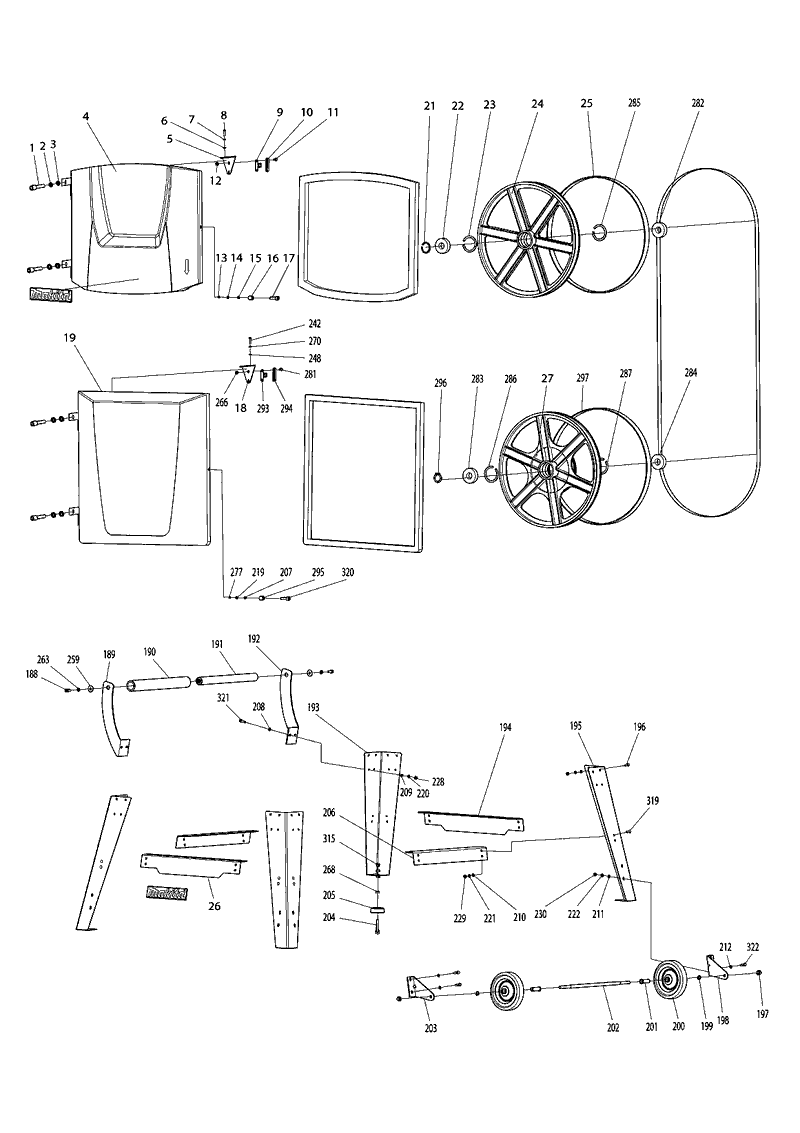

Sheet 1: Makita LB1200F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | JM21000018 | Makita JM21000018 HEX.SOCKET HEAD SCREW M5X12, LB1200F |
| 2 | JM21000019 | Makita JM21000019 SPRING WASHER 5, LB1200F |
| 3 | JM21000020 | Makita JM21000020 FLAT WASHER 5 5, LB1200F |
| 4 | JM21000021 | Makita JM21000021 UP COVER COMPLETE, LB1200F |
| 5 | JM21000025 | Makita JM21000025 MICRO SWITCH FIX PANEL A, LB1200F |
| 6 | JM21000026 | Makita JM21000026 FLAT WASHER 4 5, LB1200F |
| 7 | JM21000027 | Makita JM21000027 SPRING WASHER 4, LB1200F |
| 8 | JM21000028 | Makita JM21000028 CROSS HEAD SCREW M4X10, LB1200F |
| 9 | JM21000029 | Makita JM21000029 MICRO SWITCH PRESS PAW, LB1200F |
| 10 | JM21000030 | Makita JM21000030 MICRO SWITCH BRACKET, LB1200F |
| 11 | JM21000031 | Makita JM21000031 CROSS HEAD SUNK SCREW M4X12, LB1200F |
| 12 | JM21000032 | Makita JM21000032 HEX NUT M4, LB1200F |
| 13 | JM21000033 | Makita JM21000033 LOCKING NUT M6, LB1200F |
| 14 | JM21000034 | Makita JM21000034 SPRING WASHER 6, LB1200F |
| 15 | JM21000035 | Makita JM21000035 FLAT WASHER 6, LB1200F |
| 16 | JM21000036 | Makita JM21000036 SPACER SLEEVE, LB1200F |
| 17 | JM21000037 | Makita JM21000037 HEX.SOCKET HEAD SCREW M6X20, LB1200F |
| 18 | JM21000038 | Makita JM21000038 MICRO SWITCH FIX PANEL B, LB1200F |
| 19 | JM21000039 | Makita JM21000039 LOW COVER COMPLETE, LB1200F |
| 21 | JM21000043 | Makita JM21000043 SHAFT RETAINING RING 17, LB1201F |
| 22 | JM21000044 | Makita JM21000044 BEARING 6203R 5, LB1202F |
| 23 | JM21000045 | Makita JM21000045 HOLE COLLAR 40, LB1200F |
| 24 | JM21000046 | Makita JM21000046 UP SAW WHEEL, LB1200F |
| 26 | JM21000048 | Makita JM21000048 BEAM A COMPLETE, LB1200F |
| 27 | JM21000050 | Makita JM21000050 LOW SAW WHEEL, LB1200F |
| 188 | JM21000203 | Makita JM21000203 H.S.BOLT M8, LB1200F |
| 189 | JM21000204 | Makita JM21000204 HANDLE SUPPORT B, LB1200F |
| 190 | JM21000205 | Makita JM21000205 HOSEVE, LB1200F |
| 191 | JM21000206 | Makita JM21000206 STEEL PIPE ASSEMBLY, LB1200F |
| 192 | JM21000207 | Makita JM21000207 HANDLE SUPPORT A, LB1200F |
| 194 | JM21000049 | Makita JM21000049 BEAM ALB1200F |
| 195 | JM21000209 | Makita JM21000209 LEG B, LB1200F |
| 196 | JM21000210 | Makita JM21000210 SQUARE NECK BOLT M6X16, LB1200F |
| 197 | JM21000211 | Makita JM21000211 LOCKNUT M10, LB1200F |
| 198 | JM21000212 | Makita JM21000212 WHEEL SUPPORT B, LB1200F |
| 199 | JM21000213 | Makita JM21000213 SHAFT RETAINING RING 13, LB1200F |
| 200 | JM21000214 | Makita JM21000214 WHEELE, LB1200F |
| 201 | JM21000215 | Makita JM21000215 ROLLER BUSH, LB1200F |
| 202 | JM21000216 | Makita JM21000216 WHEEL SHAFT, LB1200F |
| 203 | JM21000217 | Makita JM21000217 WHEEL SUPPORT A, LB1200F |
| 204 | JM21000218 | Makita JM21000218 HEX BOLT M8X50, LB1200F |
| 205 | JM21000219 | Makita JM21000219 LEG PAD, LB1200F |
| 206 | JM21000220 | Makita JM21000220 BEAM B, LB1200F |
| 207 | JM21000035 | Makita JM21000035 FLAT WASHER 6, LB1200F |
| 208 | JM21000035 | Makita JM21000035 FLAT WASHER 6, LB1200F |
| 209 | JM21000035 | Makita JM21000035 FLAT WASHER 6, LB1200F |
| 210 | JM21000035 | Makita JM21000035 FLAT WASHER 6, LB1200F |
| 211 | JM21000035 | Makita JM21000035 FLAT WASHER 6, LB1200F |
| 212 | JM21000035 | Makita JM21000035 FLAT WASHER 6, LB1200F |
| 219 | JM21000034 | Makita JM21000034 SPRING WASHER 6, LB1200F |
| 220 | JM21000034 | Makita JM21000034 SPRING WASHER 6, LB1200F |
| 221 | JM21000034 | Makita JM21000034 SPRING WASHER 6, LB1200F |
| 222 | JM21000034 | Makita JM21000034 SPRING WASHER 6, LB1200F |
| 228 | JM21000063 | Makita JM21000063 HEX NUT M6, LB1200F |
| 229 | JM21000063 | Makita JM21000063 HEX NUT M6, LB1200F |
| 230 | JM21000063 | Makita JM21000063 HEX NUT M6, LB1200F |
| 242 | JM21000028 | Makita JM21000028 CROSS HEAD SCREW M4X10, LB1200F |
| 248 | JM21000026 | Makita JM21000026 FLAT WASHER 4 5, LB1200F |
| 259 | JM21000083 | Makita JM21000083 BIG WASHER 8, LB1200F |
| 263 | JM21000059 | Makita JM21000059 SPRING WASHER 8, LB1200F |
| 266 | JM21000032 | Makita JM21000032 HEX NUT M4, LB1200F |
| 268 | JM21000058 | Makita JM21000058 HEX NUT M8, LB1200F |
| 270 | JM21000027 | Makita JM21000027 SPRING WASHER 4, LB1200F |
| 277 | JM21000033 | Makita JM21000033 LOCKING NUT M6, LB1200F |
| 281 | JM21000031 | Makita JM21000031 CROSS HEAD SUNK SCREW M4X12, LB1200F |
| 282 | JM21000044 | Makita JM21000044 BEARING 6203R 5, LB1202F |
| 283 | JM21000044 | Makita JM21000044 BEARING 6203R 5, LB1202F |
| 284 | JM21000044 | Makita JM21000044 BEARING 6203R 5, LB1202F |
| 285 | JM21000045 | Makita JM21000045 HOLE COLLAR 40, LB1200F |
| 286 | JM21000045 | Makita JM21000045 HOLE COLLAR 40, LB1200F |
| 287 | JM21000045 | Makita JM21000045 HOLE COLLAR 40, LB1200F |
| 293 | JM21000029 | Makita JM21000029 MICRO SWITCH PRESS PAW, LB1200F |
| 294 | JM21000030 | Makita JM21000030 MICRO SWITCH BRACKET, LB1200F |
| 295 | JM21000036 | Makita JM21000036 SPACER SLEEVE, LB1200F |
| 296 | JM21000043 | Makita JM21000043 SHAFT RETAINING RING 17, LB1201F |
| 315 | JM21000173 | Makita JM21000173 WING NUT M8, LB1200F |
| 319 | JM21000210 | Makita JM21000210 SQUARE NECK BOLT M6X16, LB1200F |
| 320 | JM21000037 | Makita JM21000037 HEX.SOCKET HEAD SCREW M6X20, LB1200F |
| 321 | JM21000037 | Makita JM21000037 HEX.SOCKET HEAD SCREW M6X20, LB1200F |
| 322 | JM21000037 | Makita JM21000037 HEX.SOCKET HEAD SCREW M6X20, LB1200F |

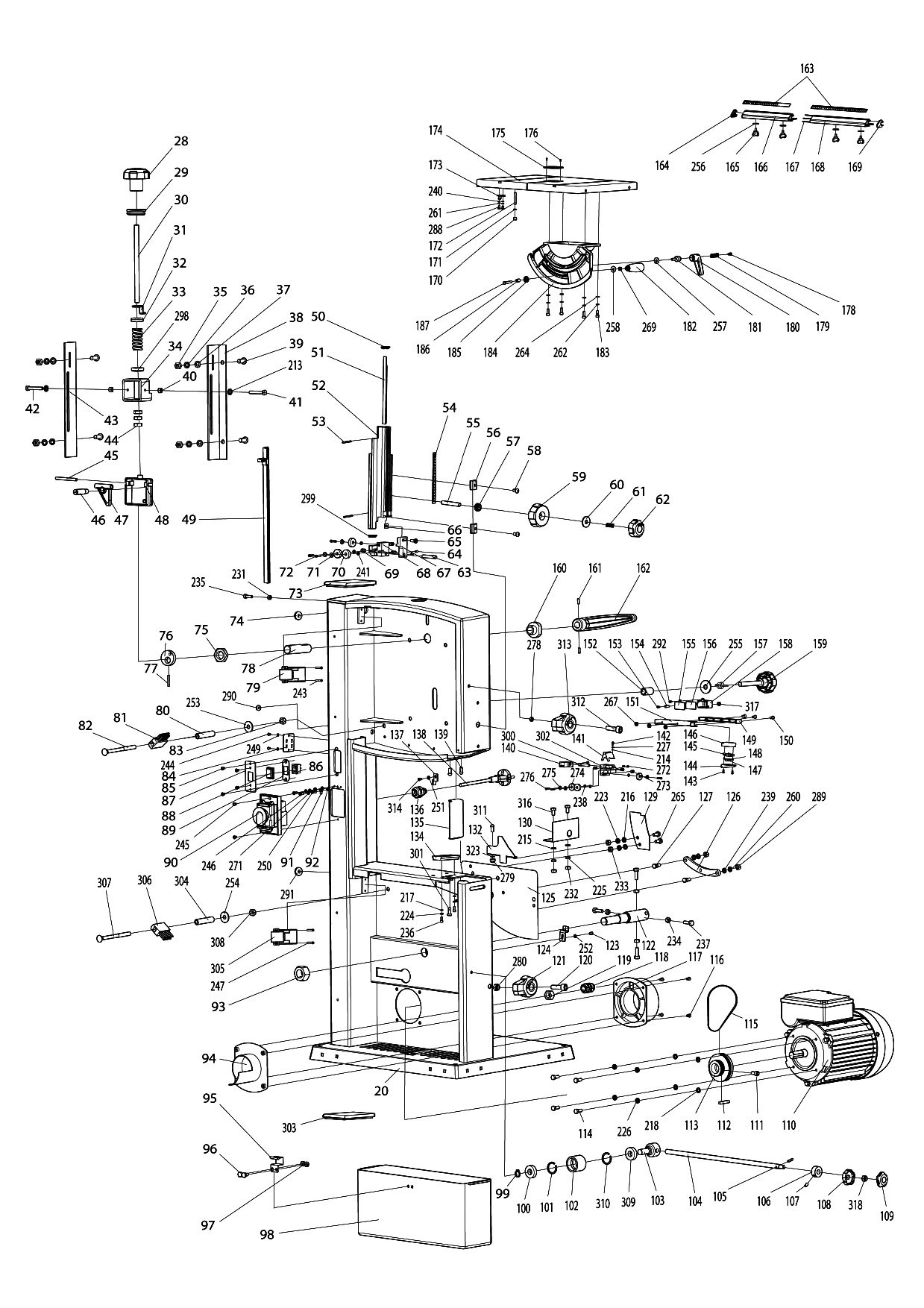

Sheet 2: Makita LB1200F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 28 | JM21000051 | Makita JM21000051 TENSION KNOB, LB1200F |
| 29 | JM21000052 | Makita JM21000052 SEALING RING, LB1200F |
| 30 | JM21000053 | Makita JM21000053 TENSION THREAD ROD, LB1200F |
| 31 | JM21000054 | Makita JM21000054 TENSION POINTER, LB1200F |
| 32 | JM21000055 | Makita JM21000055 SPRING BASE, LB1200F |
| 33 | JM21000056 | Makita JM21000056 COMPRESSURE SPRING 45, LB1200F |
| 34 | JM21000057 | Makita JM21000057 FIX BRACKET, LB1200F |
| 35 | JM21000058 | Makita JM21000058 HEX NUT M8, LB1200F |
| 36 | JM21000059 | Makita JM21000059 SPRING WASHER 8, LB1200F |
| 37 | JM21000060 | Makita JM21000060 FLAT WASHER 8, LB1200F |
| 38 | JM21000061 | Makita JM21000061 FIX SIDE PLATE A, LB1200F |
| 39 | JM21000062 | Makita JM21000062 HEX. SOCKET HEAD BOLT M8X16, LB1200F |
| 40 | JM21000063 | Makita JM21000063 HEX NUT M6, LB1200F |
| 41 | JM21000064 | Makita JM21000064 HEX BOLT M6X35, LB1200F |
| 42 | JM21000065 | Makita JM21000065 HEX BOLT M6X25, LB1200F |
| 43 | JM21000066 | Makita JM21000066 FIX SIDE PLATE B, LB1200F |
| 44 | JM21000067 | Makita JM21000067 THIN NUT M10, LB1200F |
| 45 | JM21000068 | Makita JM21000068 COLUMN PIN D, LB1200F |
| 46 | JM21000069 | Makita JM21000069 UP WHEEL SHAFT, LB1200F |
| 47 | JM21000070 | Makita JM21000070 MOVING BRACKET, LB1200F |
| 48 | JM21000071 | Makita JM21000071 FIX BRACKET PLATE, LB1200F |
| 49 | JM21000072 | Makita JM21000072 DUST SEAL BAR, LB1200F |
| 50 | JM21000073 | Makita JM21000073 LIFTING BRACKET COVER, LB1200F |
| 51 | JM21000074 | Makita JM21000074 RACK, LB1200F |
| 52 | JM21000075 | Makita JM21000075 LIFTING BRACKET, LB1200F |
| 53 | JM21000076 | Makita JM21000076 ELASTIC PIN 4, LB1200F, ELIMINATED Y06791 |
| 54 | JM21000077 | Makita JM21000077 LIFTING LABEL, LB1200F |
| 55 | JM21000078 | Makita JM21000078 ADJUSTABLE SCREW, LB1200F |
| 56 | JM21000079 | Makita JM21000079 SLIDER B, LB1200F |
| 57 | JM21000080 | Makita JM21000080 Gear Wheel B for LB1200F |
| 58 | JM21000081 | Makita JM21000081 H.S.BUTTON HEAD SCREW M6X12, LB1200F |
| 59 | JM21000082 | Makita JM21000082 LIFTING KNOB, LB1200F |
| 60 | JM21000083 | Makita JM21000083 BIG WASHER 8, LB1200F |
| 61 | JM21000084 | Makita JM21000084 SPRING, LB1200F |
| 62 | JM21000085 | Makita JM21000085 LOCKING NUT, LB1200F |
| 63 | JM21000086 | Makita JM21000086 COLUMN PIN A, LB1200F |
| 64 | JM21000087 | Makita JM21000087 HEX. SOCKET SET SCREWS M6X10, LB1200F |
| 65 | JM21000088 | Makita JM21000088 BOLT C, LB1200F |
| 66 | JM21000089 | Makita JM21000089 LOCKING BRACKET, LB1200F |
| 67 | JM21000090 | Makita JM21000090 FIX BRACKET B, LB1200F |
| 68 | JM21000091 | Makita JM21000091 FIX BRACKET A, LB1200F |
| 69 | JM21000092 | Makita JM21000092 COLUMN PIN B, LB1200F |
| 70 | JM21000093 | Makita JM21000093 BEARING 6200, LB1200F |
| 71 | JM21000094 | Makita JM21000094 SLEEVE B, LB1200F |
| 72 | JM21000095 | Makita JM21000095 H.S.BOLT M5X20, LB1200F |
| 73 | JM21000096 | Makita JM21000096 COVER, LB1200F |
| 74 | JM21000097 | Makita JM21000097 CORD PROTECTION TUBE, LB1200F |
| 75 | JM21000098 | Makita JM21000098 HEX THIN NUT M20, LB1200F |
| 76 | JM21000099 | Makita JM21000099 ECCENTRIC WHEEL 32, LB1200F |
| 77 | JM21000100 | Makita JM21000100 ELASTIC PIN 4X32, LB1200F |
| 78 | JM21000101 | Makita JM21000101 INSERT B, LB1200F |
| 79 | JM21000102 | Makita JM21000102 MICRO SWITCH, LB1200F |
| 80 | JM21000103 | Makita JM21000103 SLEEVE A, LB1200F |
| 81 | JM21000104 | Makita JM21000104 BRUSH, LB1200F |
| 82 | JM21000105 | Makita JM21000105 BRUSH SCREW, LB1200F |
| 83 | JM21000106 | Makita JM21000106 LOCKNUT M8, LB1200F |
| 84 | JM21000107 | Makita JM21000107 ACCESSORY STORAGE PLATE, LB1200F |
| 85 | JM21000108 | Makita JM21000108 HEX.SOCKET BUTTON BOLT M4X10, LB1200F |
| 86 | JM21000109 | Makita JM21000109 HY17 SWITCH, LB1200F |
| 87 | JM21000110 | Makita JM21000110 LED SWITCH FIX PLATE, LB1200F |
| 88 | JM21000111 | Makita JM21000111 HY17 SWITCH SHIELD, LB1200F |
| 89 | JM21000112 | Makita JM21000112 LED SWITCH PANEL, LB1200F |
| 90 | JM21000003 | Makita JM21000003 SWITCH, LB1200F |
| 91 | JM21000221 | Makita JM21000221 EARTHING TERMINAL 4, LB1200F |
| 92 | JM21000113 | Makita JM21000113 STAR WASHER 4, LB1200F |
| 93 | JM21000114 | Makita JM21000114 HEX NUT M20, LB1200F |
| 94 | JM21000115 | Makita JM21000115 DUST COLLECTOR PORT B, LB1200F |
| 95 | JM21000116 | Makita JM21000116 PLATE SPRING, LB1200F |
| 96 | JM21000117 | Makita JM21000117 HEX BOLT M5X12, LB1200F |
| 97 | JM21000118 | Makita JM21000118 HEX NUT M5, LB1200F |
| 98 | JM21000119 | Makita JM21000119 DUST BOX, LB1200F |
| 99 | JM21000120 | Makita JM21000120 SHAFT RETAINING RING 11, LB1200F |
| 100 | JM21000121 | Makita JM21000121 BEARING 6001, LB1200F |
| 101 | JM21000122 | Makita JM21000122 HOLE COLLAR 28, LB1200F |
| 102 | JM21000123 | Makita JM21000123 TENSION WHEEL, LB1200F |
| 103 | JM21000124 | Makita JM21000124 TENSION WHEEL SHAFT, LB1200F |
| 104 | JM21000125 | Makita JM21000125 THREAD ROD, LB1200F |
| 105 | JM21000126 | Makita JM21000126 ELASTIC PIN 4X16, LB1200F |
| 106 | JM21000127 | Makita JM21000127 LIMIT CIRCLE, LB1200F |
| 107 | JM21000128 | Makita JM21000128 HEX.SOCKET SET SCREWS M5X8, LB1200F |
| 108 | JM21000129 | Makita JM21000129 WHEEL TENSION KNOB A, LB1200F |
| 109 | JM21000130 | Makita JM21000130 WHEEL TENSION KNOB B, LB1200F |
| 110 | JM21000001 | Makita JM21000001 MOTOR, LB1200F |
| 111 | JM21000131 | Makita JM21000131 H.S.BOLT M6X12, LB1200F |
| 112 | JM21000132 | Makita JM21000132 KEY 5X5X20, LB1200F |
| 113 | JM21000133 | Makita JM21000133 MOTOR PULLEY, LB1200F |
| 114 | JM21000134 | Makita JM21000134 HEX BOLT M6X12, LB1200F |
| 115 | JM21000135 | Makita JM21000135 V Belt for LB1200F |
| 116 | JM21000136 | Makita JM21000136 TAPPING SCREW ST4.2X14, LB1200F |
| 117 | JM21000137 | Makita JM21000137 DUST CONNECTOR PORT, LB1200F |
| 118 | JM21000138 | Makita JM21000138 CORD CLAMP PAW, LB1200F |
| 119 | JM21000139 | Makita JM21000139 CORD CLAMP BOLT M10, LB1200F |
| 120 | JM21000140 | Makita JM21000140 H.S. HEAD SCREW M6X25, LB1200F |
| 121 | JM21000141 | Makita JM21000141 LATCH KNOB, LB1200F |
| 122 | JM21000142 | Makita JM21000142 DRIVING WHEEL SHAFT, LB1200F |
| 123 | JM21000143 | Makita JM21000143 CROSS HEAD SCREW M4X8, LB1200F |
| 124 | JM21000144 | Makita JM21000144 MITER POINTER, LB1200F |
| 125 | JM21000145 | Makita JM21000145 SPACER PLATE, LB1200F |
| 126 | JM21000146 | Makita JM21000146 SLIDER, LB1200F |
| 127 | JM21000147 | Makita JM21000147 BOLT B, LB1200F |
| 129 | JM21000148 | Makita JM21000148 DUST PROTECTOR PLATE, LB1200F |
| 130 | JM21000149 | Makita JM21000149 PROTECTOR PLATE, LB1200F |
| 132 | JM21000150 | Makita JM21000150 LOW COVER B, LB1200F |
| 134 | JM21000151 | Makita JM21000151 FIX BRACKET SLIDER, LB1200F |
| 135 | JM21000152 | Makita JM21000152 PROTECTOR PLATE A, LB1200F |
| 136 | JM21000153 | Makita JM21000153 STRAIN & RELIEF, LB1200F |
| 137 | JM21000154 | Makita JM21000154 LIFTING POINTER, LB1200F |
| 138 | JM21000010 | |
| 139 | JM21000155 | Makita JM21000155 TAPPING SCREW ST4.2X8, LB1200F |
| 140 | JM21000156 | Makita JM21000156 FIX BRACKET C, LB1200F |
| 141 | JM21000157 | Makita JM21000157 LOW COVER A, LB1200F |
| 142 | JM21000158 | Makita JM21000158 CROSS HEAD SCREW M6X10, LB1200F |
| 143 | JM21000159 | Makita JM21000159 TAPPING SCREW ST3.2X8, LB1200F |
| 144 | JM21000160 | Makita JM21000160 LED LAMP COVER B, LB1200F |
| 145 | JM21000161 | Makita JM21000161 LED REFLECT COVER, LB1200F |
| 146 | JM21000162 | Makita JM21000162 LED LAMP COVER A, LB1200F |
| 147 | JM21000163 | Makita JM21000163 LED LAMP COVER C, LB1200F |
| 148 | JM21000164 | Makita JM21000164 SELF TAPPING SCREW ST2.2X8, LB1200F |
| 149 | JM21000165 | Makita JM21000165 LED CORD PROTECTOR A, LB1200F |
| 150 | JM21000166 | Makita JM21000166 H.S.BOLT M4X20, LB1200F |
| 151 | JM21000167 | Makita JM21000167 LED CORD PROTECTOR B, LB1200F |
| 152 | JM21000168 | Makita JM21000168 SLEEVE, LB1200F |
| 153 | JM21000169 | Makita JM21000169 CROSS HEAD SCREW M4X35, LB1200F |
| 154 | JM21000170 | Makita JM21000170 SLEEVE 8, LB1200F |
| 155 | JM21000171 | Makita JM21000171 TRANSFORMER LOW COVER, LB1200F |
| 156 | JM21000172 | Makita JM21000172 TRANSFORMER, LB1200F |
| 157 | JM21000173 | Makita JM21000173 WING NUT M8, LB1200F |
| 158 | JM21000174 | Makita JM21000174 TRANSFORMER UP COVER, LB1200F |
| 159 | JM21000175 | Makita JM21000175 TRACKING KNOB, LB1200F |
| 160 | JM21000176 | Makita JM21000176 SLEEVE C, LB1200F |
| 161 | JM21000177 | Makita JM21000177 H.S. SET SCREWS M6X10, LB1200F |
| 162 | JM21000178 | Makita JM21000178 OPERATION HANDLE A, LB1200F |
| 163 | JM21000179 | Makita JM21000179 SCALE LABEL, LB1200F |
| 164 | JM21000180 | Makita JM21000180 FRONT RAIL SIDE COVER B, LB1200F |
| 165 | JM21000181 | Makita JM21000181 WING KNOB C, LB1200F |
| 166 | JM21000182 | Makita JM21000182 FRONT RAIL A, LB1200F |
| 167 | JM21000183 | Makita JM21000183 CONNECTION PIN, LB1200F |
| 168 | JM21000184 | Makita JM21000184 FRONT RAIL B, LB1200F |
| 169 | JM21000185 | Makita JM21000185 FRONT RAIL SIDE COVER A, LB1200F |
| 170 | JM21000186 | Makita JM21000186 CUSHION CAP, LB1200F |
| 171 | JM21000187 | Makita JM21000187 RUBBER RING PAD, LB1200F |
| 172 | JM21000188 | Makita JM21000188 H.S. SET SCREW M8X50, LB1200F |
| 173 | JM21000189 | Makita JM21000189 LIMITED PLATE, LB1200F |
| 174 | JM21000190 | Makita JM21000190 WORKING TABLE, LB1200F |
| 175 | JM21000191 | Makita JM21000191 BLADE PROTECTION PLATE, LB1200F |
| 176 | JM21000192 | Makita JM21000192 CROSS HEAD SUNK SCREW M3X10, LB1200F |
| 178 | JM21000193 | Makita JM21000193 HEX.SOCKET HEAD SCREW M6X30, LB1200F |
| 179 | JM21000194 | Makita JM21000194 COMPRESSURE SPRING, LB1200F |
| 180 | JM21000195 | Makita JM21000195 OPERATION HANDLE B ASSY, LB1200F |
| 181 | JM21000196 | Makita JM21000196 LOCKING HANDLE BOLT, LB1200F |
| 182 | JM21000197 | Makita JM21000197 LOCKING HANDLE A, LB1200F |
| 183 | JM21000198 | Makita JM21000198 H.S.BOLT M8X20, LB1200F |
| 184 | JM21000199 | Makita JM21000199 WORKING TABLE TURNION, LB1200F |
| 185 | JM21000200 | Makita JM21000200 GEAR WHEEL A, LB1200F |
| 186 | JM21000201 | Makita JM21000201 POSITION SLEEVE, LB1200F |
| 187 | JM21000202 | Makita JM21000202 GEAR SHAFT, LB1200F |
| 213 | JM21000035 | Makita JM21000035 FLAT WASHER 6, LB1200F |
| 214 | JM21000035 | Makita JM21000035 FLAT WASHER 6, LB1200F |
| 215 | JM21000035 | Makita JM21000035 FLAT WASHER 6, LB1200F |
| 216 | JM21000035 | Makita JM21000035 FLAT WASHER 6, LB1200F |
| 217 | JM21000035 | Makita JM21000035 FLAT WASHER 6, LB1200F |
| 218 | JM21000035 | Makita JM21000035 FLAT WASHER 6, LB1200F |
| 223 | JM21000034 | Makita JM21000034 SPRING WASHER 6, LB1200F |
| 224 | JM21000034 | Makita JM21000034 SPRING WASHER 6, LB1200F |
| 225 | JM21000034 | Makita JM21000034 SPRING WASHER 6, LB1200F |
| 226 | JM21000034 | Makita JM21000034 SPRING WASHER 6, LB1200F |
| 227 | JM21000034 | Makita JM21000034 SPRING WASHER 6, LB1200F |
| 231 | JM21000063 | Makita JM21000063 HEX NUT M6, LB1200F |
| 232 | JM21000063 | Makita JM21000063 HEX NUT M6, LB1200F |
| 233 | JM21000063 | Makita JM21000063 HEX NUT M6, LB1200F |
| 234 | JM21000063 | Makita JM21000063 HEX NUT M6, LB1200F |
| 235 | JM21000037 | Makita JM21000037 HEX.SOCKET HEAD SCREW M6X20, LB1200F |
| 236 | JM21000037 | Makita JM21000037 HEX.SOCKET HEAD SCREW M6X20, LB1200F |
| 237 | JM21000037 | Makita JM21000037 HEX.SOCKET HEAD SCREW M6X20, LB1200F |
| 238 | JM21000020 | Makita JM21000020 FLAT WASHER 5 5, LB1200F |
| 239 | JM21000020 | Makita JM21000020 FLAT WASHER 5 5, LB1200F |
| 240 | JM21000020 | Makita JM21000020 FLAT WASHER 5 5, LB1200F |
| 241 | JM21000020 | Makita JM21000020 FLAT WASHER 5 5, LB1200F |
| 243 | JM21000028 | Makita JM21000028 CROSS HEAD SCREW M4X10, LB1200F |
| 244 | JM21000028 | Makita JM21000028 CROSS HEAD SCREW M4X10, LB1200F |
| 245 | JM21000028 | Makita JM21000028 CROSS HEAD SCREW M4X10, LB1200F |
| 246 | JM21000028 | Makita JM21000028 CROSS HEAD SCREW M4X10, LB1200F |
| 247 | JM21000028 | Makita JM21000028 CROSS HEAD SCREW M4X10, LB1200F |
| 249 | JM21000026 | Makita JM21000026 FLAT WASHER 4 5, LB1200F |
| 250 | JM21000026 | Makita JM21000026 FLAT WASHER 4 5, LB1200F |
| 251 | JM21000026 | Makita JM21000026 FLAT WASHER 4 5, LB1200F |
| 252 | JM21000026 | Makita JM21000026 FLAT WASHER 4 5, LB1200F |
| 253 | JM21000083 | Makita JM21000083 BIG WASHER 8, LB1200F |
| 254 | JM21000083 | Makita JM21000083 BIG WASHER 8, LB1200F |
| 255 | JM21000083 | Makita JM21000083 BIG WASHER 8, LB1200F |
| 256 | JM21000083 | Makita JM21000083 BIG WASHER 8, LB1200F |
| 257 | JM21000083 | Makita JM21000083 BIG WASHER 8, LB1200F |
| 258 | JM21000083 | Makita JM21000083 BIG WASHER 8, LB1200F |
| 260 | JM21000019 | Makita JM21000019 SPRING WASHER 5, LB1200F |
| 261 | JM21000019 | Makita JM21000019 SPRING WASHER 5, LB1200F |
| 262 | JM21000059 | Makita JM21000059 SPRING WASHER 8, LB1200F |
| 264 | JM21000060 | Makita JM21000060 FLAT WASHER 8, LB1200F |
| 265 | JM21000134 | Makita JM21000134 HEX BOLT M6X12, LB1200F |
| 267 | JM21000032 | Makita JM21000032 HEX NUT M4, LB1200F |
| 269 | JM21000058 | Makita JM21000058 HEX NUT M8, LB1200F |
| 271 | JM21000027 | Makita JM21000027 SPRING WASHER 4, LB1200F |
| 272 | JM21000087 | Makita JM21000087 HEX. SOCKET SET SCREWS M6X10, LB1200F |
| 273 | JM21000092 | Makita JM21000092 COLUMN PIN B, LB1200F |
| 274 | JM21000093 | Makita JM21000093 BEARING 6200, LB1200F |
| 275 | JM21000094 | Makita JM21000094 SLEEVE B, LB1200F |
| 276 | JM21000095 | Makita JM21000095 H.S.BOLT M5X20, LB1200F |
| 278 | JM21000033 | Makita JM21000033 LOCKING NUT M6, LB1200F |
| 279 | JM21000033 | Makita JM21000033 LOCKING NUT M6, LB1200F |
| 280 | JM21000033 | Makita JM21000033 LOCKING NUT M6, LB1200F |
| 288 | JM21000117 | Makita JM21000117 HEX BOLT M5X12, LB1200F |
| 289 | JM21000118 | Makita JM21000118 HEX NUT M5, LB1200F |
| 290 | JM21000097 | Makita JM21000097 CORD PROTECTION TUBE, LB1200F |
| 291 | JM21000097 | Makita JM21000097 CORD PROTECTION TUBE, LB1200F |
| 292 | JM21000159 | Makita JM21000159 TAPPING SCREW ST3.2X8, LB1200F |
| 298 | JM21000055 | Makita JM21000055 SPRING BASE, LB1200F |
| 299 | JM21000073 | Makita JM21000073 LIFTING BRACKET COVER, LB1200F |
| 300 | JM21000086 | Makita JM21000086 COLUMN PIN A, LB1200F |
| 301 | JM21000088 | Makita JM21000088 BOLT C, LB1200F |
| 302 | JM21000091 | Makita JM21000091 FIX BRACKET A, LB1200F |
| 303 | JM21000096 | Makita JM21000096 COVER, LB1200F |
| 304 | JM21000103 | Makita JM21000103 SLEEVE A, LB1200F |
| 305 | JM21000102 | Makita JM21000102 MICRO SWITCH, LB1200F |
| 306 | JM21000104 | Makita JM21000104 BRUSH, LB1200F |
| 307 | JM21000105 | Makita JM21000105 BRUSH SCREW, LB1200F |
| 308 | JM21000106 | Makita JM21000106 LOCKNUT M8, LB1200F |
| 309 | JM21000121 | Makita JM21000121 BEARING 6001, LB1200F |
| 310 | JM21000122 | Makita JM21000122 HOLE COLLAR 28, LB1200F |
| 311 | JM21000131 | Makita JM21000131 H.S.BOLT M6X12, LB1200F |
| 312 | JM21000140 | Makita JM21000140 H.S. HEAD SCREW M6X25, LB1200F |
| 313 | JM21000141 | Makita JM21000141 LATCH KNOB, LB1200F |
| 314 | JM21000143 | Makita JM21000143 CROSS HEAD SCREW M4X8, LB1200F |
| 316 | JM21000134 | Makita JM21000134 HEX BOLT M6X12, LB1200F |
| 317 | JM21000032 | Makita JM21000032 HEX NUT M4, LB1200F |
| 318 | JM21000106 | Makita JM21000106 LOCKNUT M8, LB1200F |
| 323 | JM21000035 | Makita JM21000035 FLAT WASHER 6, LB1200F |
Selected parts0
