Bosch KS 24 VE

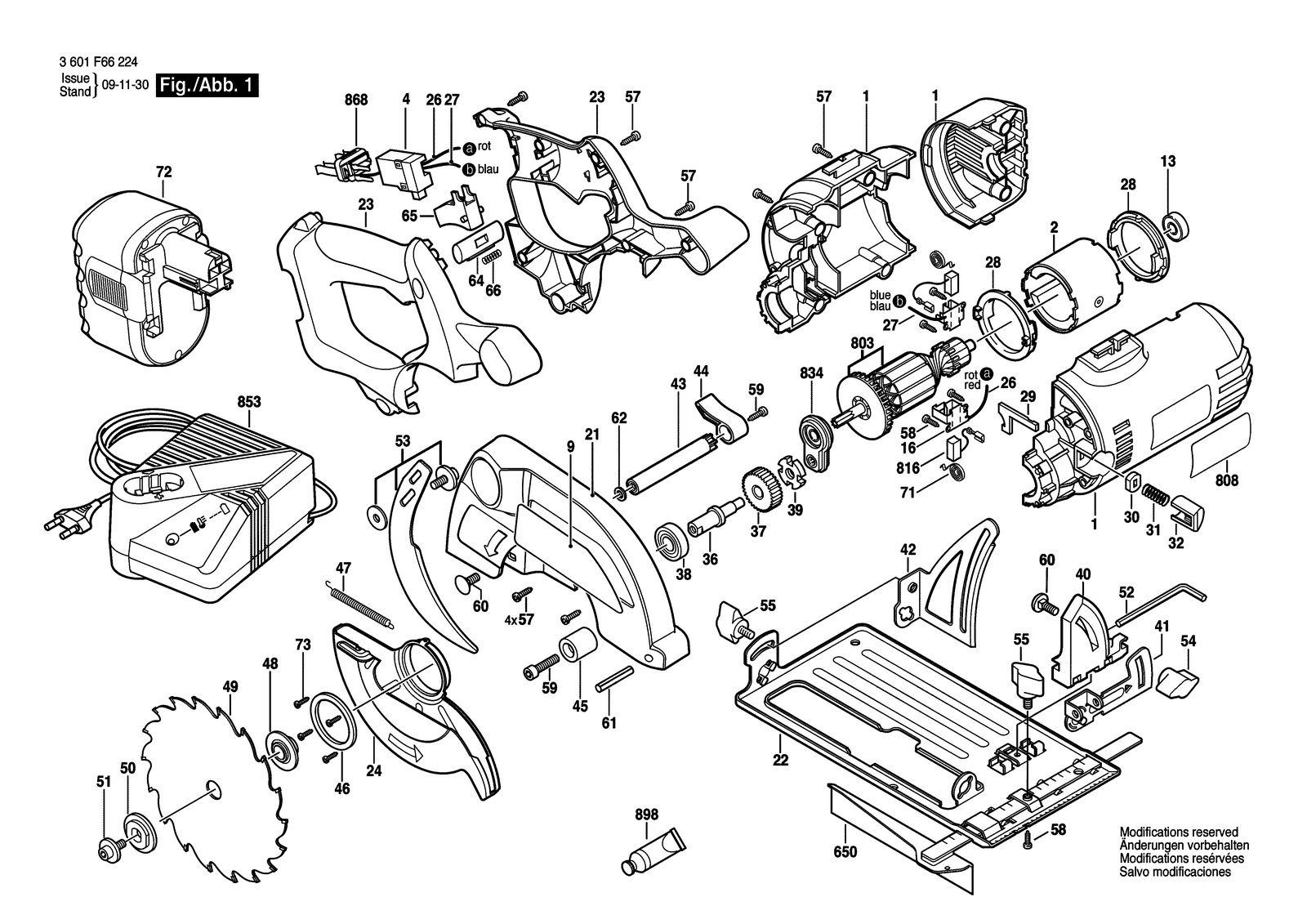

Bosch KS 24 VE cordless circular saw: exploded parts diagram, 1 sheet, 114 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch KS 24 VE: 114 positions on 1 sheet
Bosch KS 24 VE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108242 | Motor Housing Blue |
| 1 | 1605108243 | Motor Housing Orange |
| 13 | 3130900056 | Groove ball bearing DIN 625-608-2Z-C3 |
| 13 | 3130900056 | Groove ball bearing DIN 625-608-2Z-C3 |
| 16 | 1611323003 | Brush Holder |
| 16 | 1611323003 | Brush Holder |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 21 | 1605510375 | Protective Cover |
| 21 | 1605510375 | Protective Cover |
| 22 | 1608000117 | Base Plate |
| 22 | 1608000117 | Base Plate |
| 23 | 1605500240 | Handle Black |
| 23 | 1605500241 | Handle Black |
| 24 | 1605510265 | Pivoting Blade Guard |
| 24 | 1605510265 | Pivoting Blade Guard |
| 26 | 1604448018 | Connecting Cable Red L=370 MM |
| 26 | 1604448018 | Connecting Cable Red L=370 MM |
| 27 | 1604448019 | Connecting Cable Blue L=270 MM |
| 27 | 1604448019 | Connecting Cable Blue L=270 MM |
| 28 | 1610290043 | Locating Ring |
| 28 | 1610290043 | Locating Ring |
| 29 | 1601900005 | Safety Catch |
| 29 | 1601900005 | Safety Catch |
| 30 | 1601015033 | Felt Seal |
| 30 | 1601015033 | Felt Seal |
| 31 | 1604610018 | Compression Spring |
| 31 | 1604610018 | Compression Spring |
| 32 | 1603231025 | Push-Button |
| 32 | 1603231025 | Push-Button |
| 36 | 1603124137 | Drive Shaft |
| 36 | 1603124137 | Drive Shaft |
| 37 | 2610910451 | Toothed Gear |
| 37 | 2610910451 | Toothed Gear |
| 38 | 1600905031 | Groove ball bearing 12X28X8 |
| 38 | 1600905031 | Groove ball bearing 12X28X8 |
| 39 | 2610967327 | Screen Disc |
| 39 | 2610967327 | Screen Disc |
| 4 | 2610997469 | On-Off Switch |
| 4 | 2610997469 | On-Off Switch |
| 40 | 1608190024 | Miter Square |
| 40 | 1608190024 | Miter Square |
| 41 | 1601329031 | Bow |
| 41 | 1601329031 | Bow |
| 42 | 1601329032 | Guide Bracket |
| 42 | 1601329032 | Guide Bracket |
| 43 | 1600360004 | Spacer Tube |
| 43 | 1600360004 | Spacer Tube |
| 44 | 1602002009 | Tensioning Lever |
| 44 | 1602002006 | Tensioning Lever |
| 45 | 1600305002 | Rubber Buffer |
| 45 | 1600305002 | Rubber Buffer |
| 46 | 1600102024 | Clamp ring |
| 46 | 1600102024 | Clamp ring |
| 47 | 1604650019 | Extension Spring |
| 47 | 1604650019 | Extension Spring |
| 48 | 1605703125 | Clamping-Flange |
| 48 | 1605703125 | Clamping-Flange |
| 49 | 1608640098 | Circular Saw Blade |
| 49 | 1608640098 | Circular Saw Blade |
| 50 | 1605703108 | Conical Spring Washer |
| 50 | 1605703108 | Conical Spring Washer |
| 51 | 1603414007 | Hex Socket Head Cap Screw M6X14 MM |
| 51 | 1603414007 | Hex Socket Head Cap Screw M6X14 MM |
| 52 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 52 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 53 | 1600025022 | Riving Knife |
| 53 | 1600025022 | Riving Knife |
| 54 | 1603339006 | Wing Nut M6 |
| 54 | 1603339006 | Wing Nut M6 |
| 55 | 1603480018 | Wing Screw M6 |
| 55 | 1603480018 | Wing Screw M6 |
| 57 | 2603490022 | Screw 4X16 |
| 57 | 2603490022 | Screw 4X16 |
| 58 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 58 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 59 | 1603414010 | Thread-forming tap. Screw M6X25 MM |
| 59 | 1603414010 | Thread-forming tap. Screw M6X25 MM |
| 60 | 2910281197 | Round-Head Bolt DIN 603-M6X16 |
| 60 | 2910281201 | Round-Head Bolt DIN 603-M6X20 |
| 61 | 2917780157 | Slotted Spring Pin 6X36 DIN 7346 |
| 61 | 2917780157 | Slotted Spring Pin 6X36 DIN 7346 |
| 62 | 2916011894 | Plain Washer |
| 62 | 2916011894 | Plain Washer |
| 64 | 1601990010 | Knob |
| 64 | 1601990011 | Knob |
| 65 | 1601990009 | Switching Unit |
| 65 | 2610997461 | Trigger |
| 650 | 2608005036 | Parallel-Guide |
| 650 | 2608005036 | Parallel-Guide |
| 66 | 1604611035 | Compression Spring |
| 66 | 1604611035 | Compression Spring |
| 71 | 1614652008 | Spiral Spring |
| 71 | 1614652008 | Spiral Spring |
| 72 | 2607335637 | Battery Pack 24V,2,0AH,NICD |
| 72 | 2607335639 | Battery Pack 24V,2,0AH,NICD |
| 73 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 73 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 803 | 1607000731 | Armature With Fan 24V |
| 803 | 1607000731 | Armature With Fan 24V |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 816 | 1617014131 | Carbon-Brush Set |
| 816 | 1617014131 | Carbon-Brush Set |
| 834 | 1607000C02 | Bearing Bracket |
| 834 | 1607000C02 | Bearing Bracket |
| 853 | 2607225021 | Fast Charger EU 230/7,2-24V,1H |
| 853 | 2607225023 | Fast Charger EU 230/7,2-24V,1H |
| 868 | 1607000732 | Contact Strip |
| 868 | 1607000732 | Contact Strip |
| 898 | 1605430003 | Grease Tube 225 Ml |
| 898 | 1605430003 | Grease Tube 225 Ml |
| 9 | 1601118F67 | Manufacturer's nameplate |
| 9 | 1601118F68 | Manufacturer's nameplate |
