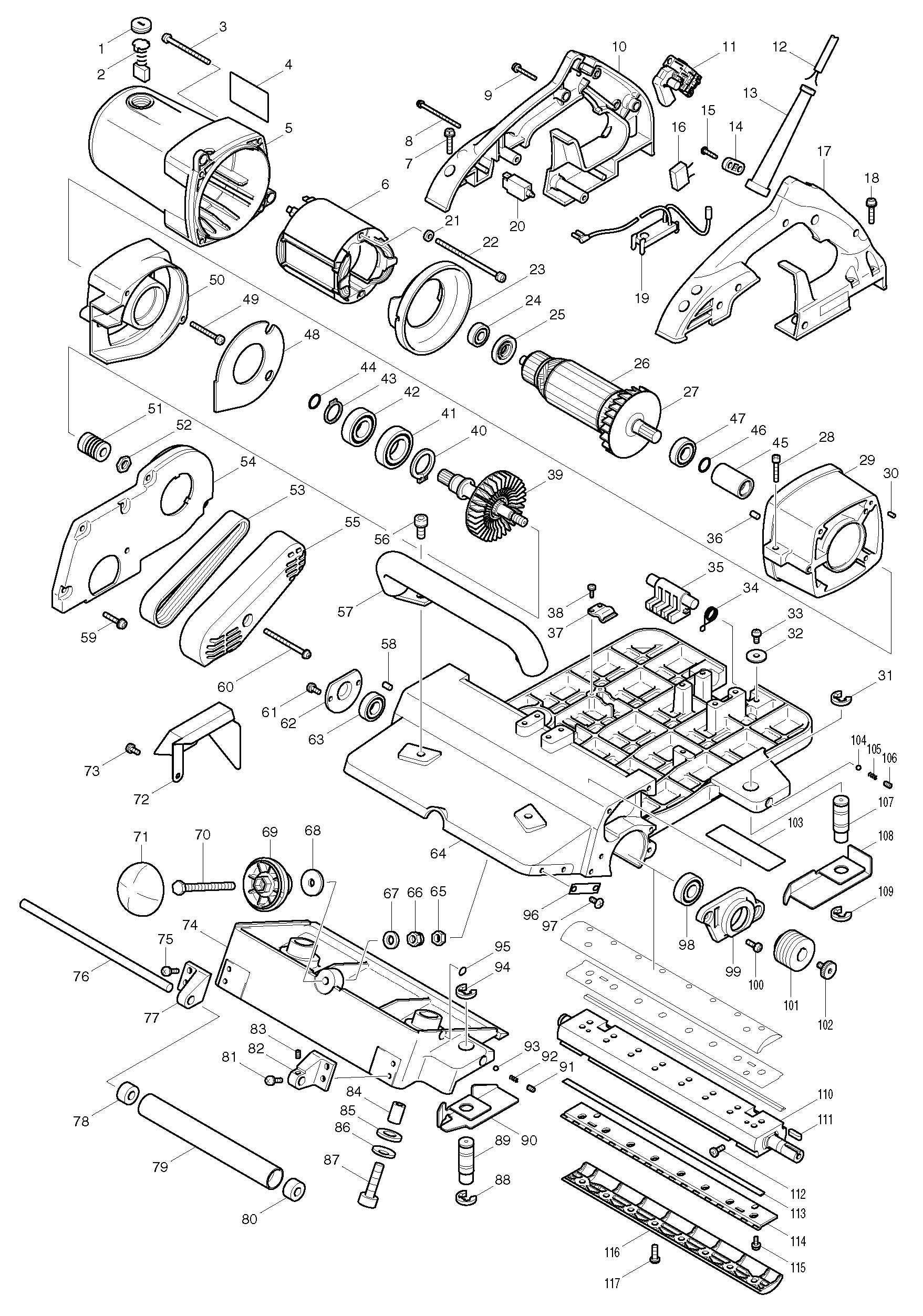

Sheet 1: Makita KP312S parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 643700-5 | Makita 643700-5 BRUSH HOLDER CAP *, 2414NB |
| 2 | 191953-5 | Old code 191953-5 |
| 3 | 911288-6 | Makita 911288-6 PAN HEAD SCREW M5X65 |
| 4 | 850360-8 | |
| 5 | 153593-7 | |
| 6 | 636244-2 | Makita 636244-2 FIELD ASSY KP312S |
| 7 | 911248-8 | Makita 911248-8 PAN HEAD SCREW M5X28 |
| 8 | 911188-0 | Makita 911188-0 PAN HEAD SCREW M4X60 |
| 9 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 10 | 183585-2 | Makita 183585-2 HANDLE SETKP312S |
| 11 | 651057-0 | Makita 651057-0 Switch TG71CL-2 for 4131 7104L KP312S |
| 12 | 695140-3 | |
| 13 | 682564-2 | Makita 682564-2 CORD GUARD 10, N5900B |
| 14 | 687053-2 | Makita 687053-2 CORD CLAMP, 9523NB |
| 15 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 16 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 17 | 183585-2 | Makita 183585-2 HANDLE SETKP312S |
| 18 | 911248-8 | Makita 911248-8 PAN HEAD SCREW M5X28 |
| 19 | 631529-1 | Makita 631529-1 SOFT START CIRCUITKP312S |
| 20 | 652766-4 | Makita 652766-4 OVER CURRENT RELAYKP312S |
| 21 | 941102-2 | Makita 941102-2 FLAT WASHER 5, 4100NH |
| 22 | 911942-2 | Makita 911942-2 PAN HEAD SCREW M5X95 |
| 23 | 418156-9 | |
| 24 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 25 | 681640-9 | Makita 681640-9 INSULATION WASHER, 5377MG |
| 26 | 516878-6 | Makita 516878-6 ARMATURE ASS'Y 220-2KP312S |
| 28 | 922251-4 | Makita 922251-4 HEX. SOCKET HEAD BOLT M5X |
| 29 | 317674-3 | |
| 30 | 256251-5 | Makita 256251-5 PIN 4, 6409 |
| 31 | 961062-2 | Makita 961062-2 STOP RING E-12, 439 |
| 32 | 253010-8 | Makita 253010-8 FLAT WASHER 6 |
| 33 | 911211-1 | Makita 911211-1 PAN HEAD SCREW M5X12 |
| 34 | 231668-3 | |
| 35 | 418155-1 | |
| 36 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 37 | 232068-0 | Makita 232068-0 LEAF SPRINGKP312S |
| 38 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 39 | 153578-3 | |
| 40 | 961105-0 | Makita 961105-0 RETAINING RING S-25 |
| 41 | 211351-8 | Makita 211351-8 BALL BEARING 6005LLB |
| 42 | 211301-3 | Makita 211301-3 BALL BEARING 6004LLB |
| 43 | 961060-6 | Makita 961060-6 RETANING RING S-20, HM1800 |
| 44 | 213154-6 | Makita 213154-6 O RING 14 |
| 45 | 331650-3 | |
| 46 | 213154-6 | Makita 213154-6 O RING 14 |
| 47 | 211236-8 | Makita 211236-8 Ball Bearing 6002DDW, BO3700 |
| 48 | 345320-8 | |
| 49 | 911268-2 | Makita 911268-2 PAN HEAD SCREW M5X45 WR, 5806B |
| 50 | 317673-5 | |
| 51 | 222140-6 | |
| 52 | 252085-4 | Makita 252085-4 HEX. NUT M10-17KP312S |
| 53 | 225061-1 | Makita 225061-1 Poly V-Belt 9-355 KP312S |
| 54 | 317676-9 | |
| 55 | 317672-7 | |
| 56 | 922431-2 | Makita 922431-2 HEX. SOCKET HEAD BOLT M8X |
| 57 | 273522-5 | |
| 58 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 59 | 911248-8 | Makita 911248-8 PAN HEAD SCREW M5X28 |
| 60 | 911288-6 | Makita 911288-6 PAN HEAD SCREW M5X65 |
| 61 | 911211-1 | Makita 911211-1 PAN HEAD SCREW M5X12 |
| 62 | 285023-1 | |
| 63 | 211236-8 | Makita 211236-8 Ball Bearing 6002DDW, BO3700 |
| 64 | 183570-5 | |
| 65 | 931403-6 | Makita 931403-6 HEX NUT, 2012NB |
| 66 | 252105-4 | Makita 252105-4 HEX LOCK NUT M8*13, LS1040 |
| 67 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 68 | 253877-4 | Makita 253877-4 FLAT WASHER 8 |
| 69 | 418177-1 | Makita 418177-1 KNOBKP312S |
| 70 | 265511-4 | |
| 71 | 417249-9 | Makita 417249-9 KNOB COVER |
| 72 | 345338-9 | Makita 345338-9 TIP GUIDEKP312S |
| 73 | 911211-1 | Makita 911211-1 PAN HEAD SCREW M5X12 |
| 74 | 317675-1 | Makita 317675-1 FRONT BASEKP312S |
| 75 | 251259-4 | Makita 251259-4 + PAN HEAD SCREW M5X16 |
| 76 | 256853-7 | |
| 77 | 317668-8 | |
| 78 | 214054-3 | |
| 79 | 331368-6 | |
| 80 | 214054-3 | |
| 81 | 251259-4 | Makita 251259-4 + PAN HEAD SCREW M5X16 |
| 82 | 317667-0 | |
| 83 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 84 | 257589-1 | Makita 257589-1 SLEEVE 10, LS1040 |
| 85 | 267198-8 | Makita 267198-8 FLAT WASHER 14 |
| 86 | 232076-1 | |
| 87 | 922562-7 | Makita 922562-7 HEX. SOCKET HEAD BOLT M10 X40 |
| 88 | 961062-2 | Makita 961062-2 STOP RING E-12, 439 |
| 89 | 324334-0 | |
| 90 | 345322-4 | |
| 91 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 92 | 231386-3 | |
| 93 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 94 | 961062-2 | Makita 961062-2 STOP RING E-12, 439 |
| 95 | 812074-7 | Makita 812074-7 INDICATION LABEL |
| 96 | 816393-3 | Makita 816393-3 SCALE PLATEKP312S |
| 97 | 251381-7 | Makita 251381-7 KP312S |
| 98 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 99 | 317671-9 | |
| 100 | 251259-4 | Makita 251259-4 + PAN HEAD SCREW M5X16 |
| 101 | 222162-6 | Makita 222162-6 V PULLEY 9-39.7KP312S |
| 102 | 265854-4 | Makita 265854-4 HEX. SOCKET HEAD BOLT M6X |
| 103 | 819084-5 | Makita 819084-5 MAKITA LABEL |
| 104 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 105 | 231386-3 | |
| 106 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 107 | 324334-0 | |
| 108 | 345321-6 | |
| 109 | 961062-2 | Makita 961062-2 STOP RING E-12, 439 |
| 110 | 161139-5 | Makita 161139-5 DRUMKP312S |
| 111 | 254221-8 | |
| 112 | 251212-0 | Makita 251212-0 ,+ FLAT HEAD SCREW M5X13 |
| 113 | B-02870 | Makita B-02870 HSS Planer Blades 312mm for KP312 |
| 114 | 345328-2 | Makita 345328-2 SET PLATE 310KP312S |
| 115 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 116 | 317669-6 | |
| 117 | 265484-1 | Makita 265484-1 HEX SOCKET HEAD BOLT M6X |
