All parts of Makita KP0810C: 69 positions on 1 sheet

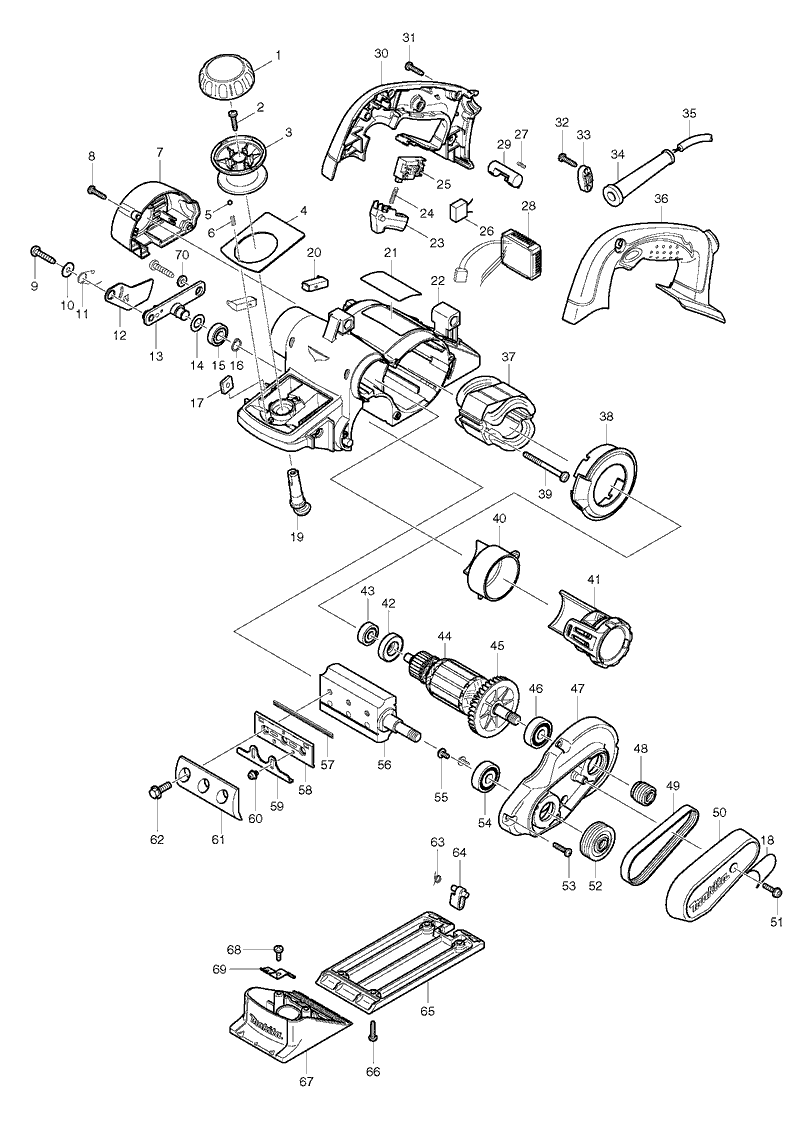

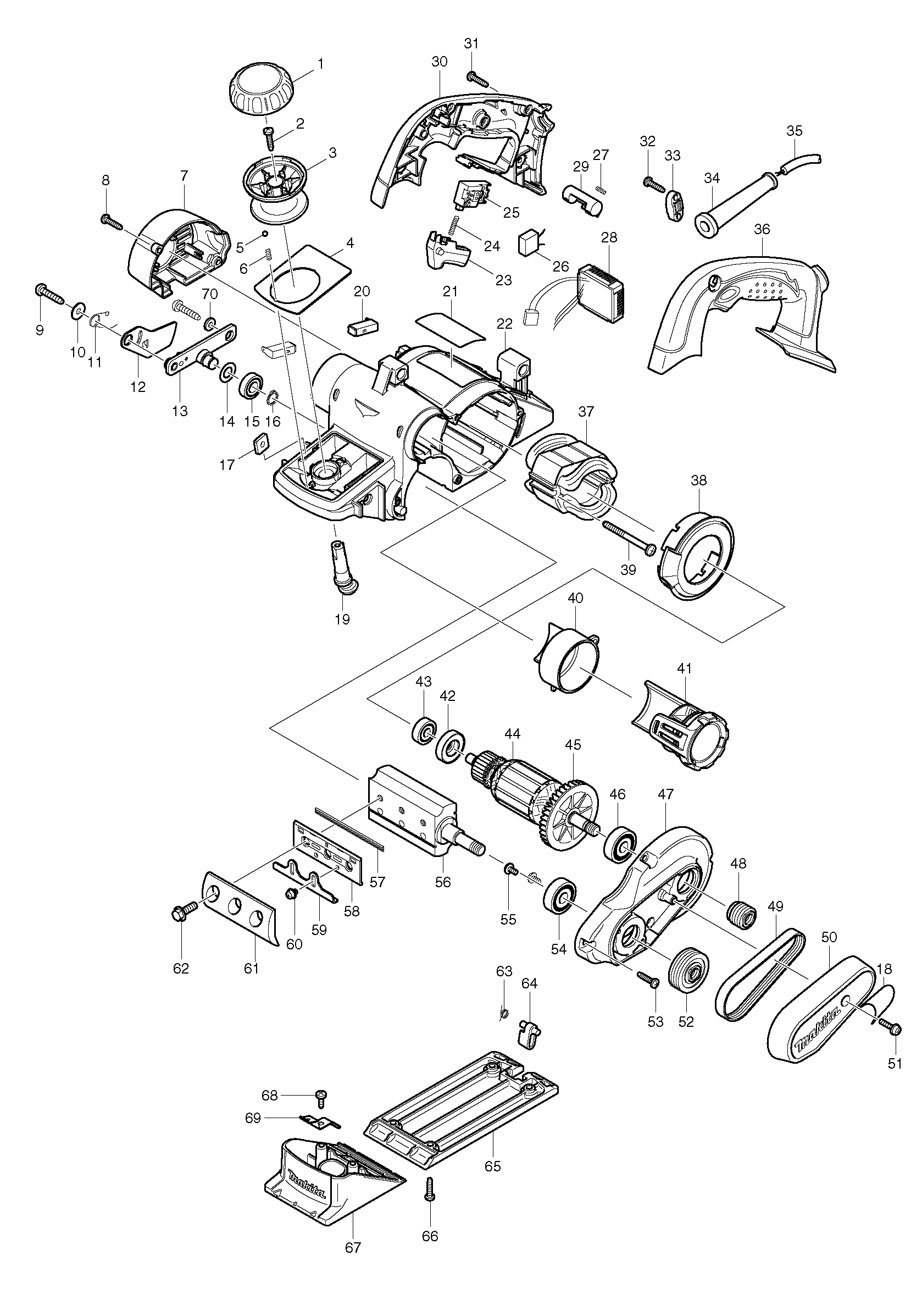

Sheet 1: Makita KP0810C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 419700-5 | Makita 419700-5 KNOB COVERKP0810C |
| 2 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 3 | 419699-4 | Makita 419699-4 KNOBKP0810C |
| 4 | 345766-8 | Makita 345766-8 FRONT PANELKP0810C |
| 5 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 6 | 233325-9 | Makita 233325-9 COMPRESSION SPRING 3KP0810C |
| 7 | 419697-8 | Makita 419697-8 REAR COVERKP0810C |
| 8 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 9 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 10 | 253194-2 | Makita 253194-2 FLAT WASHER 5, 2012NB |
| 11 | 233521-9 | Makita 233521-9 TORSION SPRING 10KP0810C |
| 12 | 345765-0 | Makita 345765-0 DRUM COVERKP0810C |
| 13 | 158184-9 | Makita 158184-9 DRUM HOLDER COMPLETEKP0810C |
| 14 | 253758-2 | Makita 253758-2 FLAT WASHER 10 |
| 15 | 210057-5 | Makita 210057-5 BALL BEARING 6900LLB |
| 16 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 17 | 264002-2 | Makita 264002-2 SQUARE NUT M5, JR181D |
| 18 | 805594-8 | Makita 805594-8 ELECTRIC SPEED CONTRKP0810C |
| 19 | 419702-1 | Makita 419702-1 CAMKP0810C |
| 20 | 191972-1 | Makita 191972-1 Carbon Brush CB-132 for 1923 1923H UC3010A UC3520A UC4020A |
| 21 | 863215-8 | Makita 863215-8 KP0810C NAME PLATEKP0810C |
| 22 | 419694-4 | Makita 419694-4 HOUSINGKP0810C |
| 23 | 419703-9 | Makita 419703-9 SWITCH LEVERKP0810C |
| 24 | 233408-5 | Makita 233408-5 COMPRESSION SPRING 3KP0810C |
| 25 | 651922-3 | Makita 651922-3 Switch TG71B for 2414B PC5001C HR4000C GA7011C |
| 26 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 27 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 28 | 631737-4 | Makita 631737-4 CONTROLLERKP0810C |
| 29 | 419704-7 | Makita 419704-7 LOCK OFF BUTTONKP0810C |
| 30 | 188215-0 | Makita 188215-0 HANDLE SETKP0810C |
| 31 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 32 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 33 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 34 | 682504-0 | Makita 682504-0 CORD GUARD 10-85, 5606B |
| 35 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 36 | 188215-0 | Makita 188215-0 HANDLE SETKP0810C |
| 37 | 525753-5 | Makita 525753-5 FIELD ASS'Y 220-240VKP0810C |
| 38 | 419701-3 | Makita 419701-3 BAFFLE PLATEKP0810C |
| 39 | 266095-5 | Makita 266095-5 TAPPING SCREW FLANGE PT 5 X55 |
| 40 | 419710-2 | Makita 419710-2 NOZZLEKP0810C |
| 41 | 125353-7 | Makita 125353-7 DUCT ASS'YKP0810C |
| 42 | 681660-3 | Makita 681660-3 INSULATION WASHER, SA7000C |
| 43 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 44 | 513688-2 | Makita 513688-2 ARMATURE ASS'Y 220-2KP0810C |
| 46 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 47 | 158149-1 | Makita 158149-1 BRACKET COMPLETEKP0810C |
| 48 | 222125-2 | Makita 222125-2 V-PULLEY 4-20L |
| 49 | 225007-7 | Makita 225007-7 Poly V-Belt 4-241, 1900B BKP180 1923B FP0800 KP0810 KP0810C |
| 50 | 158362-1 | Makita 158362-1 BELT COVER COMPLETEKP0810C |
| 51 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 52 | 222126-0 | Makita 222126-0 V-PULLEY 4-37 1923B |
| 53 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 54 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 55 | 251291-8 | Makita 251291-8 SCREW M4X8 |
| 56 | 158156-4 | Makita 158156-4 DRUM COMPLETEKP0810C |
| 57 | 793322-2 | |
| 58 | 343433-9 | Makita 343433-9 One Plate for MT190 |
| 59 | 345644-2 | Makita 345644-2 Adjust Plate, 1923H |
| 60 | 251246-3 | Makita 251246-3 + PAN HEAD SCREW M4X5 |
| 61 | 345001-4 | Makita 345001-4 DRUM PLATE (2PCS/SET) |
| 62 | 251609-3 | Makita 251609-3 Flange Hex.Bolt M6X17 for 2012NB 1100 1125 |
| 63 | 231698-4 | Makita 231698-4 TORSION SPRING 7, KP0810 |
| 64 | 419706-3 | Makita 419706-3 FOOTKP0810C |
| 65 | 318098-6 | Makita 318098-6 BASEKP0810C |
| 66 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 67 | 158360-5 | Makita 158360-5 FRONT BASE COMPLETEKP0810C |
| 68 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 69 | 232232-3 | Makita 232232-3 LEAF SPRINGKP0810C |
| 70 | 267012-8 | Makita 267012-8 FLAT WASHER 5KP0810C |
