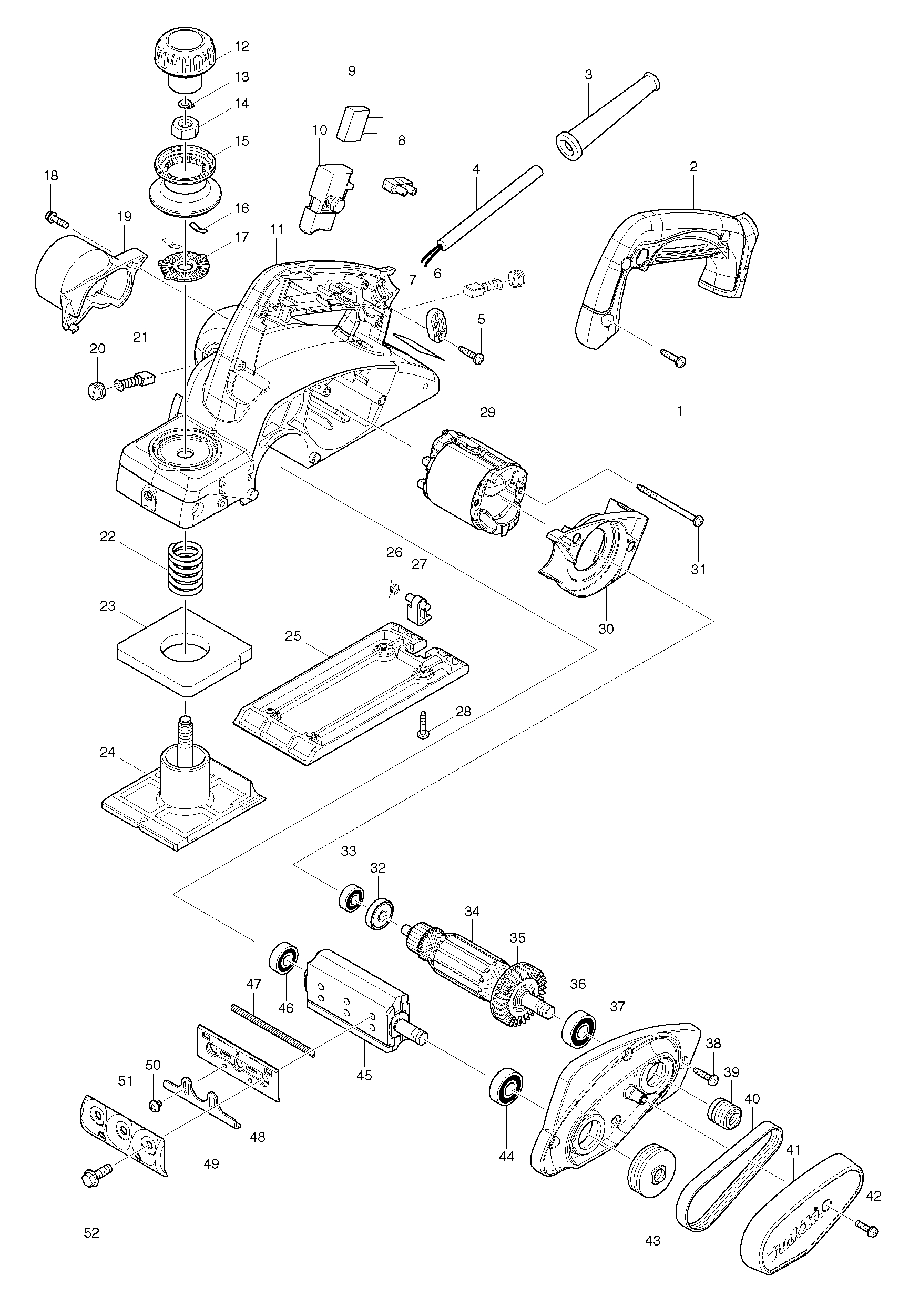

Sheet 1: Makita KP0800 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 2 | 451314-4 | Makita 451314-4 HANDLE COVER, KP0800 |
| 3 | 682569-2 | Makita 682569-2 Cord Guard |
| 4 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 5 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 6 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 7 | 867138-2 | Makita 867138-2 KP0800 NAME PLATEKP0800 |
| 8 | 654532-5 | Makita 654532-5 TERMINAL BLOCK, 9523NB |
| 9 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 10 | 650237-5 | Makita 650237-5 SWITCH, KP0800 |
| 11 | 140197-4 | Makita 140197-4 MAIN FRAME COMPLETE, KP0800 |
| 12 | 451328-3 | Makita 451328-3 KNOB COVER, KP0800 |
| 13 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 14 | 264028-4 | Makita 264028-4 HEX.NUT M10, KP0800 |
| 15 | 451324-1 | Makita 451324-1 KNOB, KP0800 |
| 16 | 232185-6 | Makita 232185-6 LEAF SPRING, KP0800 |
| 17 | 346110-2 | Makita 346110-2 CAM PLATE, KP0800 |
| 18 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 19 | 451329-1 | Makita 451329-1 Planer Dust Nozzle Adaptor KP0800 DKP180 |
| 20 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 21 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 22 | 231004-3 | Makita 231004-3 COMPRESSION SPRING 18, 1900B |
| 23 | 421007-7 | Makita 421007-7 RUBBER PACKING FOR M101 |
| 24 | 318491-4 | Makita 318491-4 FRONT BASE, KP0800 |
| 25 | 318499-8 | Makita 318499-8 BASE, KP0800 |
| 26 | 231698-4 | Makita 231698-4 TORSION SPRING 7, KP0810 |
| 27 | 451392-4 | Makita 451392-4 FOOT, KP0800 |
| 28 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 29 | 593718-5 | Makita 593718-5 FIELD ASSY 220-240V, KP0800 |
| 30 | 451327-5 | Makita 451327-5 BAFFLE PLATE, KP0800 |
| 31 | 266334-3 | Makita 266334-3 TAPPING SCREW 4X60, GA9010 |
| 32 | 681652-2 | Makita 681652-2 INSULATION WASHER, 9523B |
| 33 | 210017-7 | Makita 210017-7 BALL BEARING 607DDW, 9528B |
| 34 | 515793-1 | Makita 515793-1 ARMATURE ASSY 220V, KP0800 |
| 36 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 37 | 140201-9 | Makita 140201-9 BRACKET COMPLETE, KP0800 |
| 38 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 39 | 222163-4 | Makita 222163-4 V-PULLY 4-20L, GA9010 |
| 40 | 225007-7 | Makita 225007-7 Poly V-Belt 4-241, 1900B BKP180 1923B FP0800 KP0810 KP0810C |
| 41 | 451326-7 | Makita 451326-7 BELT COVER, KP0800 |
| 42 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 43 | 222164-2 | Makita 222164-2 V-PULLY 4-37, GA9010 |
| 44 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 45 | 161061-6 | Makita 161061-6 DRUM, 1900B |
| 46 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 47 | A-82921 | Makita A-82921 T.C.T. MINI PLANER BLADE |
| 48 | 343433-9 | Makita 343433-9 One Plate for MT190 |
| 49 | 345644-2 | Makita 345644-2 Adjust Plate, 1923H |
| 50 | 265132-2 | Makita 265132-2 PAN HEAD SCREW M4X5, MT190 |
| 51 | 345007-2 | Makita 345007-2 DRUM PLATE, 1900B |
| 52 | 251609-3 | Makita 251609-3 Flange Hex.Bolt M6X17 for 2012NB 1100 1125 |
