Bosch KEO 18V
Bosch KEO 18V cordl reciprocating saw: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

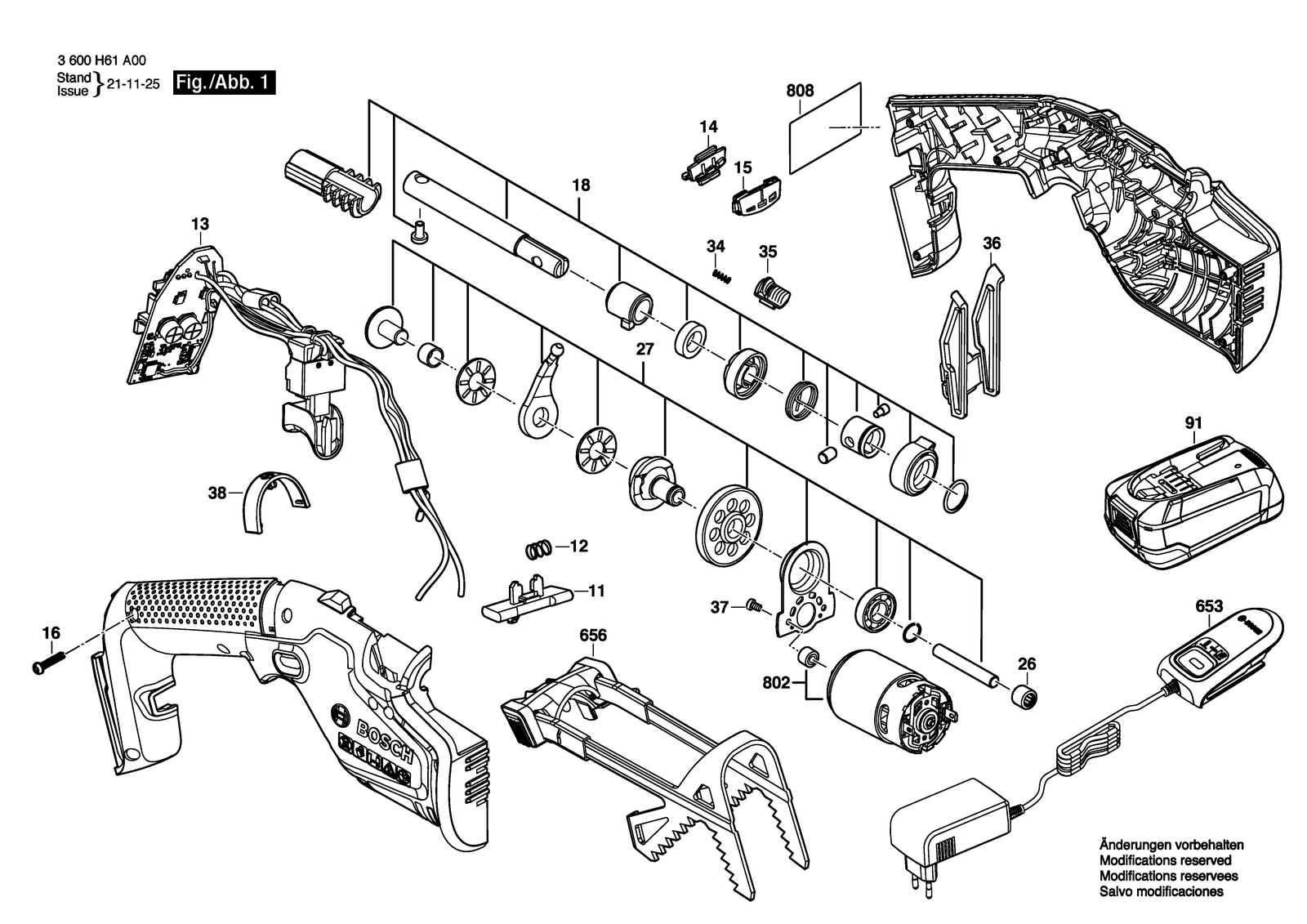

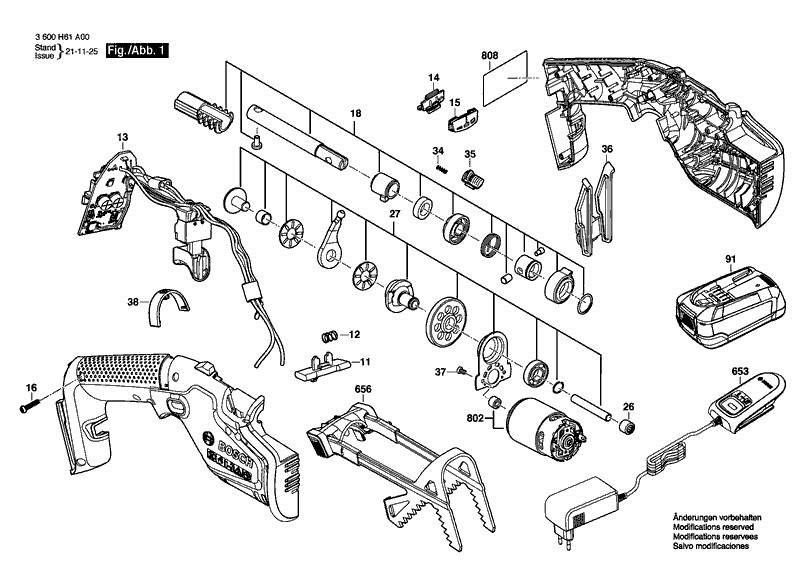

All parts of Bosch KEO 18V: 23 positions on 1 sheet
Bosch KEO 18V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 11 | 1600A021LH | Safety Switch |
| 12 | 2609001975 | Switch Spring |
| 13 | 1600A01Z6U | Electronic Assembly |
| 14 | 1600A01226 | Light Conductor |
| 15 | 16055002DE | Cover |
| 16 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 18 | 1600A026VH | Blade Holder |
| 26 | 1610910064 | Needle bearing |
| 27 | 2609005184 | Gear Unit |
| 34 | 2609004947 | Spring |
| 35 | 1600A02551 | Switch Slide |
| 36 | 2609004888 | Bumper |
| 37 | 2603414048 | Torx SH cap screw M3X5-8.8-Z |
| 38 | 1600A022J3 | Cover |
| 653 | 2607226385 | Fast Charger EU AL 1810 CV 230/14,4-18V 1A |
| 653 | 2607226387 | Fast Charger Gb AL 1810 CV 230/14,4-18V 1A |
| 653 | 2607226593 | Charger Aus AL 18V-20 220-240V 2A |
| 656 | 2609006553 | Hook |
| 802 | 16070226AU | DC motor |
| 808 | 160111A8RL | Nameplate |
| 91 | 1607A350RP | Battery Pack PBA 18V 2,0AH W-b |
| 91 | 1607A351C3 | Battery Pack |
| 91 | 2607337211 | Battery Pack PBA 18V 2,0 Ah W-b |
