Bosch KEO 10,8 LI

Bosch KEO 10,8 LI cordl reciprocating saw: exploded parts diagram, 1 sheet, 25 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch KEO 10,8 LI: 25 positions on 1 sheet

Bosch KEO 10,8 LI parts list (1 sheet)

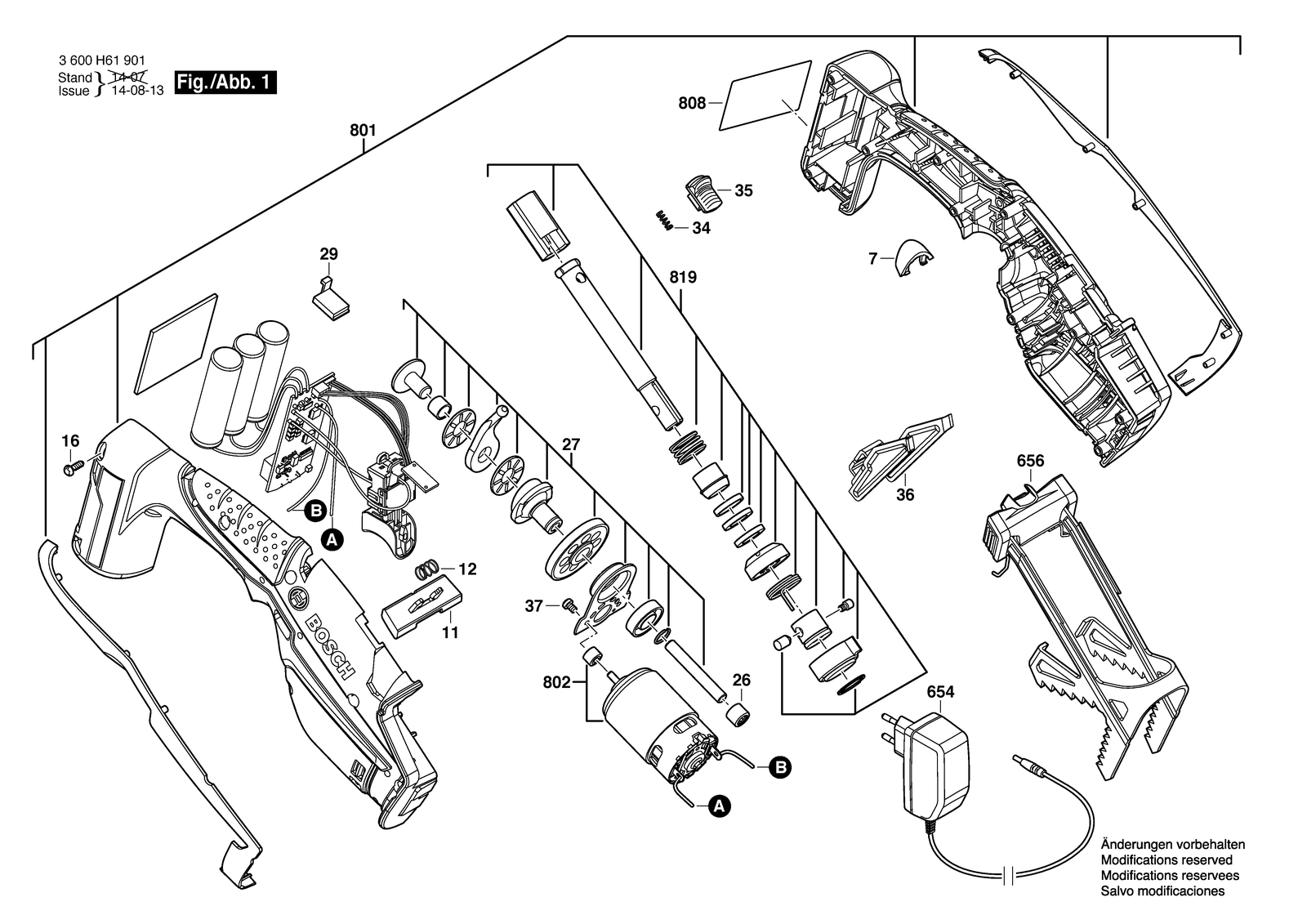

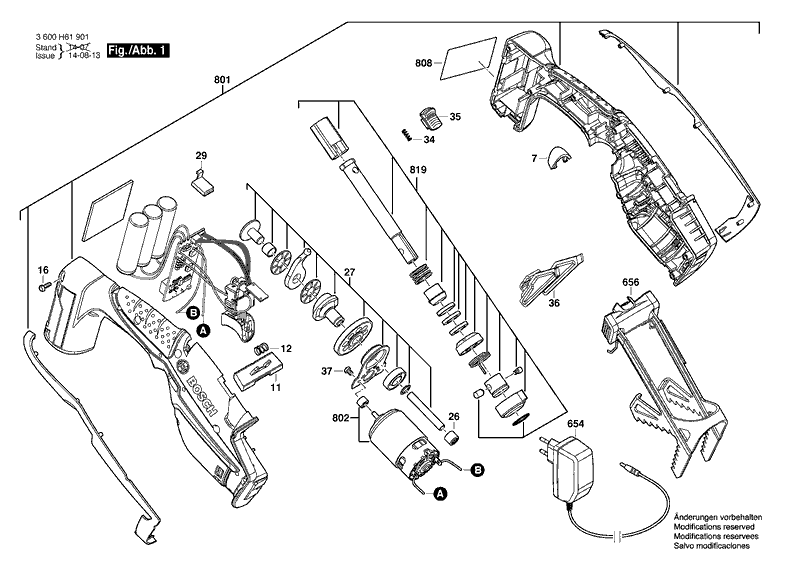

Bosch KEO 10,8 LI parts diagram, sheet 1
No.Part numberPart name
112609004882Safety Switch
122609001975Switch Spring
162603490018Torx Oval-Head Screw 3X18
261610910064Needle bearing
272609005184Gear Unit
292609003996Rubber Plug
342609004947Spring
352609004905Switch Slide
362609004888Bumper
372603414048Torx SH cap screw M3X5-8.8-Z
6542609003932Charger GB 230/7,2-10,8V
6542609004762Charger AUS 240/7,2-10,8V
6542609005121Charger J 100V
6542609005240Charger ROK 230V
6542609007262Charger EU 230V/7,2-10,8V
6562609006553Hook
72609004883Lens
8012609005783Housing
8022609005784DC motor
808160111A2AUNameplate
808160111A2AVNameplate
808160111A6AZNameplate
808160111A6B0Nameplate
8082609006659Nameplate
8191600A005A2Blade Holder
