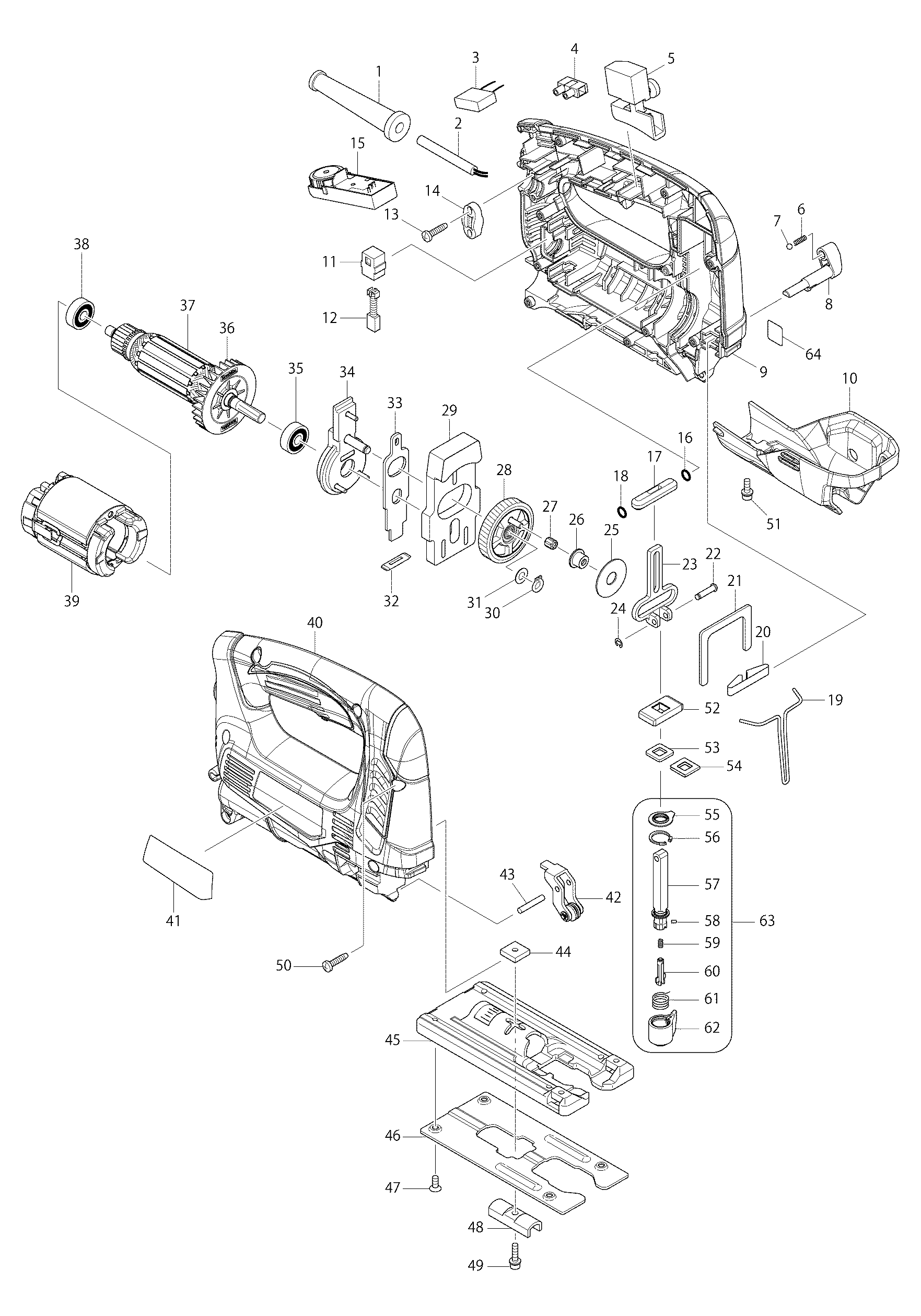

Sheet 1: Makita JV0600 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 2 | 695034-2 | Makita 695034-2 POWER SUPPLY CORD 1.0-2-4 |
| 3 | 645149-5 | Makita 645149-5 CAPACITOR, 4350FCT |
| 4 | 654532-5 | Makita 654532-5 TERMINAL BLOCK, 9523NB |
| 5 | 650202-4 | Makita 650202-4 Switch for JV0600 |
| 6 | 233151-6 | Makita 233151-6 COMPRESSION SPRING 4, 4322 |
| 7 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 8 | 272269-8 | Makita 272269-8 LEVER 18, JV0600 |
| 9 | 187163-0 | Makita 187163-0 HOUSING SET, JV0600 |
| 10 | 318751-4 | Makita 318751-4 HOUSING COVER, JV0600 |
| 11 | 643552-4 | Makita 643552-4 BRUSH HOLDER, 6409 |
| 12 | 191627-8 | Makita 191627-8 Carbon Brushes CB-64 for JR3000V BO3710 BO4552 |
| 13 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 14 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 15 | 620046-6 | Makita 620046-6 CONTROLLER, JV0600 |
| 16 | 213038-8 | Makita 213038-8 O RING 5, 4322 |
| 17 | 313082-6 | Makita 313082-6 Slider Guide 4322 4323 4324 4326 4327 4328 4329 JV100D MT431 |
| 18 | 213038-8 | Makita 213038-8 O RING 5, 4322 |
| 19 | 326092-4 | Makita 326092-4 SAFETY WIRE, JV0600 |
| 20 | 232183-0 | Makita 232183-0 LEAF SPRING, 4322 |
| 21 | 346473-6 | Makita 346473-6 SLIDER GUIDE PLATE, JV0600 |
| 22 | 268090-1 | Makita 268090-1 PIN 4, JV0600 |
| 23 | 310484-7 | DISC 310484-7 |
| 24 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 25 | 253180-3 | Makita 253180-3 FLAT WASHER 10, 6220D |
| 26 | 257804-3 | Makita 257804-3 SHOULDER SLEEVE 7, JV0600 |
| 27 | 212965-6 | Makita 212965-6 NEEDLE CAGE 407, JV0600 |
| 28 | 141026-4 | Makita 141026-4 GEAR HOUSING COMPLETE, JV0600 |
| 29 | 313216-1 | Makita 313216-1 BALANCE PLATE, JV0600 |
| 30 | 961002-0 | Makita 961002-0 RETAINING RING S-6, 9523NB |
| 31 | 253715-0 | Makita 253715-0 FLAT WASHER 6, LS1040 |
| 32 | 416703-0 | Makita 416703-0 DUST SEAL, 4322 |
| 33 | 346471-0 | Makita 346471-0 PUSH PLATE, JV0600 |
| 34 | 141029-8 | Makita 141029-8 BEARING BOX COMPLETE, JV0600 |
| 35 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 37 | 518871-6 | Makita 518871-6 ARMATURE ASSY 220V, JV0600 |
| 38 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 39 | 633789-1 | Makita 633789-1 FIELD 240V 140T, JV0600 |
| 40 | 187163-0 | Makita 187163-0 HOUSING SET, JV0600 |
| 41 | 869972-6 | Makita 869972-6 NAME PLATE HM1202C |
| 42 | 141028-0 | Makita 141028-0 RETAINER HOUSING COMPLETE, JV0600 |
| 43 | 256206-0 | Makita 256206-0 PIN 4, JV600 |
| 44 | 343540-8 | Makita 343540-8 HOLDER, 4322 |
| 45 | 317796-9 | Makita 317796-9 Jigsaw Base for 4324 4329 JV0600 JV100D |
| 46 | 345441-6 | Makita 345441-6 BASE PLATE, 4324 |
| 47 | 912107-9 | Makita 912107-9 Countersunk Head Screw M4X8 5740NB 5037NB |
| 48 | 344685-5 | Makita 344685-5 CLAME PLATE, 4322 |
| 49 | 922138-0 | Makita 922138-0 HEX.SOCKET HEAD BOLT M4*16, MT430 |
| 50 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 51 | 922118-6 | Makita 922118-6 HEX. SOCKET HEAD BOLT M4*12, LS1016L |
| 52 | 313215-3 | Makita 313215-3 SLIDER SUPPORT, JV0600 |
| 53 | 424436-3 | Makita 424436-3 POLYURETHANE SPONGE SEAL, JV0600 |
| 54 | 346470-2 | Makita 346470-2 SEAL PLATE, JV0600 |
| 55 | 424437-1 | Makita 424437-1 DUST COVER, JV0600 |
| 56 | 962063-3 | Makita 962063-3 ,RETAINING RING R-B |
| 57 | 165654-1 | Makita 165654-1 ROD |
| 58 | 256528-8 | Makita 256528-8 PIN 2 |
| 59 | 233314-4 | Makita 233314-4 COMPRESSION SPRING 4, 5007MG |
| 60 | 310485-5 | Makita 310485-5 LOCK PIN |
| 61 | 233591-8 | Makita 233591-8 TORSION SPRING 10 |
| 62 | 452850-3 | |
