Bosch JS572EB

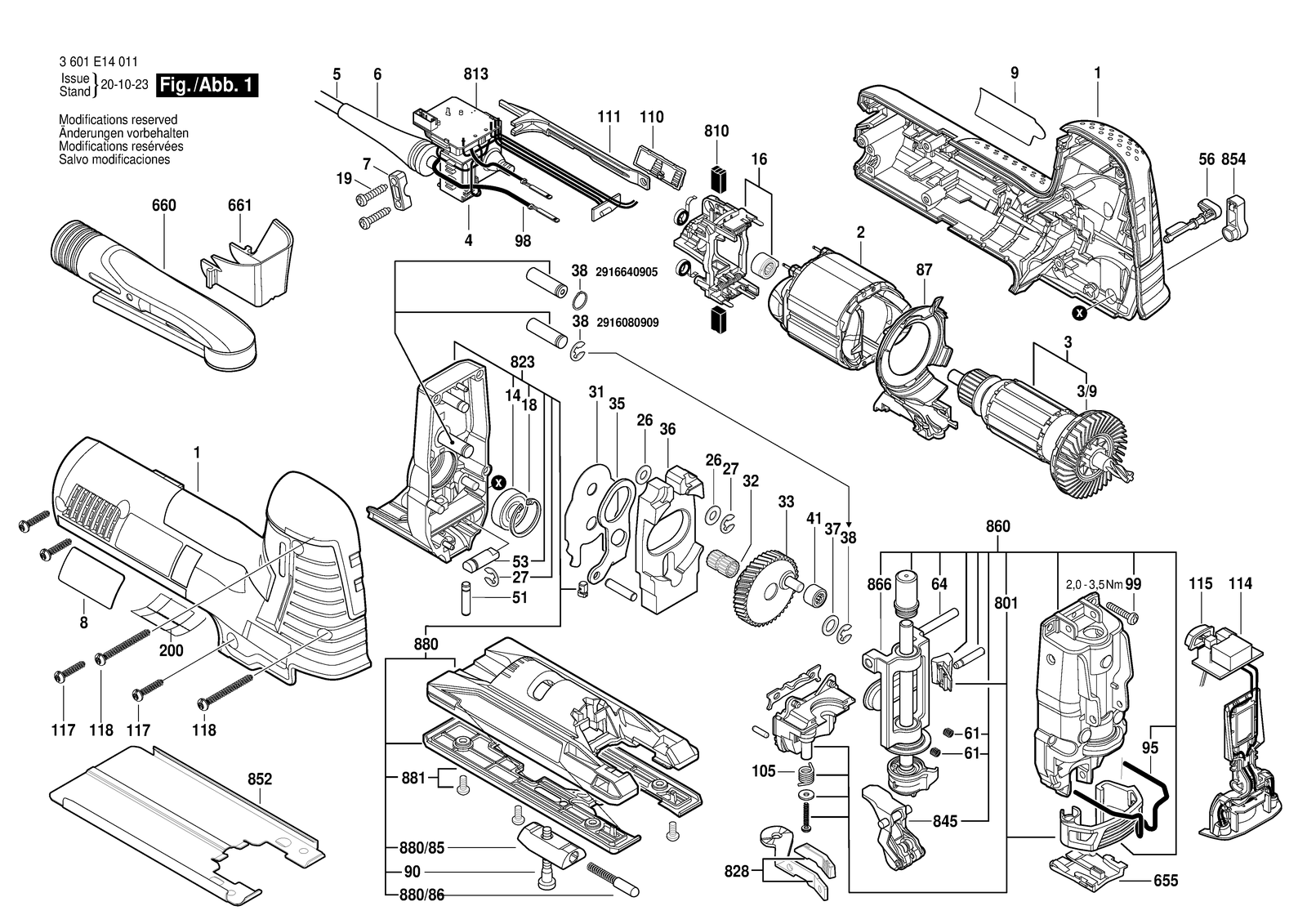

Bosch JS572EB jig saw: exploded parts diagram, 1 sheet, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch JS572EB: 59 positions on 1 sheet
Bosch JS572EB parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105180 | Housing Section |
| 105 | 2604690060 | Torsion Spring |
| 110 | 2602026169 | Operating Element |
| 111 | 2601099223 | Adjusting Slide |
| 114 | 1607233384 | EL luma module 230V |
| 115 | 2600030030 | Headlamp Switch |
| 117 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 118 | 2603490027 | Torx Oval-Head Screw 4X40 |
| 14 | 2600905112 | Groove ball bearing 9X24X7 |
| 16 | 2605807138 | Brush Plate |
| 18 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220742 | Field 110V |
| 200 | 2601113235 | Nameplate |
| 26 | 2600100040 | Shim |
| 27 | 2916080908 | Locking washer 5 DIN 6799 |
| 3 | 2604011432 | Armature 110V |
| 3/9 | 2606610089 | Fan |
| 31 | 2600101124 | Shim |
| 32 | 2600913040 | Needle-Roller Assembly |
| 33 | 2606320107 | Eccentric Cog Wheel |
| 35 | 2601923015 | Fork Lever |
| 36 | 2601098120 | Counterweight |
| 37 | 2600101047 | Shim 0,3 MM |
| 38 | 2916080909 | Locking washer DIN 6799-6-FST |
| 38 | 2916640905 | Spring retaining ring 8X0,8 N31A MR7 |
| 4 | 2607200687 | Switch |
| 41 | 2600917900 | Needle bearing |
| 5 | 2604460240 | Power supply cord Usa/can/ SMA 4,15M 2 X 0,82MM SJ 18/2 |
| 51 | 2603105131 | Bearing bolt |
| 53 | 2603124157 | Control Shaft |
| 56 | 2602026170 | Rotary Knob |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 61 | 2604610151 | Compression Spring |
| 64 | 2601322045 | Straight Pin |
| 655 | 2601016093 | Splintering Protector |
| 660 | 2605730061 | Suction Socket |
| 661 | 2605510296 | Covering hood |
| 7 | 2601035004 | Cable Clip |
| 8 | 2601111953 | Warning Plate |
| 801 | 2607990070 | Ejection Lever |
| 810 | 2604320918 | Carbon-Brush Set |
| 813 | 16072335AK | Speed governor 100-127V |
| 823 | 2605806868 | Gear Housing |
| 828 | 2602098024 | Tensioning Lever |
| 845 | 2601321911 | Roller Lever |
| 852 | 2601098121 | Work Board |
| 854 | 2602026909 | Rotary Knob Black |
| 860 | 2605808943 | Gear Cover |
| 866 | 1600A00H4H | Lifting Rod |
| 87 | 2605500206 | Air-Deflector Ring |
| 880 | 2601099256 | Base Plate |
| 880/85 | 2602317067 | Clamping Piece |
| 881 | 2601099900 | Work Board |
| 9 | 2601112019 | Manufacturer's nameplate JS572EB |
| 90 | 2910131205 | Hex Socket Head Cap Screw DIN 7984 M6X30-8.8 |
| 95 | 2603101060 | Protecting Cover |
| 98 | 1619P07299 | Connecting Cable |
| 99 | 2603410051 | Thread-forming tap. Screw |
