Bosch JS365

Bosch JS365 jig saw: exploded parts diagram, 1 sheet, 50 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch JS365: 50 positions on 1 sheet

Bosch JS365 parts list (1 sheet)

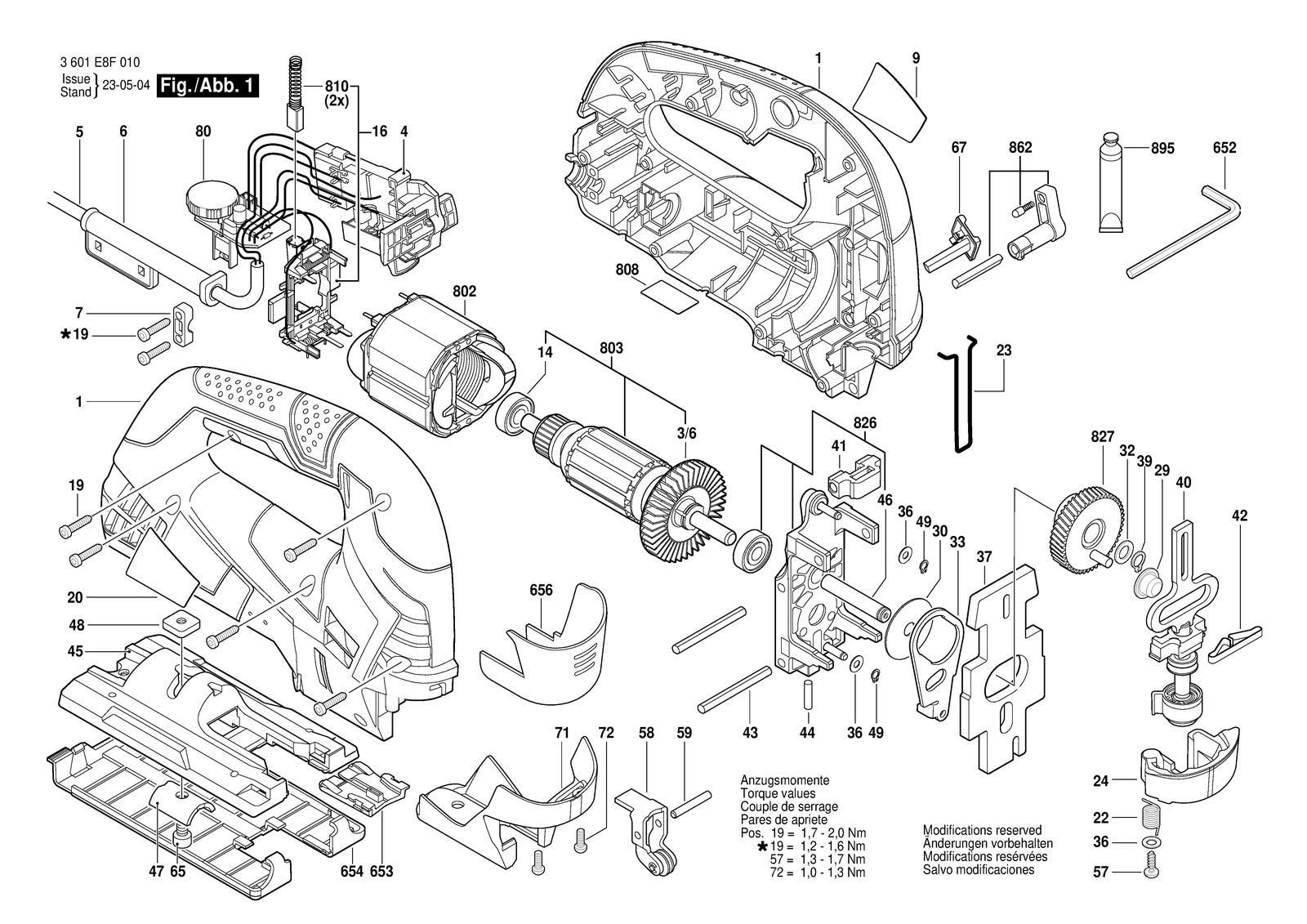

Bosch JS365 parts diagram, sheet 1
No.Part numberPart name
11619P07126Housing Section Dark Blue
142600905110Groove ball bearing 8X22X7
162604337113Brush Plate
192603490022Screw 4X16
201619P07136Warning Label
221619P07152Torsion Spring
231619P07128Protecting Cover
241619P07151Lever Switch
292600914022Needle bearing
3/62606610123Fan
301619P07576Shim
322600101077Shim 0,5 MM
331619P07137Fork Lever
362600100588Shim 0,5 MM
371619P07133Counterweight
392916640905Spring retaining ring 8X0,8 N31A MR7
42607200670Switch
401619P07147Lifting Rod
411619P08903Plain bearing
421619P11327Coiled Spring
431619P07139Needle Roller
441619P07143Bearing bolt
451619P09068Base Plate
461619P07138Bearing bolt
472601030019Profile Beading
481619P07163Fixing plate
492916640001Spring retaining ring DIN 471-4X0,4-FST
51619P07350Power supply cord Usa/can/sma 2,70M 2 X 0,82MM SJ 18/2
571619P02848Torx Oval-Head Screw 4X12
581619P13426Roller Lever
591619P07159Bearing bolt
62600703028Grommet Ø7,6-Ø8,2X95 MM
651619X04887Hex Socket Head Cap Screw
6522610364015Hexagon Socket Screw Key 5 MM
6532601016093Splintering Protector
6541619P07958Pad
671619P07158Switch Slide
72601035001Cable Clip
7116055002CJCover
722603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
801619P07308Speed governor
8021619P09156Field
8031619P09158Armature
8081619P07141Nameplate
8102604321944Carbon-Brush Set
8261619P08888Bearing Bracket
8271619P08889Eccentric Cog Wheel
8621619P08890Change-Over Switch
8953605430003Grease Tube Albida
91619P07134Manufacturer's nameplate
