Bosch JS260

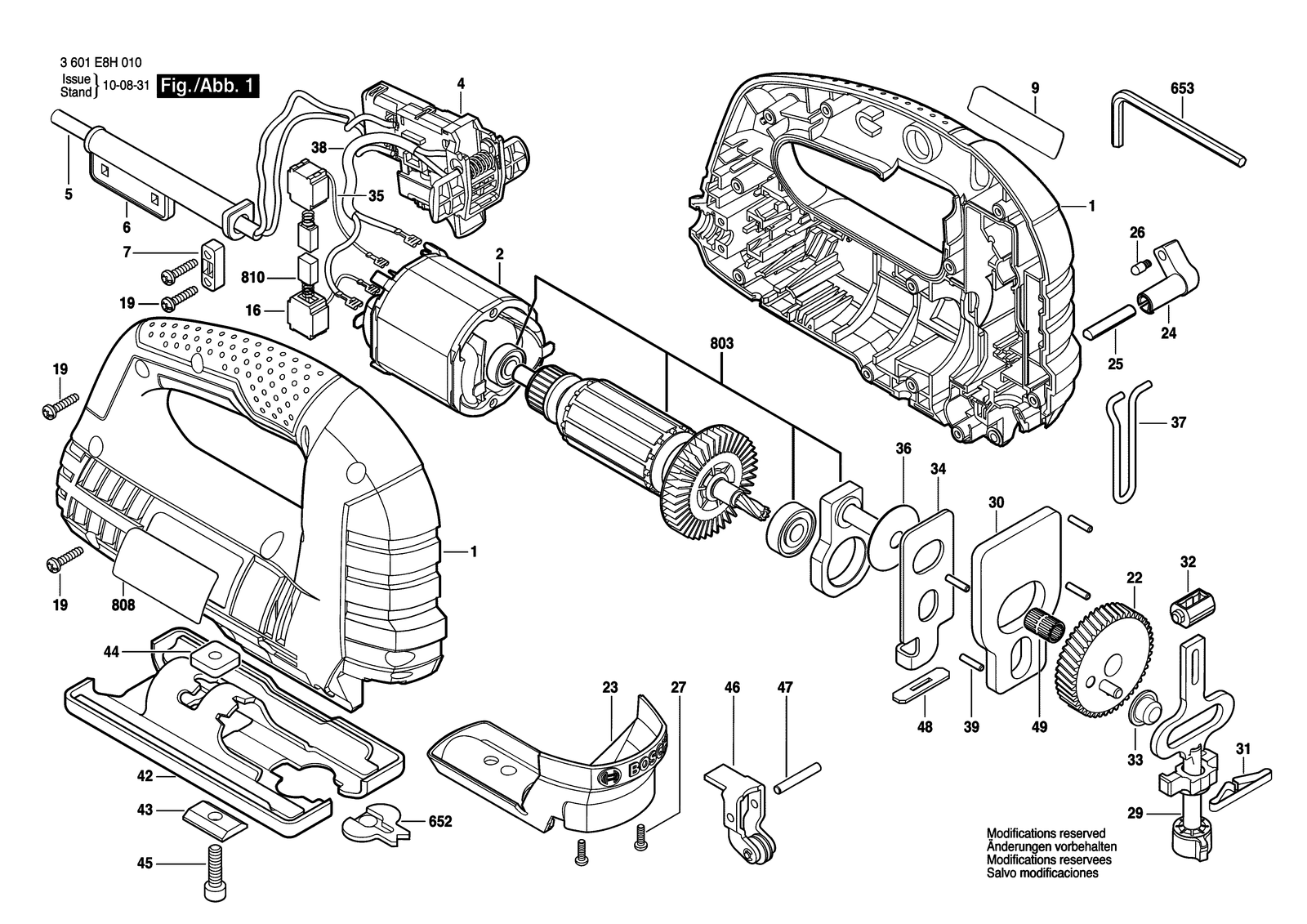

Bosch JS260 jig saw: exploded parts diagram, 1 sheet, 39 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch JS260: 39 positions on 1 sheet
Bosch JS260 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619X04876 | Housing Set |
| 16 | 1619X02735 | Brush Holder |
| 19 | 2610315386 | Screw ST3,9X19 |
| 2 | 1619X03049 | Field 115V |
| 22 | 1619X04872 | Gear Unit |
| 23 | 1600A00XY2 | Decorative Cover |
| 24 | 1619X04885 | Lever |
| 25 | 1619X03695 | Shaft |
| 26 | 1619X03196 | Spring |
| 27 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 29 | 2600780173 | Lifting Rod |
| 30 | 1619X04546 | Counter Weight |
| 31 | 2604613004 | Compression Spring |
| 32 | 1619X00399 | Bearing Block |
| 33 | 2600914022 | Needle bearing |
| 34 | 1619X04542 | Pusher |
| 35 | 1619X03396 | Cable |
| 36 | 1619X00434 | Wear Plate |
| 37 | 1619X04886 | Protective Guard |
| 38 | 1619X03111 | Cable Set |
| 39 | 1619X04547 | Straight Pin |
| 4 | 1619X05009 | Switch |
| 42 | 1619X05094 | Base Plate |
| 43 | 2601030019 | Profile Beading |
| 44 | 1619P07163 | Fixing plate |
| 45 | 1619X04887 | Hex Socket Head Cap Screw |
| 46 | 1619P13426 | Roller Lever |
| 47 | 1619P07159 | Bearing bolt |
| 48 | 1619X04574 | Seal |
| 49 | 2600913040 | Needle-Roller Assembly |
| 5 | 1619P07350 | Power supply cord Usa/can/sma 2,70M 2 X 0,82MM SJ 18/2 |
| 6 | 2600703028 | Grommet Ø7,6-Ø8,2X95 MM |
| 652 | 2601016065 | Splintering Protector |
| 653 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 7 | 2601035001 | Cable Clip |
| 803 | 1619X05280 | Armature set 115V |
| 808 | 1619X05121 | Nameplate |
| 810 | 1619X03193 | Carbon-Brush Set |
| 9 | 1619X04884 | Manufacturer's nameplate |
