Makita JS1600
Makita JS1600: exploded parts diagram, 1 sheet, 47 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita JS1600: 47 positions on 1 sheet

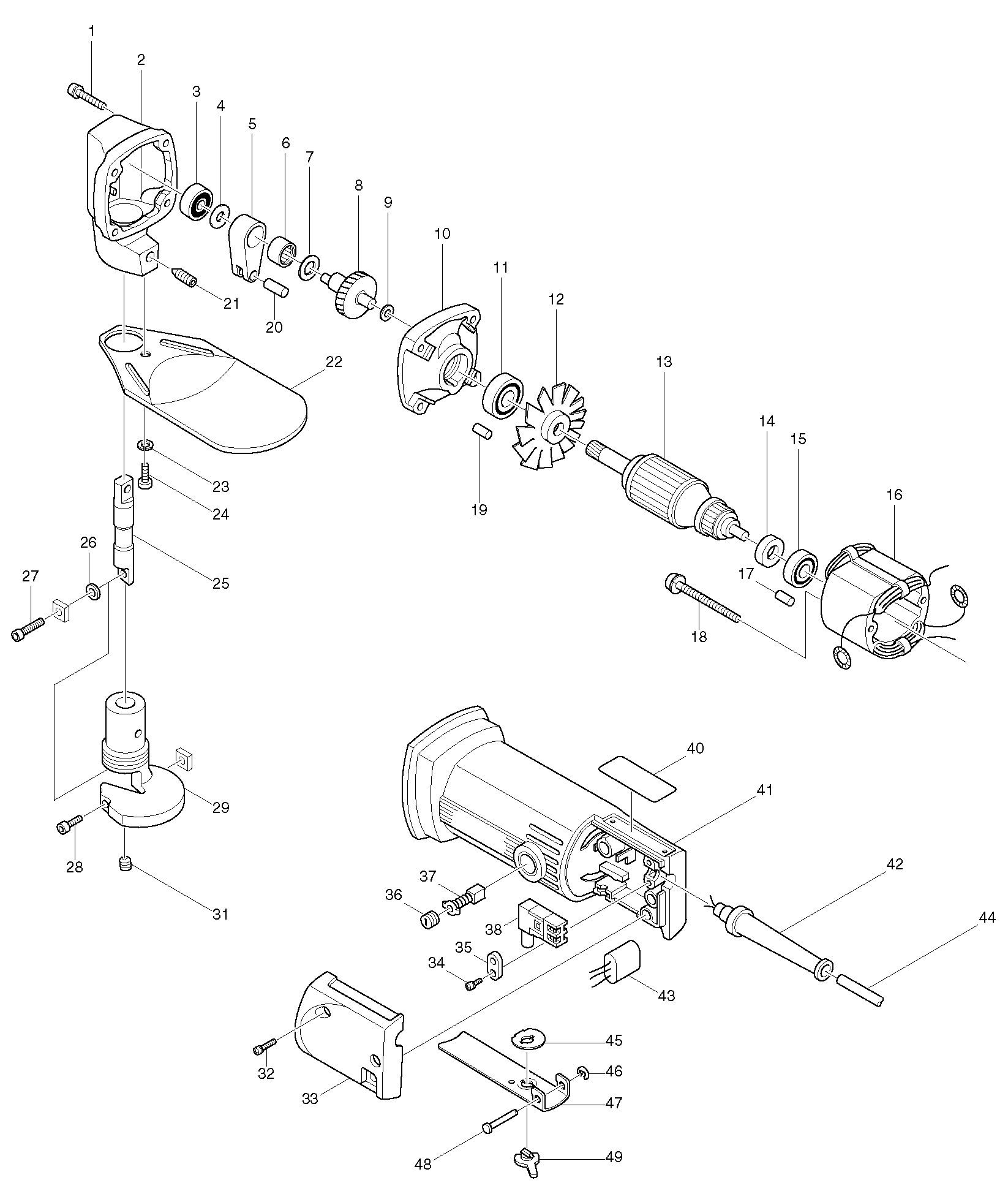

Sheet 1: Makita JS1600 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911156-3 | Makita 911156-3 PAN HEAD SCREW M4X30 |
| 2 | 156725-5 | Makita 156725-5 GEAR HOUSING |
| 3 | 211029-3 | Makita 211029-3 BALL BEARING 627 |
| 4 | 253823-7 | Makita 253823-7 FLAT WASHER 7, LS1040 |
| 5 | 331151-1 | Makita 331151-1 ROD |
| 6 | 212063-6 | Makita 212063-6 NEEDLE BEARING 1012 |
| 7 | 253758-2 | Makita 253758-2 FLAT WASHER 10 |
| 8 | 153138-1 | Makita 153138-1 CRANK SHAFT COMPLETE JS1600 |
| 9 | 253715-0 | Makita 253715-0 FLAT WASHER 6, LS1040 |
| 10 | 156731-0 | |
| 11 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 12 | 241081-7 | Makita 241081-7 FAN 58 |
| 13 | 511433-9 | Makita 511433-9 ARMATURE ASS'Y 220V |
| 14 | 681614-0 | Makita 681614-0 INSULATION WASHER |
| 15 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 16 | 528623-7 | Makita 528623-7 FIELD ASS'Y 220V |
| 17 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 18 | 265891-8 | Makita 265891-8 TAPPING SCREW BT 4X55 |
| 19 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 20 | 256110-3 | Makita 256110-3 PIN 6 |
| 21 | 913427-4 | Makita 913427-4 SET SCREW M8X16 |
| 22 | 341676-7 | Makita 341676-7 PROTECTOR |
| 23 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 24 | 922207-7 | Makita 922207-7 HEX. SOCKET HEAD BOLT M5X |
| 25 | 321311-3 | Makita 321311-3 BLADE HOLDER |
| 26 | 253334-2 | Makita 253334-2 THIN WASHER 5 |
| 27 | 922112-8 | Makita 922112-8 HEX SOCRET HEAD BOLT M4*10, EBH340U |
| 28 | 922127-5 | Makita 922127-5 HEX. SOCKET HEAD BOLT M4X |
| 29 | 311717-3 | Makita 311717-3 YOKE |
| 31 | 251986-3 | Makita 251986-3 HEX. SOCKET HEAD BOLT M6X |
| 32 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
| 33 | 411981-7 | Makita 411981-7 SWITCH COVER JS1600 JN1600 |
| 34 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 35 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 36 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 37 | 191628-6 | Makita 191628-6 CB-65 Carbon Brushes |
| 38 | 651821-9 | Makita 651821-9 Switch ZGM-54 for JN1600 JS1600 BO6010 |
| 40 | 815652-2 | Makita 815652-2 NAME PLATE JS1600 |
| 41 | 157720-8 | Makita 157720-8 MOTOR HOUSING |
| 42 | 682521-0 | Makita 682521-0 CORD GUARD 10 |
| 43 | 645169-9 | Makita 645169-9 NOISE SUPPRESSOR |
| 44 | 665852-2 | Makita 665852-2 POWER S.CORD CEE, MT900 |
| 45 | ||
| 46 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 47 | 341858-1 | Makita 341858-1 SWITCH LEVER |
| 48 | 256626-8 | Makita 256626-8 PIN 4 |
| 49 |
