Bosch JS120

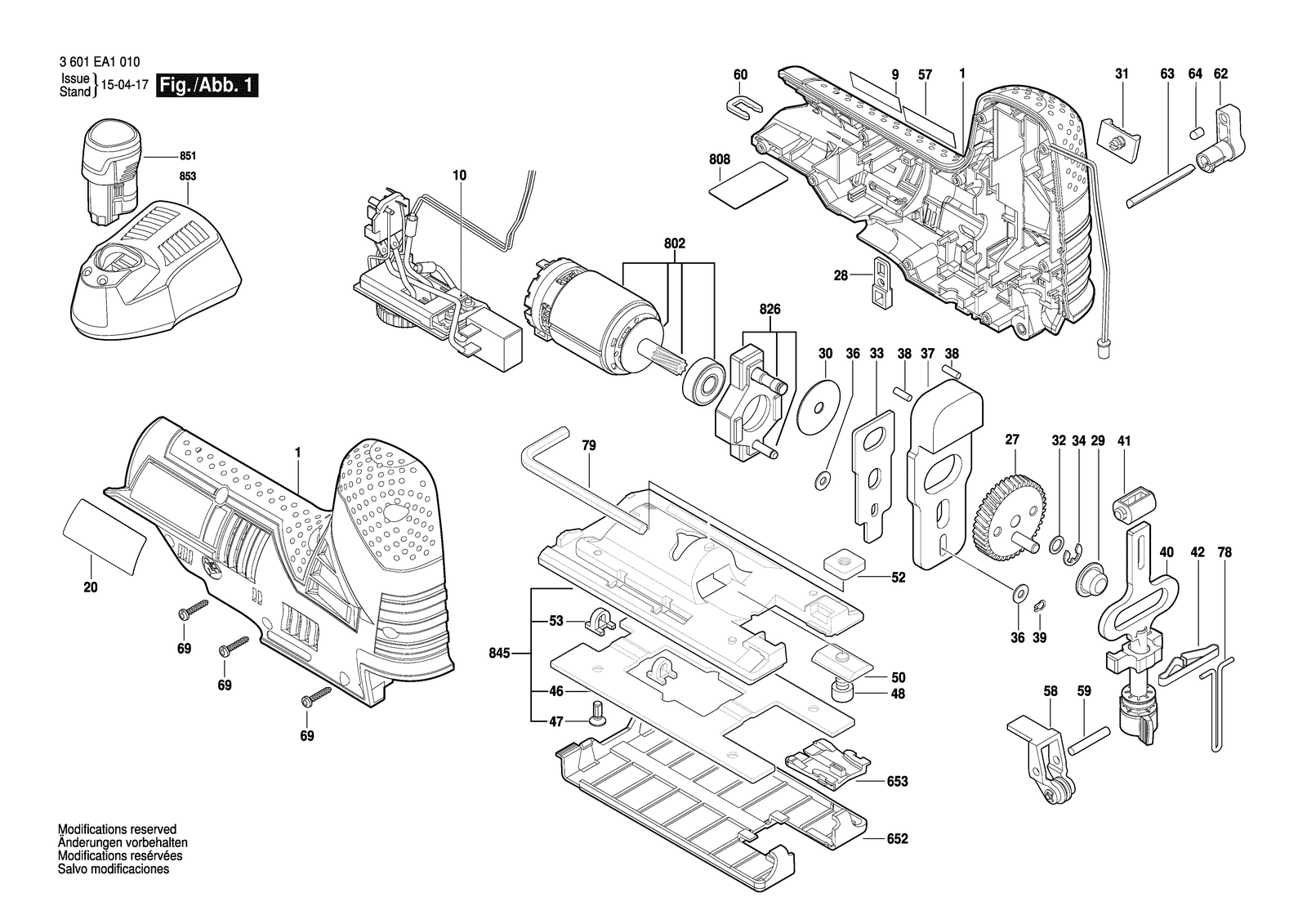

Bosch JS120 cordless jigsaw: exploded parts diagram, 1 sheet, 45 positions. Spare parts with part numbers, availability and prices.

—

Scroll to zoom · drag to move

All parts on this sheet0 Only available

All parts of Bosch JS120: 45 positions on 1 sheet

Bosch JS120 parts list (1 sheet)

No.	Part number	Part name
1	1619P10559	Housing Section
10	1619P10565	Electronics Module
20	1619P12215	Warning Label
27	1619P10569	Eccentric Cog Wheel
28	1619P10570	Switch Slide
29	2600914022	Needle bearing
30	1619P01396	Shim
31	1619P10572	Switch Button
32	2600100568	Shim 0,5 MM
33	1619P10573	Fork Lever
34	2916080908	Locking washer 5 DIN 6799
36	2600100588	Shim 0,5 MM
37	1619P10574	Counterweight
38	2603201020	Bearing bolt
39	2916640001	Spring retaining ring DIN 471-4X0,4-FST
40	2600780173	Lifting Rod
41	1619X00399	Bearing Block
42	1619X08384	Coiled Spring
46	1619P10576	Work Board
47	1619P11427	Thread-forming tap. Screw
48	2910141197	Hex Socket Head Cap Screw DIN 912-M6X16-8.8
50	2601030019	Profile Beading
52	1619P07163	Fixing plate
53	1619P10589	Key Holder
57	1619P10835	Sticker
58	1619P10578	Roller Lever
59	2917530101	Straight Pin DIN 6325-4M6X24
60	1619P08646	Clip
62	1619P10580	Change-Over Switch
63	1619P10581	Control Shaft
64	2600590006	Ratchet Cap
652	1619P07958	Pad
653	2601016093	Splintering Protector
69	1619P06252	Torx Oval-Head Screw
78	1619P10582	Protecting Cover
79	2610364015	Hexagon Socket Screw Key 5 MM
802	1619P10586	DC motor
808	2610035775	Label
826	1619P10587	Bearing Bracket
845	1619P10588	Base Plate
851	1607A350C8	Battery Pack BAT 414 10,8/12V 2,0AH
851	2607337237	Battery Pack BAT 415 10,8V712V 2,5AH
853	2607225139	Fast Charger Usa/can 120/10,8-12V/30 Min.
853	2607225519	Fast Charger USA 120/3,6-10,8V,1H
9	1619P12214	Manufacturer's nameplate JS120
