Makita JR3061T: exploded parts diagram, 1 sheet, 73 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita JR3061T: 73 positions on 1 sheet

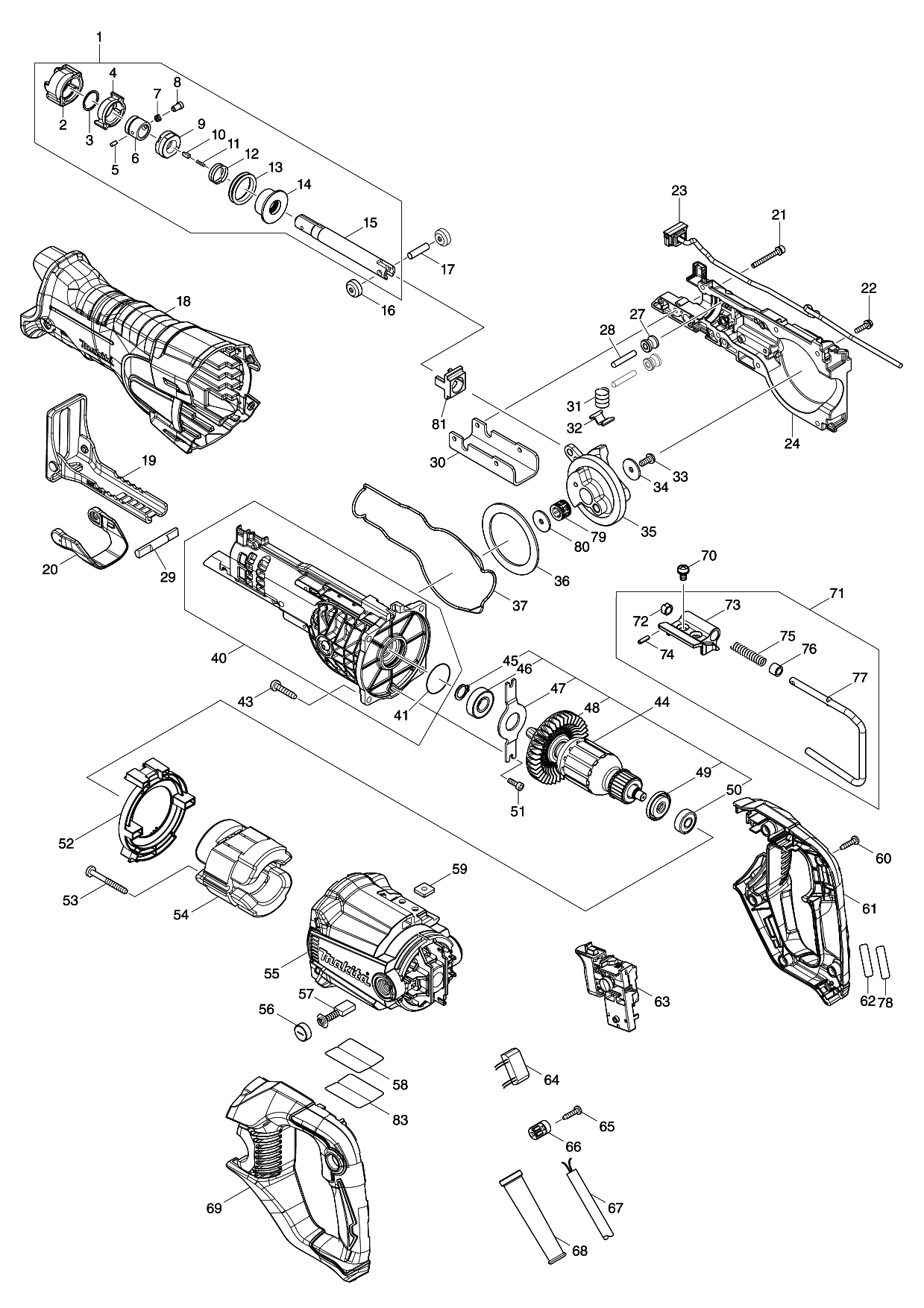

Sheet 1: Makita JR3061T parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 422223-4 | |
| 3 | 257430-8 | Makita 257430-8 RETAINING RING (EXT) 18, JR3050T |
| 4 | 310848-5 | |
| 5 | 268094-3 | Makita 268094-3 PIN3, JR300VT |
| 6 | 327650-9 | |
| 7 | 234381-2 | Makita 234381-2 COMPRESSION SPRING 6 |
| 8 | 256569-4 | Makita 256569-4 PIN |
| 9 | 458968-8 | |
| 10 | 310912-2 | |
| 11 | 232472-3 | |
| 12 | 233594-2 | Makita 233594-2 TOPSION SPRING 17 |
| 13 | 422309-4 | |
| 14 | 140C81-1 | |
| 15 | 327652-5 | Makita 327652-5 SLIDER, JJR3061T |
| 16 | 310663-7 | Makita 310663-7 ROLLER |
| 17 | 268341-2 | Makita 268341-2 PIN 6 |
| 18 | 422308-6 | Makita 422308-6 BUMPER, JR3061 |
| 19 | 161811-9 | Makita 161811-9 SHOE, JR3061T |
| 20 | 458644-4 | Makita 458644-4 LOCK LEVER, JR3061T |
| 21 | 266979-7 | Makita 266979-7 HEX.SOCKET HEAD BOLT M4X35 WR |
| 22 | 911526-6 | Makita 911526-6 PAN HEAD SCREW M4X16WRM, HR2412 |
| 23 | 620965-6 | |
| 24 | 127139-5 | Makita 127139-5 GEAR HOUSING R ASSEMBLY, JR3061T |
| 27 | 327153-3 | Makita 327153-3 ROLLER F, JR3061 |
| 28 | 256579-1 | |
| 29 | 326599-0 | Makita 326599-0 LOCK PIN |
| 30 | 346937-0 | Makita 346937-0 SHOE GUIDE PLATE |
| 31 | 231231-2 | Makita 231231-2 COMPRESSION SPRING 12 |
| 32 | 347415-3 | |
| 33 | 265374-8 | Makita 265374-8 HS BUTTON HEAD SCREW |
| 34 | 253462-3 | Makita 253462-3 FLAT WASHER 5 |
| 35 | 140C77-2 | Makita 140C77-2 GEAR HOUSING R ASSEMBLY, JR3061T |
| 36 | 267490-2 | Makita 267490-2 FLAT WASHER 54 |
| 37 | 422307-8 | Makita 422307-8 SEAL RING, JR3061 |
| 41 | 213437-4 | Makita 213437-4 O RING 28, HR261D |
| 43 | 266459-3 | Makita 266459-3 TAPPING SCREW 5*25, 5477NB |
| 44 | 517979-3 | Makita 517979-3 ARMATURE JR3061T |
| 45 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 46 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 47 | 285033-8 | |
| 49 | 681644-1 | Makita 681644-1 RESIN WASHER, MT110 |
| 50 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 51 | 265353-6 | Makita 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610 |
| 52 | 458643-6 | |
| 53 | 266466-6 | |
| 54 | 521879-1 | Makita 521879-1 FIELD |
| 55 | 140C78-0 | Makita 140C78-0 MOTOR HOUSING COMPLETE |
| 56 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 57 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 58 | 854V54-9 | |
| 59 | 264002-2 | Makita 264002-2 SQUARE NUT M5, JR181D |
| 60 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 61 | 183K39-5 | |
| 62 | 854V59-9 | |
| 63 | 651374-8 | Makita 651374-8 SWITCH |
| 64 | 620967-2 | Makita 620967-2 POWER SUPPLY CIRCUIT, JR3061T |
| 65 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 66 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 67 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 68 | 682574-9 | Makita 682574-9 CORD GUARD, MT240 |
| 69 | 183K39-5 | |
| 70 | 911206-4 | Makita 911206-4 Pan Head Screw M5*10 for 3612BR |
| 72 | 310661-1 | Makita 310661-1 LOCK SLEEVE |
| 73 | 319729-0 | |
| 74 | 951057-3 | Makita 951057-3 SPRING PIN 3-12 |
| 75 | 233455-6 | Makita 233455-6 COMPRESSION SPRING 7, JR181D |
| 76 | 262561-0 | Makita 262561-0 SLEEVE 6, JR181D |
| 77 | 281020-5 | |
| 78 | 807G78-4 | |
| 79 | 212231-1 | |
| 80 | 253180-3 | Makita 253180-3 FLAT WASHER 10, 6220D |
| 81 | 313316-7 | |
| 83 | 8011F2-5 |
