Makita JR3060T
Makita JR3060T: exploded parts diagram, 1 sheet, 95 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita JR3060T: 95 positions on 1 sheet

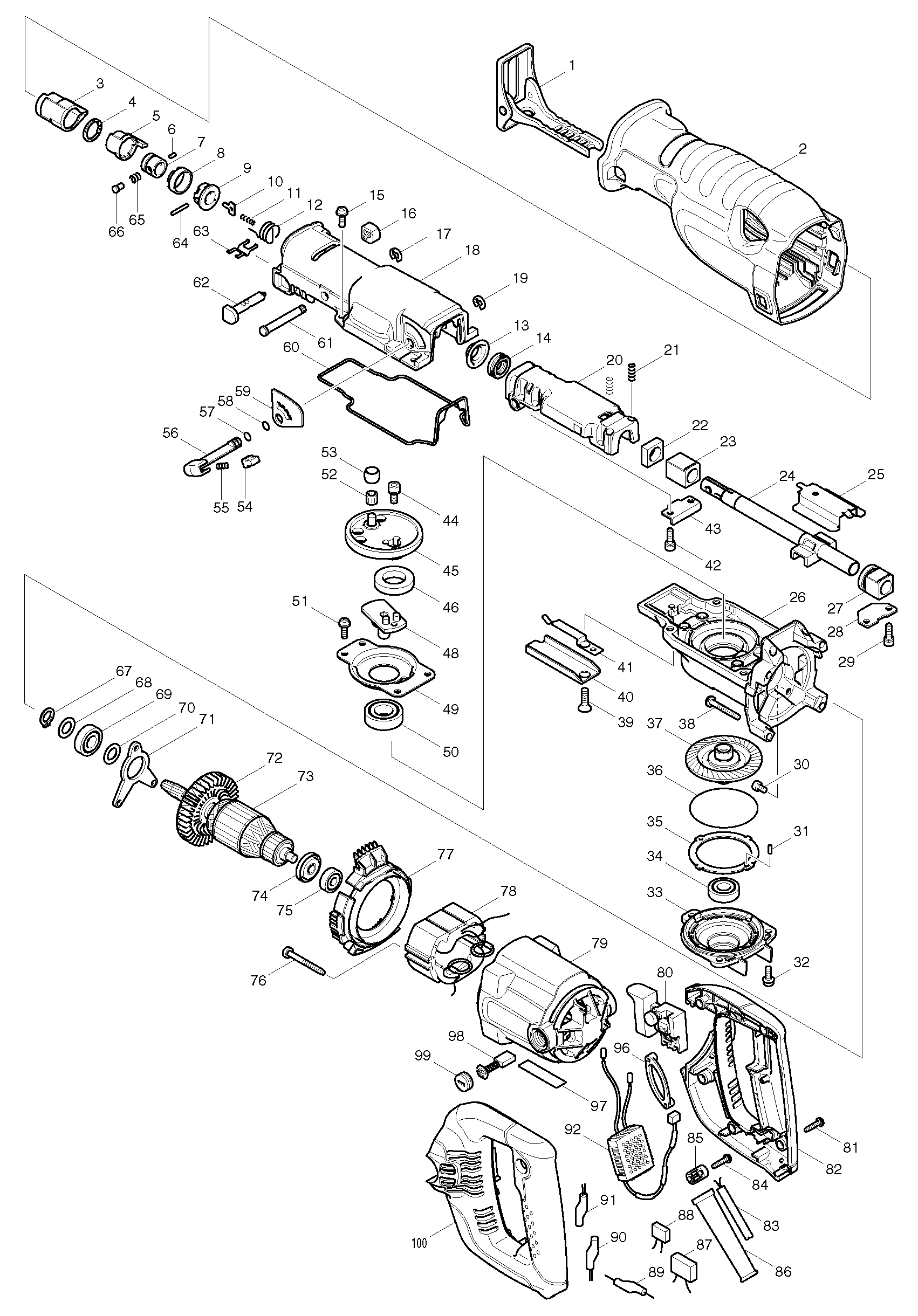

Sheet 1: Makita JR3060T parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 165396-7 | Makita 165396-7 Reciprocating Shoe for JR307CT |
| 2 | 421898-6 | Makita 421898-6 INSULATION COVER, JR3060T |
| 3 | 421894-4 | Makita 421894-4 PROTECTOR FOR JR3050T |
| 4 | 961078-7 | Makita 961078-7 RETAINING RING (EXT) S-18 |
| 5 | 310160-3 | Makita 310160-3 DRIVING SLEEVE JR3050T |
| 6 | 268094-3 | Makita 268094-3 PIN3, JR300VT |
| 7 | 331639-1 | Makita 331639-1 GUIDE SLEEVE, JR300VT |
| 8 | 417791-0 | Makita 417791-0 DRIVING SLEEVE GUIDE, JR181D |
| 9 | 418311-3 | Makita 418311-3 SLEEVE, JR181D |
| 10 | 345214-7 | Makita 345214-7 PUSH PLATE, JR300VT |
| 11 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 12 | 231687-9 | Makita 231687-9 Torsion Spring 17 for JR300VT |
| 13 | 257742-9 | Makita 257742-9 SHOULDER SLEEVE 14, JR3070CT |
| 14 | 213174-0 | Makita 213174-0 X Ring 14 JR3050T |
| 15 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 16 | 418806-6 | Makita 418806-6 CAP, JR3050T |
| 17 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 18 | 154551-6 | Makita 154551-6 GEAR HOUSING COVER COMPLETE, JR307CT |
| 19 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 20 | 154502-9 | Makita 154502-9 SLIDER SUPPORT COMPLETE, JR307CT |
| 21 | 233038-2 | Makita 233038-2 COMPRESSION SPRING 5, JR307CT |
| 22 | 423343-7 | Makita 423343-7 SEAL PLATE 14, JR3070CT |
| 23 | 214170-1 | Makita 214170-1 Plane Bearing 14A for JR3060T |
| 24 | 168410-8 | Makita 168410-8 Slider for JR3060T JR3070CT |
| 25 | 345487-2 | Makita 345487-2 SLIDE PLATE, JR307CT |
| 26 | 317842-8 | Makita 317842-8 GEAR HOUSING, JR307CT |
| 27 | 154547-7 | Makita 154547-7 BEARING COMPLETE, JR307CT |
| 28 | 345486-4 | Makita 345486-4 PLATE B, JR307CT |
| 29 | 266086-6 | Makita 266086-6 HEX. SOCKET HEAD BOLT M5X |
| 30 | 265530-0 | Makita 265530-0 HEX. SOCKET HEAD BOLT M5X8, JR3060T |
| 31 | 951051-5 | Makita 951051-5 SPRING PIN 3-8 |
| 32 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 33 | 317844-4 | Makita 317844-4 BEARING BOX, JR3060T |
| 34 | 211101-1 | Makita 211101-1 BEARING 6001LLB, JR3060T |
| 35 | 345488-0 | Makita 345488-0 GEAR PLATE JR3070CT |
| 36 | 213726-7 | Makita 213726-7 O-RING 62, JR3060T |
| 37 | 154549-3 | Makita 154549-3 TORQUE LIMITER COMPLETE, JR307CT |
| 38 | 266012-5 | Makita 266012-5 TAPPING SCREW 5X35, 9067 |
| 39 | 265149-5 | Makita 265149-5 COUNTERSUNK HEAD SCREW M6X16 |
| 40 | 345479-1 | Makita 345479-1 SHOE GUIDE, JR3050T |
| 41 | 232222-6 | Makita 232222-6 LEAF SPRING B, JR3050T |
| 42 | 266086-6 | Makita 266086-6 HEX. SOCKET HEAD BOLT M5X |
| 43 | 345485-6 | Makita 345485-6 PLATE A, JR3060T |
| 44 | 265531-8 | Makita 265531-8 HEX. SOCKET HEAD BOLT M6X14, JR3060T |
| 45 | 154545-1 | Makita 154545-1 CRANK CAM COMPLETE, JR3060T |
| 46 | 257261-5 | Makita 257261-5 RING 121B, JR3060T |
| 48 | 154546-9 | Makita 154546-9 CRANK BASE COMPLETE, JR3060T |
| 49 | 285720-9 | Makita 285720-9 BEARING RETAINER B, JR3060T |
| 50 | 211251-2 | Makita 211251-2 BALL BEARING 6003VVCM, 5277NB |
| 51 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 52 | 212957-5 | Makita 212957-5 NEEDLE BEARING 710, JR3060T |
| 53 | ||
| 54 | 418991-5 | Makita 418991-5 STOPPER, JR3060T |
| 55 | 231309-1 | Makita 231309-1 COMPRESSION SPRING 5, JR307CT |
| 56 | 272247-8 | Makita 272247-8 LEVER 20, JR3060T |
| 57 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 58 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 59 | 413095-8 | Makita 413095-8 PLATE C, JR3060T |
| 60 | 421899-4 | Makita 421899-4 SEAL RING, JR3060T |
| 61 | 268012-1 | Makita 268012-1 PIN 7, JR3060T |
| 62 | 162236-0 | Makita 162236-0 SHIFT BUTTON, JR3050T |
| 63 | 232221-8 | Makita 232221-8 LEAF SPRING, JR3050T |
| 64 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 65 | 233345-3 | Makita 233345-3 COMPRESSION SPRING, JR300VT |
| 66 | 256492-3 | Makita 256492-3 SHOULDER PIN 5, JR3070CT |
| 67 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 68 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 69 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 70 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 71 | 285719-4 | Makita 285719-4 BEARING RETAINER A, JR3060T |
| 73 | 513609-4 | Makita 513609-4 ARMATURE ASSY 240V, JR3060T |
| 74 | 681644-1 | Makita 681644-1 RESIN WASHER, MT110 |
| 75 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 76 | 266056-5 | Makita 266056-5 TAPPING SCREW 5X45 |
| 77 | 418817-1 | Makita 418817-1 BAFFLE PLATE JR3060T, JR3060T |
| 78 | 625724-3 | Makita 625724-3 FIELD, JR3060T |
| 79 | 154498-4 | Makita 154498-4 MOTOR HOUSING COMPLETE JR3050T, JR3050T |
| 80 | 650219-7 | Makita 650219-7 SWITCH TG71ARS-1 JR3070CT |
| 81 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 82 | 183932-7 | Makita 183932-7 HANDLE SET, JR3060T |
| 83 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 84 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 85 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 86 | 682573-1 | Makita 682573-1 Cord Guard 10 for JR3050T |
| 87 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 88 | 645006-7 | Makita 645006-7 CAPACITOR PAB473, M560 |
| 89 | 646049-2 | Makita 646049-2 CHOKE COIL, HR2412 |
| 90 | 646144-8 | Makita 646144-8 CHOKE COIL B094-22-1, JR3050T |
| 91 | 646145-6 | Makita 646145-6 CHOKE COIL B094-23-1, JR3050T |
| 92 | 631653-0 | Makita 631653-0 Controller for JR3060T |
| 96 | 421448-7 | Makita 421448-7 RUBBER BAND, JR3060T |
| 97 | 861223-3 | Makita 861223-3 NAME PLATE JR3060T |
| 98 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 99 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 100 | 183932-7 | Makita 183932-7 HANDLE SET, JR3060T |
