Makita JR3051T
Makita JR3051T: exploded parts diagram, 1 sheet, 62 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita JR3051T: 62 positions on 1 sheet

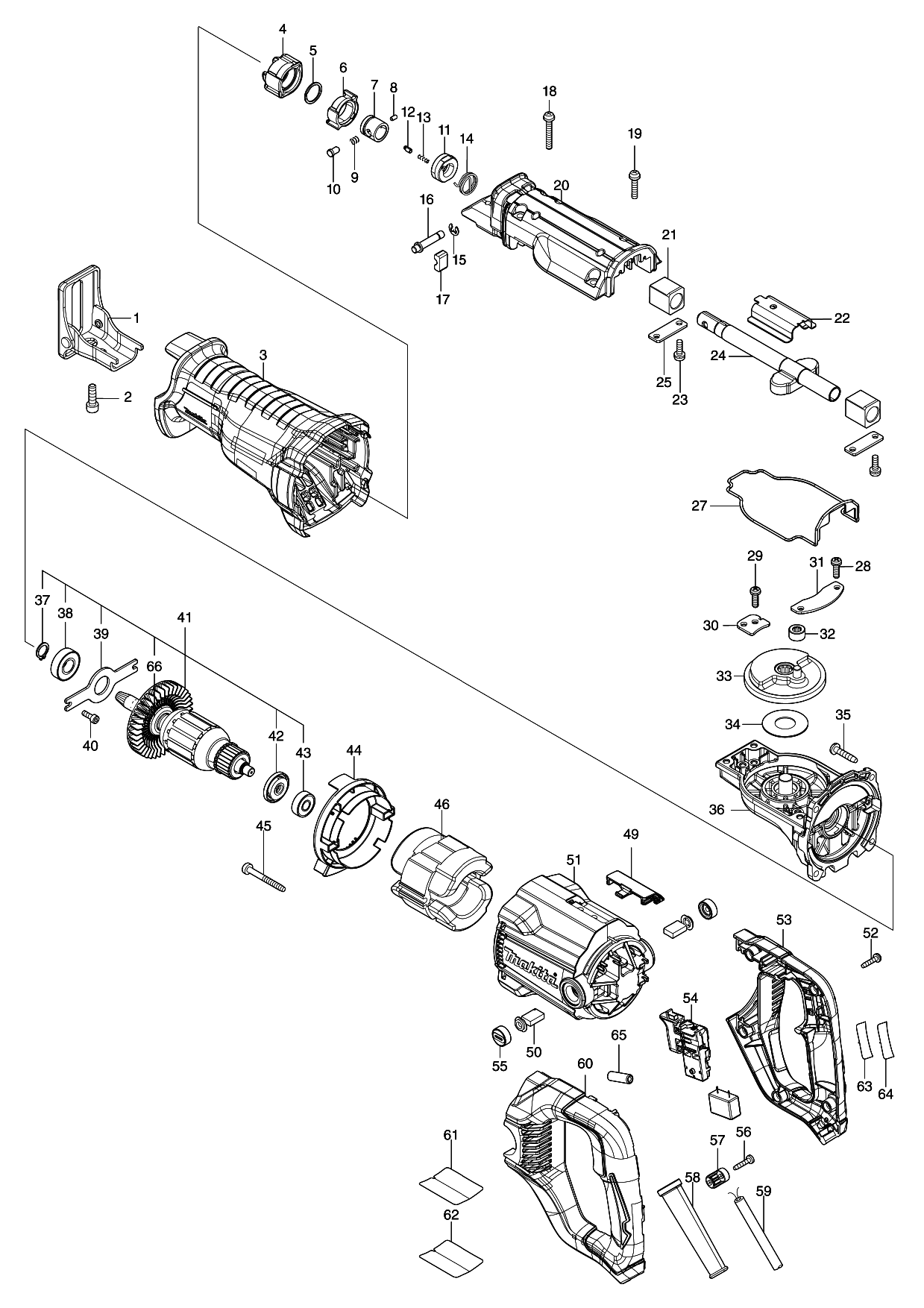

Sheet 1: Makita JR3051T parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 162704-3 | |
| 2 | 265844-7 | Makita 265844-7 HEX. SOCKET HEAD BOLT M6X |
| 3 | 422537-1 | |
| 4 | 422223-4 | |
| 5 | 257430-8 | Makita 257430-8 RETAINING RING (EXT) 18, JR3050T |
| 6 | 310848-5 | |
| 7 | 327043-0 | |
| 8 | 268094-3 | Makita 268094-3 PIN3, JR300VT |
| 9 | 234381-2 | Makita 234381-2 COMPRESSION SPRING 6 |
| 10 | 256569-4 | Makita 256569-4 PIN |
| 11 | 458968-8 | |
| 12 | 310912-2 | |
| 13 | 232472-3 | |
| 14 | 233594-2 | Makita 233594-2 TOPSION SPRING 17 |
| 15 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 16 | 256934-7 | |
| 17 | 327441-8 | |
| 18 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 19 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 20 | 140R13-8 | |
| 21 | 214169-6 | Makita 214169-6 PLANE BEARING 14, JR3050T |
| 22 | 347596-3 | |
| 23 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 24 | 162705-1 | |
| 25 | 341462-6 | Makita 341462-6 PLATE, JR300VT |
| 27 | 422538-9 | |
| 28 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 29 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 30 | 347597-1 | |
| 31 | 346715-8 | Makita 346715-8 GEAR PLATE |
| 32 | 212959-1 | Makita 212959-1 NEEDLE BEARING, JR182D |
| 33 | 140R15-4 | Makita 140R15-4 GEAR COPLETE |
| 34 | 267290-0 | Makita 267290-0 FLAT WASHER 18, JR3050T |
| 35 | 266459-3 | Makita 266459-3 TAPPING SCREW 5*25, 5477NB |
| 36 | 140R12-0 | |
| 37 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 38 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 39 | 285036-2 | |
| 40 | 265353-6 | Makita 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610 |
| 41 | 511A03-0 | Makita 511A03-0 ARMATURE ASS'Y 220-240V |
| 42 | 681644-1 | Makita 681644-1 RESIN WASHER, MT110 |
| 43 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 44 | 459919-4 | |
| 45 | 266056-5 | Makita 266056-5 TAPPING SCREW 5X45 |
| 46 | 521894-5 | |
| 49 | 459920-9 | |
| 50 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 51 | 140R14-6 | |
| 52 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 53 | 183N40-8 | Makita 183N40-8 HANDLE SET |
| 54 | 651374-8 | Makita 651374-8 SWITCH |
| 55 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 56 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 57 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 58 | 682574-9 | Makita 682574-9 CORD GUARD, MT240 |
| 59 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 60 | 183N40-8 | Makita 183N40-8 HANDLE SET |
| 61 | 856M49-4 | |
| 62 | 807G78-4 | |
| 63 | 856M54-1 | |
| 64 | 8010T0-1 | |
| 65 | 688165-4 | Makita 688165-4 Line Filter 30*5*10 for DF457D |
