Makita JR3050T
Makita JR3050T: exploded parts diagram, 1 sheet, 71 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita JR3050T: 71 positions on 1 sheet

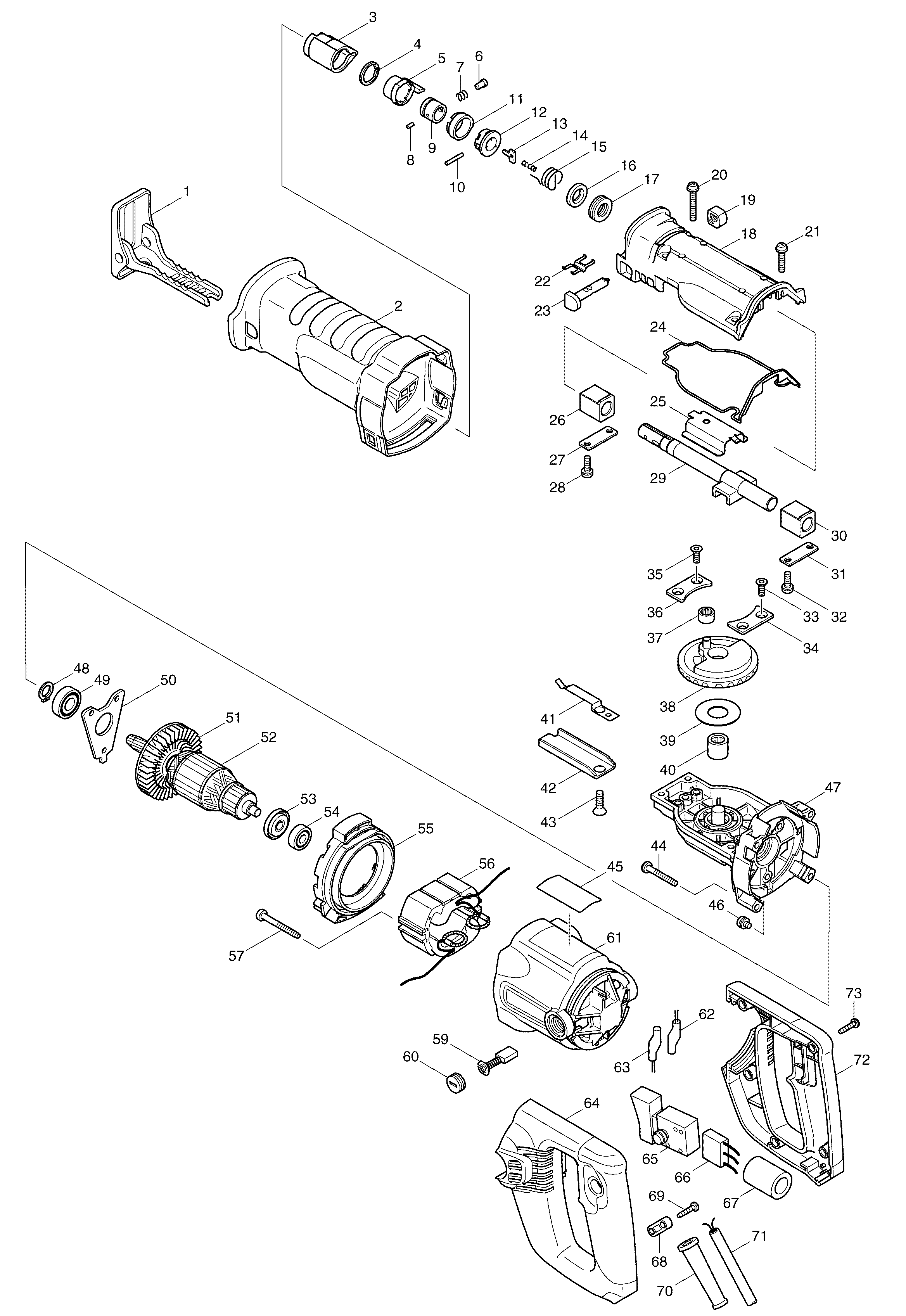

Sheet 1: Makita JR3050T parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 165396-7 | Makita 165396-7 Reciprocating Shoe for JR307CT |
| 2 | 421892-8 | Makita 421892-8 INSULATION COVER, JR3050T |
| 3 | 421894-4 | Makita 421894-4 PROTECTOR FOR JR3050T |
| 4 | 961078-7 | Makita 961078-7 RETAINING RING (EXT) S-18 |
| 5 | 310160-3 | Makita 310160-3 DRIVING SLEEVE JR3050T |
| 6 | 256471-1 | Makita 256471-1 SHOULDER PIN 4 FOR 6813SP |
| 7 | 233345-3 | Makita 233345-3 COMPRESSION SPRING, JR300VT |
| 8 | 268094-3 | Makita 268094-3 PIN3, JR300VT |
| 9 | 331639-1 | Makita 331639-1 GUIDE SLEEVE, JR300VT |
| 10 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 11 | 417791-0 | Makita 417791-0 DRIVING SLEEVE GUIDE, JR181D |
| 12 | 418311-3 | Makita 418311-3 SLEEVE, JR181D |
| 13 | 345214-7 | Makita 345214-7 PUSH PLATE, JR300VT |
| 14 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 15 | 231662-5 | Makita 231662-5 TORSION SPRING 14 |
| 16 | 213151-2 | Makita 213151-2 OIL SEAL 14, 6935FD |
| 17 | 213174-0 | Makita 213174-0 X Ring 14 JR3050T |
| 18 | 154499-2 | Makita 154499-2 GEAR HOUSING COVER COMPLETE, JR3050T |
| 19 | 418806-6 | Makita 418806-6 CAP, JR3050T |
| 20 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 21 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 22 | 232221-8 | Makita 232221-8 LEAF SPRING, JR3050T |
| 23 | 162236-0 | Makita 162236-0 SHIFT BUTTON, JR3050T |
| 24 | 421893-6 | Makita 421893-6 SEAL RING, JR3050T |
| 25 | 345480-6 | Makita 345480-6 SLIDE PLATE, JR3050T |
| 26 | 214169-6 | Makita 214169-6 PLANE BEARING 14, JR3050T |
| 27 | 341462-6 | Makita 341462-6 PLATE, JR300VT |
| 28 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 29 | 168405-1 | Makita 168405-1 Slider Complete for JR3050T BJR181 DJR181 |
| 30 | 214169-6 | Makita 214169-6 PLANE BEARING 14, JR3050T |
| 31 | 341462-6 | Makita 341462-6 PLATE, JR300VT |
| 32 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 33 | 265148-7 | Makita 265148-7 TORX SOCKET HEAD SCREW M5X14, JR3050 |
| 34 | 345478-3 | Makita 345478-3 GEAR PLATE, JR3050T |
| 35 | 265148-7 | Makita 265148-7 TORX SOCKET HEAD SCREW M5X14, JR3050 |
| 36 | 345478-3 | Makita 345478-3 GEAR PLATE, JR3050T |
| 37 | 212001-8 | Makita 212001-8 NEEDLE BEARING 708, HR2412 |
| 38 | 154476-4 | Makita 154476-4 GEAR COMPLETE, JR3050T |
| 39 | 267290-0 | Makita 267290-0 FLAT WASHER 18, JR3050T |
| 40 | 212115-3 | Makita 212115-3 NEEDLE BEARING 1216, JR300VT |
| 41 | 232222-6 | Makita 232222-6 LEAF SPRING B, JR3050T |
| 42 | 345479-1 | Makita 345479-1 SHOE GUIDE, JR3050T |
| 43 | 265149-5 | Makita 265149-5 COUNTERSUNK HEAD SCREW M6X16 |
| 44 | 266012-5 | Makita 266012-5 TAPPING SCREW 5X35, 9067 |
| 45 | 861094-8 | Makita 861094-8 NAME PLATE JR3050T |
| 46 | 911606-8 | Makita 911606-8 PAN HEAD SCREW M5X10 JR3050T |
| 47 | 154497-6 | Makita 154497-6 GEAR HOUSING COMPLETE, JR3050T |
| 48 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 49 | 210102-6 | Makita 210102-6 Ball Bearing for 6001DDW JR3050T |
| 50 | 285718-6 | Makita 285718-6 BEARING RETAINER, JR3050T |
| 52 | 513598-3 | Makita 513598-3 ARMATURE ASSY 220-240V, JR3050T |
| 53 | 681644-1 | Makita 681644-1 RESIN WASHER, MT110 |
| 54 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 55 | 418805-8 | Makita 418805-8 BAFFLE PLATE, JR3050T |
| 56 | 525713-7 | Makita 525713-7 FIELD ASSY 220-240V, JR3050T |
| 57 | 266056-5 | Makita 266056-5 TAPPING SCREW 5X45 |
| 59 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 60 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 61 | 154498-4 | Makita 154498-4 MOTOR HOUSING COMPLETE JR3050T, JR3050T |
| 62 | ||
| 63 | ||
| 64 | 183920-4 | Makita 183920-4 HANDLE SET, JR3050T |
| 65 | 650543-8 | Makita 650543-8 Switch TG843TB-1 JR3050T HP1620 HP1621 |
| 66 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 67 | 685722-9 | Makita 685722-9 SPONGE SHEET |
| 68 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 69 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 70 | 682573-1 | Makita 682573-1 Cord Guard 10 for JR3050T |
| 71 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 72 | 183920-4 | Makita 183920-4 HANDLE SET, JR3050T |
| 73 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
