Makita JR3030
Makita JR3030: exploded parts diagram, 1 sheet, 72 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita JR3030: 72 positions on 1 sheet

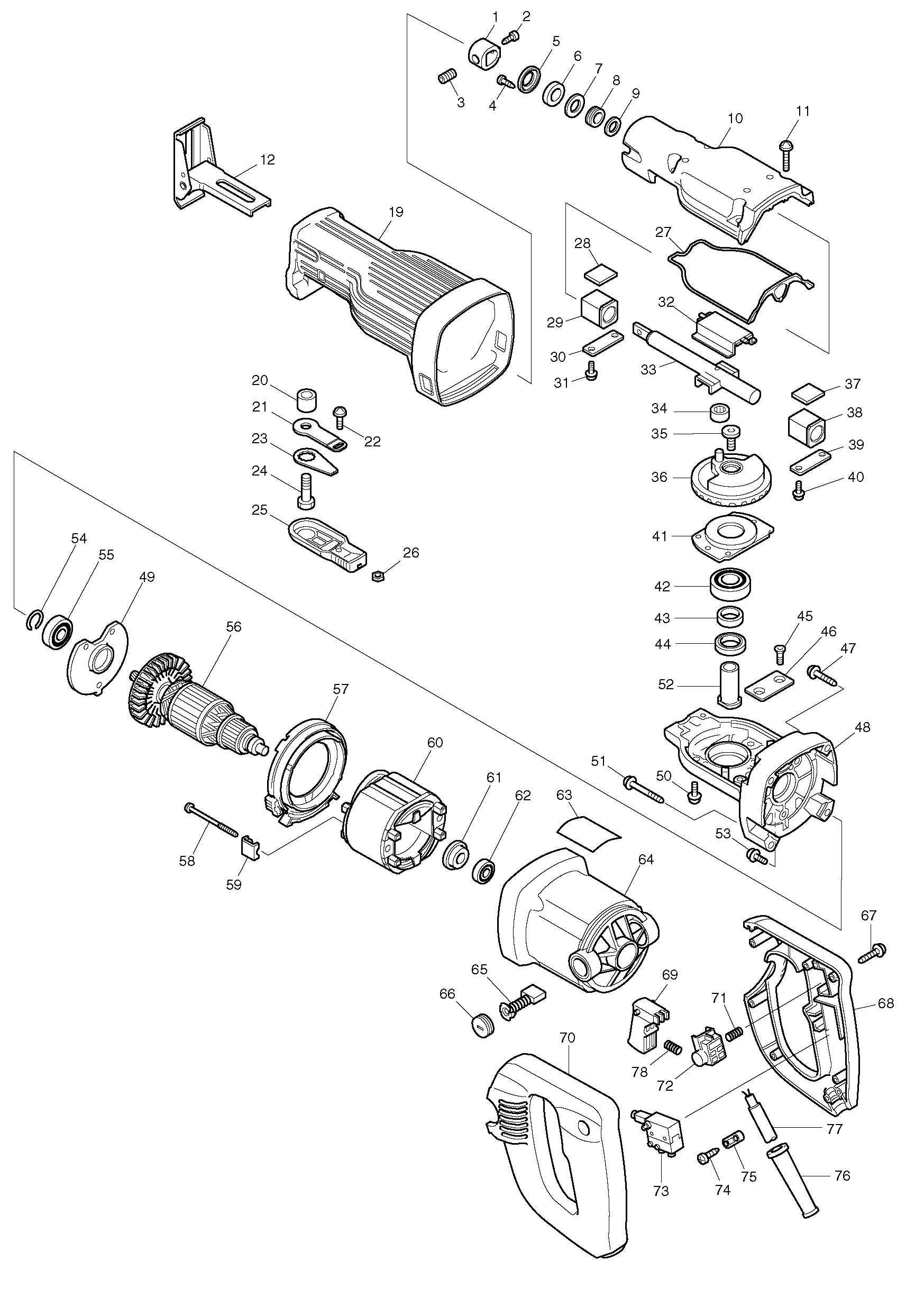

Sheet 1: Makita JR3030 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 313075-3 | Makita 313075-3 Blade Clamp JR3000V JR3020 Reciprocating Saw |
| 2 | 266090-5 | Makita 266090-5 Hex. Socket Head Bolt M5X15 for JR3000V, JR3020 |
| 3 | 266202-0 | Makita 266202-0 SCREW M8X10 |
| 4 | 266035-3 | Makita 266035-3 TAPPING SCREW BIND CT 5X1 |
| 5 | 344729-1 | Makita 344729-1 FELT RETAINER |
| 6 | 262545-8 | Makita 262545-8 FELT RING 14 FOR JR3030 |
| 7 | 253797-2 | Makita 253797-2 FLAT WASHER 14, JR3030 |
| 8 | 213174-0 | Makita 213174-0 X Ring 14 JR3050T |
| 9 | 253707-9 | Makita 253707-9 FLAT WASHER 16 |
| 10 | 317139-5 | Makita 317139-5 GEAR HOUSING COVER FOR JR3030 |
| 11 | 911253-5 | Makita 911253-5 PANHEAD SCREW M5*30, EBH252L |
| 12 | 168331-4 | Makita 168331-4 SHOE JR3030 |
| 19 | 421665-9 | Makita 421665-9 INSULATION COVER |
| 20 | 257558-2 | Makita 257558-2 SLEEVE 9, JR300VT |
| 21 | 344732-2 | Makita 344732-2 INNER PLATE, JR300VT |
| 22 | 911114-9 | Makita 911114-9 PAN HEAD SCREW M4X10 |
| 23 | 344733-0 | Makita 344733-0 LOCK PLATE, JR300VT |
| 24 | 921442-4 | Makita 921442-4 COUNTERSUNK HEAD SCREW M8X25, JR300VT |
| 25 | 272240-2 | Makita 272240-2 LEVER 60, JR300VT |
| 26 | 931102-0 | Makita 931102-0 HEX NUT, 5900B |
| 27 | 421666-7 | Makita 421666-7 PACKING JR3030 |
| 28 | 443070-0 | Makita 443070-0 PLATE 12X16 FOR JR3000V |
| 29 | 214169-6 | Makita 214169-6 PLANE BEARING 14, JR3050T |
| 30 | 341462-6 | Makita 341462-6 PLATE, JR300VT |
| 31 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 32 | 344777-0 | |
| 33 | 168326-7 | DISC Genuine Makita 168326-7 SLIDER JR3030 |
| 34 | 212001-8 | Makita 212001-8 NEEDLE BEARING 708, HR2412 |
| 35 | 266210-1 | Makita 266210-1 HEX. SOCKET HEAD BOLT M10 X18 |
| 36 | 153268-8 | Makita 153268-8 GEAR COMPLETE |
| 37 | 443070-0 | Makita 443070-0 PLATE 12X16 FOR JR3000V |
| 38 | 214169-6 | Makita 214169-6 PLANE BEARING 14, JR3050T |
| 39 | 341462-6 | Makita 341462-6 PLATE, JR300VT |
| 40 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 41 | 285692-8 | Makita 285692-8 BEARING RETAINER 56 |
| 42 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 43 | 257064-7 | Makita 257064-7 RING 15, 5007NB |
| 44 | 211221-1 | Makita 211221-1 BALL BEARING 6902 |
| 45 | 251969-3 | Makita 251969-3 COUNTERSUNK HEAD SCREW M5X12, JR300VT |
| 46 | 343981-8 | |
| 47 | 266173-1 | Makita 266173-1 TAPPING SCREW 5X30 |
| 48 | 317140-0 | Makita 317140-0 GEAR HOUSING |
| 49 | 285693-6 | Makita 285693-6 BEARING RETAINER, JR3030T |
| 50 | 911601-8 | Makita 911601-8 PAN HEAD SCREW M5X8 |
| 51 | 266056-5 | Makita 266056-5 TAPPING SCREW 5X45 |
| 52 | 323844-4 | Makita 323844-4 GEAR SHAFT |
| 53 | 911601-8 | Makita 911601-8 PAN HEAD SCREW M5X8 |
| 54 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 55 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 56 | 516373-6 | Makita 516373-6 ARMATURE ASS Y 220V |
| 57 | 416856-5 | Makita 416856-5 BAFFLE PLATE |
| 58 | 266044-2 | Makita 266044-2 TAPPING SCREW PT 5X60, 5806B |
| 59 | 343657-7 | Makita 343657-7 RETAINER |
| 60 | 594333-8 | Makita 594333-8 FIELD ASSY JR3030 |
| 61 | 681644-1 | Makita 681644-1 RESIN WASHER, MT110 |
| 62 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 63 | 851801-7 | Makita 851801-7 NAME PLATE JR3030 |
| 64 | 151841-8 | Makita 151841-8 MOTOR HOUSING COMPLETE |
| 65 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 66 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 67 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 68 | 183101-0 | Makita 183101-0 HANDLE SET |
| 69 | 416851-5 | Makita 416851-5 SWITCH LEVER |
| 70 | 183101-0 | Makita 183101-0 HANDLE SET |
| 71 | 231230-4 | Makita 231230-4 COMPRESSION SPRING 4 |
| 72 | 416850-7 | Makita 416850-7 LOCK-ON BUTTON |
| 73 | 651919-2 | Makita 651919-2 Switch SGE106CV-1P for JR3030T HR2010 HR2400 |
| 74 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 75 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 76 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 77 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 78 | 233251-2 | Makita 233251-2 COMPRESSION SPRING 5 |
