Makita JR3000VT
Makita JR3000VT: exploded parts diagram, 1 sheet, 76 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita JR3000VT: 76 positions on 1 sheet

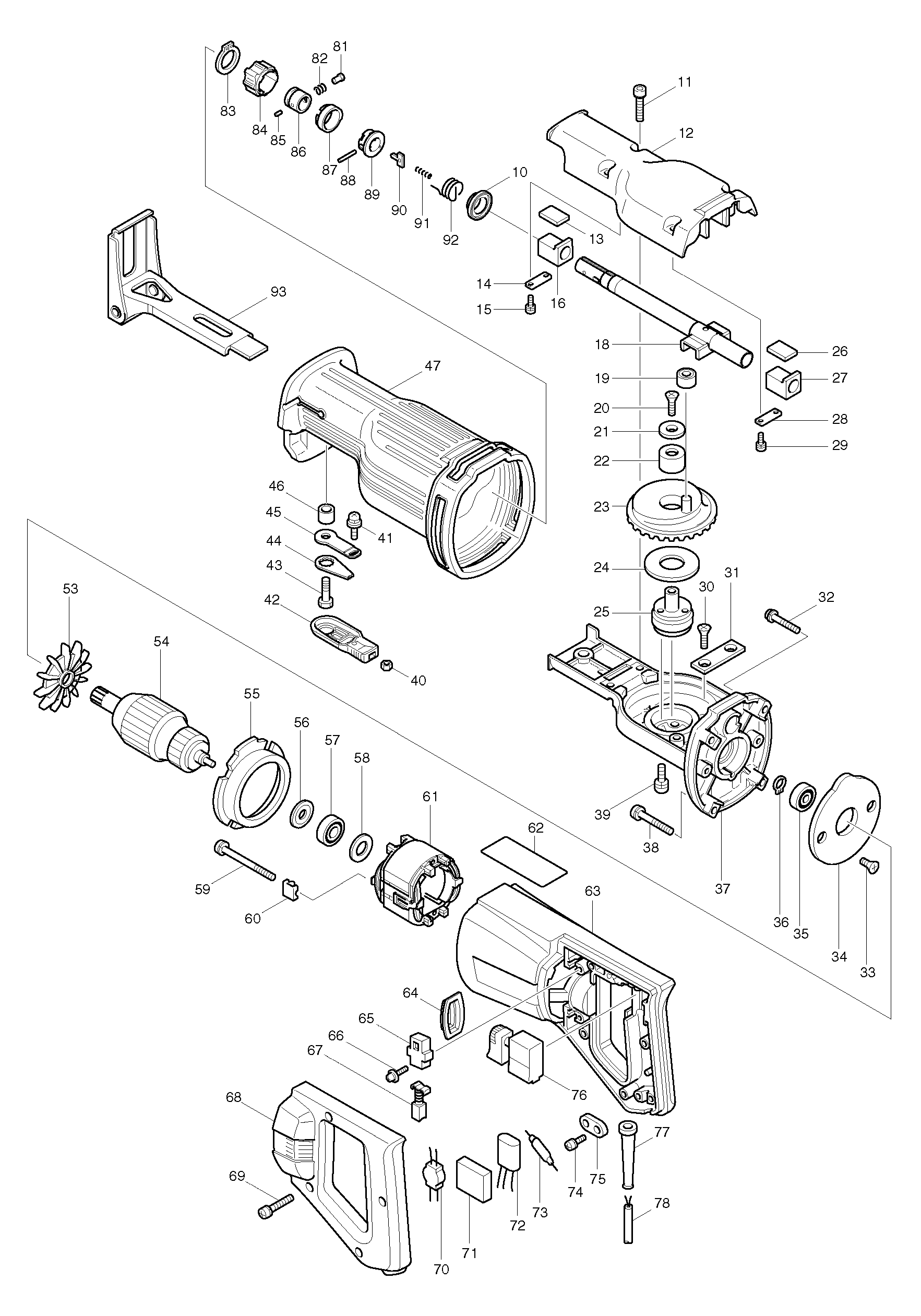

Sheet 1: Makita JR3000VT parts diagram
| No. | Part number | Part name |
|---|---|---|
| 10 | 155896-5 | Makita 155896-5 SEAL |
| 11 | 911241-2 | Makita 911241-2 PAN HEAD SCREW M5X25 W, JR300VT |
| 12 | 317331-3 | Makita 317331-3 GEAR HOUSING COVER |
| 13 | 443070-0 | Makita 443070-0 PLATE 12X16 FOR JR3000V |
| 14 | 341462-6 | Makita 341462-6 PLATE, JR300VT |
| 15 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 16 | 214167-0 | Makita 214167-0 PLANE BEARING 12.7, JR300VT |
| 18 | 168339-8 | Makita 168339-8 SLIDER |
| 19 | 212001-8 | Makita 212001-8 NEEDLE BEARING 708, HR2412 |
| 20 | 251969-3 | Makita 251969-3 COUNTERSUNK HEAD SCREW M5X12, JR300VT |
| 21 | 253816-4 | Makita 253816-4 FLAT WASHER 6, JR300VT |
| 22 | 212115-3 | Makita 212115-3 NEEDLE BEARING 1216, JR300VT |
| 23 | 133244-8 | Makita 133244-8 Gear Assembly for JR3000 JR3000V |
| 24 | 253805-9 | Makita 253805-9 FLAT WASHER 18, JR300VT |
| 25 | 321263-8 | Makita 321263-8 GEAR SHAFT, JR300VT |
| 26 | 443070-0 | Makita 443070-0 PLATE 12X16 FOR JR3000V |
| 27 | 214167-0 | Makita 214167-0 PLANE BEARING 12.7, JR300VT |
| 28 | 341462-6 | Makita 341462-6 PLATE, JR300VT |
| 29 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 30 | 251969-3 | Makita 251969-3 COUNTERSUNK HEAD SCREW M5X12, JR300VT |
| 31 | 343981-8 | |
| 32 | 911251-9 | Makita 911251-9 PAN HEAD SCREW M5X30 |
| 33 | 912122-3 | Makita 912122-3 COUNTERSUNK HEAD SCREW M4 X14 |
| 34 | 285650-4 | |
| 35 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 36 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 37 | 151902-4 | Makita 151902-4 GEAR HOUSING COMPLETE |
| 38 | 911256-9 | Makita 911256-9 PAN HEAD SCREW M5*35, LS1440 |
| 39 | 911215-3 | Makita 911215-3 PAN HEAD SCREW M5X12 WM, JR300VT |
| 40 | 931102-0 | Makita 931102-0 HEX NUT, 5900B |
| 41 | 911114-9 | Makita 911114-9 PAN HEAD SCREW M4X10 |
| 42 | 272240-2 | Makita 272240-2 LEVER 60, JR300VT |
| 43 | 921442-4 | Makita 921442-4 COUNTERSUNK HEAD SCREW M8X25, JR300VT |
| 44 | 344733-0 | Makita 344733-0 LOCK PLATE, JR300VT |
| 45 | 344732-2 | Makita 344732-2 INNER PLATE, JR300VT |
| 46 | 257558-2 | Makita 257558-2 SLEEVE 9, JR300VT |
| 47 | 421723-1 | Makita 421723-1 INSULATION COVER |
| 53 | 241631-8 | Makita 241631-8 FAN 66 |
| 54 | 516063-1 | Makita 516063-1 ARMATURE ASS'Y 220V |
| 55 | 411612-8 | |
| 56 | 681613-2 | Makita 681613-2 INSULATION WASHER |
| 57 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 58 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 59 | 911280-2 | Makita 911280-2 PAN HEAD SCREW M5X55 |
| 60 | 343657-7 | Makita 343657-7 RETAINER |
| 61 | 599012-3 | Makita 599012-3 FIELD ASS Y 220-240V |
| 62 | 852239-9 | Makita 852239-9 NAME PLATE JR3000VT |
| 63 | 159482-4 | Makita 159482-4 MOTOR HOUSING COMPLETE JR3000V |
| 64 | 411852-8 | Makita 411852-8 SWITCH COVER |
| 65 | 643551-6 | Makita 643551-6 BRUSH HOLDER 5-8 *, JR300VT |
| 66 | 911124-6 | Makita 911124-6 PAN HEAD SCREW M4X14 |
| 67 | 181026-2 | Makita 181026-2 Carbon Brushes CB-55 for 6701B JR300VT JR3000V |
| 68 | 410068-2 | Makita 410068-2 HANDLE COVER |
| 69 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 70 | 646325-4 | Makita 646325-4 LINE COIL |
| 71 | 685718-0 | Makita 685718-0 SPONGE SHEET JR3000V |
| 72 | 645173-8 | Makita 645173-8 CAPACITOR, JR3000V |
| 73 | 646049-2 | Makita 646049-2 CHOKE COIL, HR2412 |
| 74 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 75 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 76 | 651256-4 | DISC Makita 651256-4 Switch for 4014NV 4300BV |
| 77 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 78 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 81 | 256471-1 | Makita 256471-1 SHOULDER PIN 4 FOR 6813SP |
| 82 | 233345-3 | Makita 233345-3 COMPRESSION SPRING, JR300VT |
| 83 | 961078-7 | Makita 961078-7 RETAINING RING (EXT) S-18 |
| 84 | 162228-9 | Makita 162228-9 DRIVING SLEEVE BJR240 |
| 85 | 268094-3 | Makita 268094-3 PIN3, JR300VT |
| 86 | 331639-1 | Makita 331639-1 GUIDE SLEEVE, JR300VT |
| 87 | 417791-0 | Makita 417791-0 DRIVING SLEEVE GUIDE, JR181D |
| 88 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 89 | 310129-7 | Makita 310129-7 SLEEVE |
| 90 | 345214-7 | Makita 345214-7 PUSH PLATE, JR300VT |
| 91 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 92 | 231662-5 | Makita 231662-5 TORSION SPRING 14 |
| 93 | 163442-0 | Makita 163442-0 SHOE, JR300VT |
