Makita JR3000V
Makita JR3000V: exploded parts diagram, 1 sheet, 62 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita JR3000V: 62 positions on 1 sheet

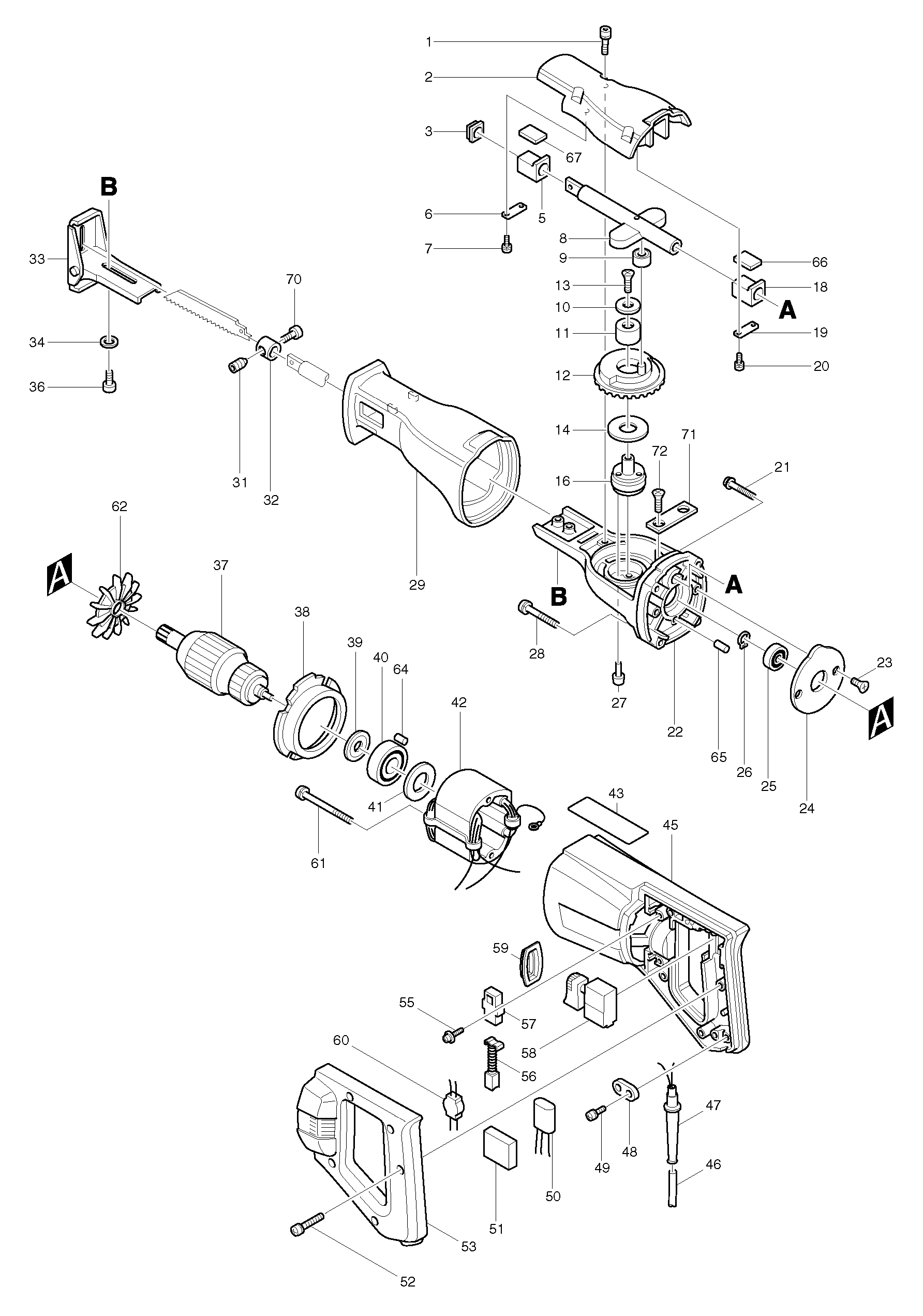

Sheet 1: Makita JR3000V parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911241-2 | Makita 911241-2 PAN HEAD SCREW M5X25 W, JR300VT |
| 2 | 315084-8 | Makita 315084-8 GEAR HOUSING COVER |
| 3 | 155896-5 | Makita 155896-5 SEAL |
| 5 | 214157-3 | Makita 214157-3 PLANE BEARING 12.7 |
| 6 | 341462-6 | Makita 341462-6 PLATE, JR300VT |
| 7 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 8 | 163340-8 | |
| 9 | 212001-8 | Makita 212001-8 NEEDLE BEARING 708, HR2412 |
| 10 | 253816-4 | Makita 253816-4 FLAT WASHER 6, JR300VT |
| 11 | 212115-3 | Makita 212115-3 NEEDLE BEARING 1216, JR300VT |
| 12 | 133244-8 | Makita 133244-8 Gear Assembly for JR3000 JR3000V |
| 13 | 251372-8 | Makita 251372-8 COUNTERSUNK HEAD SCREW M5 X12 |
| 14 | 253805-9 | Makita 253805-9 FLAT WASHER 18, JR300VT |
| 16 | 321263-8 | Makita 321263-8 GEAR SHAFT, JR300VT |
| 18 | 214157-3 | Makita 214157-3 PLANE BEARING 12.7 |
| 19 | 343526-2 | Makita 343526-2 PLATE |
| 20 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 21 | 911251-9 | Makita 911251-9 PAN HEAD SCREW M5X30 |
| 22 | 157012-5 | |
| 23 | 912122-3 | Makita 912122-3 COUNTERSUNK HEAD SCREW M4 X14 |
| 24 | 285650-4 | |
| 25 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 26 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 27 | 911215-3 | Makita 911215-3 PAN HEAD SCREW M5X12 WM, JR300VT |
| 28 | 911256-9 | Makita 911256-9 PAN HEAD SCREW M5*35, LS1440 |
| 29 | 421154-4 | |
| 31 | 265836-6 | Makita 265836-6 Screw M8*9 Rohs JR3000V JR3020 |
| 32 | 322502-9 | Makita 322502-9 BLADE CLAMP |
| 33 | 163258-3 | DISC 163258-3 |
| 34 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 36 | 922216-6 | Makita 922216-6 HEX.SOCKET HEAD BOLT M5*14 W, JR3000V |
| 37 | 516063-1 | Makita 516063-1 ARMATURE ASS'Y 220V |
| 38 | 411612-8 | |
| 39 | 681613-2 | Makita 681613-2 INSULATION WASHER |
| 40 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 41 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 42 | 528705-5 | Makita 528705-5 FIELD ASS Y 220V |
| 43 | 854810-5 | Makita 854810-5 NAME PLATE JR3000V |
| 45 | 159482-4 | Makita 159482-4 MOTOR HOUSING COMPLETE JR3000V |
| 46 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 47 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 48 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 49 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 50 | 645173-8 | Makita 645173-8 CAPACITOR, JR3000V |
| 51 | 685718-0 | Makita 685718-0 SPONGE SHEET JR3000V |
| 52 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 53 | 410068-2 | Makita 410068-2 HANDLE COVER |
| 55 | 911124-6 | Makita 911124-6 PAN HEAD SCREW M4X14 |
| 56 | 181026-2 | Makita 181026-2 Carbon Brushes CB-55 for 6701B JR300VT JR3000V |
| 57 | 643551-6 | Makita 643551-6 BRUSH HOLDER 5-8 *, JR300VT |
| 58 | 651256-4 | DISC Makita 651256-4 Switch for 4014NV 4300BV |
| 59 | 411852-8 | Makita 411852-8 SWITCH COVER |
| 60 | 646325-4 | Makita 646325-4 LINE COIL |
| 61 | 911280-2 | Makita 911280-2 PAN HEAD SCREW M5X55 |
| 62 | 241631-8 | Makita 241631-8 FAN 66 |
| 64 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 65 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 66 | 443070-0 | Makita 443070-0 PLATE 12X16 FOR JR3000V |
| 67 | 443070-0 | Makita 443070-0 PLATE 12X16 FOR JR3000V |
| 70 | 265986-7 | Makita 265986-7 HEX. SOCKET HEAD BOLT M5X |
| 71 | 343981-8 | |
| 72 | 251969-3 | Makita 251969-3 COUNTERSUNK HEAD SCREW M5X12, JR300VT |
