Makita JR180D
Makita JR180D: exploded parts diagram, 1 sheet, 76 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita JR180D: 76 positions on 1 sheet

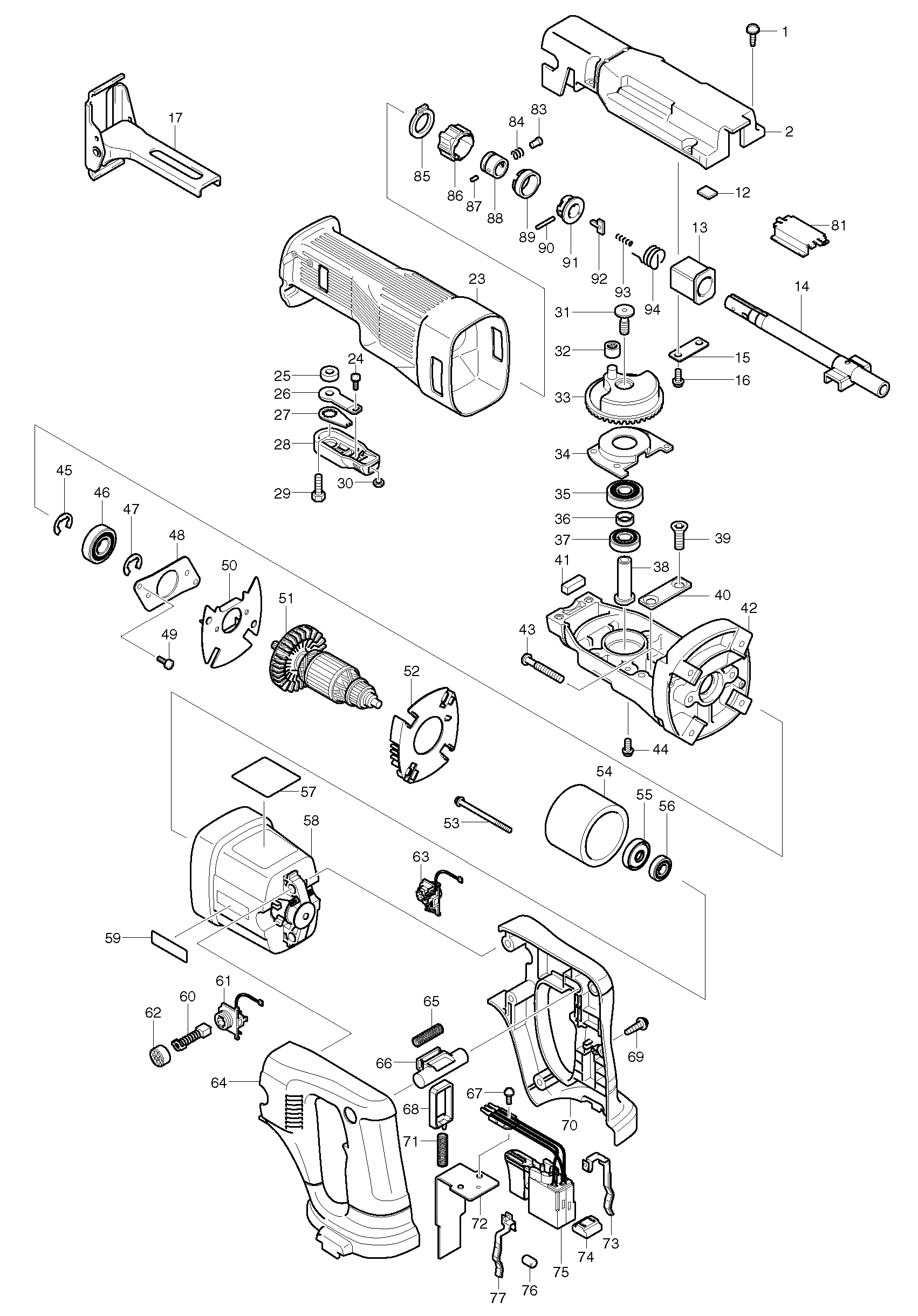

Sheet 1: Makita JR180D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911228-4 | Makita 911228-4 PAN HEAD SCREW M5*18, 5377MG |
| 2 | 151627-0 | |
| 12 | 443070-0 | Makita 443070-0 PLATE 12X16 FOR JR3000V |
| 13 | 214169-6 | Makita 214169-6 PLANE BEARING 14, JR3050T |
| 14 | 168328-3 | Makita 168328-3 SLIDER |
| 15 | 341462-6 | Makita 341462-6 PLATE, JR300VT |
| 16 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 17 | 168337-2 | Makita 168337-2 SHOE FOR JR3030T |
| 23 | 421693-4 | Makita 421693-4 INSULATION COVER |
| 24 | 911114-9 | Makita 911114-9 PAN HEAD SCREW M4X10 |
| 25 | 257558-2 | Makita 257558-2 SLEEVE 9, JR300VT |
| 26 | 344732-2 | Makita 344732-2 INNER PLATE, JR300VT |
| 27 | 344733-0 | Makita 344733-0 LOCK PLATE, JR300VT |
| 28 | 272240-2 | Makita 272240-2 LEVER 60, JR300VT |
| 29 | 921442-4 | Makita 921442-4 COUNTERSUNK HEAD SCREW M8X25, JR300VT |
| 30 | 931102-0 | Makita 931102-0 HEX NUT, 5900B |
| 31 | 266220-8 | Makita 266220-8 TORX SOCKET HEAD BOLT M6X |
| 32 | 212001-8 | Makita 212001-8 NEEDLE BEARING 708, HR2412 |
| 33 | 153267-0 | Makita 153267-0 GEAR COMPLETE |
| 34 | 285696-0 | Makita 285696-0 BEARING RETAINER A |
| 35 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 36 | 257146-5 | |
| 37 | 210057-5 | Makita 210057-5 BALL BEARING 6900LLB |
| 38 | 323887-6 | Makita 323887-6 GEAR SHAFT |
| 39 | 251969-3 | Makita 251969-3 COUNTERSUNK HEAD SCREW M5X12, JR300VT |
| 40 | 344795-8 | Makita 344795-8 PLATE C, JR180D |
| 41 | 443107-3 | Makita 443107-3 FELT 8X24 |
| 42 | 317229-4 | Makita 317229-4 GEAR HOUSING, JR180D |
| 43 | 266012-5 | Makita 266012-5 TAPPING SCREW 5X35, 9067 |
| 44 | 911601-8 | Makita 911601-8 PAN HEAD SCREW M5X8 |
| 45 | 961016-9 | Makita 961016-9 STOP RING E-10 JR180D |
| 46 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 47 | 961016-9 | Makita 961016-9 STOP RING E-10 JR180D |
| 48 | 285697-8 | Makita 285697-8 BEARING RETAINER B |
| 49 | 911516-9 | Makita 911516-9 PAN HEAD SCREW M4X12, 6935FD |
| 50 | 416960-0 | Makita 416960-0 FAN GUIDE |
| 51 | 519051-7 | |
| 52 | 416959-5 | Makita 416959-5 BAFFLE PLATE |
| 53 | 266209-6 | Makita 266209-6 TAPPING SCREW 4X60 |
| 54 | 632828-4 | Makita 632828-4 YOKE UNIT, HR261D |
| 55 | 681652-2 | Makita 681652-2 INSULATION WASHER, 9523B |
| 56 | 210017-7 | Makita 210017-7 BALL BEARING 607DDW, 9528B |
| 57 | 851734-6 | Makita 851734-6 NAME PLATE JR180D |
| 58 | 416957-9 | Makita 416957-9 MOTOR HOUSING |
| 59 | 819720-3 | Makita 819720-3 MAKITA LABEL |
| 60 | 191970-5 | Makita 191970-5 CARBON BRUSH CB-429 |
| 61 | 643949-7 | Makita 643949-7 BRUSH HOLDER, JR181D |
| 62 | 643941-3 | Makita 643941-3 Brush Holder Cap for BJR181 |
| 63 | 643950-2 | Makita 643950-2 BRUSH HOLDER L |
| 64 | 183141-8 | Makita 183141-8 HANDLE SET |
| 65 | 231469-9 | Makita 231469-9 COMPRESSION SPRING 4, SS610D |
| 66 | 416958-7 | Makita 416958-7 LOCK-OFF BUTTON |
| 67 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 68 | 416976-5 | Makita 416976-5 STOPPER |
| 69 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 70 | 183141-8 | Makita 183141-8 HANDLE SET |
| 71 | 231469-9 | Makita 231469-9 COMPRESSION SPRING 4, SS610D |
| 72 | 689090-2 | Makita 689090-2 HEAT SINK |
| 73 | 654195-7 | Makita 654195-7 SPRING TERMINAL (PLUS) |
| 74 | 687085-9 | Makita 687085-9 HOLDER, 6226D |
| 75 | 651979-4 | Makita 651979-4 Switch for JR180D |
| 76 | 263024-9 | Makita 263024-9 RUBBER PIN 4 |
| 77 | 654196-5 | Makita 654196-5 SPRING TERMINAL (MINUS) |
| 81 | 344858-0 | Makita 344858-0 SLIDE PLATE |
| 83 | 256471-1 | Makita 256471-1 SHOULDER PIN 4 FOR 6813SP |
| 84 | 233345-3 | Makita 233345-3 COMPRESSION SPRING, JR300VT |
| 85 | 961078-7 | Makita 961078-7 RETAINING RING (EXT) S-18 |
| 86 | 162228-9 | Makita 162228-9 DRIVING SLEEVE BJR240 |
| 87 | 268094-3 | Makita 268094-3 PIN3, JR300VT |
| 88 | 331639-1 | Makita 331639-1 GUIDE SLEEVE, JR300VT |
| 89 | 417791-0 | Makita 417791-0 DRIVING SLEEVE GUIDE, JR181D |
| 90 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 91 | 310129-7 | Makita 310129-7 SLEEVE |
| 92 | 345214-7 | Makita 345214-7 PUSH PLATE, JR300VT |
| 93 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 94 | 231662-5 | Makita 231662-5 TORSION SPRING 14 |
