Makita JR105D
Makita JR105D: exploded parts diagram, 1 sheet, 40 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita JR105D: 40 positions on 1 sheet

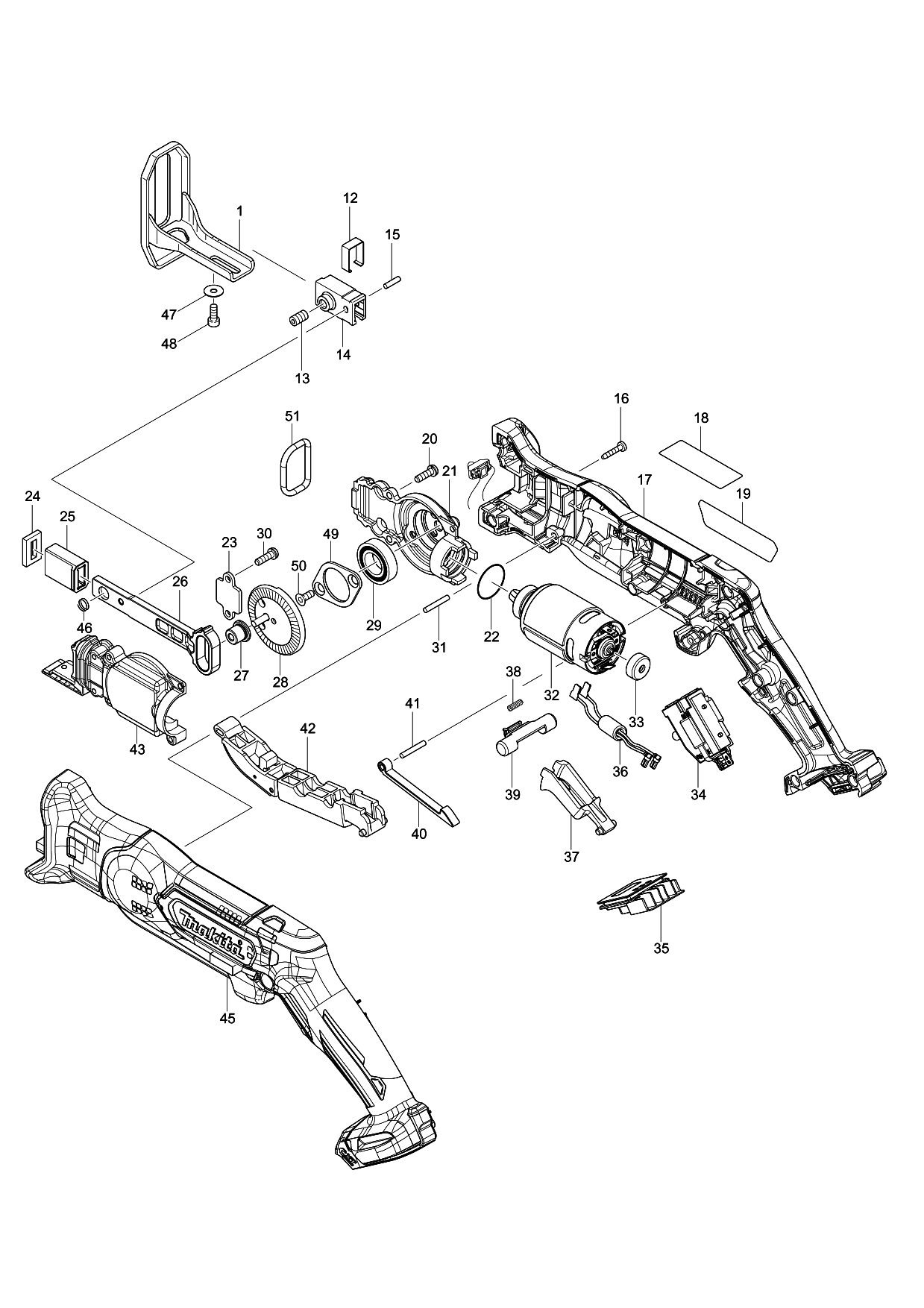

Sheet 1: Makita JR105D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 165740-8 | Makita 165740-8 SHOE |
| 12 | 346526-1 | Makita 346526-1 CLAMPER JR101D |
| 13 | 251961-9 | Makita 251961-9 HEX S.H.SEI SCREW M6X10, LS1040 |
| 14 | 310497-8 | Old code Makita 310497-8 |
| 15 | 256157-7 | |
| 16 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 17 | 183C31-3 | Makita 183C31-3 HOUSING SET |
| 18 | ||
| 19 | 851J07-7 | |
| 20 | 266747-8 | Makita 266747-8 PAN HEAD SCREW M4X14 JR100D |
| 21 | 319060-4 | Makita 319060-4 GEAR HOUSING |
| 22 | 213961-7 | Makita 213961-7 O RING 22, MT813 |
| 23 | 346525-3 | Makita 346525-3 PLATE JR101D |
| 24 | 443185-3 | Makita 443185-3 FELT SEAL |
| 25 | 313220-0 | Makita 313220-0 SLIDER GUIDE JR100D |
| 26 | 313269-0 | Makita 313269-0 SLIDER N |
| 27 | 313270-5 | Makita 313270-5 COLLARED SLEEVE 4 |
| 28 | 142284-5 | Makita 142284-5 GEAR COMPLETE |
| 29 | 211242-3 | Makita 211242-3 BALL BEARING 6902ZZ, MT602 |
| 30 | 266747-8 | Makita 266747-8 PAN HEAD SCREW M4X14 JR100D |
| 31 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 32 | 629165-5 | Makita 629165-5 Motor JR103D JR105D |
| 33 | 424467-2 | Makita 424467-2 CAP JR100D |
| 34 | 632F46-0 | Makita 632F46-0 SWITCH UNIT |
| 35 | 644813-5 | Makita 644813-5 Terminal |
| 36 | 632F66-4 | Makita 632F66-4 LINE FILTER UNIT |
| 37 | 453072-8 | Makita 453072-8 SWITCH LEVER JR100D |
| 38 | 233438-6 | Makita 233438-6 COMPRESSION SPRING 4, DF441D |
| 39 | 454661-2 | Makita 454661-2 LOCK OFF LEVER R |
| 40 | 313219-5 | Makita 313219-5 LINK JR100D |
| 41 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 42 | 141128-6 | Makita 141128-6 SWITCH LEVER F COMPLETE JR100D |
| 43 | 319061-2 | Makita 319061-2 GEAR HOUSING COVER |
| 45 | 183C31-3 | Makita 183C31-3 HOUSING SET |
| 46 | 234258-1 | Makita 234258-1 COMPRESSION SPRING 76D |
| 47 | 253874-0 | Makita 253874-0 Flat Washer 4 for UC3020A LS1016 |
| 48 | 922112-8 | Makita 922112-8 HEX SOCRET HEAD BOLT M4*10, EBH340U |
| 49 | 285738-0 | Makita 285738-0 BEARING RETAINER 36 |
| 50 | 265035-0 | Makita 265035-0 COUNTERSUNK HEAD SCREW M4*10, MT430 |
| 51 | 424597-9 | Makita 424597-9 RUBBER RING 23 |
