Makita JR002G
Makita JR002G: exploded parts diagram, 1 sheet, 88 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita JR002G: 88 positions on 1 sheet

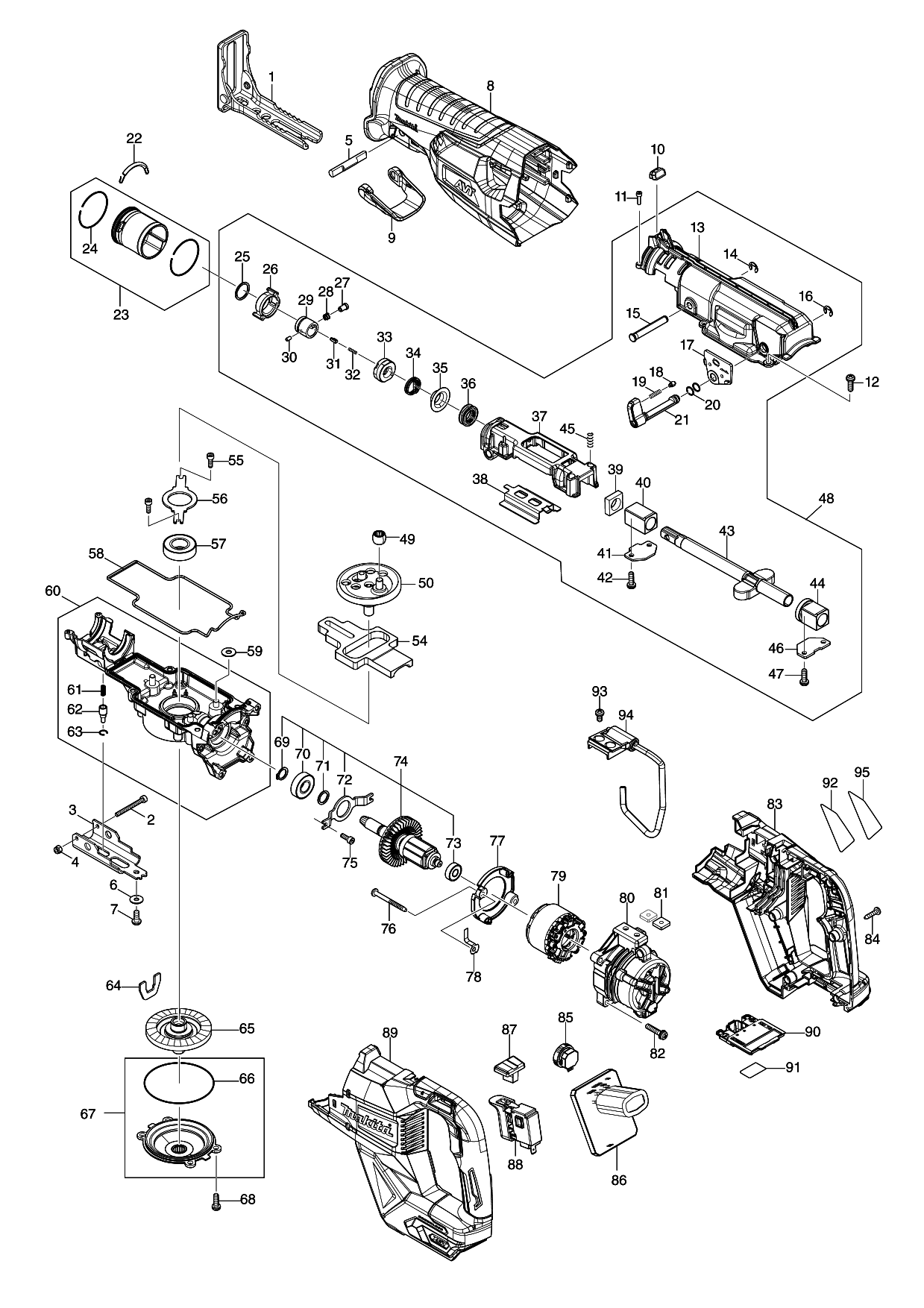

Sheet 1: Makita JR002G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 162B43-3 | |
| 2 | 265A78-8 | Makita 265A78-8 HEX SOCKET HEAD |
| 3 | 347972-1 | Makita 347972-1 SHOE GUIDE PLANET, JR002G |
| 4 | 252126-6 | Makita 252126-6 HEX LOCK NUT M4-7, MT070 |
| 5 | 326599-0 | Makita 326599-0 LOCK PIN |
| 6 | 253194-2 | Makita 253194-2 FLAT WASHER 5, 2012NB |
| 7 | 266169-2 | Makita 266169-2 H.S.HEAD BOLT M5*12, AN611 |
| 8 | 422869-6 | Makita 422869-6 INSULATION COVER, JR002G |
| 9 | 413F39-4 | Makita 413F39-4 LOCK LEVER, JR002G |
| 10 | 620H78-1 | |
| 11 | 265910-0 | Makita 265910-0 Hexagonal Socket Head Bolt M3X12 |
| 12 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 13 | 141H98-7 | |
| 14 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 15 | 268012-1 | Makita 268012-1 PIN 7, JR3060T |
| 16 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 17 | 413F41-7 | |
| 18 | 413F45-9 | |
| 19 | 232745-4 | |
| 20 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 21 | 271471-0 | |
| 22 | 232583-4 | Makita 232583-4 TENSION SPRING 3 |
| 24 | 232746-2 | |
| 25 | 257430-8 | Makita 257430-8 RETAINING RING (EXT) 18, JR3050T |
| 26 | 313418-9 | |
| 27 | 256569-4 | Makita 256569-4 PIN |
| 28 | 234381-2 | Makita 234381-2 COMPRESSION SPRING 6 |
| 29 | 327650-9 | |
| 30 | 256A11-1 | |
| 31 | 310912-2 | |
| 32 | 232472-3 | |
| 33 | 413F43-3 | |
| 34 | 233594-2 | Makita 233594-2 TOPSION SPRING 17 |
| 35 | 257742-9 | Makita 257742-9 SHOULDER SLEEVE 14, JR3070CT |
| 36 | 213174-0 | Makita 213174-0 X Ring 14 JR3050T |
| 37 | 141H95-3 | Makita 141H95-3 SLIDER SUPPORT COMPLETE, JR002G |
| 38 | 347973-9 | |
| 39 | 423343-7 | Makita 423343-7 SEAL PLATE 14, JR3070CT |
| 40 | 214212-1 | Makita 214212-1 PLANE BEARING 14A, JR002G |
| 41 | 345485-6 | Makita 345485-6 PLATE A, JR3060T |
| 42 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 43 | 162B44-1 | Makita 162B44-1 SLIDER, JR002G |
| 44 | 141H97-9 | Makita 141H97-9 BEARING COMPLETE, JR002G |
| 45 | 233038-2 | Makita 233038-2 COMPRESSION SPRING 5, JR307CT |
| 46 | 345486-4 | Makita 345486-4 PLATE B, JR307CT |
| 47 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 49 | 212957-5 | Makita 212957-5 NEEDLE BEARING 710, JR3060T |
| 50 | 136712-0 | Makita 136712-0 CRANK CAM ASS'Y , JR002G |
| 54 | 313419-7 | Makita 313419-7 COUNTER WEIGHT, JR002G |
| 55 | 922117-8 | Makita 922117-8 HEX. SOCKET HEAD BOLT M4X |
| 56 | 285051-6 | |
| 57 | 211251-2 | Makita 211251-2 BALL BEARING 6003VVCM, 5277NB |
| 58 | 422868-8 | Makita 422868-8 SEAL RING, JR002G |
| 59 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 61 | 234084-8 | Makita 234084-8 COMPRESSION SPRING 3GN900 |
| 62 | 256A09-8 | |
| 63 | 232335-3 | |
| 64 | 347974-7 | Makita 347974-7 PLATE D, JR002G |
| 65 | 141H94-5 | Makita 141H94-5 TORQUE LIMITER COMPLETE, JR002G |
| 66 | 213726-7 | Makita 213726-7 O-RING 62, JR3060T |
| 68 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 69 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 70 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 71 | 267104-3 | Makita 267104-3 FLAT WASHER 12, HR2020 |
| 72 | 285050-8 | |
| 73 | 210062-2 | Makita 210062-2 BALL BEARING 607ZZ, MT952 |
| 74 | 519728-4 | Makita 519728-4 ROTOR ASS'Y, JR002G |
| 75 | 922117-8 | Makita 922117-8 HEX. SOCKET HEAD BOLT M4X |
| 76 | 266425-0 | Makita 266425-0 TAPPING SCREW 4*45, HP1230 |
| 77 | 413F42-5 | |
| 78 | 347976-3 | |
| 79 | 629470-0 | Makita 629470-0 STATOR |
| 80 | 413F14-0 | Makita 413F14-0 MOTOR HOUSING, JR002G |
| 81 | 264002-2 | Makita 264002-2 SQUARE NUT M5, JR181D |
| 82 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 83 | 183V99-3 | Makita 183V99-3 HANDLE SET, JR002G |
| 84 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 85 | 620H79-9 | Makita 620H79-9 DIAL CIRCUIT, JR002G |
| 86 | 620H77-3 | Makita 620H77-3 CONTROLLER, JR002G |
| 87 | 413F44-1 | |
| 88 | 651439-6 | Makita 651439-6 SWTICH C3JR-4B-2 |
| 89 | 183V99-3 | Makita 183V99-3 HANDLE SET, JR002G |
| 90 | 632R99-1 | Makita 632R99-1 TERMINAL UNIT, DF002G |
| 91 | 8116Y8-8 | |
| 92 | 8116Y1-2 | |
| 93 | 911206-4 | Makita 911206-4 Pan Head Screw M5*10 for 3612BR |
| 94 | 122B85-9 | Makita 122B85-9 HOOK ASSEMBLY, JR002G |
| 95 | 8048A6-3 |
