Makita JR001G
Makita JR001G: exploded parts diagram, 1 sheet, 65 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita JR001G: 65 positions on 1 sheet

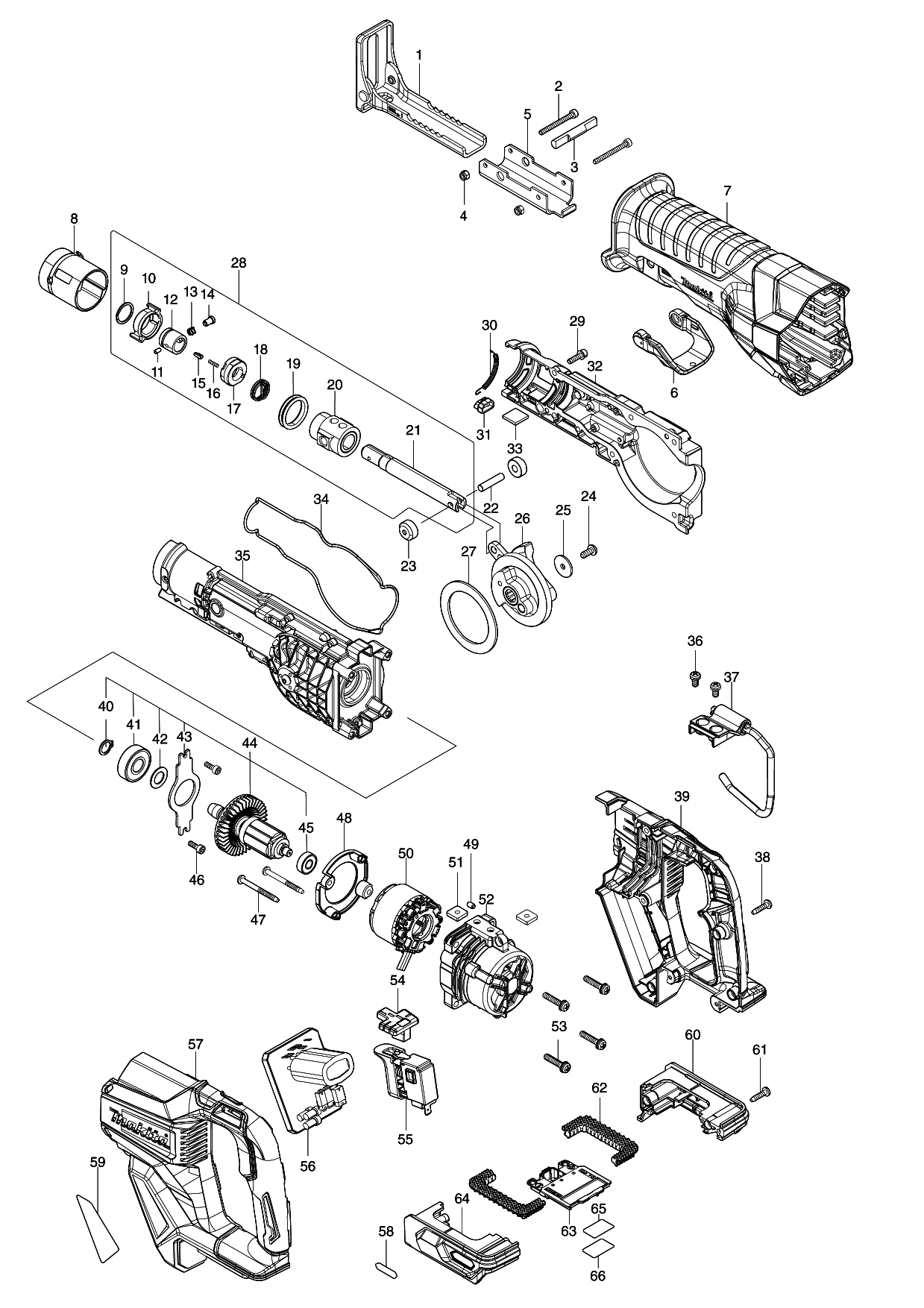

Sheet 1: Makita JR001G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 162739-4 | Makita 162739-4 SHOE, JR001G |
| 2 | 265A78-8 | Makita 265A78-8 HEX SOCKET HEAD |
| 3 | 326599-0 | Makita 326599-0 LOCK PIN |
| 4 | 252126-6 | Makita 252126-6 HEX LOCK NUT M4-7, MT070 |
| 5 | 347637-5 | Makita 347637-5 SHOE GUIDE PLATE |
| 6 | 459924-1 | Makita 459924-1 LOCK LEVER |
| 7 | 422542-8 | Makita 422542-8 INSULATION COVER, JR001G |
| 8 | 459923-3 | Makita 459923-3 RELEASE DRUM |
| 9 | 257430-8 | Makita 257430-8 RETAINING RING (EXT) 18, JR3050T |
| 10 | 310848-5 | |
| 11 | 268094-3 | Makita 268094-3 PIN3, JR300VT |
| 12 | 327043-0 | |
| 13 | 234381-2 | Makita 234381-2 COMPRESSION SPRING 6 |
| 14 | 256569-4 | Makita 256569-4 PIN |
| 15 | 310912-2 | |
| 16 | 232472-3 | |
| 17 | 458968-8 | |
| 18 | 233594-2 | Makita 233594-2 TOPSION SPRING 17 |
| 19 | 422309-4 | |
| 20 | 140P52-6 | |
| 21 | 327154-1 | |
| 22 | 256945-2 | Makita 256945-2 PIN 6 |
| 23 | 310991-0 | Makita 310991-0 ROLLER |
| 24 | 265374-8 | Makita 265374-8 HS BUTTON HEAD SCREW |
| 25 | 253462-3 | Makita 253462-3 FLAT WASHER 5 |
| 26 | 140P53-4 | Makita 140P53-4 GEAR COMPLETE. JR001G |
| 27 | 253463-1 | Makita 253463-1 FLAT WASHER 51, JR001G |
| 29 | 922128-3 | Makita 922128-3 Hex. Socket Head Bolt M4X16 for 4324 |
| 30 | 232583-4 | Makita 232583-4 TENSION SPRING 3 |
| 31 | 620C32-5 | Makita 620C32-5 LED CIRCUIT |
| 32 | 140P51-8 | Makita 140P51-8 GEAR HOUSING R COMPLETE |
| 33 | 424858-7 | Makita 424858-7 FELT 16X16 |
| 34 | 422541-0 | Makita 422541-0 SESL RING |
| 35 | 140P50-0 | Makita 140P50-0 GEAR HOUSING L |
| 36 | 911206-4 | Makita 911206-4 Pan Head Screw M5*10 for 3612BR |
| 37 | 127468-6 | Makita 127468-6 HOOK ASSEMBLY |
| 38 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 39 | 183N57-1 | Makita 183N57-1 HANDLE SET |
| 40 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 41 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 42 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 43 | 285038-8 | |
| 44 | 510447-5 | Makita 510447-5 ROTOR, JR001G |
| 45 | 210062-2 | Makita 210062-2 BALL BEARING 607ZZ, MT952 |
| 46 | 922117-8 | Makita 922117-8 HEX. SOCKET HEAD BOLT M4X |
| 47 | 266425-0 | Makita 266425-0 TAPPING SCREW 4*45, HP1230 |
| 48 | 456178-1 | Makita 456178-1 BAFFLE PLATE |
| 49 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 50 | 629470-0 | Makita 629470-0 STATOR |
| 51 | 264002-2 | Makita 264002-2 SQUARE NUT M5, JR181D |
| 52 | 412476-3 | Makita 412476-3 MOTOR HOUSING |
| 53 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 54 | 456177-3 | Makita 456177-3 CHANGE BUTTON |
| 55 | 651439-6 | Makita 651439-6 SWTICH C3JR-4B-2 |
| 56 | 620C31-7 | Makita 620C31-7 CONTROLLER |
| 57 | 183N57-1 | Makita 183N57-1 HANDLE SET |
| 58 | 8005T5-8 | |
| 59 | 856P39-5 | |
| 60 | 183N58-9 | Makita 183N58-9 BATTERY HOUSING SET |
| 61 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 62 | 422543-6 | Makita 422543-6 CUSHION RUBBER |
| 63 | 632P49-4 | Makita 632P49-4 TERMINAL UNIT |
| 64 | 183N58-9 | Makita 183N58-9 BATTERY HOUSING SET |
| 65 | 856P46-8 | |
| 66 | 8008P3-2 |
