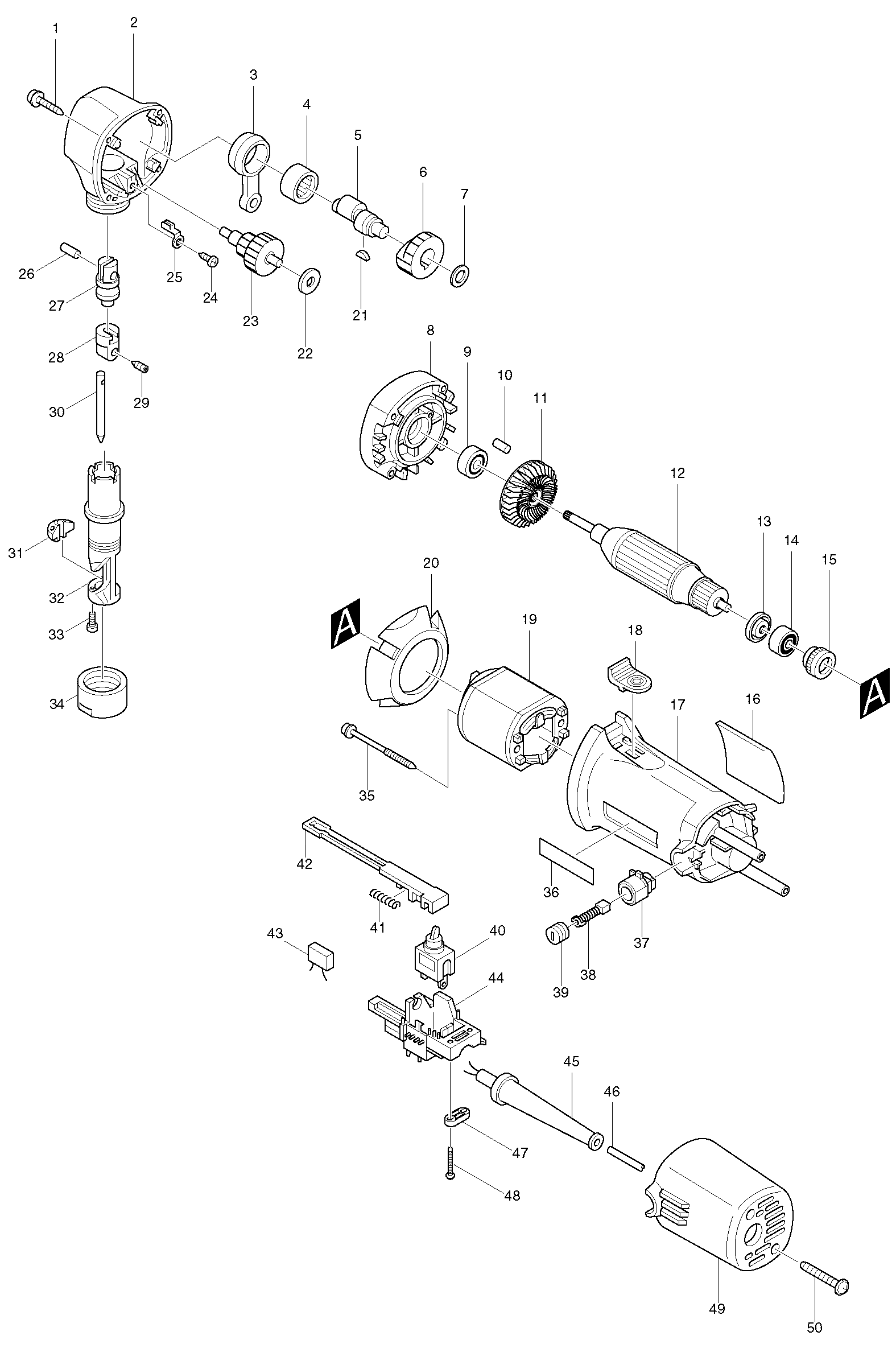

Sheet 1: Makita JN1601 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266053-1 | Makita 266053-1 TAPPING SCREW 4*35, UB1101 |
| 2 | 159757-1 | Makita 159757-1 GEAR HOUSING COMPLETE |
| 3 | 331438-1 | Makita 331438-1 ROD |
| 4 | 212222-2 | Makita 212222-2 NEEDLE BEARING 1612 |
| 5 | 322704-7 | Makita 322704-7 CRANK SHAFT |
| 6 | 226286-0 | Makita 226286-0 SPUR GEAR 34 |
| 7 | 253215-0 | Makita 253215-0 FLAT WASHER 8 |
| 8 | 159758-9 | Makita 159758-9 GEAR HOUSING COVER COMPLE TE |
| 9 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 10 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 11 | 241875-0 | Makita 241875-0 FAN 54 |
| 12 | 517513-9 | Makita 517513-9 ARMATURE ASS'Y 220V |
| 13 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 14 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 15 | 421479-6 | Makita 421479-6 RUBBER RING 19 JN1601,6823, DP3003 |
| 16 | 857617-8 | Makita 857617-8 NAME PLATE JN1601 |
| 17 | 159755-5 | Makita 159755-5 MOTOR HOUSING COMPLETE |
| 18 | 415303-3 | Makita 415303-3 SWITCH KNOB |
| 19 | 635013-8 | Makita 635013-8 FIELD 220V |
| 20 | 415490-8 | |
| 21 | 254002-0 | Makita 254002-0 WOOD RUFF KEY 3, 4100NH |
| 22 | 267133-6 | Makita 267133-6 FLAT WASHER 6 |
| 23 | 226123-8 | Makita 226123-8 GEAR COMPLETE 13-37 |
| 24 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 25 | 344116-4 | Makita 344116-4 STOPPER |
| 26 | 256111-1 | Makita 256111-1 PIN 6 |
| 27 | 322703-9 | Makita 322703-9 RAM |
| 28 | 322702-1 | Makita 322702-1 PUNCH HOLDER JN1601 |
| 29 | 265880-3 | Makita 265880-3 HEX. SOCKET HEAD BOLT M5X |
| 30 | A-15067 | |
| 31 | A-15051 | Makita A-15051 Nibbler parts for BJN160 BJN161 JN1601 |
| 32 | 322701-3 | Makita 322701-3 Die Holder JN1601 |
| 33 | 266080-8 | Makita 266080-8 HEX. SOCKET HEAD BOLT M3X |
| 34 | 322748-7 | Makita 322748-7 LOCK NUT |
| 35 | 266060-4 | Makita 266060-4 TAPPING SCREW, UB1101 |
| 36 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 37 | 643922-7 | Makita 643922-7 BRUSH HOLDER |
| 38 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 39 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 40 | 651418-4 | Makita 651418-4 Switch ST115A-40 for 9526B SG1250 PW5000C 4305 BO6040 |
| 41 | 233071-4 | Makita 233071-4 COMPRESSION SPRING 4 |
| 42 | 415541-7 | Makita 415541-7 SWITCH LEVER |
| 43 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 44 | 687069-7 | Makita 687069-7 SUPPORT |
| 45 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 46 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 47 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 48 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 49 | 415540-9 | Makita 415540-9 REAR COVER |
| 50 | 266053-1 | Makita 266053-1 TAPPING SCREW 4*35, UB1101 |
