Makita JN1600
Makita JN1600: exploded parts diagram, 1 sheet, 45 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita JN1600: 45 positions on 1 sheet

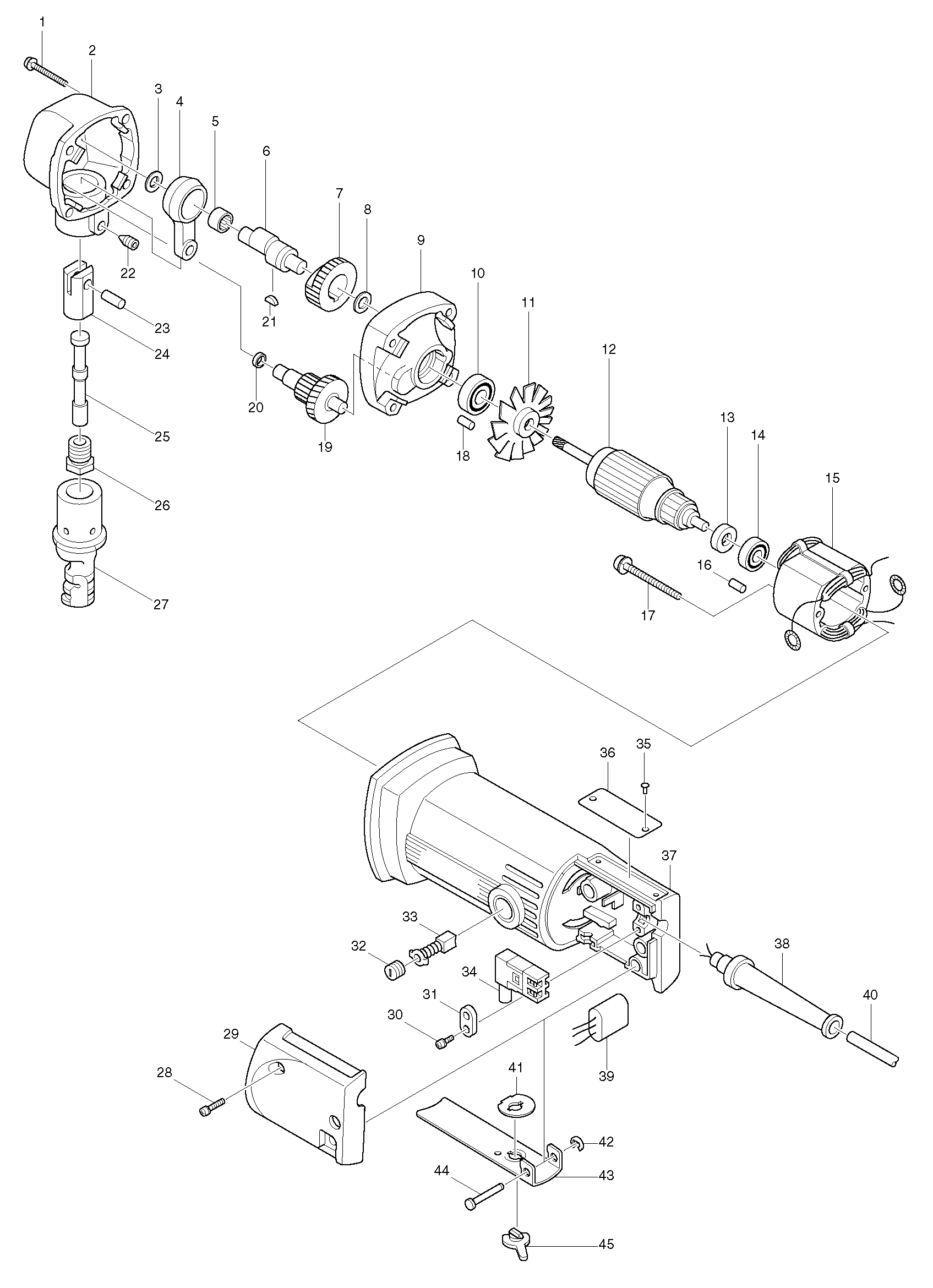

Sheet 1: Makita JN1600 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911161-0 | Makita 911161-0 PAN HEAD SCREW M4X35 |
| 2 | 157474-7 | Makita 157474-7 GEAR HOUSING |
| 3 | 253139-0 | Makita 253139-0 FLAT WASHER 8, 6823 |
| 4 | 331153-7 | Makita 331153-7 ROD |
| 5 | 212151-9 | Makita 212151-9 NEEDLE BEARING 1412 |
| 6 | 321317-1 | Makita 321317-1 CRANK SHAFT |
| 7 | 221873-0 | Makita 221873-0 SPUR GEAR 44 |
| 8 | 253215-0 | Makita 253215-0 FLAT WASHER 8 |
| 9 | 156728-9 | |
| 10 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 11 | 241081-7 | Makita 241081-7 FAN 58 |
| 12 | 511818-9 | Makita 511818-9 ARMATURE ASS Y 220V |
| 13 | 681614-0 | Makita 681614-0 INSULATION WASHER |
| 14 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 15 | 528623-7 | Makita 528623-7 FIELD ASS'Y 220V |
| 16 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 17 | 265891-8 | Makita 265891-8 TAPPING SCREW BT 4X55 |
| 18 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 19 | 226054-1 | Makita 226054-1 GEAR COMPLETE 23-37 |
| 20 | 253308-3 | Makita 253308-3 THIN WASHER 6, HR2610 |
| 21 | 254002-0 | Makita 254002-0 WOOD RUFF KEY 3, 4100NH |
| 22 | 251995-2 | |
| 23 | 256111-1 | Makita 256111-1 PIN 6 |
| 24 | 321318-9 | Makita 321318-9 RAM |
| 25 | 792265-5 | Makita 792265-5 Punch for JN1600 |
| 26 | 321319-7 | Makita 321319-7 SCREW |
| 27 | 792264-7 | Makita 792264-7 Die for JN1600 |
| 28 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
| 29 | 411981-7 | Makita 411981-7 SWITCH COVER JS1600 JN1600 |
| 30 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 31 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 32 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 33 | 191628-6 | Makita 191628-6 CB-65 Carbon Brushes |
| 34 | 651821-9 | Makita 651821-9 Switch ZGM-54 for JN1600 JS1600 BO6010 |
| 35 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 36 | 815664-5 | Makita 815664-5 NAME PLATE JN1600 |
| 37 | 157720-8 | Makita 157720-8 MOTOR HOUSING |
| 38 | 682521-0 | Makita 682521-0 CORD GUARD 10 |
| 39 | 645169-9 | Makita 645169-9 NOISE SUPPRESSOR |
| 40 | 665852-2 | Makita 665852-2 POWER S.CORD CEE, MT900 |
| 41 | 232062-2 | Makita 232062-2 LEAF SPRING |
| 42 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 43 | 341858-1 | Makita 341858-1 SWITCH LEVER |
| 44 | 256626-8 | Makita 256626-8 PIN 4 |
| 45 | 411784-9 | Makita 411784-9 SAFETY LOCK |
