Bosch ISIO

Bosch ISIO cordless grass shear: exploded parts diagram, 1 sheet, 9 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ISIO: 9 positions on 1 sheet

Bosch ISIO parts list (1 sheet)

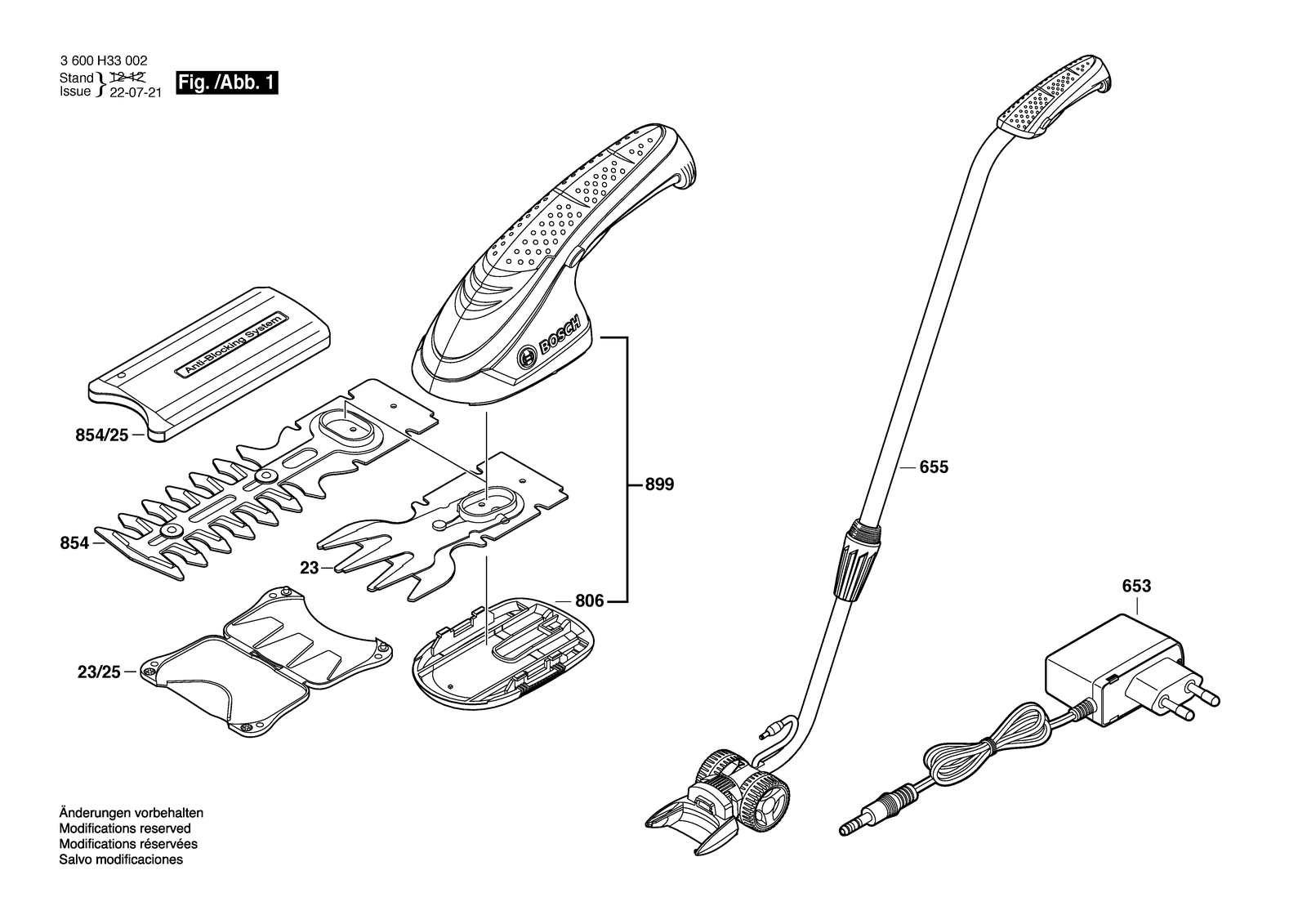

Bosch ISIO parts diagram, sheet 1
No.Part numberPart name
232609003133Set of knives Short
23/252609003388Knife Guard Short
6532609003263Charger EU 230/3,6V,5H
6532609003265Charger GB 230/3,6V,5H
6552609003414Extension Set
8062609003493Cover
8542609005321Set of knives Long
854/252610Z10523Knife Guard
8992609003494Cordless Grass Shear 3,6V
