Bosch ISIO 3

Bosch ISIO 3 cordless grass shear: exploded parts diagram, 2 sheets, 20 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ISIO 3: 20 positions on 2 sheets

Bosch ISIO 3 parts list (2 sheets)

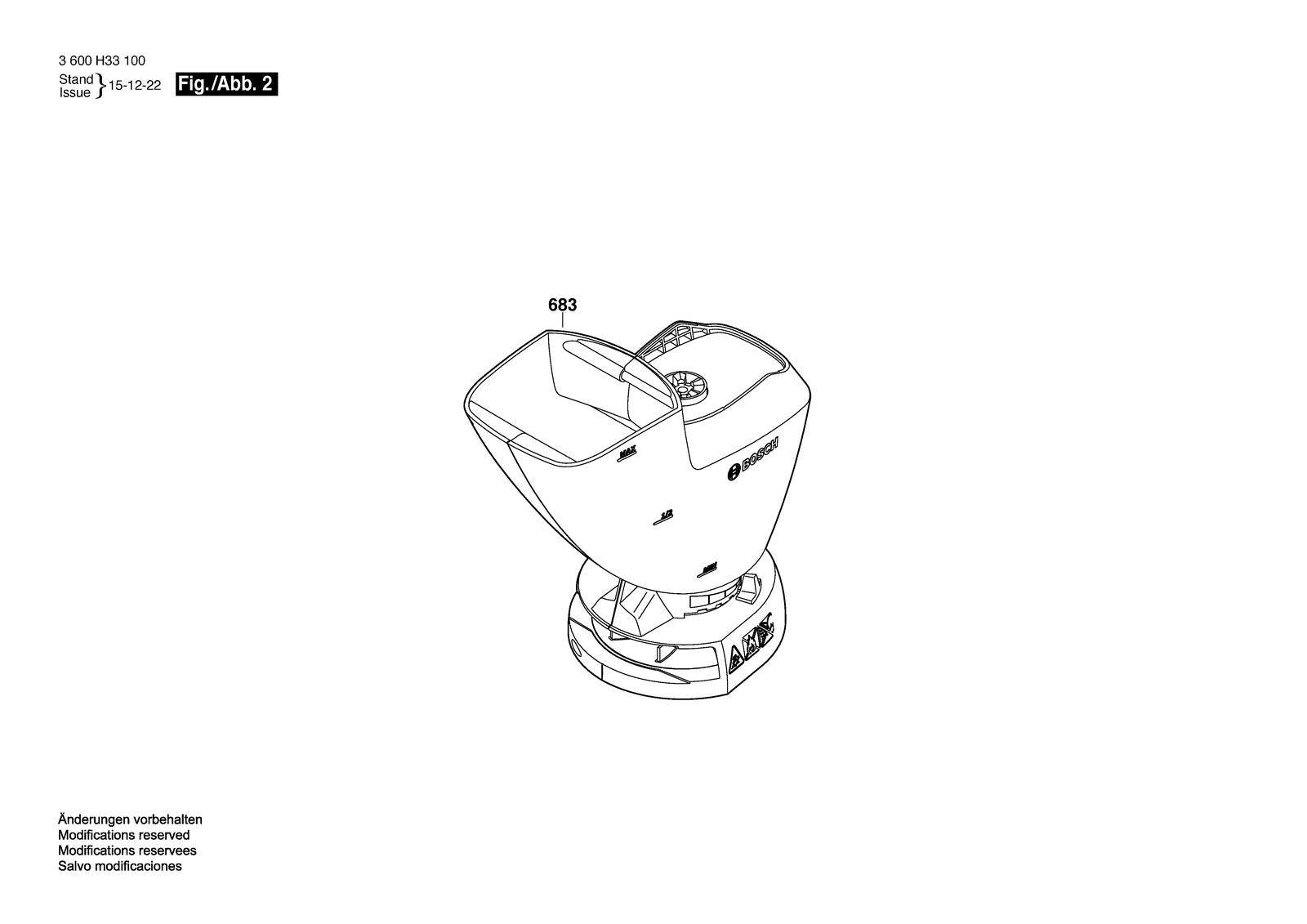

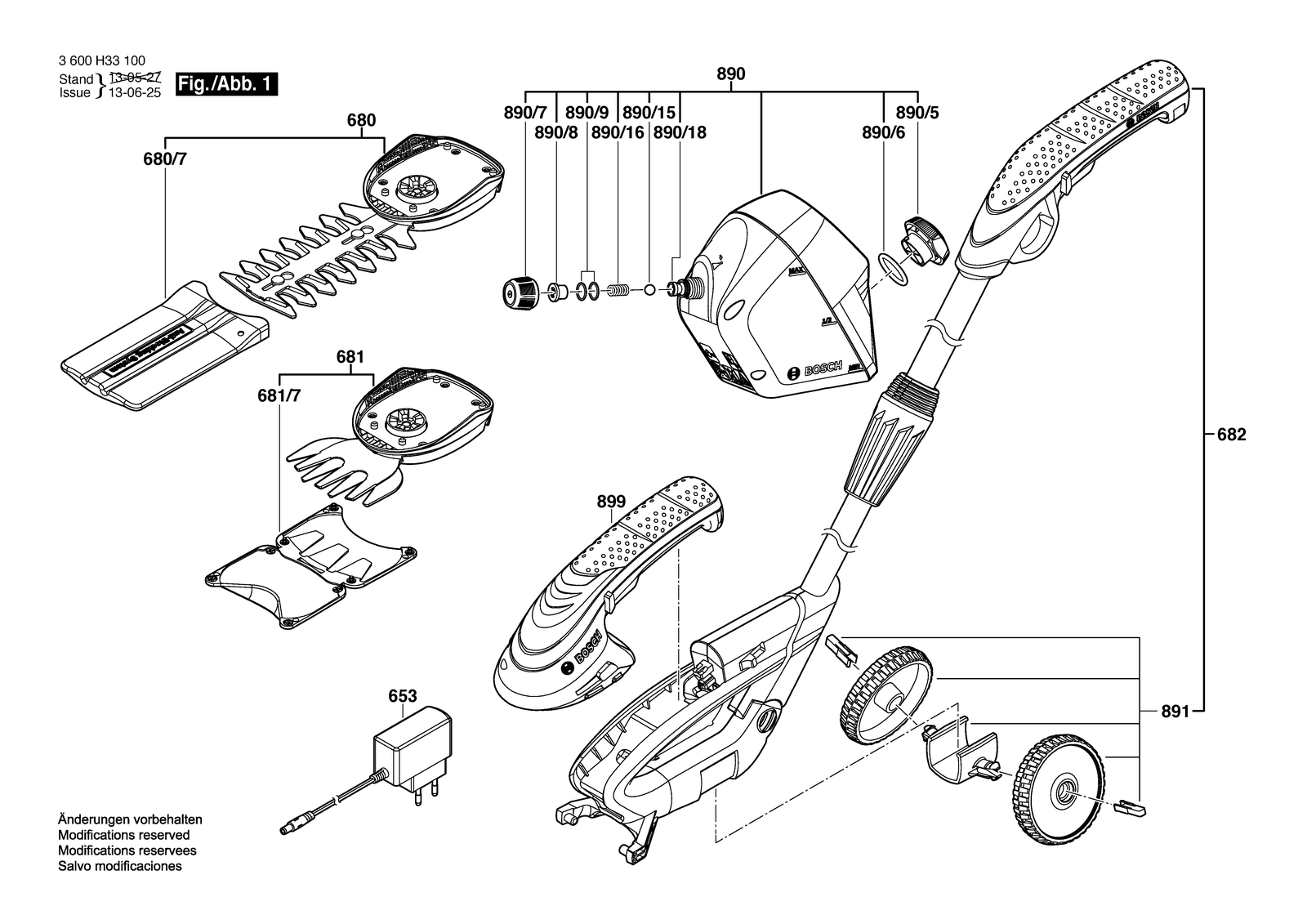

Bosch ISIO 3 parts diagram, sheet 1Bosch ISIO 3 parts diagram, sheet 2
No.Part numberPart name
6532609006408Charger EU 230/3,6V, 1H
6532609006411Charger J 100/3,6V, 1H
6532609006412Charger KR 220/3,6V, 1H
6802609006002Set of knives Long
680/72609004101Knife Guard Long
6812609006009Set of knives Short
681/72609003388Knife Guard Short
6822609006080Extension Set
6832609006066Seeder
8902609006046Spray
890/152609006429Valve Ball
890/162609006549Spring
890/182609007035Sleeve
890/52609006050Plug Long
890/62609006051O-Ring 24,0X3,0 MM
890/72609006052Nozzle head Long
890/82609006053Spraying Nozzle
890/92609006287O-Ring 11,0X1,0 MM
8912609007311Wheel Set
8991600A011SBCordless Grass Shear
