Bosch Indego S 500 autonomous lawnmower: exploded parts diagram, 2 sheets, 55 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

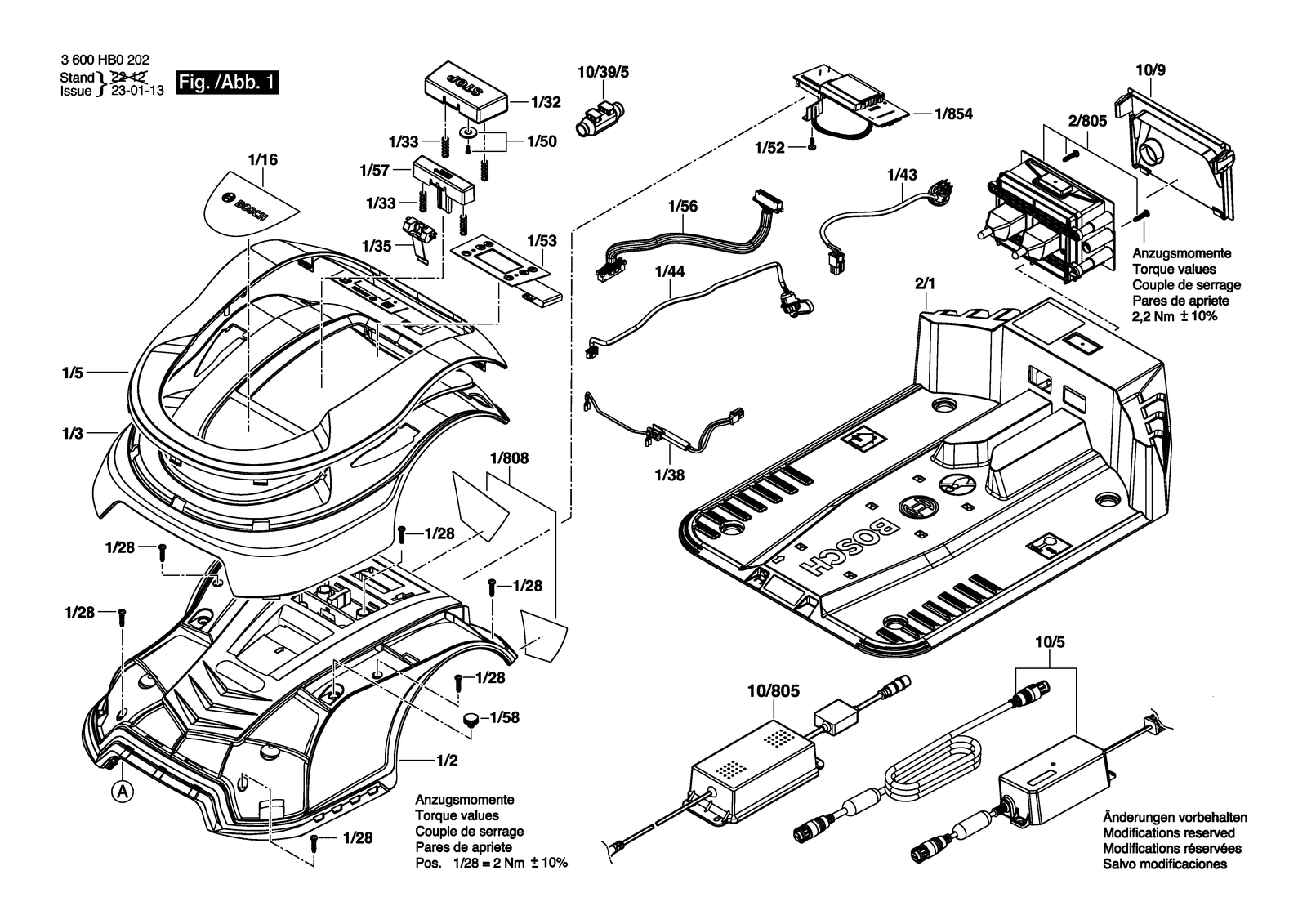

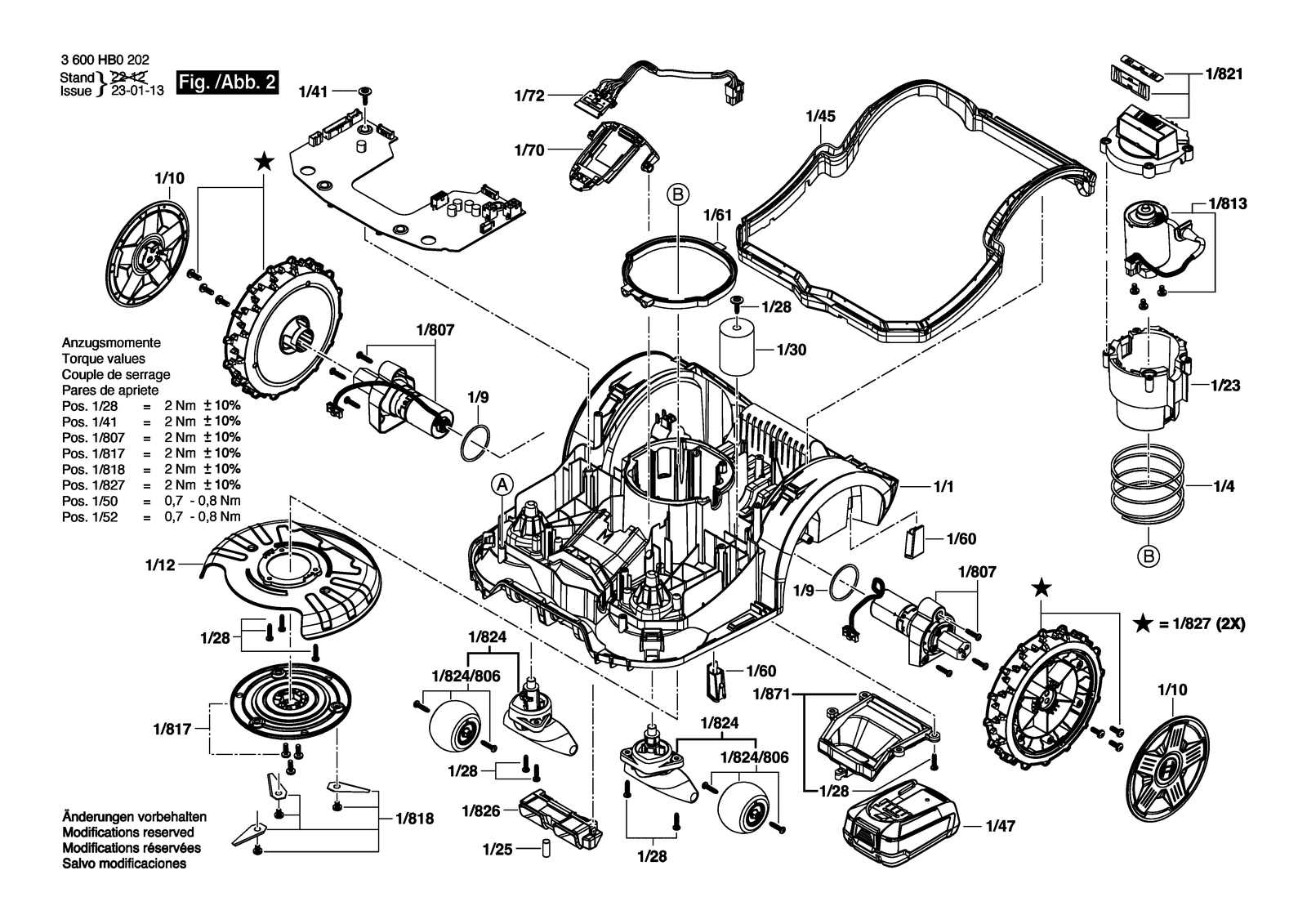

All parts of Bosch Indego S 500: 55 positions on 2 sheets
Bosch Indego S 500 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1/1 | F016L90902 | Chassis Unterseite |
| 1/10 | F016L91310 | Cover Green |
| 1/12 | F016L90965 | Pivoting Blade Guard |
| 1/16 | F016L91256 | Sticker Bosch Logo |
| 1/2 | F016L91276 | Chassis |
| 1/23 | F016L90907 | Motor Housing |
| 1/25 | F016L69389 | Control Magnet |
| 1/28 | F016L67706 | Screw M4X20 Plastic |
| 1/3 | F016L91251 | Cover Black |
| 1/30 | F016L90740 | Weight |
| 1/32 | F016L68978 | Push Button |
| 1/33 | F016L69569 | Compression Spring |
| 1/35 | F016L68980 | Locking Lever |
| 1/38 | F016L69388 | Wiring Harness |
| 1/4 | F016L68899 | Compression Spring |
| 1/41 | F016L67951 | Screw and washer assembly |
| 1/43 | F016L69220 | Wire Harness assembly |
| 1/44 | F016L69178 | Data coupler |
| 1/45 | F016L69106 | Profile gasket |
| 1/47 | 1607A350RU | Battery Pack PBA 18V 2,5AH W-b 45WH |
| 1/5 | F016L91252 | Cover Green |
| 1/50 | F016L69405 | Control Magnet |
| 1/52 | F016L67864 | Fastening Screw |
| 1/53 | F016L91312 | Membrane Indego S 500 |
| 1/56 | F016L69247 | Wiring Harness |
| 1/57 | F016L68981 | Push Button |
| 1/58 | F016L69597 | Breather |
| 1/60 | F016L69179 | Screw Cap |
| 1/61 | F016L69180 | Profile gasket |
| 1/70 | F016L90903 | Battery Holder |
| 1/72 | F016L90963 | Wiring Harness |
| 1/807 | F016105558 | Drive Motor |
| 1/808 | 160111A83C | Nameplate Without Ukca |
| 1/808 | 160111AA5L | Nameplate With Ukca |
| 1/813 | F016105557 | Motor assembly |
| 1/817 | F016104903 | Blade Holder |
| 1/818 | F016104255 | Blade |
| 1/821 | F016105503 | Motor cover |
| 1/824 | 1607000EE5 | Caster Wheel |
| 1/824/806 | 1607000EE4 | Caster Wheel |
| 1/826 | F016104899 | Socket |
| 1/827 | 1607000EC4 | Drive Wheel Neu |
| 1/854 | F016104894 | Printed Circuit Board |
| 1/871 | F016105639 | Cover |
| 1/9 | F016L68966 | Seal Housing Ring |
| 10/39/5 | F016L68737 | Connector |
| 10/5 | F016L90916 | Power supply unit EU |
| 10/5 | F016L90934 | Power supply unit Ch |
| 10/5 | F016L90935 | Power supply unit Gb |
| 10/805 | F016L69170 | Power supply unit EU |
| 10/805 | F016L69437 | Power supply unit UK |
| 10/805 | F016L69439 | Power supply unit Ch |
| 10/9 | F016L69193 | Cover Plate |
| 2/1 | F016L90756 | Baseplate complete |
| 2/805 | 1600A02545 | Printed-Board Assembly |
