Bosch INDEGO Auto Lawnm. autonomous lawnmower: exploded parts diagram, 2 sheets, 54 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch INDEGO Auto Lawnm.: 54 positions on 2 sheets

Bosch INDEGO Auto Lawnm. parts list (2 sheets)

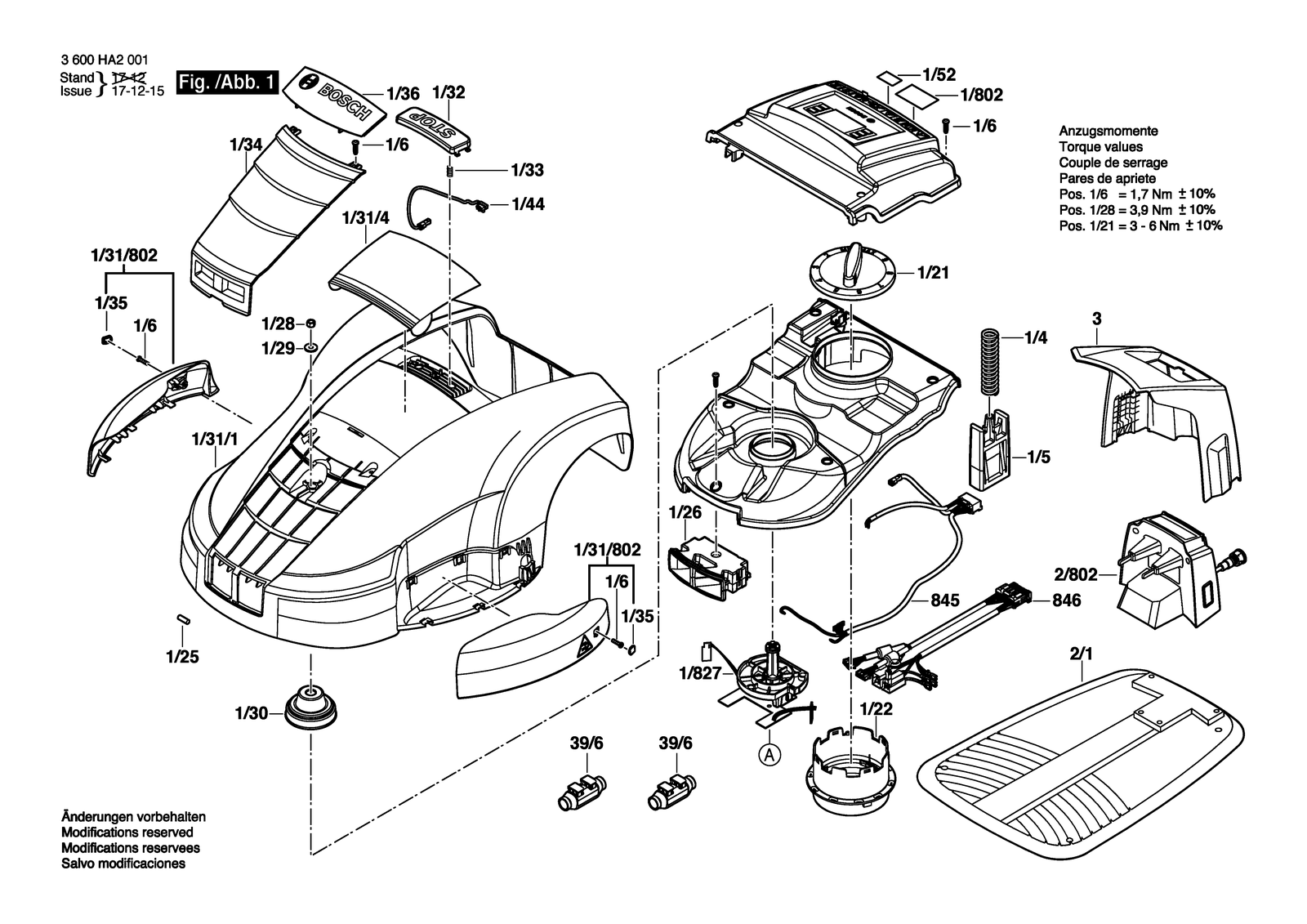

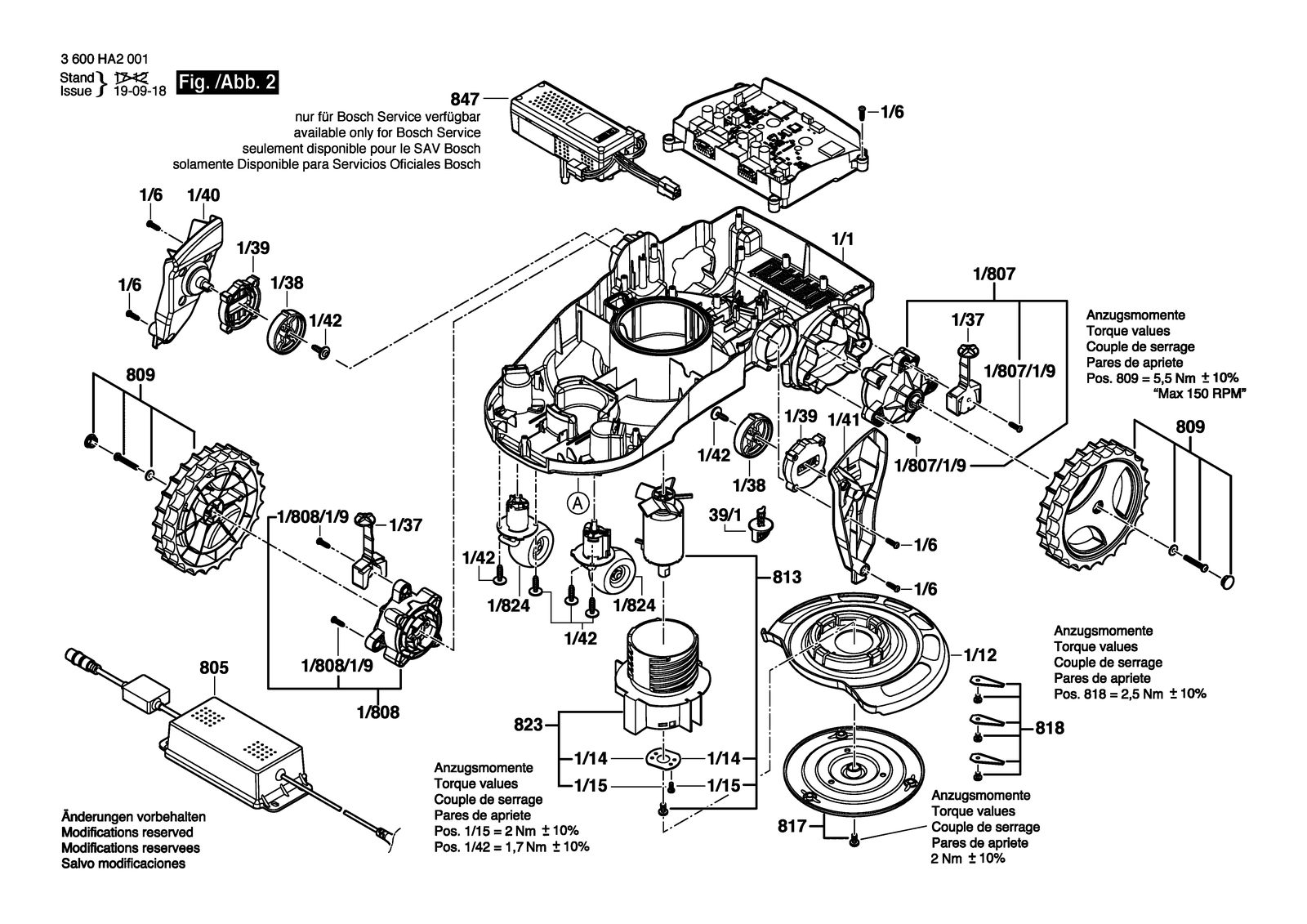

Bosch INDEGO Auto Lawnm. parts diagram, sheet 1Bosch INDEGO Auto Lawnm. parts diagram, sheet 2
No.Part numberPart name
1/1F016L68576Chassis
1/12F016L67729Pivoting Blade Guard
1/14F016L67872Bearing Plate
1/15F016L67734Motor fixing screw
1/21F016L67742Rotary Knob
1/22F016L67743Threaded Sleeve
1/25F016L67750Control Magnet
1/26F016L68265Socket
1/28F016L18118Nut
1/29F016L67862Washer
1/30F016L67768Sealing bellows
1/31/1F016L67770Outer Shell
1/31/4F016L67777Hinged Lid
1/31/802F016104257Side Cover Black
1/32F016L67771Stop Cover
1/33F016L67772Button Spring
1/34F016L67773Cover Guide
1/35F016L67776Cap Plate Black
1/36F016L67782Company Logo
1/37F016L68494Support Element
1/38F016L67785Mounting Ring
1/39F016L67786Retaining Plate
1/4F016L67704Spring
1/40F016L67778Mounting Bracket
1/41F016L67779Mounting Bracket
1/42F016L67951Screw and washer assembly
1/44F016L67867Wire Harness assembly
1/5F016L67705Plunger
1/52F016L69304Sticker
1/6F016L67706Screw M4X20 Plastic
1/802F016105061Nameplate
1/807F016104253Drive Unit
1/807/1/9F016L67706Screw M4X20 Plastic
1/808F016104251Drive Unit
1/808/1/9F016L67706Screw M4X20 Plastic
1/824F016104876Wheel lift unit
1/827F016104492Input device
2/1F016L68409Base Plate
2/802F016104662Signal Tower
3F016L67822Covering hood
39/1F016L67841Stopper
39/6F016L68737Connector
805F016L69116Power supply unit EU
805F016L69117Power supply unit Ch
805F016L69118Power supply unit Gb
805F016L69119Power supply unit Aus
809F016104502Drive Wheel
813F016104254Motor Spare Parts Set
817F016104259Cutting Unit
818F016104255Blade
823F016104252Motor Housing
845F016104258Wire Harness assembly
846F016105050Wire Harness assembly
847F016104299Battery Pack 32,4V 3AH
