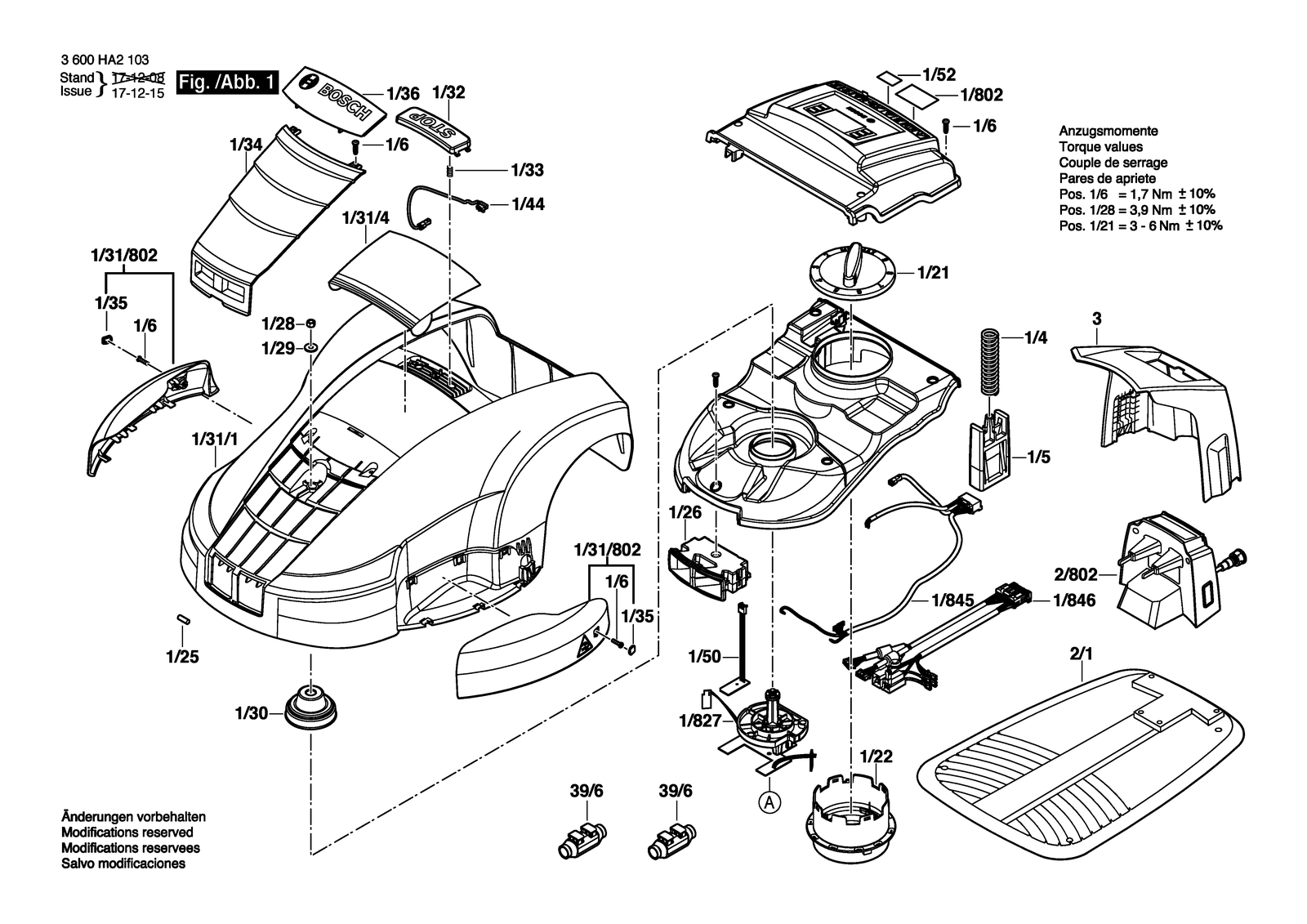

Bosch INDEGO 800 autonomous lawnmower: exploded parts diagram, 2 sheets, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch INDEGO 800: 56 positions on 2 sheets
Bosch INDEGO 800 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1/1 | F016L68576 | Chassis |
| 1/12 | F016L67729 | Pivoting Blade Guard |
| 1/14 | F016L67872 | Bearing Plate |
| 1/15 | F016L67734 | Motor fixing screw |
| 1/21 | F016L67742 | Rotary Knob |
| 1/22 | F016L67743 | Threaded Sleeve |
| 1/25 | F016L67750 | Control Magnet |
| 1/26 | F016L68265 | Socket |
| 1/28 | F016L18118 | Nut |
| 1/29 | F016L67862 | Washer |
| 1/30 | F016L67768 | Sealing bellows |
| 1/31/1 | F016L67770 | Outer Shell |
| 1/31/4 | F016L68470 | Hinged Lid |
| 1/31/802 | F016104376 | Side Cover Silver |
| 1/32 | F016L67771 | Stop Cover |
| 1/33 | F016L67772 | Button Spring |
| 1/34 | F016L67773 | Cover Guide |
| 1/35 | F016L68473 | Cover Silver |
| 1/36 | F016L69066 | Company Logo Indego 800 |
| 1/36 | F016L69577 | Company Logo Indego 850 |
| 1/37 | F016L68494 | Support Element |
| 1/38 | F016L67785 | Mounting Ring |
| 1/39 | F016L67786 | Retaining Plate |
| 1/4 | F016L67704 | Spring |
| 1/40 | F016L67778 | Mounting Bracket |
| 1/41 | F016L67779 | Mounting Bracket |
| 1/42 | F016L67951 | Screw and washer assembly |
| 1/44 | F016L67867 | Wire Harness assembly |
| 1/5 | F016L67705 | Plunger |
| 1/50 | F016L68893 | Electronic Assembly |
| 1/52 | F016L69304 | Sticker |
| 1/6 | F016L67706 | Screw M4X20 Plastic |
| 1/802 | F016105061 | Nameplate |
| 1/807 | F016104253 | Drive Unit |
| 1/807/1/9 | F016L67706 | Screw M4X20 Plastic |
| 1/808 | F016104251 | Drive Unit |
| 1/808/1/9 | F016L67706 | Screw M4X20 Plastic |
| 1/809 | F016104502 | Drive Wheel |
| 1/813 | F016104254 | Motor Spare Parts Set |
| 1/817 | F016104259 | Cutting Unit |
| 1/818 | F016104255 | Blade |
| 1/823 | F016104252 | Motor Housing |
| 1/824 | F016104876 | Wheel lift unit |
| 1/827 | F016104601 | Joystick |
| 1/845 | F016104258 | Wire Harness assembly |
| 1/846 | F016105050 | Wire Harness assembly |
| 1/847 | F016104299 | Battery Pack 32,4V 3AH |
| 2/1 | F016L68409 | Base Plate |
| 2/802 | F016104662 | Signal Tower |
| 3 | F016L67822 | Covering hood |
| 39/1 | F016L67841 | Stopper |
| 39/6 | F016L68737 | Connector |
| 805 | F016L69116 | Power supply unit EU |
| 805 | F016L69117 | Power supply unit Ch |
| 805 | F016L69118 | Power supply unit Gb |
| 805 | F016L69119 | Power supply unit Aus |
