Bosch Indego 350 connect autonomous lawnmower: exploded parts diagram, 2 sheets, 51 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch Indego 350 connect: 51 positions on 2 sheets

Bosch Indego 350 connect parts list (2 sheets)

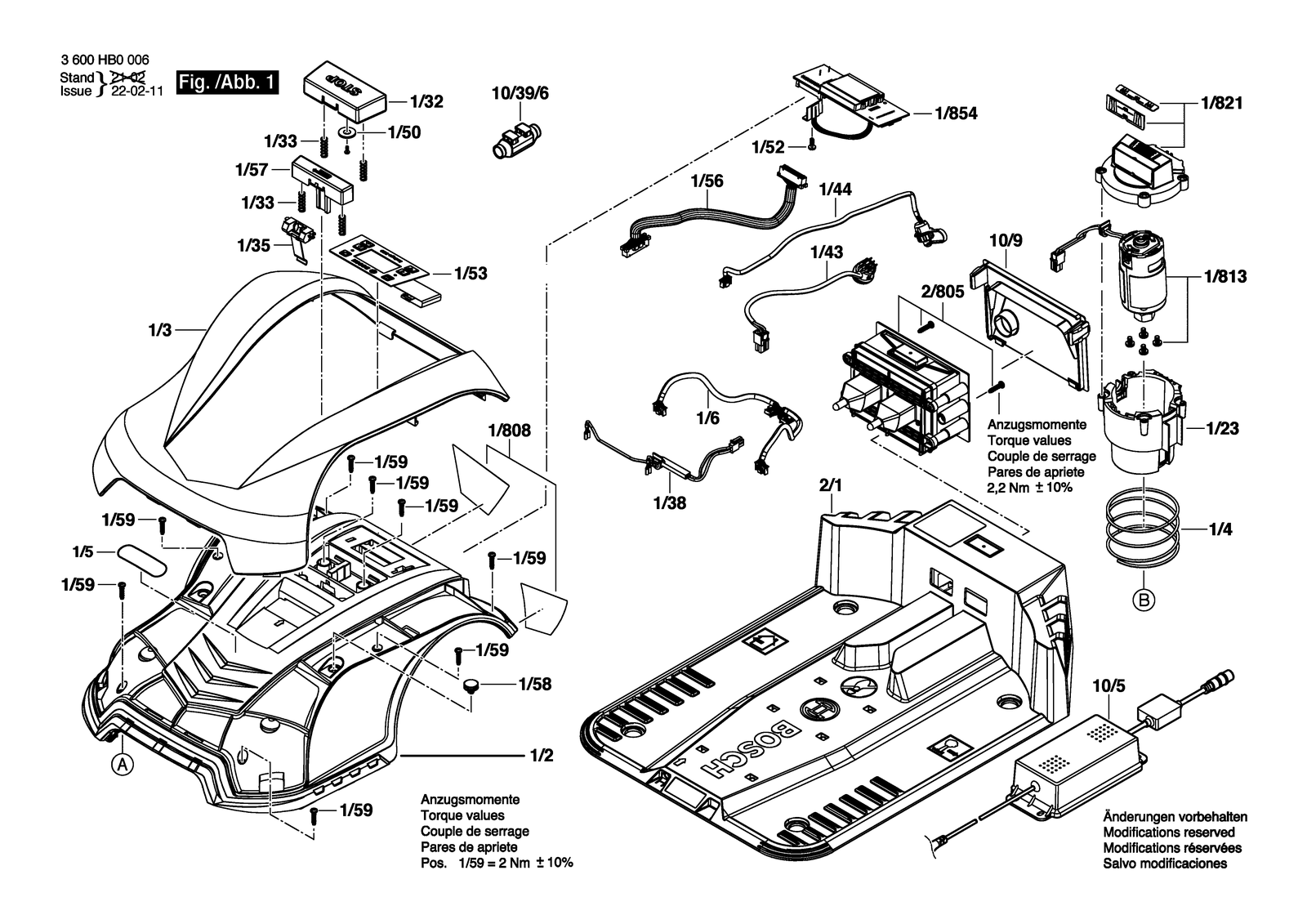

Bosch Indego 350 connect parts diagram, sheet 1Bosch Indego 350 connect parts diagram, sheet 2
No.Part numberPart name
1/1F016L68948Chassis Bottom
1/12F016L90965Pivoting Blade Guard
1/2F016L91276Chassis
1/23F016L68952Motor Housing
1/25F016L69389Control Magnet
1/28F016L67706Screw M4X20 Plastic
1/3F016L68949Cover
1/30F016L90740Weight
1/32F016L68978Push Button
1/33F016L69569Compression Spring
1/35F016L68980Locking Lever
1/38F016L69388Wiring Harness
1/4F016L68899Compression Spring
1/40F016L69212Profile gasket
1/41F016L67951Screw and washer assembly
1/43F016L69220Wire Harness assembly
1/44F016L69178Data coupler
1/45F016L69106Profile gasket
1/5F016L91277Label
1/50F016L69405Control Magnet
1/52F016L67864Fastening Screw
1/53F016L69145Membrane Indego 350
1/53F016L69433Membrane Indego 400
1/56F016L69247Wiring Harness
1/57F016L68981Push Button
1/58F016L69597Breather
1/59F016L67706Screw M4X20 Plastic
1/6F016L69221Wire Harness assembly
1/60F016L69179Screw Cap
1/61F016L69180Profile gasket
1/807F016104901Drive Motor
1/808160111A796Nameplate
1/808160111A798Nameplate
1/813F016104897Motor assembly
1/817F016104903Blade Holder
1/818F016104255Blade
1/821F016105503Motor cover
1/8241607000EE5Caster Wheel
1/824/8061607000EE4Caster Wheel
1/826F016104899Socket
1/8271607000EE1Drive Wheel
1/847F016104898Battery Set
1/854F016104894Printed Circuit Board
1/9F016L68966Seal Housing Ring
10/39/6F016L68737Connector
10/5F016L69170Power supply unit EU
10/5F016L69437Power supply unit UK
10/5F016L69439Power supply unit Ch
10/9F016L69193Cover Plate
2/1F016L90756Baseplate complete
2/8051600A02545Printed-Board Assembly
