Bosch Indego 1300

Bosch Indego 1300 autonomous lawnmower: exploded parts diagram, 2 sheets, 54 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch Indego 1300: 54 positions on 2 sheets

Bosch Indego 1300 parts list (2 sheets)

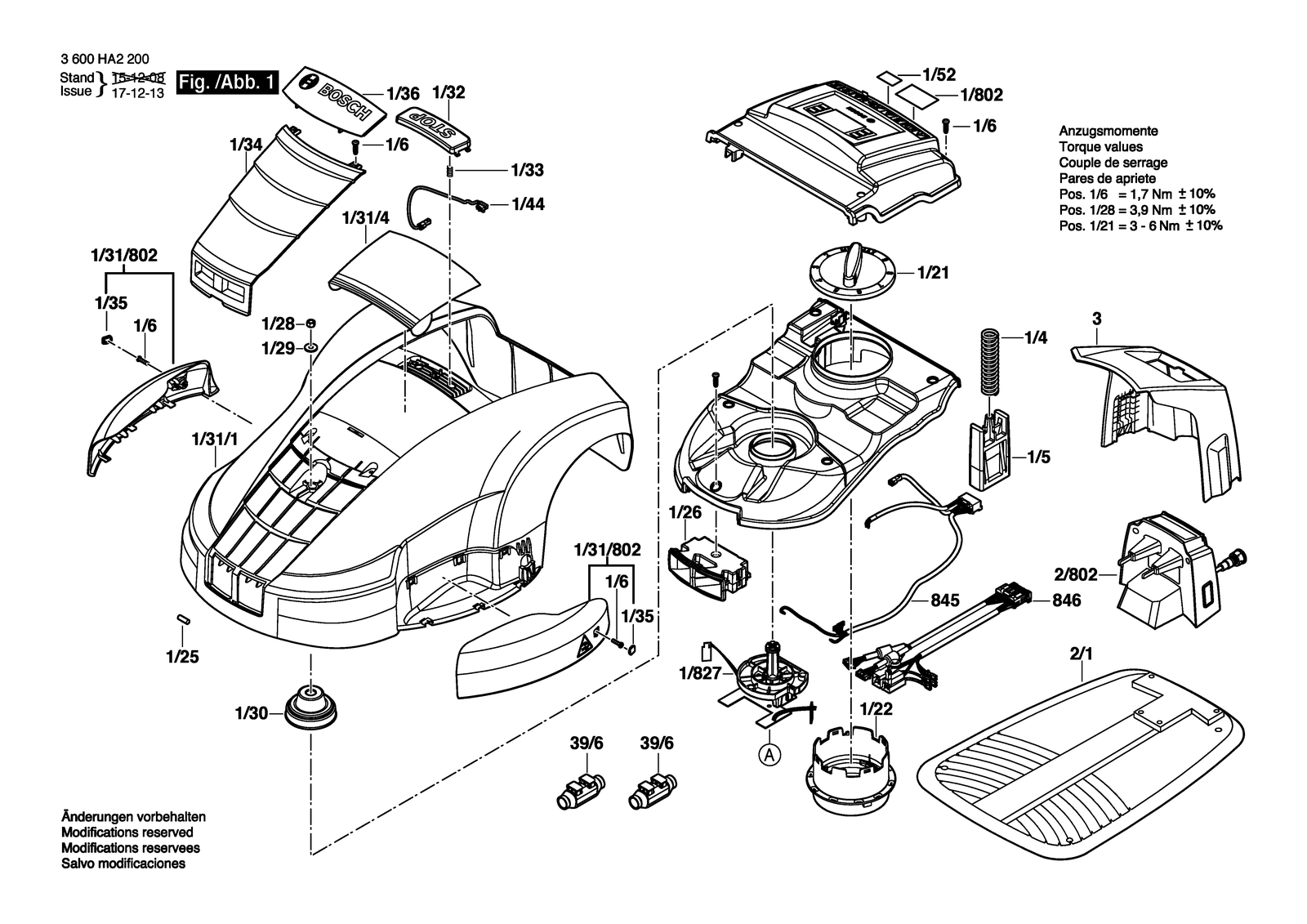

Bosch Indego 1300 parts diagram, sheet 1Bosch Indego 1300 parts diagram, sheet 2
No.Part numberPart name
1/1F016L68576Chassis
1/12F016L67729Pivoting Blade Guard
1/14F016L67872Bearing Plate
1/15F016L67734Motor fixing screw
1/21F016L67742Rotary Knob
1/22F016L67743Threaded Sleeve
1/25F016L67750Control Magnet
1/26F016L68265Socket
1/28F016L18118Nut
1/29F016L67862Washer
1/30F016L67768Sealing bellows
1/31/1F016L67770Outer Shell
1/31/4F016L68470Hinged Lid
1/31/802F016104376Side Cover Silver
1/32F016L67771Stop Cover
1/33F016L67772Button Spring
1/34F016L67773Cover Guide
1/35F016L68473Cover Silver
1/36F016L68703Company Logo
1/37F016L68494Support Element
1/38F016L67785Mounting Ring
1/39F016L67786Retaining Plate
1/4F016L67704Spring
1/40F016L67778Mounting Bracket
1/41F016L67779Mounting Bracket
1/42F016L67951Screw and washer assembly
1/44F016L67867Wire Harness assembly
1/5F016L67705Plunger
1/52F016L69304Sticker
1/6F016L67706Screw M4X20 Plastic
1/802F016105061Nameplate
1/824F016104876Wheel lift unit
1/827F016104492Input device
2/1F016L68409Base Plate
2/802F016104605Signal Tower
3F016L67822Covering hood
39/1F016L67841Stopper
39/6F016L68737Connector
805F016L69116Power supply unit EU
805F016L69117Power supply unit Ch
805F016L69118Power supply unit Gb
805F016L69119Power supply unit Aus
807F016104253Drive Unit
807/1/9F016L67706Screw M4X20 Plastic
808F016104251Drive Unit
808/1/9F016L67706Screw M4X20 Plastic
809F016104502Drive Wheel
813F016104254Motor Spare Parts Set
817F016104259Cutting Unit
818F016104255Blade
823F016104252Motor Housing
845F016104258Wire Harness assembly
846F016105050Wire Harness assembly
847F016104299Battery Pack 32,4V 3AH
