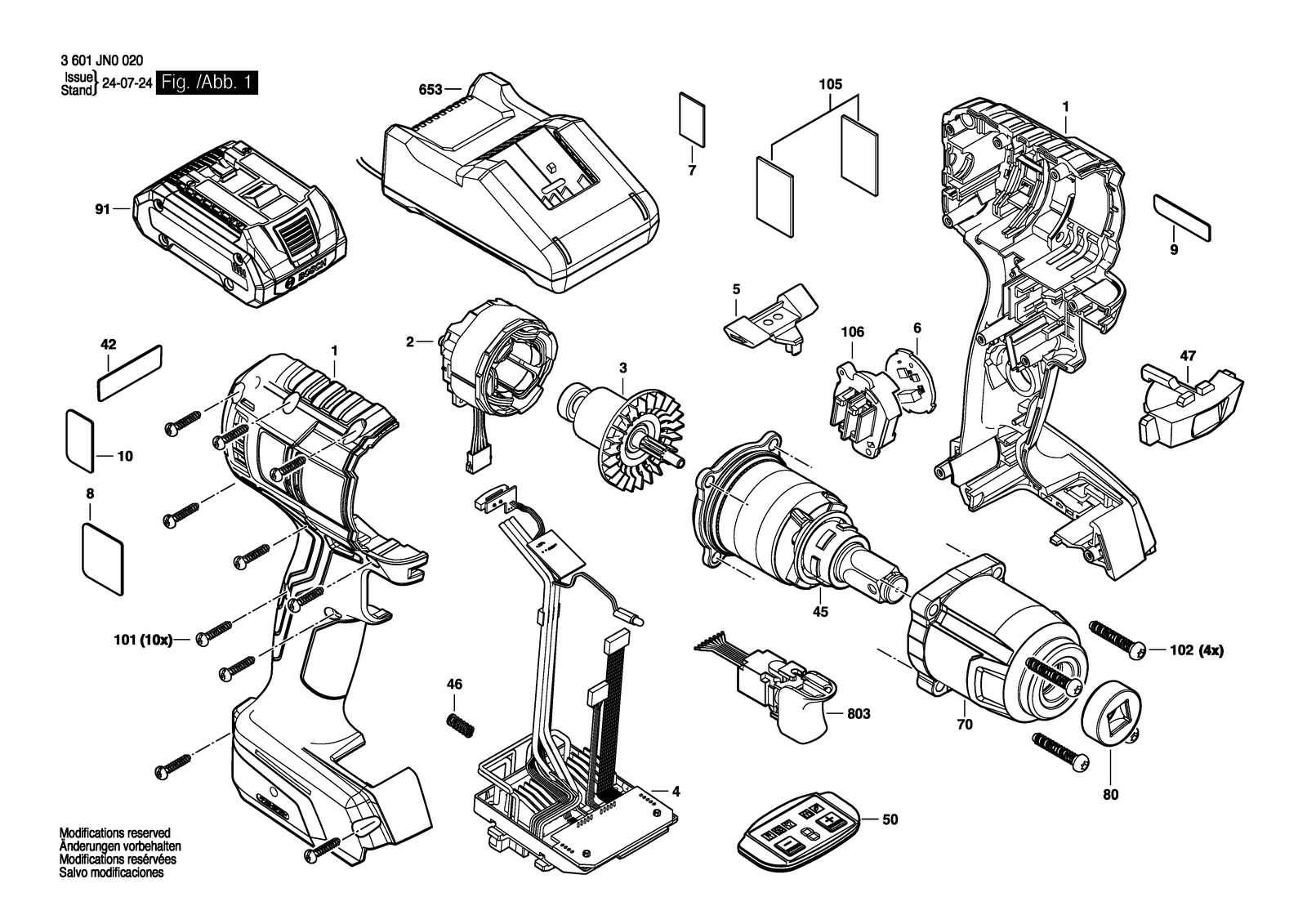

Bosch IDS 18V-200T impact wrench: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch IDS 18V-200T: 33 positions on 1 sheet
Bosch IDS 18V-200T parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16058066UE | Housing |
| 10 | 160111C682 | Sticker |
| 10 | 160111C687 | Sticker |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 102 | 160343008S | Screw |
| 105 | 1600A036TE | Felt |
| 106 | 1600A036TF | Separator |
| 2 | 1600A036T6 | Stator |
| 3 | 1619P17448 | Rotor |
| 4 | 1600A036T7 | Electronic Module |
| 42 | 160111C684 | Sticker |
| 45 | 1600A036TA | Gear Box |
| 46 | 1609280477 | Compression Spring |
| 47 | 2609101083 | Lens |
| 5 | 1600A023EE | Changeover Lever |
| 50 | 1600A036TB | Separator |
| 6 | 1600A036HF | Electronics Module |
| 653 | 2607226251 | Fast Charger EU GAL 18V-40, 230V/10,8V – 18V |
| 653 | 2607226253 | Fast Charger Gb GAL 18V-40 |
| 653 | 2607226259 | Fast Charger Lam GAL 18V-40 |
| 653 | 2607226265 | Fast Charger Br GAL 18V-40 127-220V |
| 653 | 2607226267 | Fast Charger Cn GAL 18V-40 |
| 653 | 2607226269 | Fast Charger Ar GAL 18V-40 |
| 653 | 2607226537 | Fast Charger Ind GAL 18V-40 220-240V / 4A |
| 7 | 1600A036P6 | Adhesive Tape |
| 70 | 1600A036TC | Front Cap |
| 8 | 160111AD1L | Nameplate |
| 8 | 160111AD1M | Nameplate |
| 8 | 160111AD1N | Nameplate |
| 80 | 1600A036TD | Rubber Ring |
| 803 | 16072003BS | Switch |
| 9 | 160111C683 | Manufacturer's nameplate |
| 91 | 1607A350AN | Battery Pack GBA 18V 4.0AH Procore Scm |
