Bosch ID 500

Bosch ID 500 percussion drill: exploded parts diagram, 1 sheet, 27 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ID 500: 27 positions on 1 sheet

Bosch ID 500 parts list (1 sheet)

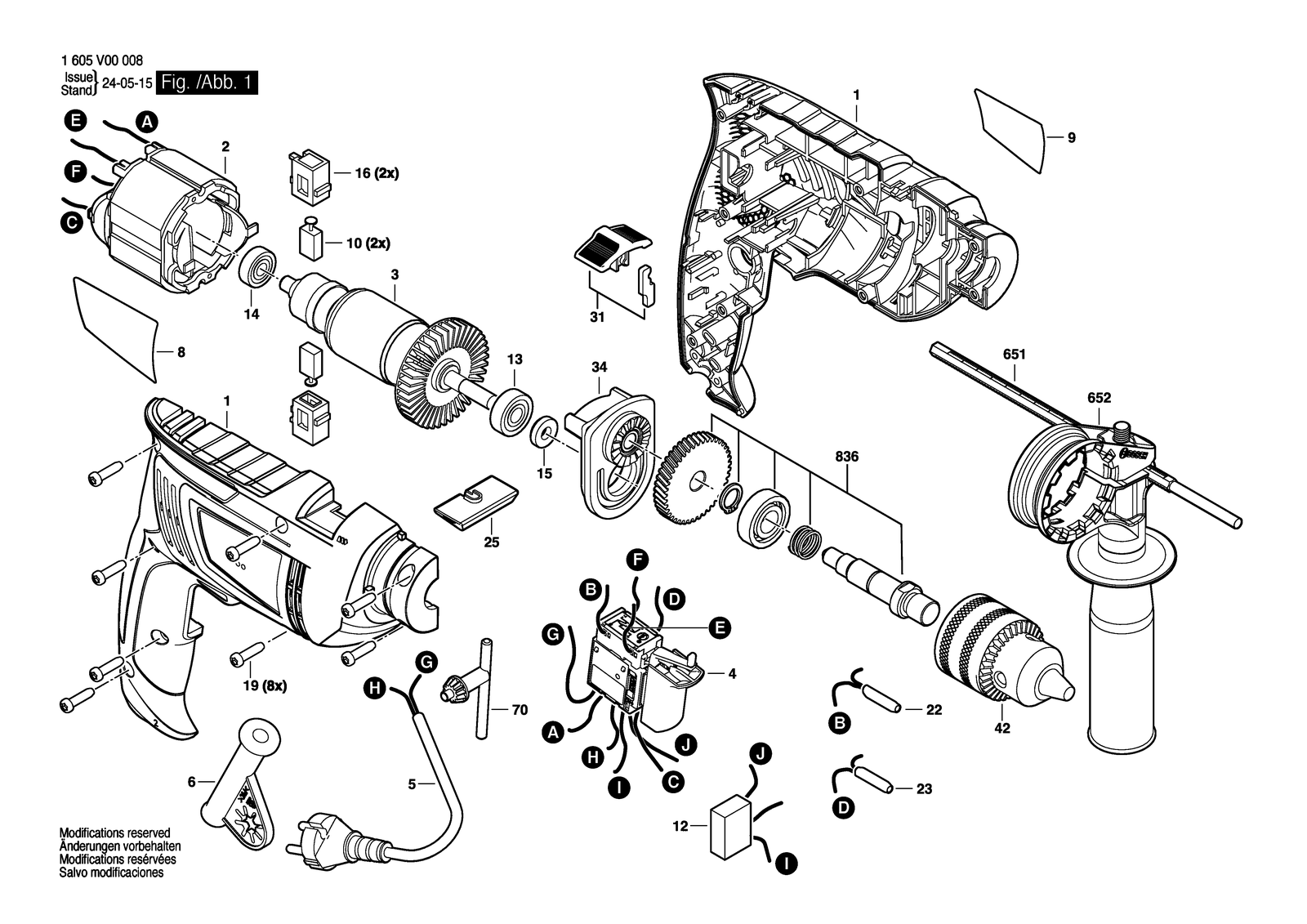

Bosch ID 500 parts diagram, sheet 1
No.Part numberPart name
11619XS0131Motor Housing
101619XS0139Carbon Brush
121619XS0140Capacitor
131619XS0141Groove ball bearing
141619XS0142Groove ball bearing
151619XS0148Seal Ring
161619XS0143Brush Holder
191619XS0144Screw
21619XS0132Field
221619XS0145Inductor
231619XS0146Inductor
251619XS0147Lever
31619XS0133Armature
311619XS0149Change-Over Switch
341619XS0150Bearing Bracket
41619XS0134Switch
421619XS0155Key Chuck
51619XS0135Power supply cord
51619XS0368Power supply cord
61619XS0136Grommet
6511619XS0152Depth-Gauge
6521619XS0153Auxiliary Handle
701619XS0156Chuck Wrench
81619XS0137Nameplate
81619XS0369Nameplate
8361619XS0154Drilling Spindle
91619XS0138Manufacturer's nameplate
