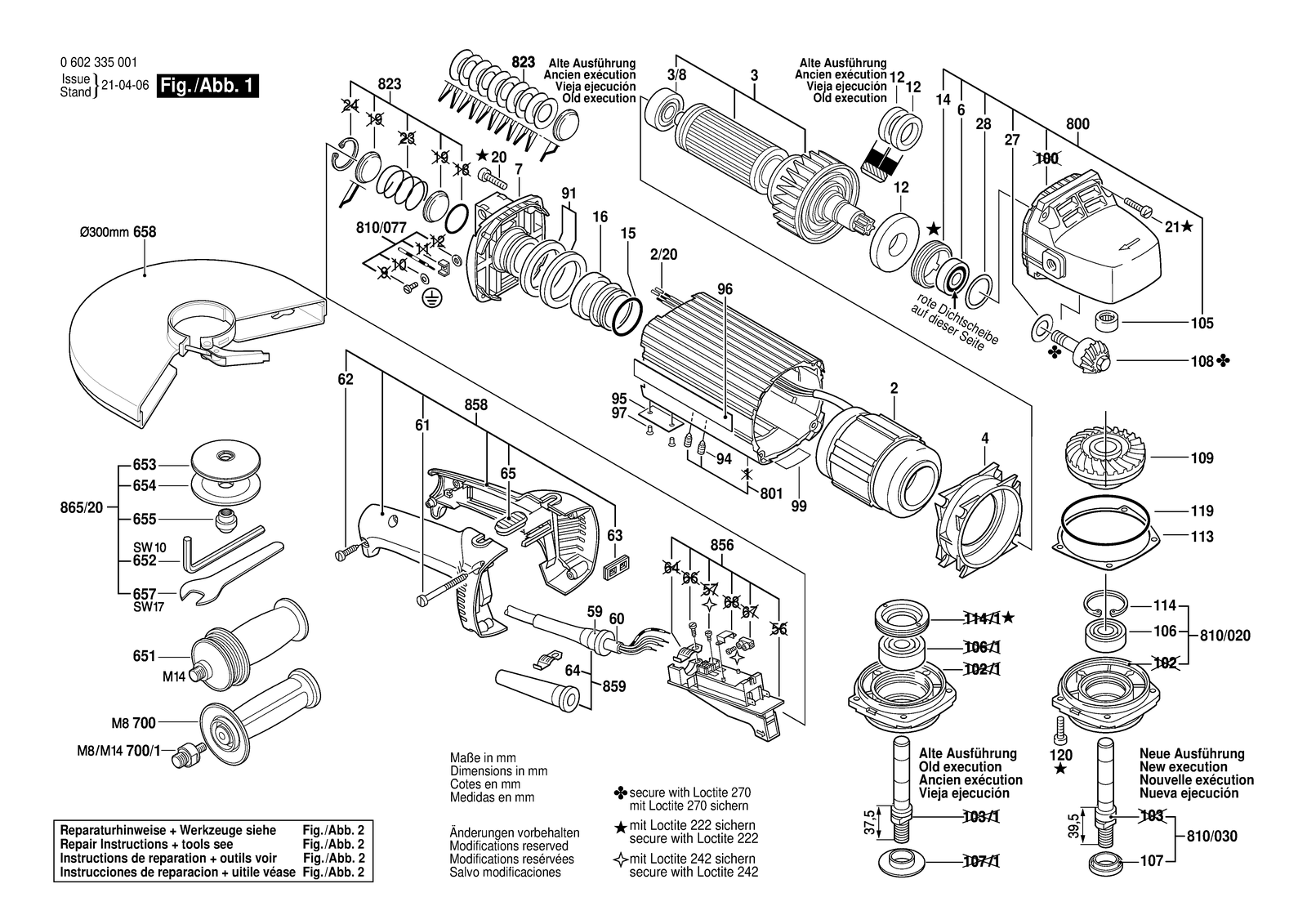

Bosch HWS 810/300
Bosch HWS 810/300 flat head angle sander: exploded parts diagram, 1 sheet, 69 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HWS 810/300: 69 positions on 1 sheet
Bosch HWS 810/300 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 105 | 2600914018 | Needle bearing |
| 106 | 3600905025 | Groove ball bearing |
| 107 | 1600290020 | Seal Ring |
| 108 | 3606309015 | Pinion Z=17 |
| 108 | 3606309017 | Pinion Z=19 |
| 108 | 3606309019 | Bevel Gear Z=14 |
| 109 | 3606334056 | Crown Gear Z=61 |
| 109 | 3606334062 | Crown Gear Z=48 |
| 109 | 3606334064 | Crown Gear Z=59 |
| 113 | 1600190020 | Shim Thick 0,15 MM |
| 113 | 1600190021 | Shim Thick 0,3 MM |
| 113 | 1600190022 | Shim Thick 0,1 MM |
| 114 | 1600119010 | Spring retaining ring |
| 119 | 1600210033 | O-Ring 79,0X1,78 MM |
| 12 | 160010805H | Sealing disk |
| 120 | 1603435076 | Thread-forming tap. Screw |
| 14 | 3603344024 | Threaded Ring |
| 15 | 1600210037 | O-Ring 38,1X2,2 MM |
| 16 | 3600328035 | Spacer Sleeve |
| 2 | 3604229108 | Stator 265V/200HZ |
| 2 | 3604229109 | Stator 135V/200HZ,200V/300HZ |
| 2 | 3604229111 | Stator 72V/200HZ |
| 2/20 | 3604478004 | Receptacle |
| 20 | 2914451079 | Thread-forming tap. Screw |
| 21 | 2914451080 | Thread-forming tap. Screw |
| 27 | 3600100049 | Sealing Disc |
| 28 | 3600100048 | Sealing Disc |
| 3 | 3604080070 | Rotor |
| 3/8 | 3600905119 | Groove ball bearing 12X32X10 |
| 4 | 3600209006 | Air-Deflector Ring |
| 59 | 3600703003 | Grommet Ø12,8XØ13,5X100 MM |
| 6 | 3600905095 | Groove ball bearing |
| 60 | 3604462017 | Elec. Cable W/Connection |
| 60 | 3604462018 | Elec. Cable W/Connection |
| 61 | 1603435024 | Tapping Screw C4,8X63 MM |
| 62 | 2910211020 | Tapping Screw DIN 7971-BZ3,9X19 |
| 63 | 1602388027 | Cable routing |
| 64 | 1601303003 | Fastening Clamp |
| 64 | 3601303004 | Fastening Clamp |
| 65 | 1602388029 | Storage Ledge Black |
| 651 | 160202509Z | Auxiliary Handle |
| 652 | 1907950009 | Offset Screwdriver DIN 911 SW10 |
| 653 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 653 | 3605703088 | Clamping-Flange |
| 654 | 2605703022 | Conical Spring Washer |
| 655 | 2603345008 | Round Nut |
| 657 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 658 | 1605510212 | Protective Cover Ø300 MM |
| 7 | 3605805009 | Bearing Flange |
| 700 | 160202507H | Auxiliary Handle |
| 700/1 | 3603523013 | Adapter M8/M14 |
| 800 | 3607020075 | Gear Housing |
| 801 | 3605108161 | Motor Housing GR.810 |
| 810/020 | 3607031344 | Bearing Flange |
| 810/030 | 3607031346 | Grinding Spindle M14 |
| 810/077 | 3607031299 | Set Of Eartling Material |
| 823 | 3607031296 | Spring set |
| 856 | 3607031249 | Switch Kit |
| 856 | 3607031295 | Switch Kit |
| 856 | 3607031298 | Switch Kit |
| 858 | 3607031297 | Handle |
| 859 | 3607031550 | Grommet |
| 865/20 | 3607030428 | Parts Set |
| 91 | 1600209004 | Seal Ring |
| 94 | 2912081116 | Set screw DIN 915-M4X6-45H |
| 95 | 3601106053 | Nameplate |
| 96 | 3601110047 | Manufacturer's nameplate |
| 97 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 99 | 3601119236 | Reference Plate |
