Bosch HWS 810/230
Bosch HWS 810/230 flat head angle sander: exploded parts diagram, 2 sheets, 56 positions. Spare parts with part numbers, availability and prices.
—

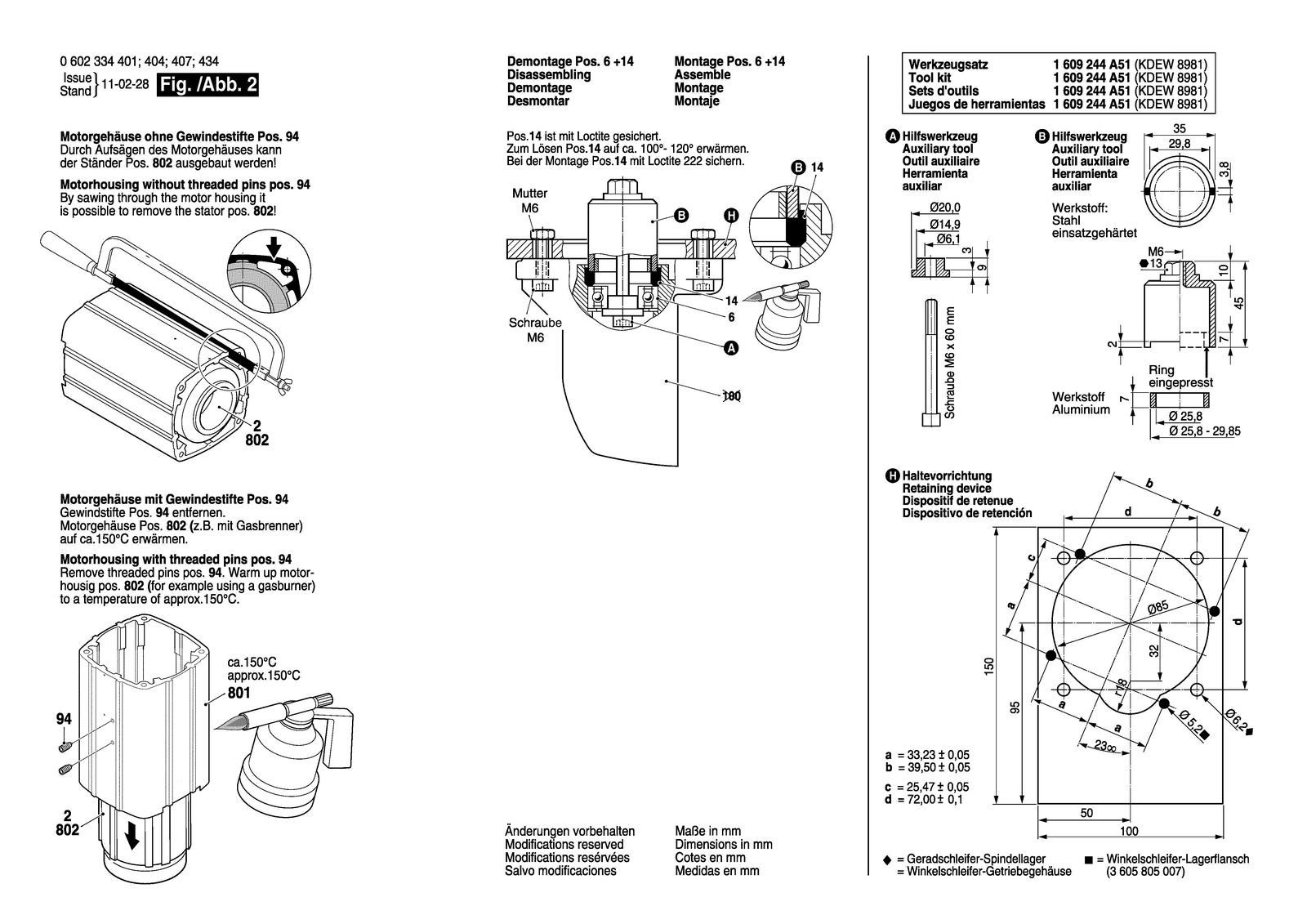

Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HWS 810/230: 56 positions on 2 sheets
Bosch HWS 810/230 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 105 | 2600914018 | Needle bearing |
| 107 | 1600290036 | Seal Ring Black |
| 108 | 3606309016 | Pinion Z=17 |
| 108 | 3606333048 | Bevel Gear Z=29 |
| 109 | 3606334058 | Crown Gear Z=47 |
| 109 | 3606334061 | Crown Gear Z=53 |
| 113 | 1600190020 | Shim Thick 0,15 MM |
| 113 | 1600190021 | Shim Thick 0,3 MM |
| 113 | 1600190022 | Shim Thick 0,1 MM |
| 117 | 2910141201 | Hex Socket Head Cap Screw DIN 912-M6X20-8.8 |
| 118 | 3600100043 | Plain Washer |
| 119 | 1600210033 | O-Ring 79,0X1,78 MM |
| 120 | 1603435076 | Thread-forming tap. Screw |
| 14 | 3603344024 | Threaded Ring |
| 15 | 1600210037 | O-Ring 38,1X2,2 MM |
| 2 | 3604229108 | Stator 265V/200HZ |
| 2 | 3604229109 | Stator 135V/200HZ,200V/300HZ |
| 2 | 3604229111 | Stator 72V/200HZ |
| 20 | 2914451079 | Thread-forming tap. Screw |
| 21 | 2914451080 | Thread-forming tap. Screw |
| 27 | 3600100049 | Sealing Disc |
| 28 | 3600100048 | Sealing Disc |
| 3 | 3604080070 | Rotor |
| 3 | 3604080071 | Rotor |
| 3/8 | 3600905119 | Groove ball bearing 12X32X10 |
| 4 | 3600209006 | Air-Deflector Ring |
| 59 | 3600703003 | Grommet Ø12,8XØ13,5X100 MM |
| 6 | 3600905095 | Groove ball bearing |
| 60 | 3604462017 | Elec. Cable W/Connection |
| 60 | 3604462018 | Elec. Cable W/Connection |
| 61 | 1603435008 | Tapping Screw BZ4,8X63 MM |
| 62 | 2910211020 | Tapping Screw DIN 7971-BZ3,9X19 |
| 63 | 1602388027 | Cable routing |
| 64 | 3601303004 | Fastening Clamp |
| 65 | 1602388029 | Storage Ledge Black |
| 651 | 160202509Z | Auxiliary Handle |
| 652 | 1607950061 | Pin-Type Face-Wrench |
| 653 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 655 | 1603345043 | Round Nut M14 |
| 657 | 3607950023 | Single-Head Eng. Wrench |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 7 | 3605805009 | Bearing Flange |
| 801 | 3605108161 | Motor Housing GR.810 |
| 810 | 3607020075 | Gear Housing |
| 811 | 3607031666 | Modification Set |
| 815 | 3607031299 | Set Of Eartling Material |
| 823 | 3607031296 | Spring set |
| 856 | 3607031298 | Switch Kit |
| 858 | 3607031297 | Handle |
| 865/20 | 3607030467 | Assembly Of Service Parts |
| 865/30 | 3607030290 | Fastening parts kit |
| 94 | 2912081116 | Set screw DIN 915-M4X6-45H |
| 95 | 3601106053 | Nameplate |
| 96 | 3601110047 | Manufacturer's nameplate |
| 97 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 99 | 3601119236 | Reference Plate |
Selected parts0
