Bosch HWS 77/180

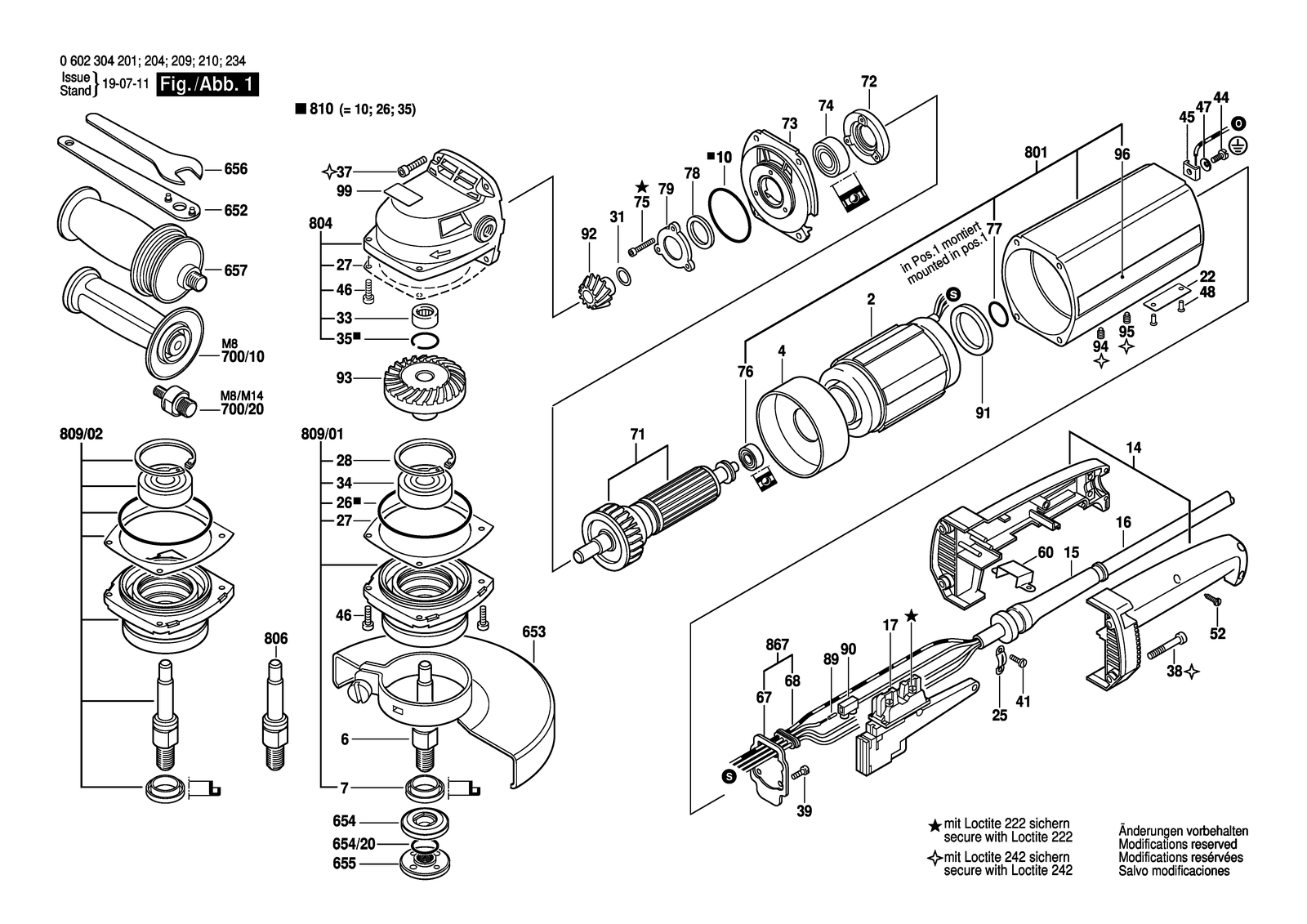

Bosch HWS 77/180 angle grinder: exploded parts diagram, 1 sheet, 74 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HWS 77/180: 74 positions on 1 sheet
Bosch HWS 77/180 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1900210146 | O-Ring 45X3MM |
| 14 | 3605132077 | Handle |
| 15 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 16 | 3604462045 | Elec. Cable W/Connection |
| 17 | 3607200005 | Switch |
| 2 | 1604229098 | Stator 265V/200HZ,230V/180HZ |
| 2 | 1604229099 | Stator 200V/300HZ,135V/200HZ |
| 2 | 1604229100 | Stator 72V/200HZ |
| 2 | 1604229101 | Stator 72V/300HZ |
| 22 | 3601106053 | Nameplate |
| 25 | 1601303003 | Fastening Clamp |
| 26 | 1600210005 | O-Ring 66,0X3,0 MM |
| 27 | 3600100075 | Shim |
| 27 | 3600100076 | Shim |
| 27 | 3600100077 | Shim |
| 28 | 3603435038 | Spring retaining ring |
| 31 | 1600101616 | Shim Thick 0,1 MM |
| 31 | 1600101617 | Shim Thick 0,2 MM |
| 31 | 1600101618 | Shim Thick 0,3 MM |
| 31 | 1600101619 | Shim Thick 0,05 MM |
| 33 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 34 | 3608870382 | Groove ball bearing 6303-2RS1 |
| 35 | 2916620011 | Retaining ring Ø22 MM |
| 37 | 2910141162 | Hex Socket Head Cap Screw DIN 912-M5X20-8.8 |
| 38 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 39 | 3603450008 | Socket head cap screw |
| 4 | 1600209002 | Air-Deflector Ring |
| 41 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 44 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 45 | 3601321001 | Clamping Saddle |
| 46 | 3603435004 | Thread-forming tap. Screw |
| 47 | 3600150006 | Spring Washer Ø4,2 MM |
| 48 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 52 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 6 | 3603523032 | Grinding Spindle |
| 60 | 3601303003 | Retaining Bracket |
| 652 | 1607950061 | Pin-Type Face-Wrench |
| 653 | 1600A00XL9 | Protective Cover Ø180 MM |
| 654 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 654/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 655 | 1603345043 | Round Nut M14 |
| 656 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 657 | 160202509Z | Auxiliary Handle |
| 67 | 1602388006 | Sealing Plate |
| 68 | 1600306001 | Grommet |
| 7 | 1600290020 | Seal Ring |
| 700/10 | 160202507H | Auxiliary Handle |
| 700/20 | 3603523013 | Adapter M8/M14 |
| 71 | 1604080032 | Rotor Without Winding |
| 72 | 1600501019 | Bearing cover |
| 73 | 3605820064 | Bearing Flange |
| 74 | 3600905095 | Groove ball bearing |
| 75 | 3603435051 | Torx Flat-Head Screw M4X20 |
| 76 | 3600905147 | Groove ball bearing 7X22X7 |
| 77 | 1900210321 | O-Ring 22X2 MM |
| 78 | 1600108018 | Felt Disc |
| 79 | 1600501024 | Cover Disc |
| 801 | 3605102079 | Motor Housing |
| 804 | 3607030321 | Gear Housing |
| 806 | 1603523032 | Grinding Spindle M14X1,5 MM |
| 809/01 | 3607030376 | Bearing Flange |
| 809/02 | 3607030375 | Bearing Flange |
| 810 | 1607000039 | Seal Kit |
| 867 | 1602388007 | Sealing Plate |
| 89 | 3604477008 | End Splice |
| 89 | 3604477009 | End Splice |
| 90 | 1901091110 | Strip Terminal |
| 91 | 1600209004 | Seal Ring |
| 92 | 1606333050 | Bevel Gear Z=22 |
| 93 | 1606333051 | Bevel Gear Z=46 |
| 94 | 1603402002 | Set screw |
| 95 | 1603402004 | Set screw |
| 96 | 3601110047 | Manufacturer's nameplate |
| 99 | 3601119236 | Reference Plate |
