Bosch HWS 77/175

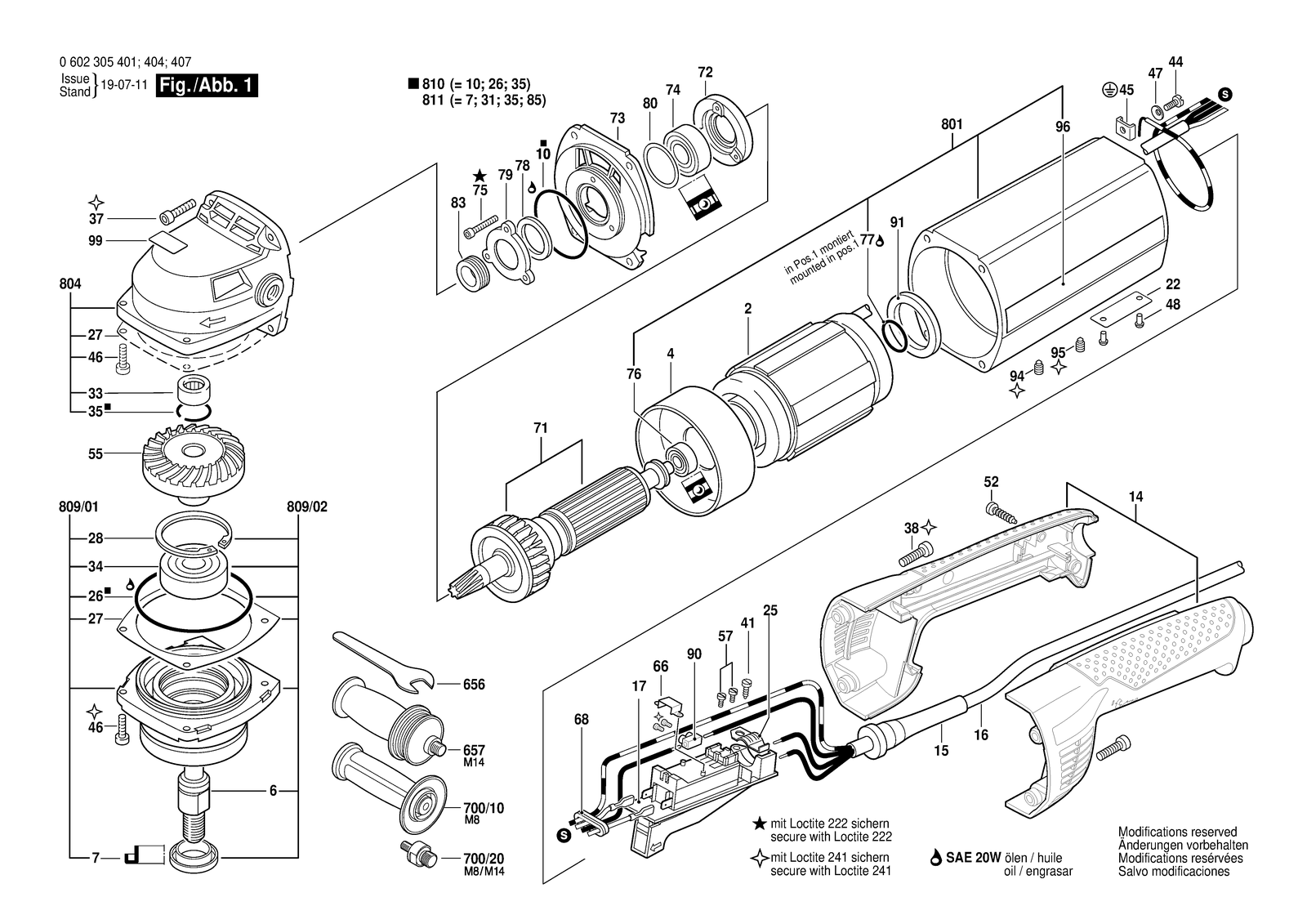

Bosch HWS 77/175 universal angle polisher: exploded parts diagram, 1 sheet, 62 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HWS 77/175: 62 positions on 1 sheet
Bosch HWS 77/175 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1900210146 | O-Ring 45X3MM |
| 14 | 3605132079 | Handle |
| 15 | 3600703003 | Grommet Ø12,8XØ13,5X100 MM |
| 16 | 3604462017 | Elec. Cable W/Connection |
| 17 | 3607200055 | Switch |
| 2 | 3604229129 | Stator 265V/200HZ |
| 2 | 3604229130 | Stator 135V/200HZ |
| 2 | 3604229131 | Stator |
| 22 | 3601106053 | Nameplate |
| 25 | 3601303004 | Fastening Clamp |
| 26 | 1600210005 | O-Ring 66,0X3,0 MM |
| 27 | 3600100075 | Shim |
| 27 | 3600100076 | Shim |
| 27 | 3600100077 | Shim |
| 28 | 3603435038 | Spring retaining ring |
| 33 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 34 | 3608870382 | Groove ball bearing 6303-2RS1 |
| 35 | 2916620011 | Retaining ring Ø22 MM |
| 37 | 2910141162 | Hex Socket Head Cap Screw DIN 912-M5X20-8.8 |
| 38 | 2910141160 | Hex Socket Head Cap Screw DIN 912-M5X18-8.8 |
| 4 | 1600209002 | Air-Deflector Ring |
| 41 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 44 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 45 | 3601321001 | Clamping Saddle |
| 46 | 3603435004 | Thread-forming tap. Screw |
| 47 | 3600150006 | Spring Washer Ø4,2 MM |
| 48 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 52 | 2603490022 | Screw 4X16 |
| 55 | 1606333087 | Bevel Gear Z=48 |
| 57 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 6 | 3603523032 | Grinding Spindle |
| 656 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 657 | 160202509Z | Auxiliary Handle |
| 66 | 3601303003 | Retaining Bracket |
| 68 | 3600054006 | Sealing Plate |
| 7 | 1600290020 | Seal Ring |
| 700/10 | 160202507H | Auxiliary Handle |
| 700/20 | 3603523013 | Adapter M8/M14 |
| 71 | 1604080036 | Rotor Without Winding |
| 72 | 1600501019 | Bearing cover |
| 73 | 3605820064 | Bearing Flange |
| 74 | 3600905095 | Groove ball bearing |
| 75 | 3603435051 | Torx Flat-Head Screw M4X20 |
| 76 | 3600905147 | Groove ball bearing 7X22X7 |
| 77 | 1900210321 | O-Ring 22X2 MM |
| 78 | 1600108018 | Felt Disc |
| 79 | 1600501024 | Cover Disc |
| 80 | 1600102632 | Shim Thick 0,05 MM |
| 80 | 1600102633 | Shim Thick 0,1 MM |
| 80 | 1600102634 | Shim Thick 0,15 MM |
| 801 | 3605102079 | Motor Housing |
| 804 | 3607030321 | Gear Housing |
| 809/01 | 3607030375 | Bearing Flange |
| 809/02 | 3607030376 | Bearing Flange |
| 810 | 1607000039 | Seal Kit |
| 811 | 1607000044 | Seal Kit |
| 83 | 1603344029 | Threaded Ring |
| 90 | 1901091110 | Strip Terminal |
| 94 | 1603402002 | Set screw |
| 95 | 1603402004 | Set screw |
| 96 | 3601110047 | Manufacturer's nameplate |
| 99 | 3601119236 | Reference Plate |
