Bosch HWS 77/100

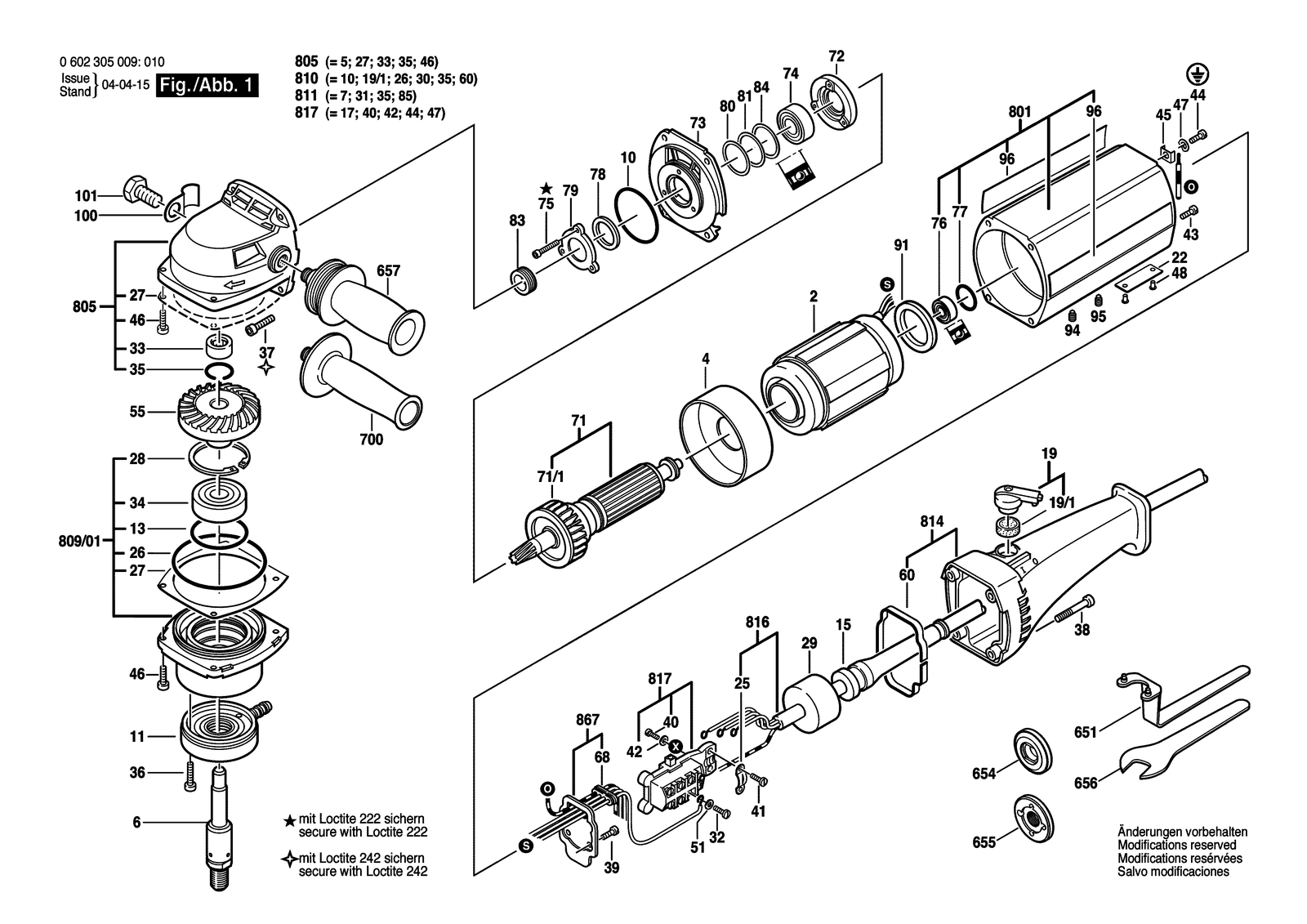

Bosch HWS 77/100 hf-angle grinder: exploded parts diagram, 2 sheets, 79 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HWS 77/100: 79 positions on 2 sheets
Bosch HWS 77/100 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1900210146 | O-Ring 45X3MM |
| 100 | 1601300004 | Clamp |
| 101 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 11 | 3605703081 | Connecting Flange |
| 12 | 1607415002 | Shut-Off Tap |
| 13 | 3600210109 | O-Ring 47,0X1,5 MM |
| 15 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 19 | 1602026030 | Control Lever |
| 19/1 | 1600205008 | Felt Washer |
| 2 | 1604229100 | Stator 72V/200HZ |
| 2 | 1604229103 | Stator 42V/200HZ |
| 20 | 2915011012 | Hex Nut DIN 934-M 14-6G |
| 22 | 3601106053 | Nameplate |
| 25 | 1601303003 | Fastening Clamp |
| 26 | 1600210005 | O-Ring 66,0X3,0 MM |
| 27 | 3600100075 | Shim |
| 27 | 3600100076 | Shim |
| 27 | 3600100077 | Shim |
| 28 | 3603435038 | Spring retaining ring |
| 29 | 1600113003 | Sealing Plate |
| 30 | 1600108055 | Sealing disk |
| 32 | 2910091120 | Pan head screw DIN 85-M4X10-4.8 |
| 33 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 34 | 3600905109 | Groove ball bearing |
| 35 | 2916620011 | Retaining ring Ø22 MM |
| 36 | 3603435008 | Thread-forming tap. Screw |
| 37 | 2910141162 | Hex Socket Head Cap Screw DIN 912-M5X20-8.8 |
| 38 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 39 | 3603450008 | Socket head cap screw |
| 4 | 1600209002 | Air-Deflector Ring |
| 40 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 41 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 42 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 43 | 2910021120 | Socket head cap screw DIN 84-AM4X10-8.8 |
| 44 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 45 | 3601321001 | Clamping Saddle |
| 46 | 3603435004 | Thread-forming tap. Screw |
| 47 | 3600150006 | Spring Washer Ø4,2 MM |
| 48 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 49 | 2910021130 | Socket head cap screw DIN 84-AM4X20-8.8 |
| 51 | 1600150006 | Spring Washer DIN 137-A4 |
| 55 | 1606333087 | Bevel Gear Z=48 |
| 6 | 3603523043 | Grinding Spindle |
| 60 | 1601014000 | Sealing Cord |
| 651 | 1607950004 | Pin-Type Face-Wrench |
| 654 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 655 | 1603345043 | Round Nut M14 |
| 656 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 657 | 160202509Z | Auxiliary Handle |
| 68 | 1600306001 | Grommet |
| 7 | 1600109002 | Cupped Washer |
| 71 | 1604080036 | Rotor Without Winding |
| 72 | 1600501019 | Bearing cover |
| 73 | 3605820064 | Bearing Flange |
| 74 | 3600905095 | Groove ball bearing |
| 75 | 3603435051 | Torx Flat-Head Screw M4X20 |
| 76 | 3600905147 | Groove ball bearing 7X22X7 |
| 77 | 1900210321 | O-Ring 22X2 MM |
| 78 | 1600108018 | Felt Disc |
| 79 | 1600501024 | Cover Disc |
| 80 | 1600102633 | Shim Thick 0,1 MM |
| 801 | 3605102080 | Motor Housing |
| 805 | 3607030321 | Gear Housing |
| 809/01 | 3607030302 | Bearing Flange |
| 809/02 | 3607030350 | Bearing Flange |
| 81 | 1600102634 | Shim Thick 0,15 MM |
| 810 | 1607000039 | Seal Kit |
| 811 | 1607000044 | Seal Kit |
| 814 | 3605132048 | Handle Dark Blue |
| 816 | 1604461015 | Elec. Cable W/Connection |
| 817 | 1607000036 | Switch Kit |
| 83 | 1603344029 | Threaded Ring |
| 84 | 1600102632 | Shim Thick 0,05 MM |
| 85 | 1600101641 | Shim Thick 0,3 MM |
| 867 | 1602388007 | Sealing Plate |
| 91 | 1600209004 | Seal Ring |
| 94 | 1603402002 | Set screw |
| 95 | 1603402004 | Set screw |
| 96 | 3601110047 | Manufacturer's nameplate |
