Bosch HWS 5265/125

Bosch HWS 5265/125 angle grinder: exploded parts diagram, 1 sheet, 50 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HWS 5265/125: 50 positions on 1 sheet

Bosch HWS 5265/125 parts list (1 sheet)

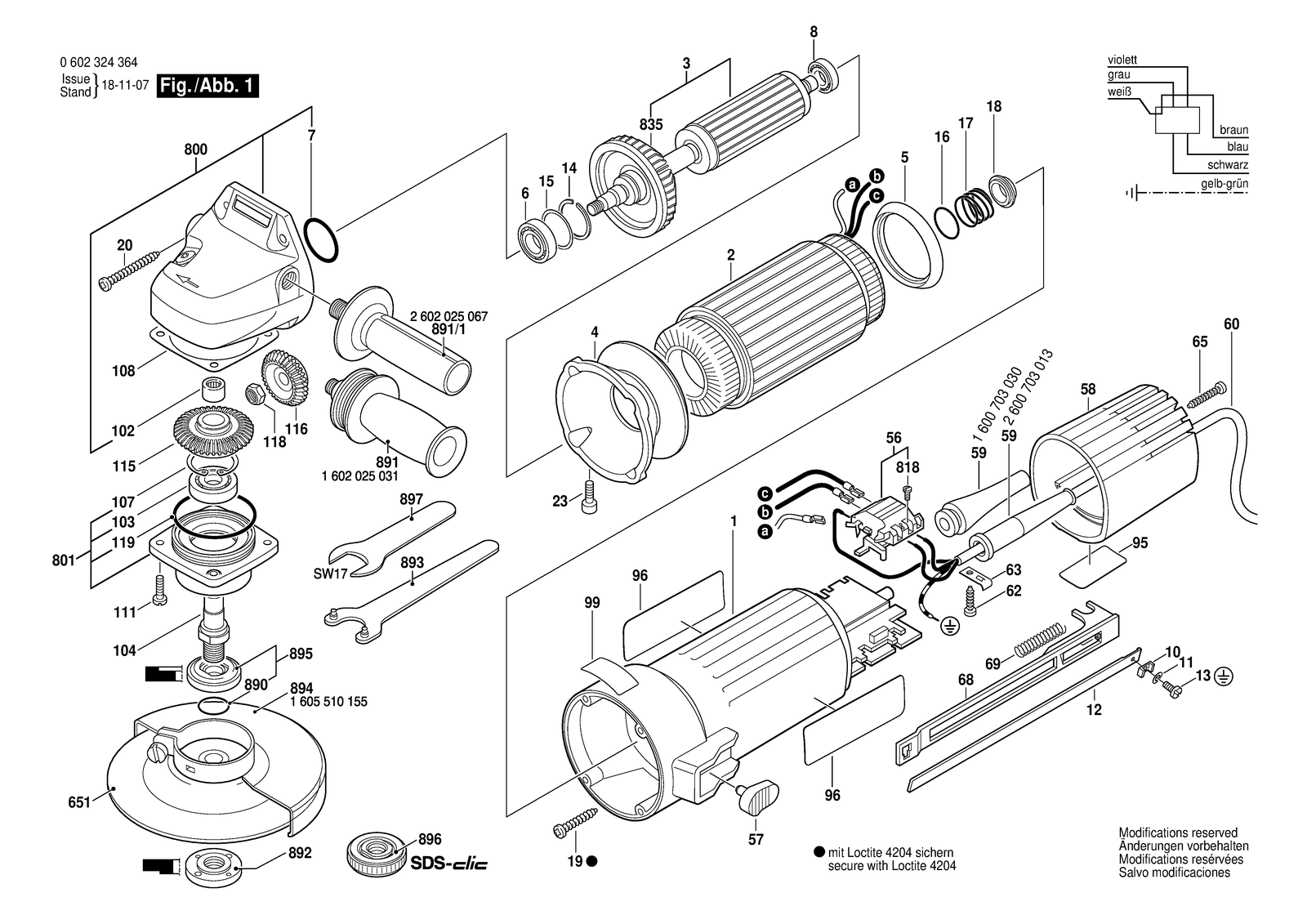

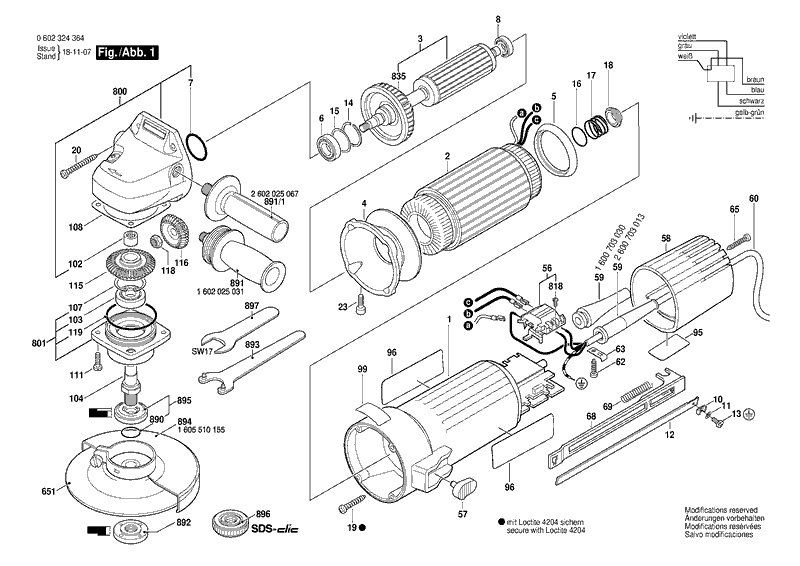

Bosch HWS 5265/125 parts diagram, sheet 1
No.Part numberPart name
13605102076Motor Housing
103601321004Clamping Saddle
1021600910018Needle bearing Ø8XØ12X8 MM
1033600905069Groove ball bearing
1041607000D6AGrinding Spindle
1072916660013Retaining clip DIN 472-32X1,2 MM
1081600136010Shim Thick 0,2 MM
1081600136011Shim Thick 0,3 MM
1081600136012Shim Thick 0,1 MM
113600150009Spring Washer
1112914471401Thread-forming tap. Screw DIN 7500-TM4X12
1153606334087Crown Gear Z=35
1163606333058Bevel Gear
1181603300016Hex Nut M7, SW10
1191600210035O-Ring 46,0X1,1 MM
123602300011Connecting Rod
132910110048Pan head screw DIN 85-AM3X6-CUZN
142916660010Spring retaining ring DIN 472-26X1,2 MM
153600119016Shim 19,3 X 25,8 X 0,35
163600210082O-Ring 18,77X1,78 MM
173604610038Compression Spring
183600203005Locating Ring
193603435002Tapping Screw
23604229114Stator 135V/200HZ,200V/300HZ
202603490026Lens Head Screw 4X32
232603435042Thread-forming tap. Screw
33604080053Rotor Without Winding
43600209010Air-Deflector Ring
51600209006Seal Ring
563607200024Switch
571602026057Switch Handle Black
583600508035Switch Cover
591600703030Grommet Ø6,4-Ø7,2X67 MM
592600703013Grommet Ø7,6-Ø8,2X95 MM
63600905090Groove ball bearing
603604422066Elec. Cable W/Connection
622603490021Torx Oval-Head Screw 4X12
631601302017Fastening Clamp
652603490023Torx Oval-Head Screw 4X20
6511608601032Backing Pad
683602319014Adjusting Slide
691604611026Compression Spring
72600210018O-Ring 26,0X1,5 MM
83608870327Groove ball bearing
8003607030419Parts Set
8013607030252Bearing Flange
8182910110048Pan head screw DIN 85-AM3X6-CUZN
953601106054Nameplate
963601110246Manufacturer's nameplate
993601119236Reference Plate
