Makita HW1300

Makita HW1300: exploded parts diagram, 3 sheets, 100 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HW1300: 100 positions on 3 sheets

Sheet 1: Makita HW1300 parts diagram

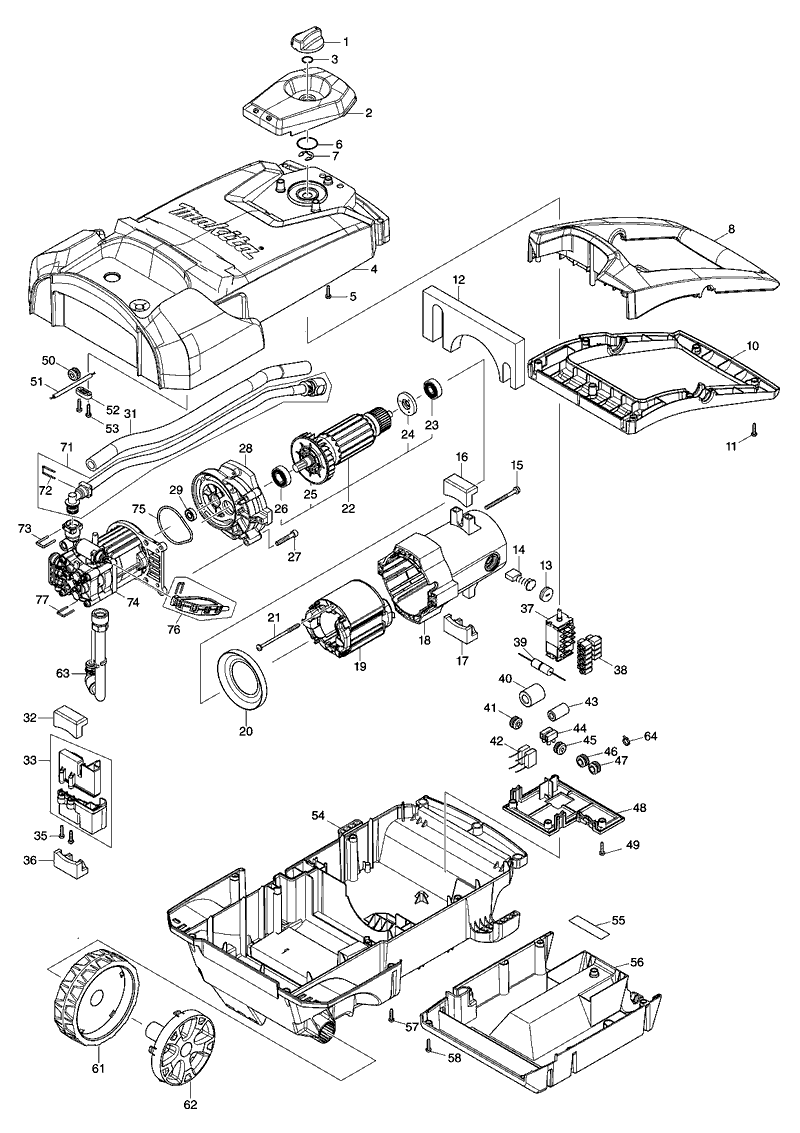

Makita HW1300 parts diagram, sheet 1
No.Part numberPart name
1456837-7Makita 456837-7 SWITCH DIAL 50
2456844-0Makita 456844-0 FRONT COVER
3213176-6Makita 213176-6 O-RING 14, M442
4143814-5Makita 143814-5 FRONT HOUSING COMPLETE
5266045-0Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20
6213412-0Makita 213412-0 O RING 29
7961062-2Makita 961062-2 STOP RING E-12, 439
8456840-8Makita 456840-8 FRONT HANDLE
10456842-4Makita 456842-4 REAR HANDLE
11266045-0Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20
12424856-1Makita 424856-1 SCREEN SPONGE F
13643700-5Makita 643700-5 BRUSH HOLDER CAP *, 2414NB
14191953-5Old code 191953-5
15911288-6Makita 911288-6 PAN HEAD SCREW M5X65
16424852-9Makita 424852-9 RUBBER CUSHION
17424852-9Makita 424852-9 RUBBER CUSHION
18143813-7Makita 143813-7 MOTOR HOUSING COMPLETE
19639100-5Makita 639100-5 FIELD ASSY 240V
20416131-9Makita 416131-9 BAFFLE PLATE
21265A13-6Makita 265A13-6 TAPPING SCREW 5X85
22513469-4Makita 513469-4 ARMATURE ASSEMBLY 240V
23211067-5Makita 211067-5 BALL BEARING 6200ZZ
24681630-2Makita 681630-2 INSULATION WASHER, GA9020
26211236-8Makita 211236-8 Ball Bearing 6002DDW, BO3700
27266586-6
28143822-6Makita 143822-6 GEAR HOUSING COMPLETE
29211166-3Makita 211166-3 BALL BEARING 698DDW
31424869-2Makita 424869-2 HOSE COVER
32424852-9Makita 424852-9 RUBBER CUSHION
33183D72-5Makita 183D72-5 PUMP RETAINER F/R
35266045-0Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20
36424852-9Makita 424852-9 RUBBER CUSHION
37650775-7Makita 650775-7 SWITCH
38686035-1Makita 686035-1 RECEPTACLE SLEEVE, LF1000
39632G73-3Makita 632G73-3 CURRENT FUSE UNIT
40688140-0
41682100-4Makita 682100-4 GROMMET
42645089-7
43688162-0Makita 688162-0 LINE FILTER
44654531-7Makita 654531-7 TERMINAL BLOCK 1P, 5007F
45682098-5Makita 682098-5 GROMMET
46682100-4Makita 682100-4 GROMMET
47682100-4Makita 682100-4 GROMMET
48456833-5Makita 456833-5 SWITCH BOX COVER
49266045-0Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20
50682100-4Makita 682100-4 GROMMET
51665856-4
52687124-5Makita 687124-5 CORD CLAMP, MT951
53266045-0Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20
54143820-0Makita 143820-0 REAR HOUSING COMPLETE
55852W26-4
56456838-5Makita 456838-5 REAR BOX
57266045-0Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20
58266045-0Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20
61456835-1Makita 456835-1 WHEEL
62456836-9Makita 456836-9 WHEEL CAP
63123649-0Makita 123649-0 ABSORPTION JOINT
64687010-0Makita 687010-0 BAND, 5704R
72TG00000002Makita TG00000002 U TYPE PIN
73TG00000002Makita TG00000002 U TYPE PIN
74TG00000001Makita TG00000001 PUMP COMPLETE SET
75TG00000006Makita TG00000006 SEAL RING 62
76TG00000005Makita TG00000005 PRESSURE SWITCH COMPLETE SET
77TG00000003Makita TG00000003 U TYPE PIN

Sheet 2: Makita HW1300 parts diagram

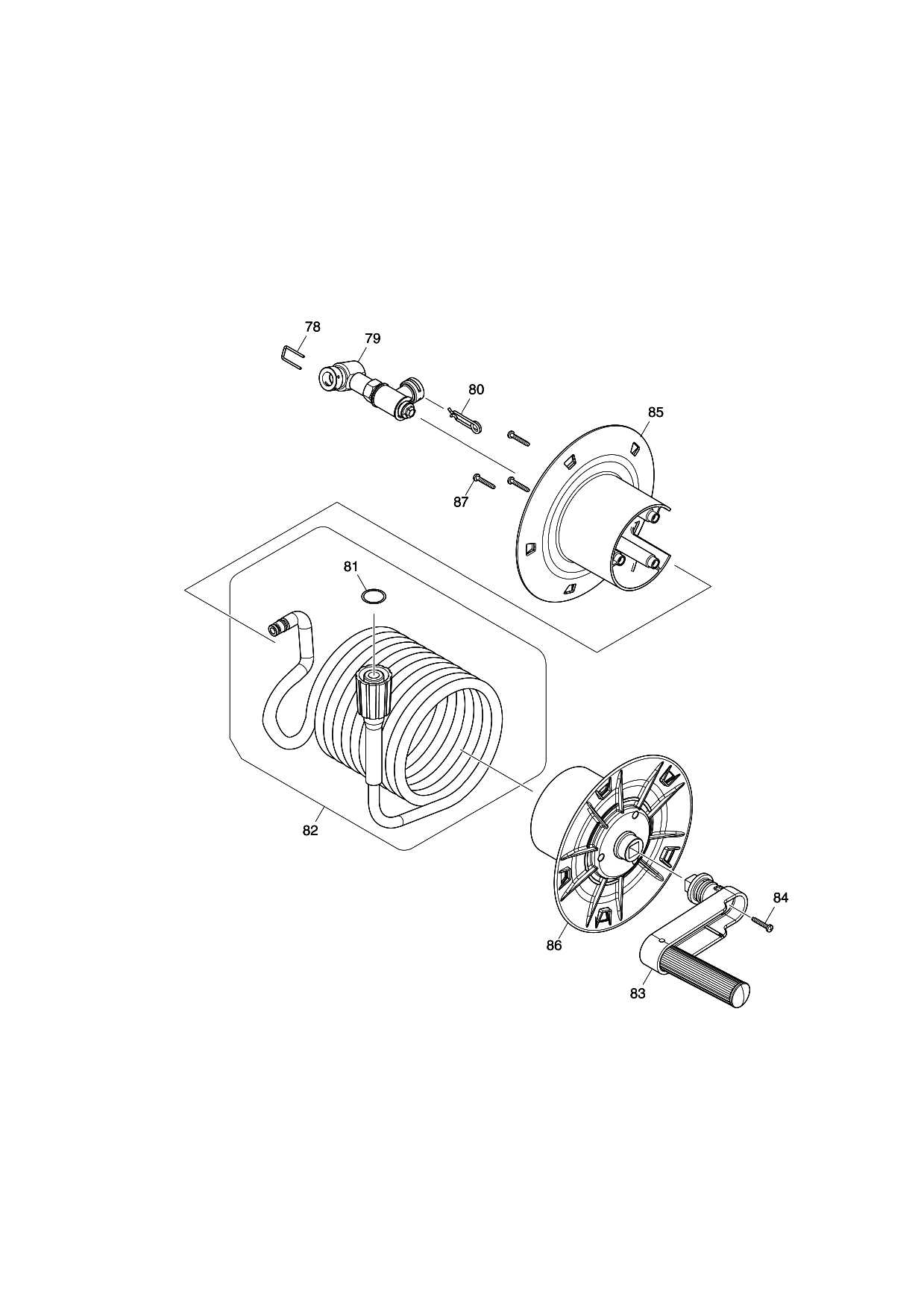

Makita HW1300 parts diagram, sheet 2
No.Part numberPart name
78TG00000003Makita TG00000003 U TYPE PIN
79TG00000010Makita TG00000010 HOSE REEL SET
80TG00000011Makita TG00000011 TORSION SPRING
81TG00000008Makita TG00000008 10*2 62 O RING12
83TG00000013Makita TG00000013 REEL HANDLE SET
84TG00000012Makita TG00000012 SCREW ST3.5*19
85456897-9Makita 456897-9 HOSE REEL L
86456823-8Makita 456823-8 HOSE REEL R
87TG00000012Makita TG00000012 SCREW ST3.5*19

Sheet 3: Makita HW1300 parts diagram

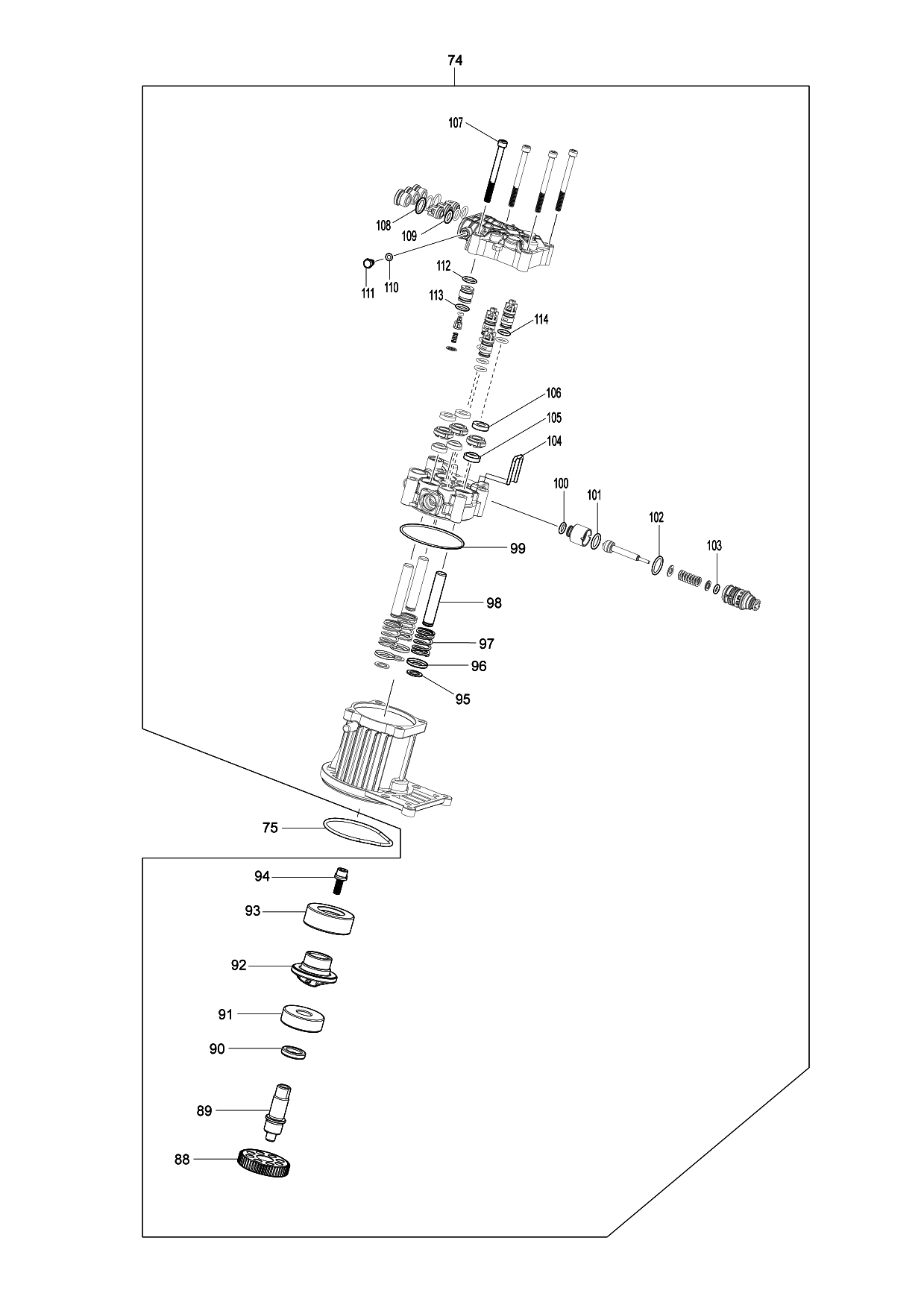

Makita HW1300 parts diagram, sheet 3
No.Part numberPart name
88TG00000025
89TG00000026
90TG00000030
91TG00000031
92TG00000027
93TG00000028
94TG00000029
95TG00000032
96TG00000033
97TG00000034
98TG00000035
99TG00000036
100TG00000037
101TG00000038
102TG00000048
103TG00000039
104TG00000040
105TG00000041
106TG00000042
107TG00000043
108TG00000044
109TG00000024
110TG00000046
111TG00000045
112TG00000047
113TG00000047
114TG00000037
