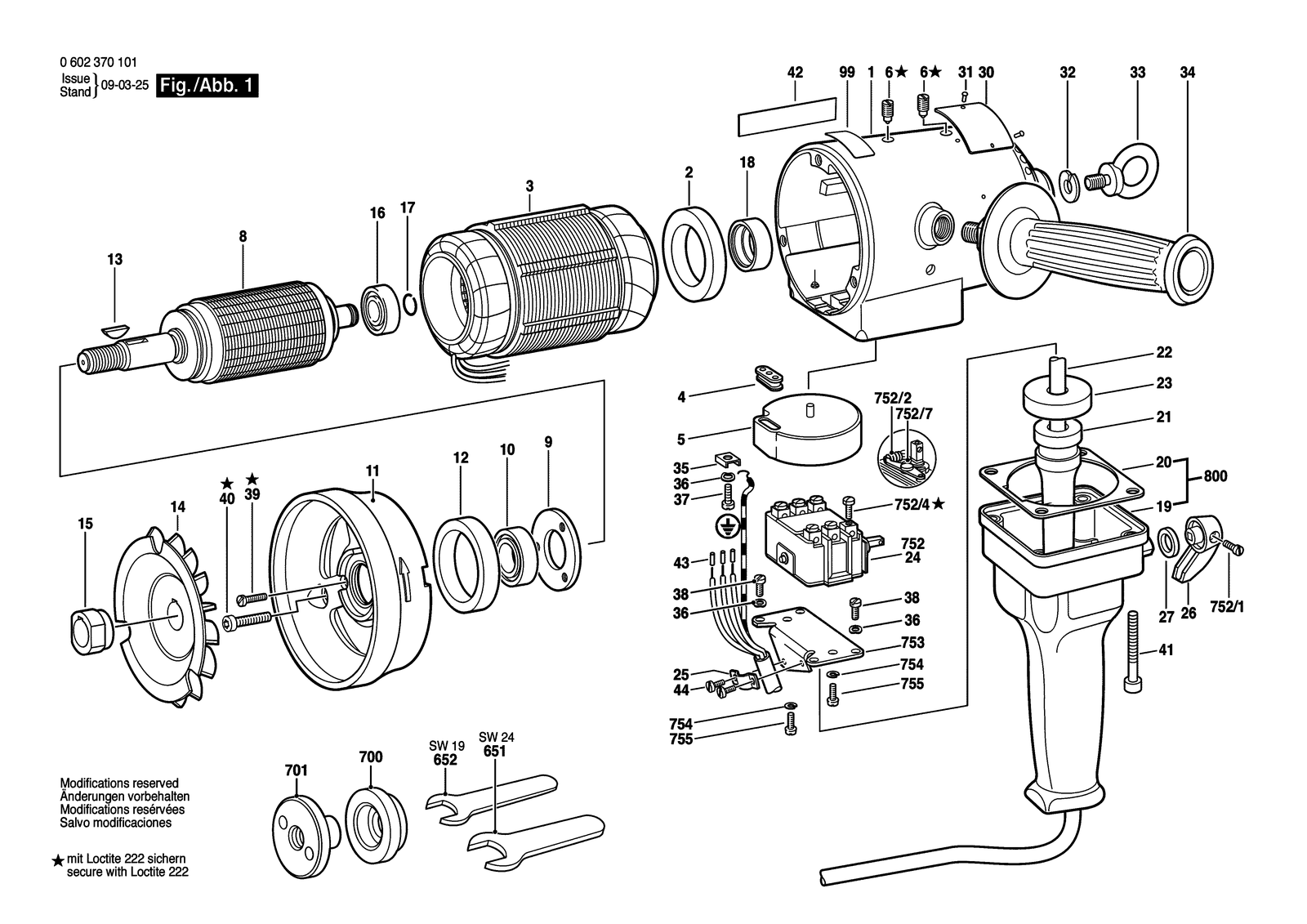

Bosch HTS 86/180 hf-disc grinder: exploded parts diagram, 1 sheet, 65 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HTS 86/180: 65 positions on 1 sheet
Bosch HTS 86/180 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605102088 | Motor Housing |
| 1 | 3605102056 | Motor Housing |
| 10 | 3600905016 | Groove ball bearing |
| 11 | 3605808007 | Bearing cover |
| 12 | 1600209012 | Seal Ring |
| 13 | 1900023007 | Woodruff Key DIN6888-3X6,5-ST60-2K |
| 14 | 1606610056 | Fan |
| 15 | 1600341000 | Intermediate Ring |
| 16 | 1900900287 | Groove ball bearing 12X28X8 |
| 17 | 2916600007 | Retaining ring 12 DIN 9045 |
| 18 | 1600206015 | Rubber Ring |
| 19 | 3605132035 | Handle |
| 2 | 1600209009 | Seal Ring |
| 20 | 1601015011 | Seal |
| 21 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 22 | 3604462043 | Elec. Cable W/Connection |
| 22 | 3607030239 | Cable |
| 23 | 1600113003 | Sealing Plate |
| 24 | 1607200017 | On-Off Switch |
| 25 | 1601303003 | Fastening Clamp |
| 26 | 1602026038 | Control Lever |
| 27 | 1600108024 | Sealing disk Ø18XØ10X4 MM |
| 3 | 1604229207 | Stator 200V/150HZ, 265V/200HZ |
| 3 | 1604229208 | Stator 135V/200HZ |
| 3 | 1604229209 | Stator 72V/200HZ |
| 3 | 1604229210 | Stator 120V/200HZ |
| 3 | 1604229211 | Stator 42V/200HZ |
| 30 | 3601106053 | Nameplate |
| 31 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 32 | 2916680011 | Spring Lock Washer DIN 127-B12 |
| 33 | 2912521237 | Lifting Eye Bolt DIN 580-M 8 |
| 34 | 160202509Z | Auxiliary Handle |
| 34 | 16020250A1 | Auxiliary Handle |
| 35 | 3601321001 | Clamping Saddle |
| 36 | 1600150006 | Spring Washer DIN 137-A4 |
| 36 | 3600150006 | Spring Washer Ø4,2 MM |
| 37 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 38 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 39 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 4 | 1600306000 | Grommet |
| 40 | 2910141201 | Hex Socket Head Cap Screw DIN 912-M6X20-8.8 |
| 41 | 2910141209 | Hex Socket Head Cap Screw DIN 912-M6X40-8.8 |
| 42 | 3601110104 | Manufacturer's nameplate |
| 43 | 3604477008 | End Splice |
| 43 | 3604477009 | End Splice |
| 44 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 5 | 1600502004 | Protective Cover |
| 6 | 1603402004 | Set screw |
| 651 | 1907950513 | Single-Head Eng. Wrench DIN 894 SW24 |
| 652 | 1907950508 | Single-Head Eng. Wrench SW 14 |
| 700 | 3605703052 | Clamping Flange |
| 701 | 3605703053 | Round Nut |
| 752 | 1607200006 | On-Off Switch |
| 752/1 | 2910001052 | Socket head cap screw DIN 84-AM3X10-4.8 |
| 752/2 | 1604650009 | Extension Spring |
| 752/4 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 752/7 | 1603200007 | Detent Roller |
| 753 | 3601023015 | Fixing plate |
| 754 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 755 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 8 | 1604081013 | Rotor Without Winding |
| 8 | 1604081014 | Rotor Without Winding |
| 800 | 1605132067 | Handle |
| 9 | 3600134004 | Bearing cover |
| 99 | 3601119236 | Reference Plate |
