Makita HT43: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HT43: 42 positions on 1 sheet

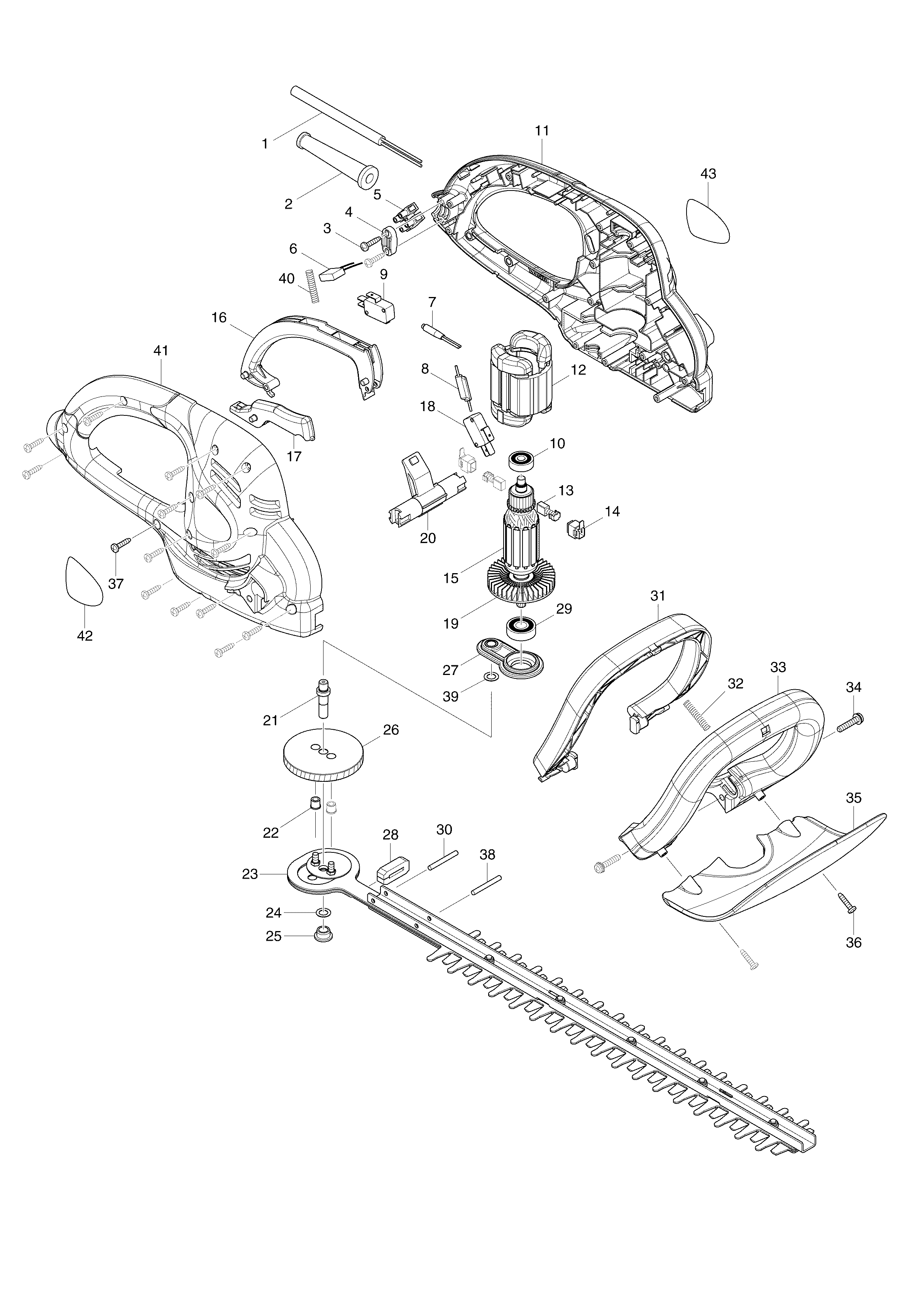

Sheet 1: Makita HT43 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 665877-6 | Makita 665877-6 POWER SUPPLY CORD 1.0-2-0.3 |
| 2 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 3 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 4 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 5 | 654531-7 | Makita 654531-7 TERMINAL BLOCK 1P, 5007F |
| 6 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 7 | 646056-5 | Makita 646056-5 CHOKE COIL, UH4260 |
| 8 | 646090-5 | Makita 646090-5 CHOKE COIL, UH4261 |
| 9 | 650642-6 | Makita 650642-6 MICRO SWITCH DMU -1215, UH4261 |
| 10 | 210030-5 | Makita 210030-5 BALL BEARING 627ZZ, MT811 |
| 11 | 187053-7 | Makita 187053-7 HOUSING SET, UH4261 |
| 12 | 621753-4 | Makita 621753-4 FIELD 220-240V 290/110/225T, UH4261 |
| 13 | 191962-4 | Old code CB-419 = CB-407 |
| 14 | 643923-5 | Makita 643923-5 BRUSH HOLDER 6.5-9.5, HR2410 |
| 15 | 515824-6 | Makita 515824-6 ARMATURE ASSY 240V, UH4261 |
| 16 | 452677-1 | Makita 452677-1 SWITCH LEVER A, UH4261 |
| 17 | 452680-2 | Makita 452680-2 SWITCH LEVER C, UH4261 |
| 18 | 650642-6 | Makita 650642-6 MICRO SWITCH DMU -1215, UH4261 |
| 20 | 452681-0 | Makita 452681-0 SWITCH ARM, UH4261 |
| 21 | 326034-8 | Makita 326034-8 SPINDLE, UH4261 |
| 22 | 262570-9 | Makita 262570-9 NYLON SLEEVE 5, UH4261 |
| 23 | 140826-9 | Makita 140826-9 SHEAR BLADE COMPLETE |
| 24 | 253777-8 | Makita 253777-8 FLAT WASHER 8, MUH304 |
| 25 | 214064-0 | Makita 214064-0 PLANE BEARING 8, UH5261 |
| 26 | 227745-7 | Makita 227745-7 HELILAL GEAR 67, UH5261 |
| 27 | 140828-5 | Makita 140828-5 BEARING BOX COMPLETE, UH4261 |
| 28 | 423417-4 | Makita 423417-4 DUST GUARD, UH4261 |
| 29 | 211062-5 | Makita 211062-5 BALL BEARING 6000ZZ, 9524NB |
| 30 | 268136-3 | Makita 268136-3 PIN 4, HR4002 |
| 31 | 452679-7 | |
| 32 | 233156-6 | Makita 233156-6 COMPRESSION SPRING 5, UH4030 |
| 33 | 452682-8 | Makita 452682-8 FRONT GRIP, UH4261 |
| 34 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 35 | 140829-3 | Makita 140829-3 Protector Complete for UH4261 |
| 36 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 37 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 38 | 268136-3 | Makita 268136-3 PIN 4, HR4002 |
| 39 | 253777-8 | Makita 253777-8 FLAT WASHER 8, MUH304 |
| 40 | 233156-6 | Makita 233156-6 COMPRESSION SPRING 5, UH4030 |
| 41 | 187053-7 | Makita 187053-7 HOUSING SET, UH4261 |
| 42 | 869245-7 | |
| 43 | 892655-3 |
