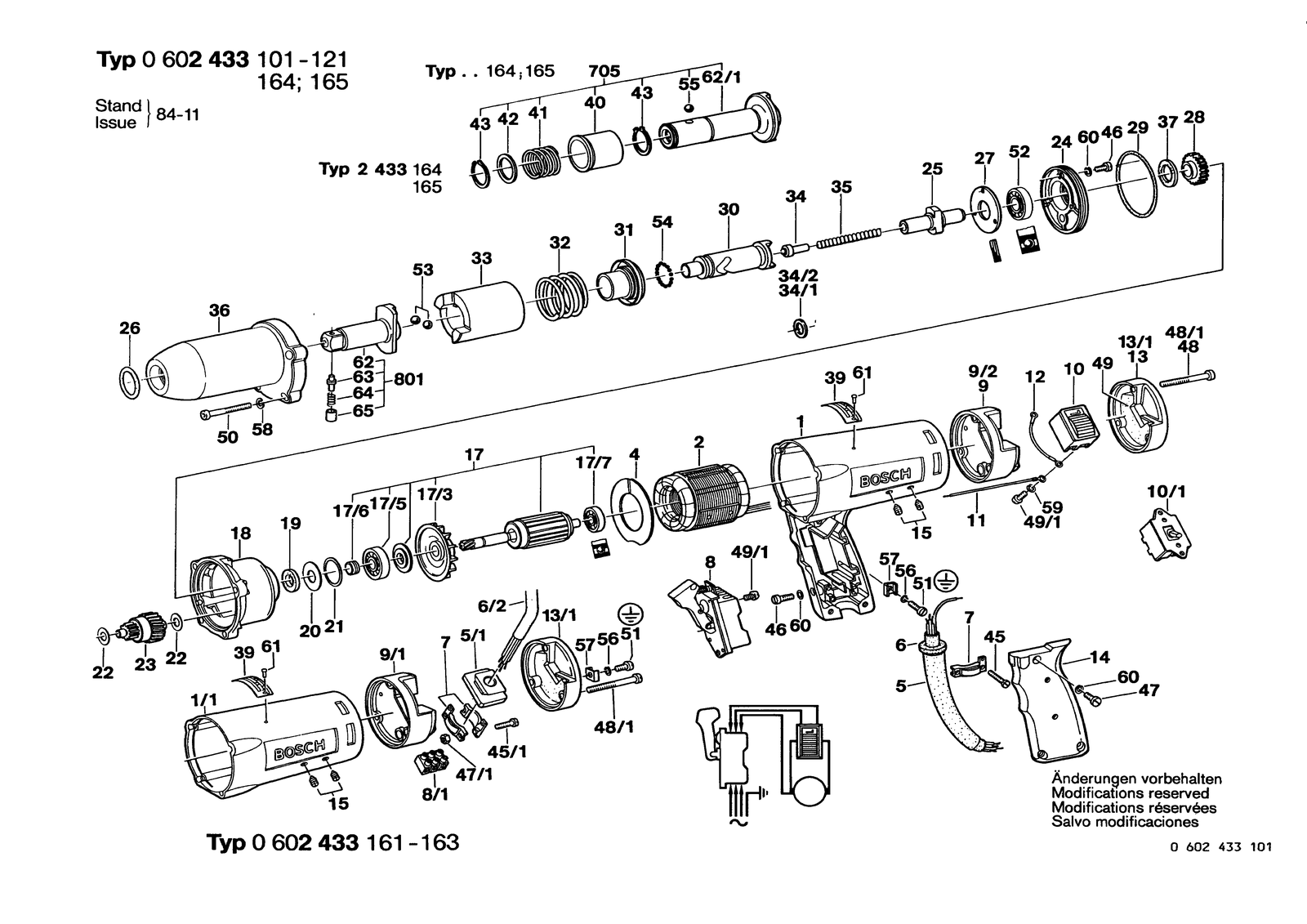

Bosch HSS 64 impact wrench: exploded parts diagram, 1 sheet, 87 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HSS 64: 87 positions on 1 sheet
Bosch HSS 64 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605105001 | Motor Housing |
| 10 | 3607200000 | Switch |
| 11 | 1604440000 | Cable |
| 12 | 1604441000 | Pvc-Insulated Cable |
| 13 | 3605500070 | Switch Cover |
| 13/1 | 1605500039 | Sealing cap Black |
| 14 | 3605500075 | Sealing cap |
| 15 | 1603402004 | Set screw |
| 17 | 1604080028 | Rotor Without Winding |
| 17/5 | 1900900008 | Magneto Ball Bearing E 10 DIN 615 |
| 17/6 | 1600313008 | Oil Return Ring |
| 17/7 | 1900900005 | Magneto Ball Bearing E 7 DIN 615 |
| 18 | 3605820049 | Bearing Housing |
| 19 | 1600108006 | Sealing disk |
| 2 | 1604229029 | Stator 120V/200HZ |
| 2 | 1604229034 | Stator 42V/200HZ |
| 2 | 3604229049 | Stator 200V/150, 265V/200HZ |
| 2 | 3604229050 | Stator 200V/300HZ |
| 2 | 3604229051 | Stator 72V/200HZ, 110V/300HZ |
| 20 | 1600101633 | Shim Thick 0,5 MM |
| 21 | 1600102654 | Shim Thick 0,05 MM |
| 22 | 1600100609 | Shim Thick 0,2 MM |
| 23 | 1606401003 | Multiplate Clutch |
| 24 | 1605820115 | Bearing Flange |
| 25 | 1606455043 | Coupling Half |
| 26 | 1900210123 | O-Ring 22X3 MM |
| 27 | 1600501016 | Conical Spring Washer |
| 28 | 1606317051 | Cylindrical Gear Z=30 |
| 29 | 1600210004 | O-Ring 54,0X3,0 MM |
| 30 | 1603123023 | Drive Shaft |
| 31 | 1605801018 | Bushing |
| 32 | 1604619010 | Compression Spring |
| 33 | 1608710024 | Striker |
| 34 | 1603121007 | Pressure Spindle |
| 34/1 | 1600101627 | Shim |
| 34/2 | 1600101628 | Shim Thick 0,5 MM |
| 35 | 1604610006 | Compression Spring |
| 36 | 1605806220 | Spindle Housing |
| 36 | 3605806114 | Spindle Bearing |
| 37 | 1600108051 | Sealing disk |
| 39 | 3601106054 | Nameplate |
| 4 | 1600117000 | Air-Deflector Ring |
| 40 | 1600328013 | Protection Sleeve |
| 41 | 1604616006 | Compression Spring |
| 42 | 1600102623 | Plain Washer Thick 1,0 MM |
| 43 | 1600116001 | Retaining ring |
| 45 | 2910021062 | Socket head cap screw DIN 84-AM3X20-8.8 |
| 45/1 | 2910021057 | Socket head cap screw |
| 46 | 2910011120 | Socket head cap screw DIN 84-AM4X10-5.8 |
| 47 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 47/1 | 2915011003 | Hex Nut DIN 934-M 3-M-8 |
| 48 | 2910141136 | Hex Socket Head Cap Screw DIN 912-M 4X35-8.8 |
| 48/1 | 2910141140 | Hex Socket Head Cap Screw DIN 912-M 4X45-8.8 |
| 49 | 1602381001 | Insulating Strip 33X10X6 MM |
| 49/1 | 2910011082 | Socket head cap screw DIN 84-AM3,5X6-5.8 |
| 5 | 1600703002 | Grommet Ø13,2-Ø17,0X120 MM |
| 5/1 | 1600306003 | Grommet |
| 50 | 2910141170 | Hex Socket Head Cap Screw DIN 912-M5X40-8.8 |
| 51 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 52 | 1900900271 | Groove ball bearing 6001 Y DIN 625 FD150 |
| 52 | 1900900287 | Groove ball bearing 12X28X8 |
| 53 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 54 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 55 | 1903230011 | Ball DIN 5401-6 G28 |
| 56 | 3600150006 | Spring Washer Ø4,2 MM |
| 57 | 3601321001 | Clamping Saddle |
| 58 | 3604477008 | End Splice |
| 59 | 2916680004 | Spring Lock Washer DIN 127-B3,5 |
| 6 | 1604421012 | Cable |
| 6 | 3604462033 | Elec. Cable W/Connection |
| 6/2 | 1604422018 | Cable |
| 60 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 61 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 62 | 3606455033 | Coupling Half 1/2" |
| 62/1 | 1606455011 | Coupling Half 11 MM |
| 63 | 1603124078 | Detent Pin |
| 64 | 1604611015 | Compression Spring |
| 65 | 1600506008 | Guide Sleeve |
| 7 | 1601315011 | Clamp |
| 705 | 1606455012 | Coupling Half 7/16" |
| 8 | 3607200041 | Switch |
| 8/1 | 1901091013 | Socket-Terminal Strip 3X6 MM |
| 801 | 1606455045 | Coupling Half 5/8" |
| 801 | 3606455033 | Coupling Half 1/2" |
| 9 | 3605130030 | Switch Housing |
| 9/1 | 1605130016 | Switch Housing |
| 9/2 | 1605130014 | Switch Housing |
