Bosch HSR 55-A
Bosch HSR 55-A high frequency kick-out s: exploded parts diagram, 1 sheet, 64 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

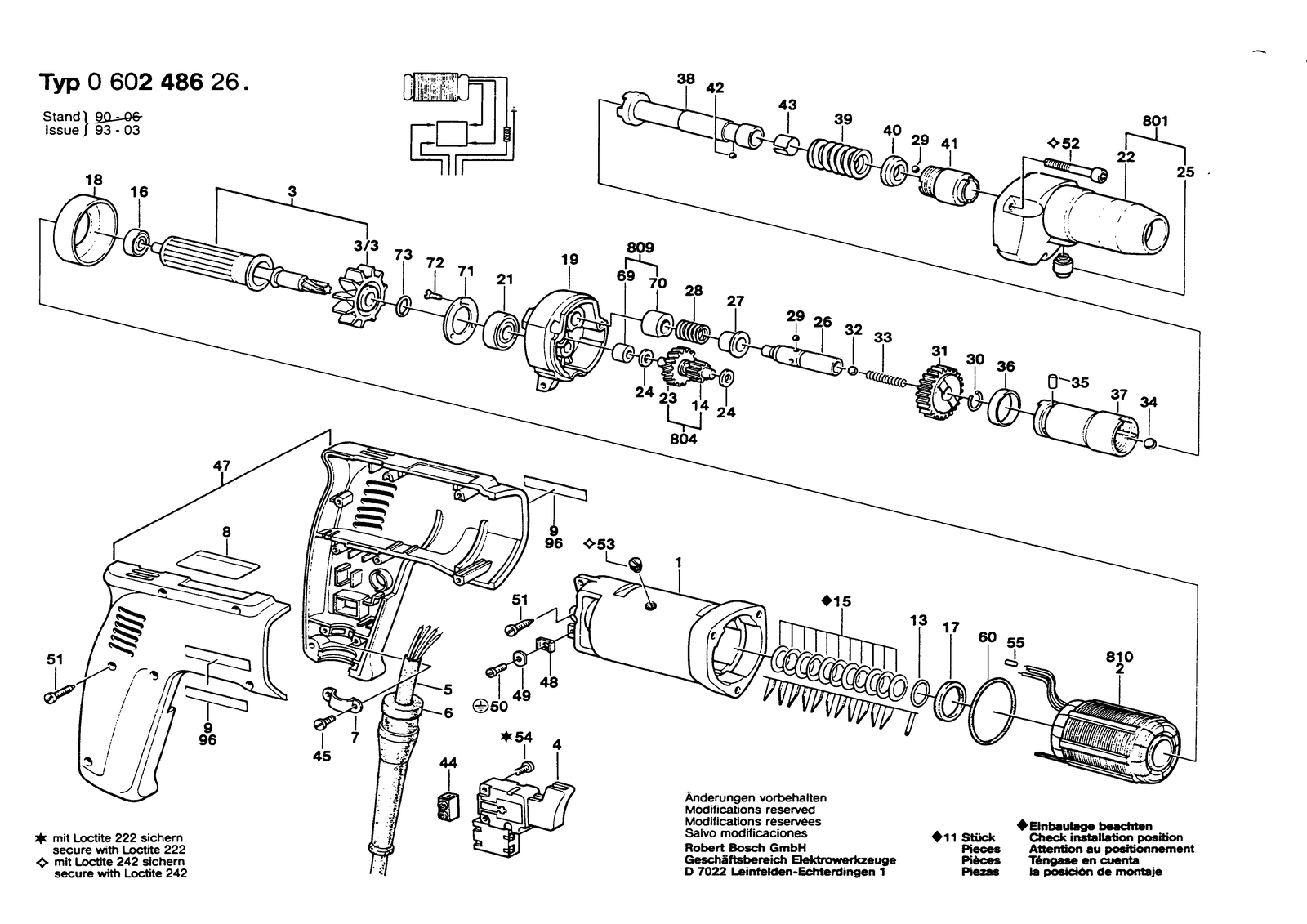

All parts of Bosch HSR 55-A: 64 positions on 1 sheet
Bosch HSR 55-A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102044 | Motor Housing |
| 13 | 3600210039 | O-Ring 12,0X2,25 MM |
| 14 | 3606319014 | Cylindrical Gear Z=31 |
| 15 | 3600150013 | Disc Spring |
| 16 | 1900905015 | Groove ball bearing 625-2Z DIN 625 |
| 17 | 1600209011 | Seal Ring |
| 18 | 1600502005 | Air-Deflector Ring |
| 19 | 1605820196 | Bearing Housing |
| 19 | 3605820066 | Bearing Housing |
| 21 | 1900905018 | Ball Bearing 7X22X7 |
| 22 | 3605806106 | Gear Housing |
| 23 | 1606308017 | Spindle With Gear Z=11 |
| 24 | 2600100613 | Shim 0,50 MM |
| 25 | 1603203024 | Pressure Spindle |
| 26 | 1603124099 | Control Shaft |
| 27 | 1600521018 | Guide Bushing |
| 28 | 1604616019 | Compression Spring |
| 29 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 3 | 3604080023 | Rotor Without Winding |
| 3/3 | 1606610105 | Fan |
| 30 | 2916600006 | Retaining ring 10 DIN 9045 |
| 31 | 1606325021 | Cylindrical Gear Z=43 |
| 32 | 1903230011 | Ball DIN 5401-6 G28 |
| 33 | 1604612005 | Compression Spring |
| 34 | 1903230014 | Ball DIN 5401-8 MM Iii-St |
| 35 | 1603200019 | Roller |
| 36 | 2600209018 | Retaining snap ring |
| 37 | 3606445022 | Carrier |
| 38 | 3606455029 | Coupling Half 6,3 MM |
| 39 | 1604619015 | Compression Spring |
| 4 | 3607200004 | Switch |
| 40 | 1600250000 | Taper Ring |
| 41 | 3600364010 | Threaded Bushing |
| 42 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 43 | 3604682003 | Holding Spring |
| 44 | 1901091012 | Socket-Terminal Strip 1X1,5 MM/2 |
| 45 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 47 | 3605132037 | Handle |
| 48 | 3601321001 | Clamping Saddle |
| 49 | 3600150006 | Spring Washer Ø4,2 MM |
| 5 | 3604462050 | Elec. Cable W/Connection |
| 50 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 51 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 52 | 2910141140 | Hex Socket Head Cap Screw DIN 912-M 4X45-8.8 |
| 53 | 3603402000 | Set screw |
| 54 | 2603410023 | Socket head cap screw M3X10 MM |
| 55 | 3604477008 | End Splice |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 60 | 3600210017 | O-Ring 53,0X2,0 MM |
| 69 | 2600300058 | Bushing |
| 7 | 1601302014 | Fastening Clamp |
| 70 | 1600300081 | Clamp Bushing |
| 71 | 3600190012 | Retaining Washer |
| 72 | 2910780050 | Countersunk-Head Screw DIN 963-M3X8-8.8 |
| 73 | 1600210045 | O-Ring 8,0X1,0 MM |
| 8 | 3601106053 | Nameplate |
| 801 | 3605806013 | Gear Housing |
| 804 | 3606328014 | Spindle With Gear Z=31/11 |
| 809 | 3605820034 | Bearing Housing |
| 810 | 1604229200 | Stator 265V/200HZ, 200V/150HZ |
| 810 | 1604229201 | Stator 200V/300HZ,135V/200HZ |
| 810 | 1604229202 | Stator 72V/200HZ,110V/300HZ |
| 9 | 1601110483 | Manufacturer's nameplate |
| 96 | 1601110483 | Manufacturer's nameplate |
