Bosch HSR 44-A

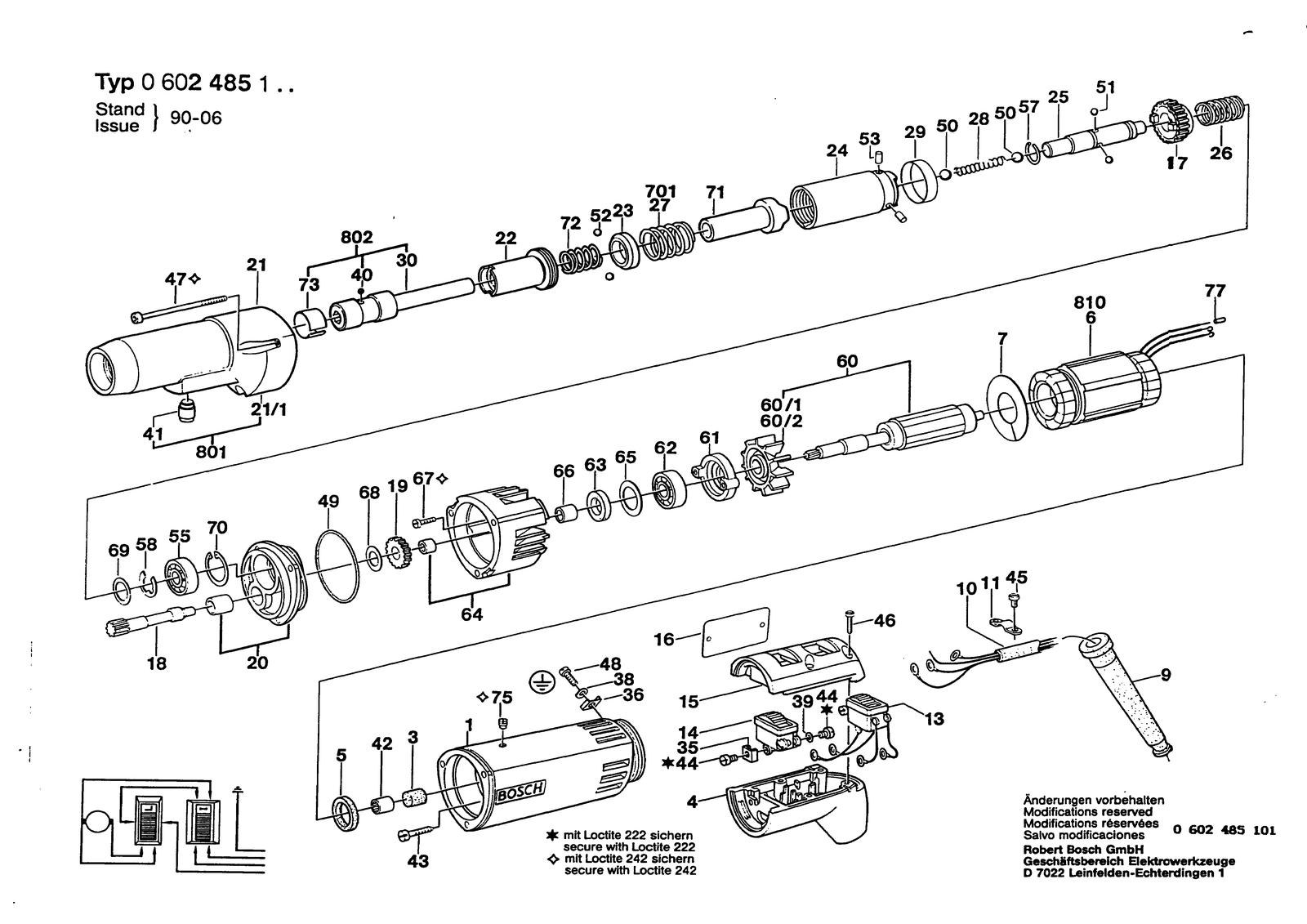

Bosch HSR 44-A high frequency kick-out s: exploded parts diagram, 1 sheet, 72 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HSR 44-A: 72 positions on 1 sheet
Bosch HSR 44-A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102048 | Motor Housing |
| 1 | 3605102062 | Motor Housing |
| 10 | 1604421025 | Cable |
| 10 | 3604462048 | Elec. Cable W/Connection |
| 11 | 1601302001 | Fastening Clamp |
| 13 | 1607200067 | Switch |
| 14 | 1607200066 | Reversing Switch |
| 15 | 3605500067 | Housing Cover |
| 16 | 3601106053 | Nameplate |
| 17 | 1606325012 | Cylindrical Gear Z=34 |
| 18 | 1603160029 | Spindle With Gear Z=10 |
| 19 | 1606319009 | Cylindrical Gear Z=25 |
| 20 | 3605820053 | Bearing Housing |
| 21 | 1605806302 | Spindle Bearing |
| 21 | 3605806123 | Spindle Bearing |
| 22 | 3600364011 | Threaded Bushing |
| 23 | 1600201012 | Thrust Ring |
| 24 | 1606445006 | Carrier |
| 25 | 1603124092 | Control Shaft |
| 26 | 1604616017 | Compression Spring |
| 27 | 1604619012 | Compression Spring |
| 28 | 1604611021 | Compression Spring |
| 29 | 1600209013 | Retaining snap ring |
| 3 | 1603212000 | Lubricating Felt |
| 35 | 3601321004 | Clamping Saddle |
| 36 | 3601321002 | Clamping Saddle |
| 38 | 3600150009 | Spring Washer |
| 39 | 2916060003 | Spring Washer A 3 DIN 137-ST |
| 4 | 3605132046 | Handle |
| 40 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 41 | 1603203024 | Pressure Spindle |
| 42 | 1900301003 | Sintered-Metal Bushing J4G7X8R6X6DIN1850 |
| 43 | 2910211025 | Tapping Screw DIN 7971-BZ4,2X13 |
| 44 | 2910091046 | Pan head screw DIN 85-AM3,5X15-4.8 |
| 45 | 2910011048 | Socket head cap screw DIN 84-AM3X6-5.8 |
| 46 | 2910211013 | Tapping Screw DIN 7971-BZ3,5X19 |
| 47 | 2910021076 | Socket head cap screw DIN 84-BM3X55-8.8 |
| 48 | 2910110050 | Pan head screw DIN 85-AM3X8-MS |
| 49 | 1600210010 | O-Ring 35,0X1,5 MM |
| 50 | 1903230011 | Ball DIN 5401-6 G28 |
| 51 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 52 | 1903230004 | Ball DIN 5401-3 Mm-Iii-St |
| 53 | 1603200011 | Cylindrical Roller |
| 55 | 1900905019 | Groove ball bearing 6X19X6 |
| 57 | 2916600006 | Retaining ring 10 DIN 9045 |
| 58 | 2916080011 | Locking washer 8 DIN 6799 |
| 60 | 1604080053 | Rotor Without Winding |
| 61 | 1600501030 | Conical Spring Washer |
| 62 | 1900900428 | Groove ball bearing 6X19X6 |
| 63 | 1600205025 | Felt Washer |
| 64 | 3605806105 | Gear Housing |
| 65 | 3600101016 | Shim 0,60 MM |
| 66 | 1600300044 | Intermediate Ring |
| 67 | 2910001052 | Socket head cap screw DIN 84-AM3X10-4.8 |
| 68 | 1420100649 | Shim |
| 69 | 2200101601 | Shim |
| 7 | 1600117001 | Air-Deflector Ring |
| 70 | 2916660005 | Spring retaining ring DIN 472-19X1MM |
| 701 | 1604618005 | Compression Spring |
| 71 | 3606455026 | Coupling Half 55° |
| 71 | 3606455027 | Coupling Half 45° |
| 72 | 3604618004 | Compression Spring |
| 73 | 3604682003 | Holding Spring |
| 75 | 2912081116 | Set screw DIN 915-M4X6-45H |
| 77 | 1900452000 | End Splice A 0,5-6 DIN 46 228 |
| 801 | 3605806170 | Spindle Bearing |
| 802 | 3608508003 | Toolholder |
| 810 | 1604229181 | Stator 265V/200HZ |
| 810 | 1604229182 | Stator 200V/300HZ,135V/200HZ |
| 810 | 1604229183 | Stator 72V/200HZ,110V/300HZ |
| 810 | 1604229185 | Stator 42V/300HZ,42V,200HZ |
| 9 | 1600703012 | Grommet Ø5,5-Ø8,3X75 MM |
