Bosch HSB 10

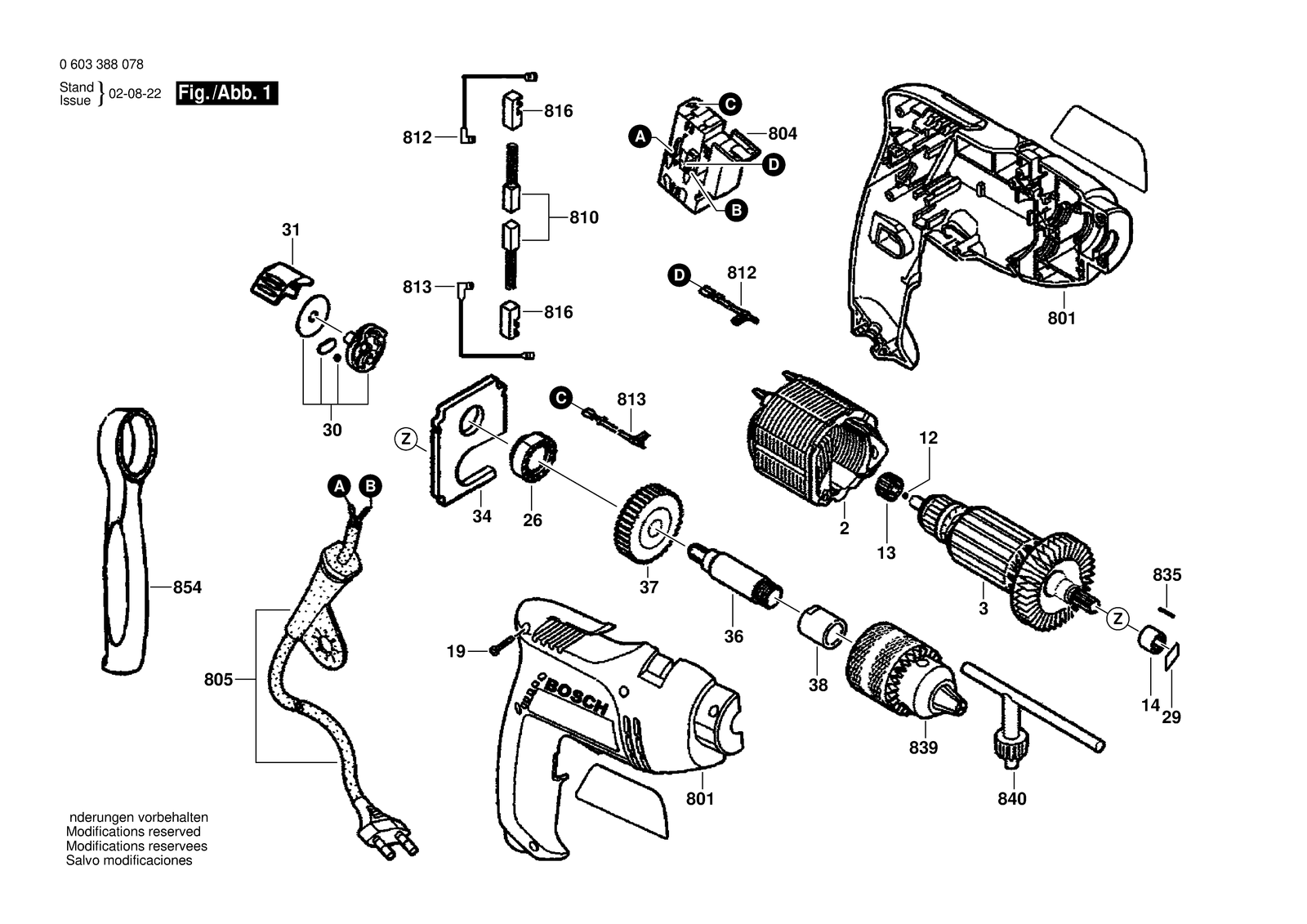

Bosch HSB 10 univ. 2speed impact drill: exploded parts diagram, 1 sheet, 30 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HSB 10: 30 positions on 1 sheet
Bosch HSB 10 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 12 | 1903230005 | Ball |
| 13 | 9618086693 | Sintered-Metal Bushing |
| 14 | F000600231 | Needle bearing |
| 19 | 9618087099 | Screw 4X16 MM |
| 2 | F000607003 | Pole Shoe 127V |
| 2 | F000607004 | Pole Shoe 220V |
| 26 | F000614002 | Catch Disk |
| 29 | 1601000013 | Pressure Plate 1,5 MM |
| 3 | F000605006 | Armature With Fan 127V |
| 3 | F000605007 | Armature 220V |
| 30 | 2601901012 | Indexing Disk |
| 31 | 2601990029 | Change-Over Switch |
| 34 | F000613010 | Spindle Bearing |
| 36 | F000619007 | Drilling Spindle |
| 37 | F000617011 | Toothed Gear |
| 38 | 9618086698 | Sintered-Metal Bushing |
| 801 | F000601067 | Housing Section |
| 804 | F000608019 | Switch |
| 805 | 9618086866 | Power supply cord |
| 805 | 9618086965 | Power supply cord |
| 805 | F000600292 | Drawing |
| 805 | F000609107 | Power supply cord |
| 810 | F000612015 | Carbon-Brush Set |
| 812 | 2604448018 | Connecting Cable White L=124 MM |
| 813 | 2604448130 | Connecting Cable White L=88 MM |
| 816 | 9618086695 | Brush Holder |
| 835 | F000616010 | Shelf |
| 839 | 1608571079 | Chuck Ø1,0-10 Mm, 3/8" |
| 840 | F000632059 | Chuck Wrench |
| 854 | F000603004 | Handle |
