Makita HS012G
Makita HS012G: exploded parts diagram, 1 sheet, 80 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HS012G: 80 positions on 1 sheet

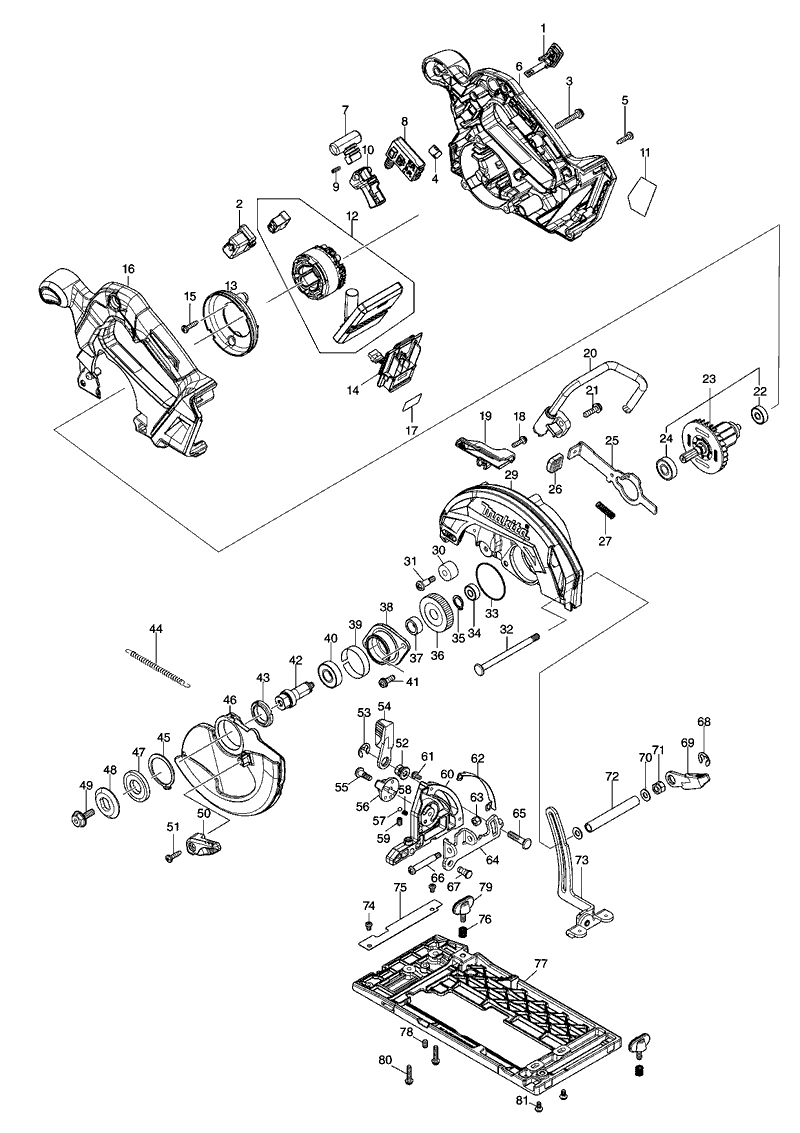

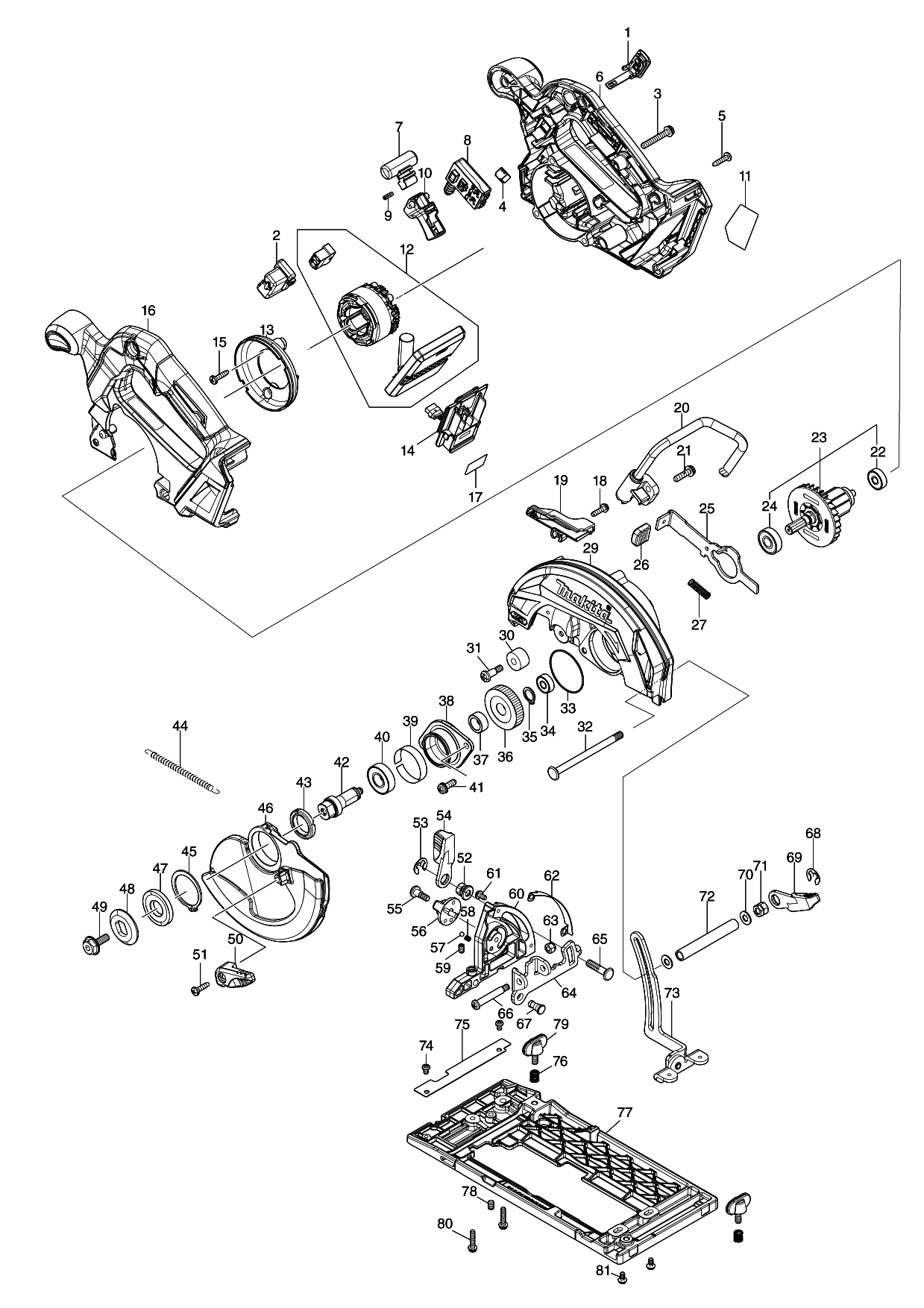

Sheet 1: Makita HS012G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 140G30-2 | |
| 2 | 459256-6 | |
| 3 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 4 | 620936-3 | |
| 5 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 6 | 136839-6 | |
| 7 | 419704-7 | Makita 419704-7 LOCK OFF BUTTONKP0810C |
| 8 | 650008-0 | |
| 9 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 10 | 413N46-5 | |
| 11 | 8586D6-4 | |
| 12 | 629B81-3 | |
| 13 | 413N45-7 | |
| 14 | 632P65-6 | Makita 632P65-6 TERMINAL UNIT |
| 15 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 16 | 136840-1 | |
| 17 | 8586E4-5 | |
| 18 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 19 | 455483-3 | Makita 455483-3 DUCT |
| 20 | 122D67-3 | |
| 21 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 22 | 210022-4 | Makita 210022-4 BALL BEARING 626DDW, 9526NB |
| 23 | 519778-9 | |
| 24 | 211491-2 | |
| 25 | 346837-4 | Makita 346837-4 SHAFT LOCK |
| 26 | 286039-9 | |
| 27 | 233117-6 | Makita 233117-6 COMPRESSION SPRING 6, CS550D |
| 29 | 183Y42-0 | |
| 30 | 262552-1 | Makita 262552-1 RUBBER SLEEVE6, N5900B |
| 31 | 265115-2 | Makita 265115-2 + PAN HEAD SCREW M5 BHS630 |
| 32 | 266194-3 | Makita 266194-3 FLAT HEAD SQUARE NECK BOLT M6, SS610D |
| 33 | 213565-5 | Makita 213565-5 O RING 42, 9067 |
| 34 | 210206-4 | |
| 35 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 36 | 227A40-1 | |
| 37 | 257349-1 | Makita 257349-1 SLEEVE 12 |
| 38 | 319212-7 | Makita 319212-7 BEARING BOX |
| 39 | 347B30-5 | |
| 40 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 41 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 42 | 326459-6 | Makita 326459-6 SPINDLE |
| 43 | 285845-9 | Makita 285845-9 BEARING RETAINER 19-29, SS610D |
| 44 | 231878-2 | Makita 231878-2 TENSION SPRING 4 |
| 45 | 961152-1 | Makita 961152-1 RETAINING RING (EXT)S-34, SS610D |
| 46 | 312D77-0 | |
| 47 | 224593-5 | Makita 224593-5 INNER FLANGE 35 |
| 48 | 224409-4 | Makita 224409-4 35 Outer Flange 35 for 5008MG |
| 49 | 266924-2 | Makita 266924-2 HEX. SOCKET HEX. BOLT M6X18 |
| 50 | 271474-4 | |
| 51 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 52 | 252320-0 | |
| 53 | 257982-9 | Makita 257982-9 BOW STOP RING E-8 |
| 54 | 271446-9 | |
| 55 | 251370-2 | Makita 251370-2 PAN HEAD SCREW M5, 5007MG |
| 56 | 413N47-3 | |
| 57 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 58 | 233314-4 | Makita 233314-4 COMPRESSION SPRING 4, 5007MG |
| 59 | 266436-5 | Makita 266436-5 H.S.SET SCREW(FLAT POINT)M5X8 |
| 60 | 312D78-8 | |
| 61 | 251358-2 | Makita 251358-2 PAN HEAD SCREW M4X8 |
| 62 | 347A92-7 | |
| 63 | 252103-8 | Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R |
| 64 | 347A90-1 | |
| 65 | 266309-2 | |
| 66 | 265056-2 | Makita 265056-2 PAN HEAD SCREW M5, 5604R |
| 67 | 256511-5 | Makita 256511-5 SHOULDER PIN 6-7, MT581 |
| 68 | 257982-9 | Makita 257982-9 BOW STOP RING E-8 |
| 69 | 271446-9 | |
| 70 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 71 | 264103-6 | Makita 264103-6 HEX. NUT M6 |
| 72 | 332126-3 | Makita 332126-3 PIPE 6 |
| 73 | 162C19-6 | |
| 74 | 911102-6 | Makita 911102-6 PAN HEAD SCREW M4X6 |
| 75 | 347A93-5 | |
| 76 | 231456-8 | |
| 77 | 312D76-2 | |
| 78 | 266436-5 | Makita 266436-5 H.S.SET SCREW(FLAT POINT)M5X8 |
| 79 | 265720-5 | Makita 265720-5 Thumb Screw M5X14, HR2412 |
| 80 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 81 | 265648-7 |
